Stripped-down Raspberry Pi 3B+ SBC powers YARH.IO Micro 2 DIY handheld PC

We’ve already seen a few DIY Raspberry Pi-based handheld computers in the past with the likes of Zero Terminal V3 or hgTerm powered by a Raspberry Pi Zero and a stripped-down Raspberry Pi 3 board respectively.

So why not another? YARH.IO Micro 2 DIY handheld PC is based on a Raspberry Pi 3B+ SBC stripped from its Ethernet port, whose double stack USB connectors have been replaced with single stack USB connectors. The DIY computer also adds off-the-shelf parts with a 4″ touch screen display and a Bluetooth keyboard without touchpad, and gets its power from a 3,500 mAh battery.YARH.IO Micro 2

YARH.IO Micro 2 key components and features:

  • SBC – Stripped-down Raspberry Pi 3B+ SBC
  • Display – HyperPixel 4.0 4-inch IPS display with 800×480 resolution, touchscreen from Pimoroni
  • Keyboard – 49-key mini keyboard with Bluetooth 3.0 ($10)
  • USB – USB straight and right-angle connectors for four USB ports around the device
  • Misc – DS3231 RTC, MicroSD card for OS, various cables, switches, and accessories
  • Power
    • Arduino Pro Micro board or compatible to control the battery voltage
    • MT3608 DC Voltage Regulator, Step Up Boost Converter, Power Supply Module
    • 3,500 mAH 18650 Li-ion battery
  • Dimensions – 116 x 123 x 27 mm

The case is 3D printed and you can find the 3D printer files here.

Raspberry Pi 3B+ Handheld PC YARH.IO Micro 2 can run Raspberry Pi OS or Kali Linux, and installation instructions and software documentation can be found on the project’s website.

If you like this Raspberry Pi handheld PC, but don’t feel confident (or lazy) about the DIY part, the designer sells fully assembled prototypes for $629.99.

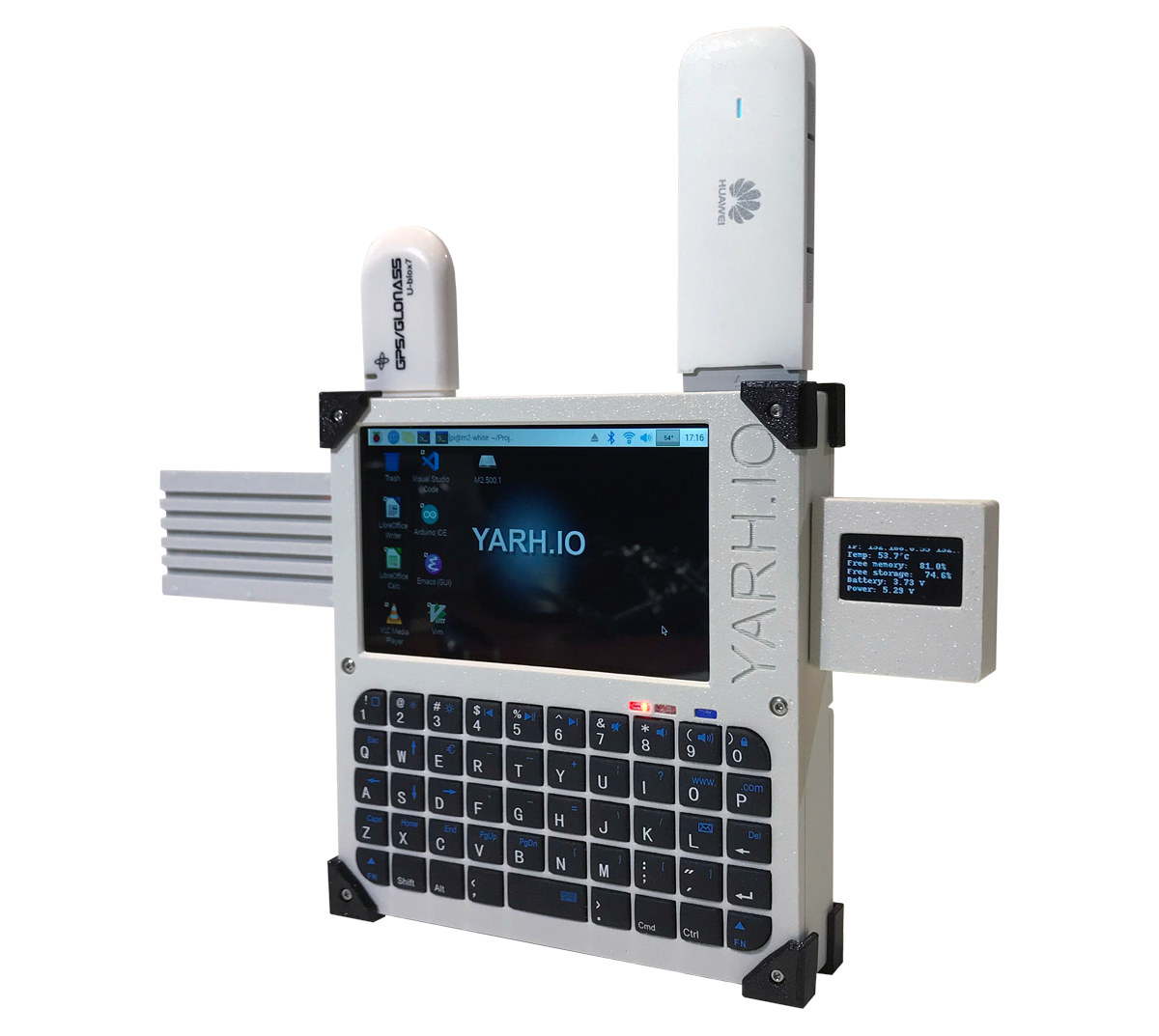

Rasperry Pi 3 Micro PC with USB Ports
YARH.IO Micro 2 with multiple USB adapters, and external OLED display

Via NotebookCheck.Net and Hackster.io
