ESP32-C3-DevKitM-1 RISC-V WiFI & BLE board to launch for $8, modules for $1.8+

ESP32-C3 may be one of the most expected RISC-V processors in the IoT world, as it’s eventually expected to sell for the same price as ESP8266 and offers both WiFi and Bluetooth LE connectivity.

Some engineering samples of the chip. modules and boards were distributed to developers shortly after the announcement at the end of the last year, but now it appears ESP32-C3-DevKitM-1 board will become available for $8 next month from distributors such as Mouser or DigiKey.

ESP32-C3-DevKitM-1 boardSince I’ve never written about ESP32-C3-DevKitM-1 board let’s check out the specifications:

  • Wireless module – ESP32­-C3­-MINI­-1 with ESP32-C3FH4 (105°C) or ESP32-C3FN4 (85°C) 32-bit RISC-V single-core processor, up to 160 MHz, 4 MB embedded flash,  384 KB ROM, 400 KB SRAM (16 KB for cache), 8 KB SRAM in RTC
  • Connectivity – 2.4 GHz 802.11b/g/n Wi-Fi 4 & Bluetooth LE 5.0
  • USB – 1x Micro USB port for power and programming via USB-UART bridge
  • Expansion – 2x headers with GPIO, ADC, UART, SPI, etc…
  • Misc – RGB LED, Reset and Boot buttons
  • Power Supply
    • 5V via Micro USB port, default power supply
    • 5V or 3.3V via header pins
  • Dimensions – 38.9 x 25.4 mm excluding PCB antenna

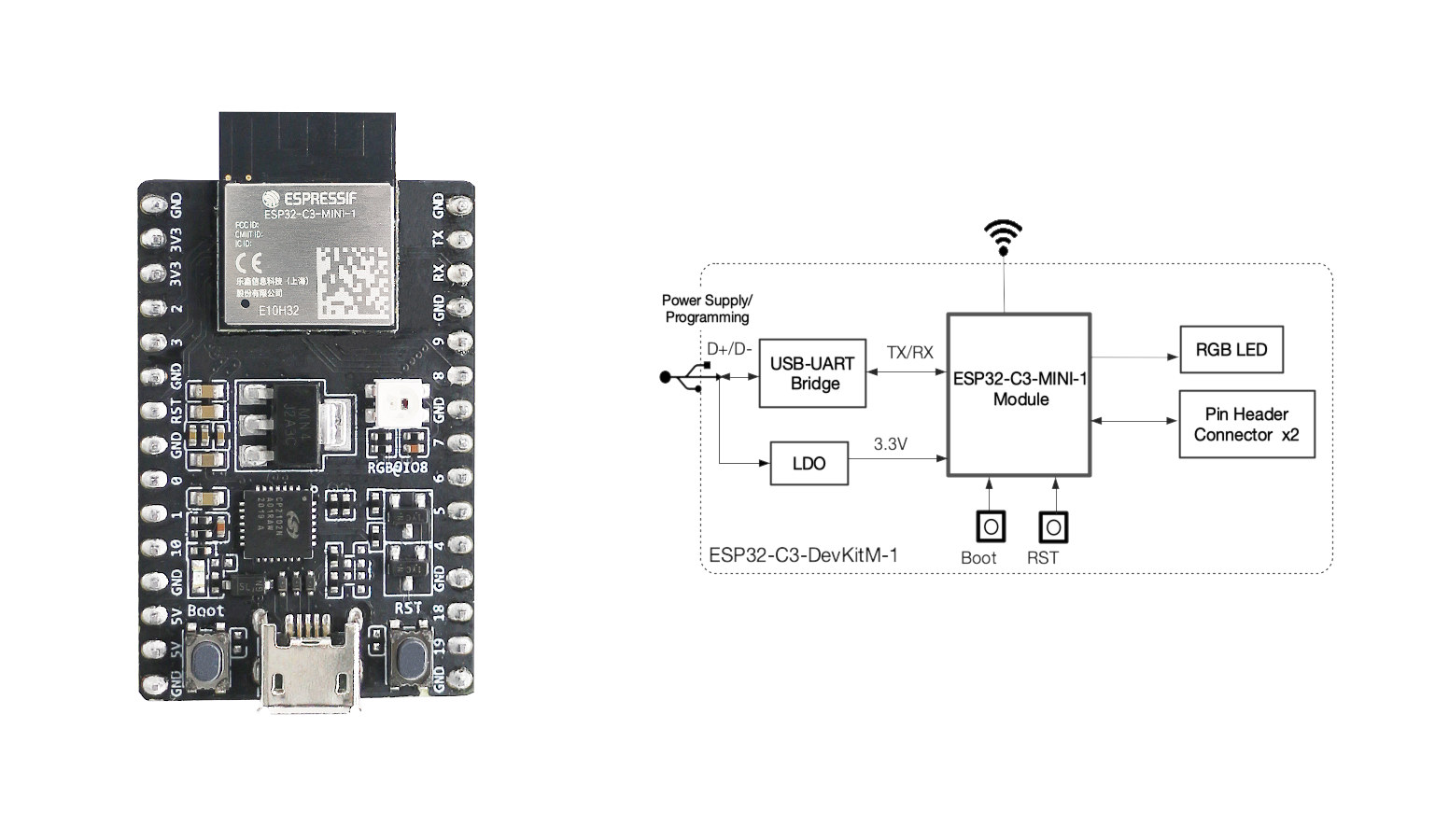

ESP32-C3 board

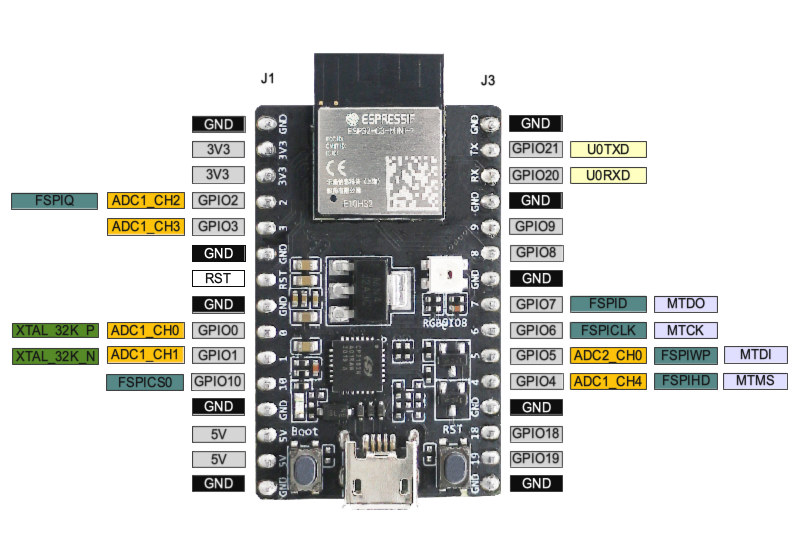

ESP32-C3-DevKitM-1 pinout diagram

The board can currently be programmed with the ESP-IDF framework, and you’ll find documentation to get started on Espressif’s website.

There’s no stock information on DigiKey, but on Mouser the following quantities are on order:

  • 291 – Expected 4/19/2021
  • 281 – Expected 5/10/2021

The board can also be found on Aliexpress for $13 with a couple left. It should also be noted that at $8, ESP32-C3-DevKitM-1 is exactly the same price as ESP32-S2-DevKitM-1. The ESP32-C3-MINI-1 modules are already competitively priced with Mouser offering samples for $1.8-$1.9, and stock expected on May 21st.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
8 Comments
oldest
newest
Anonymouse
Anonymouse
3 years ago

It’s time to get schwifty!

rena2019
3 years ago

“Sorry, this item is no longer available!” 🙁

uiop
uiop
3 years ago

Any word on whether their on-chip USB flash/debug is implemented?

rektide
rektide
3 years ago

“USB Serial/JTAG functionality” is not supported on these engineering samples.

rektide
rektide
3 years ago

Please note that these are all engineering samples. I had some on order with Mouser that arrived yesterday. Deep-sleep & power optimizations are not complete. USB Serial/JTAG is not implemented. Very happy to have these units, to get to start hacking, and am even more excited for the launch release, with better power management.

Frank Earl
3 years ago

Knowing they’re samples, I’m still keen on getting my grubby mitts on one.

Jack
Jack
3 years ago

opensource ?

rektide
rektide
3 years ago

got some of the engineer sample -c3’s. now I’m super eager for the -c6, which appear to be the same but with 802.11ax. would love iot devices that can participate in effective use of spectrum!
