MyCobot robotic arm is offered with Raspberry Pi 4 or M5Stack ESP32 modules

Elephant Robotics’ MyCobot robotic arm was introduced last year with M5Stack Atom & Basic ESP32 modules with 6-degrees of freedom, a 250 grams max payload, available now for $599. The company has launched a new $699  version – MyCobot-Pi – with most of the same features, except for an upgrade to Raspberry Pi 4B which offers more performance and flexibility.

Both versions of MyCobot arm robotic arm support accessories such as a gripper and a suction pump attachable through a LEGO connector, but while the original version – MyCobot-M5 – relies on Arduino programming, the new MyCobot-Pi runs Debian/Ubuntu and ROS operating systems with image recognition algorithms that can work with a variety of cameras. Since we’ve missed last year’s announcement, we’ll cover both models in this article.

myCobot-Pi and myCobot-M5

MyCobot Robotic Arm

Despite the mechanical parts being the same, the specifications for MyCobot-M5 and MyCobot-Pi differ quite a lot:

  • Controller
    • MyCobot-M5 – M5Stack Basic with ESP32 dual-core processor with 2.4 GHz WiFi 4 and Bluetooth LE connectivity
    • MyCobot-PiRaspberry Pi 4 Model B SBC with quad-core Cortex-A72 processor, dual-band WiFi 5 & Bluetooth 5.0 connectivity
  • Display
    • MyCobot-M5 – Built-in 2-inch IPS screen
    • MyCobot-Pi – 2x Micro HDMI output port up to 4Kp60
  • Supported cameras
    • MyCobot-M5M5 StickV K210 RISC-V camera module
    • MyCobot-Pi – Official Raspberry Pi cameras or third-party USB cameras
  • USB
    • MyCobot-M5 – 1x USB Type-C port
    • MyCobot-Pi – 2x USB 3.0 ports, 2x USB 2.0 ports
  • Robotic Arm – 280mm working range, 6 DoF, payload up to 250 grams
  • Expansion
    • MyCobot-M5 – External 20-pin GPIO header
    • MyCobot-Pi – External 40-pin GPIO header
  • Weight – 850 grams

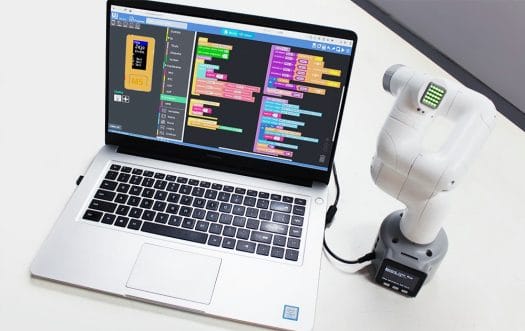

myCobot M5 robotic arm
myCobot-M5 robotic arm

MyCobot-M5 is meant to be connected to a host computer, and can be programmed using the Arduino IDE, but also support M5Stack’s UIFlow visual programming software based on Blockly, as well as RoboFlow software for industrial robots supporting multiple functional modules, and Arduino + ROS open-source system.

mycobot-Pi Raspberry Pi 4 robotic arm

myCobot-Pi is more like a standalone Raspberry Pi 4 computer that happens to be fitted with a robotic arm, So you could just connect an HDMI display, USB or wireless keyboard and mouse, and develop your application directly on the robot running Debian (Raspberry Pi OS), or Ubuntu, and ROS to handle the servos.

MyCobot robotic arms are mostly designed for robotics and artificial intelligence research and education, as well as smart home and light industry and commercial robotics applications. Commercial applications would often require a heavier payload so Elephant Robotics also designed the $2,999 MyCobot Pro version of the MyCobot-M5 with a max payload of one kilogram, a brushless DC industrial motor, and higher repeated positioning accuracy (±0.3mm vs ±0.5mm for the cheaper versions).

You’ll find the source code for ROS, C++ & Python APIs, and a mobile phone app on Github, and you may also want to check out the documentation to learn how to get started with the ESP32 / Raspberry Pi robotic arm.

Availability and pricing

If you’d like to give myCobot robotic arm a go, myCobot-M5 and myCobot-Pi cab be purchased on Elephant Robotics store for $599 and $699 respectively. You’ll also find a suction cup, an adaptive gripper, a choice of bases, and an “intelligent warehouse kit” that can teach kids C++/Python programming, computer vision with OpenCV, using color blocks, a suction cup, and other accessories.

Intelligent Warehouse Kit

A crowdfunding campaign crippled with delays

If Elephant Robotics rings a bell, it may be because we wrote about the company’s MarsCat bionic cat based on Raspberry Pi 3 last year, which launched via Kickstarter, and was initially scheduled to ship in May 2020.  But the company completely underestimated manufacturing challenges, and COVID-19 was yet to be a broadly known issue at the time of the announcement, and to date, MarsCat has yet to ship. The company provides monthly or so update, but backers are clearly not pleased with the one-year delay and relative lack of communication. This is not clear whether this can affect MyCobot in anyway, but it does not look very good.

Via LinuxGizmos and Techbullion
