IZIRUN open-hardware STM32 development boards expose GPIOs through M.2 connector (Crowdfunding)

M.2 sockets are typically used to connect wireless or storage expansion boards to laptops, computers, and SBC’s. But nothing precludes them from being used for another purpose, and earlier this year we wrote about Sparkfun MicroMod MCU boards with an M.2 connector for GPIOs, I2C, SPI, etc…

IZITRON has expanded the concept with three slightly larger (IZIRUN) STM32 boards routing more IOs to the M.2 connector, and additional features such as built-in EEPROM and buttons. IZIGOBOARD carrier board is then used to host the STM32F0, STM32F4, or STM32F7 board in order to ease development.

IZIRUN STM32 development boards

IZIRUNF7 STM32F7 MCU board with M.2 socket
IZIRUNF7 board with STM32F7 Cortex-M7 microcontroller

IZIRUN boards specifications:

  • Microcontroller
    • IZIRUNF0 – STMicro STM32F030CCT6 Cortex-M0 MCU @ 48 MHz with 256KB flash, 32 KB SRAM
    • IZIRUNF4 – STMicro STM32F407VET6 Cortex-M4 MCU @ 168 MHz with 512KB flash, 192KB SRAM
    • IZIRUNF7 – STMicro STM32F769NIH6 Cortex-M7 MCU @ 216 MHz with 2MB KB flash, 532KB SRAM
  • On-board RAM – IZIRUNF7 only – 8MB SDRAM
  • Storage
    • 16KB EEPROM
    •  IZRUNF0/4 – 512KB flash
    • IZIRUNF7 – 2MB flash plus MicroSD card socket
  • I/Os via M.2 socket with 67-pin
    • Up to 4x UART, up to 2x I2C, 1x SPI, up to 4x ADC, up to 21 PWM
    • Up to 43 GPIOs (23 GPIO max for IZIRUNF0)
    • IZIRUNF4/7 only
      • CAN Bus via on-board Microchip ATA6561 CAN FD-ready transceiver
      • 10/100M Ethernet via on-board Microchip LAN8742A PHY
    • IZIRUNF4 only – USB device
    • IZIRUNF7 only
      • USB OTG
      • MIPI DSI
      • 2x DFSDM (Digital Filter for Sigma-Delta Modulator), a generic ADC
  • Misc – Reset and user buttons, SWD debug port
  • Dimensions – 35 × 35 mm
  • Temperature range – -20°C to +80°C

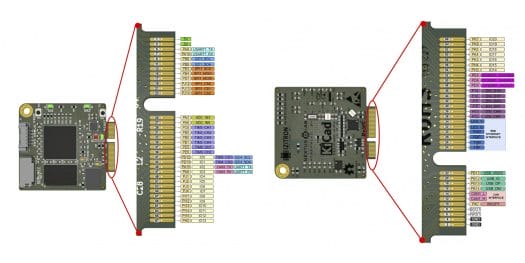

IZIRUN pinout diagram M2 socket
IZIRUNF7 pinout diagram

IZIRUNF0 is designed for low-power applications and IoT projects, IZIRUNF4 for motor control, display (matrix, OLED), CAN, Ethernet communications, etc…, while the IZIRUNF7 board can be used for more complex applications with 2D accelerated graphical user interfaces, audio, Ethernet, and more.

IZIGOBOARD carrier board

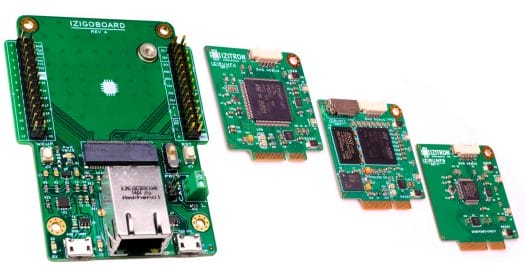

IZIGOBOARD carrier board and the three IZIRUN STM32 boards

Key features and specifications for IZIGOBOARD:

  • Support for IZIRUN M.2 modules
  • Connectivity – RJ45 Ethernet port
  • USB – 1x Micro USB port for UART, 1x Micro USB port for device/host
  • Expansion
    • 2x 26-pin headers for IO’s
    • CAN bus via 2-pin terminal block
  • Misc – Reset and user/wake button, system/bootloader switch, UART Tx/RX LEDs, power LED


IZITRON explains bare-metal programming of the STM32 boards is possible, but the company also provides littlekernel’s (LK) demo, examples, and drivers. The boards are open-source hardware with KiCad project files including schematics and PCB layout, as well as firmware and software available on Bitbucket.

We noted Sparkfun MicroMod was a similar concept in the introduction, so IZITRON provided several comparisons of IZIRUN and MicroMod boards, including the table below for mid-range boards.

IZIRUN vs MicroMod

While IZIRUN boards will offer extra features and I/Os, at this point in time, Sparkfun MicroMod ecosystem is larger with multiple carrier boards and a choice of microcontrollers from Raspberry Pi RP2040 to Espressif Systems ESP32 WiSoC.

IZIRUN STM32 development boards are now available on Crowd Supply with a $6,600 funding target. A $30 pledge is asked for IZIRUNF0, $45 for IZIRUNF4, and $60 for IZIRUNF7. For reference, Sparkfun MicroMod processor boards sell for under $15, although with less features. The baseboard itself costs $60, but at least free international is included for all rewards. Backers should get their boards shipped by the end of October.
