SiFive Performance P550 is the fastest 64-bit RISC-V processor so far

SiFive has announced two RISC-V “Performance” cores with Performance P550 that should be the fastest 64-bit RISC-V processor so far with a SPECInt 2006 score of 8.65/GHz, as well as a Performance P270 Linux capable processor with full support for the RISC-V vector extension v1.0 rc.

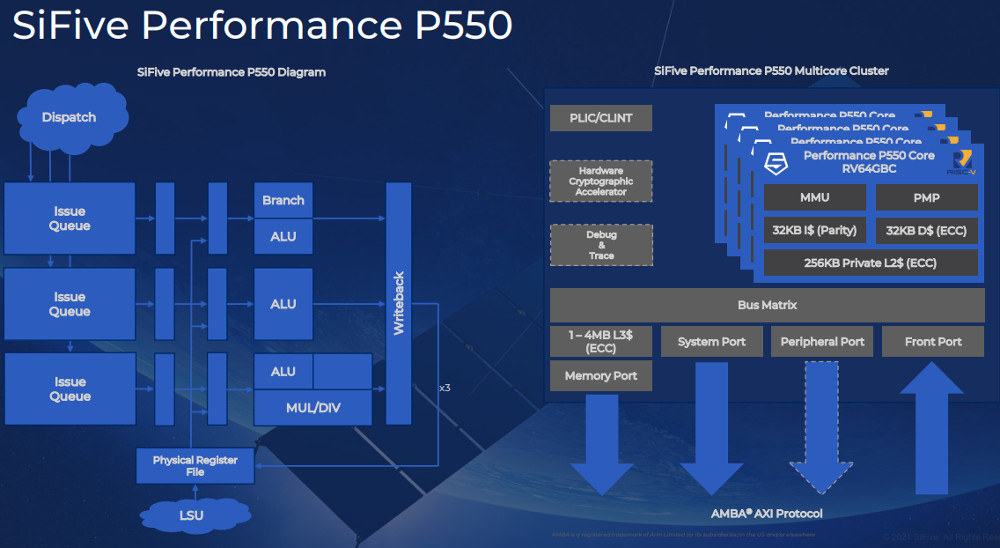

SiFive Performance P550

SiFive Performance P550 fastest RISC-V processor
Image source: LinuxGizmos

P550 highlights:

  • RISC-V RV64GBC ISA
  • 13 stage, 3-issue high-performance out-of-order pipeline
  • Supports multicore coherence with up to 4 cores in a core complex
  • Private 32KB+32KB L1 cache and a private 256KB L2 cache per core
  • Up to 4MB L3 cache in a four-core cluster
  • SPECint 2006 – 8.65/GHz
  • 2.4 GHz in 7nm with a footprint of less than 0.25 mm

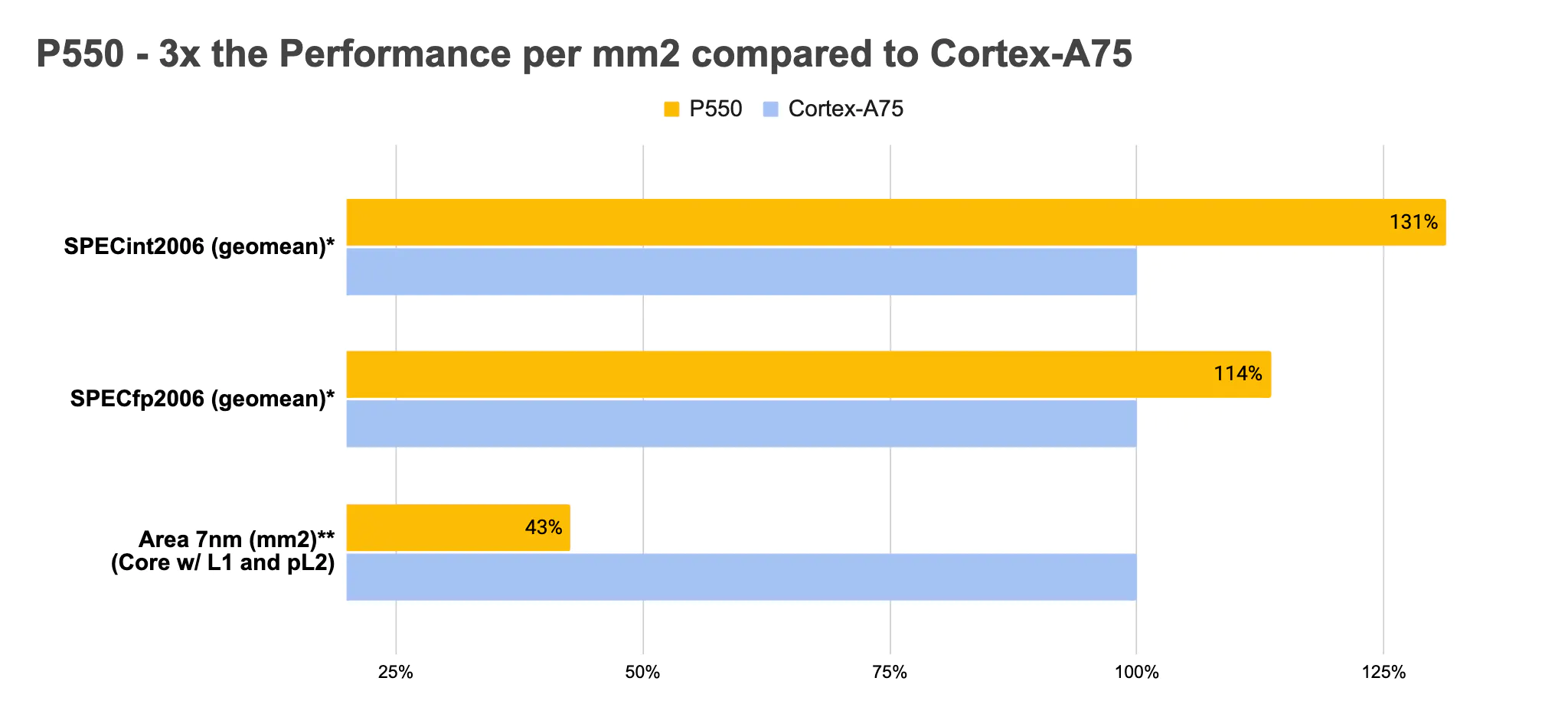

Performance P550 vs Cortex-A75SiFive compares the Performance P550 core to Arm’s Cortex-A75 with higher performance in SPECint2006 and SPECfp2006 integer/floating-point benchmark, all a much smaller area which would enable a quad-core P550 cluster on about the same footprint as a single Cortex-A75 core.

There have been some rumors about Intel’s plan to acquire SiFive in recent days, and while the acquisition news still has to be confirmed, Intel says it will be using the P550 Performance core in an upcoming 7nm Intel Horse Creek platform. Amber Huffman, Intel Fellow and CTO of IP engineering group at Intel, says:

We are pleased to be a lead development partner with SiFive to showcase to mutual customers the impressive performance of their P550 on our 7nm Horse Creek platform . By combining Intel’s leading-edge interface IP such as DDR and PCIe with SiFive’s highest performance processor, Horse Creek will provide a valuable and expandable development vehicle for cutting-edge RISC-V applications.

It’s unclear whether Horse Creek will mix x86 cores with the RISC-V core in a hybrid processor like the Lakefield platform, or as a pure RISC-V processor. Anandtech has more speculations about the “development platform”.

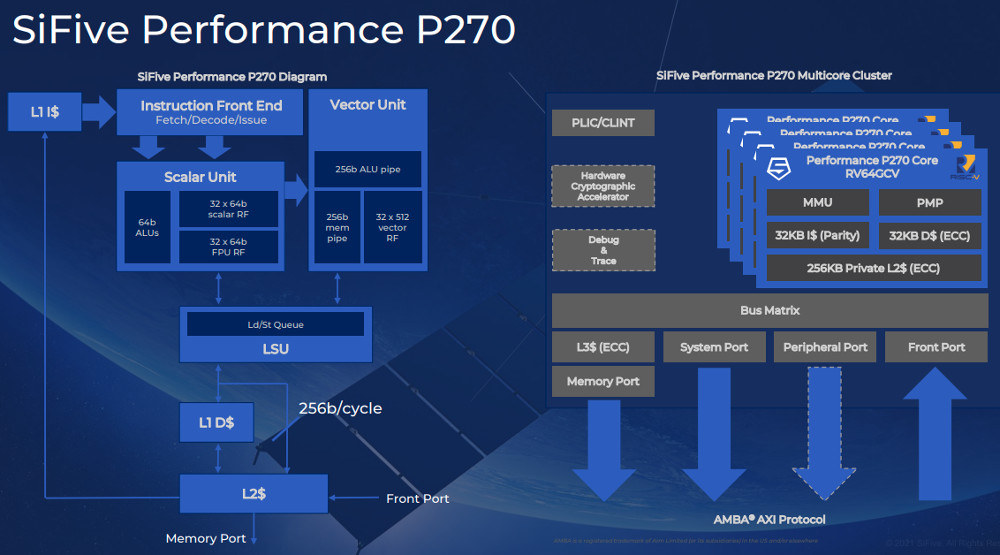

SiFive Performance P270

SiFive Performance P270P270 highlights:

  • RISC-V RV64GCBV ISA
  • 8-Stage, dual-issue, in-order processor
  • 256-bit Vector Unit enabling compute capabilities with full support for the RISC-V Vector Extension v 1.0RC
  • Supports multicore coherence with up to 4 cores in a core complex
  • Private 32KB+32KB L1 cache and a private 256KB L2 cache per core
  • SPECint 2006 – 4.6/GHz

Just like the previously announced SiFive Intelligence X280, the Performance P270 core supports the translation of legacy SIMD/NEON code to SiFive vector assembly using the SiFive Recode utility.

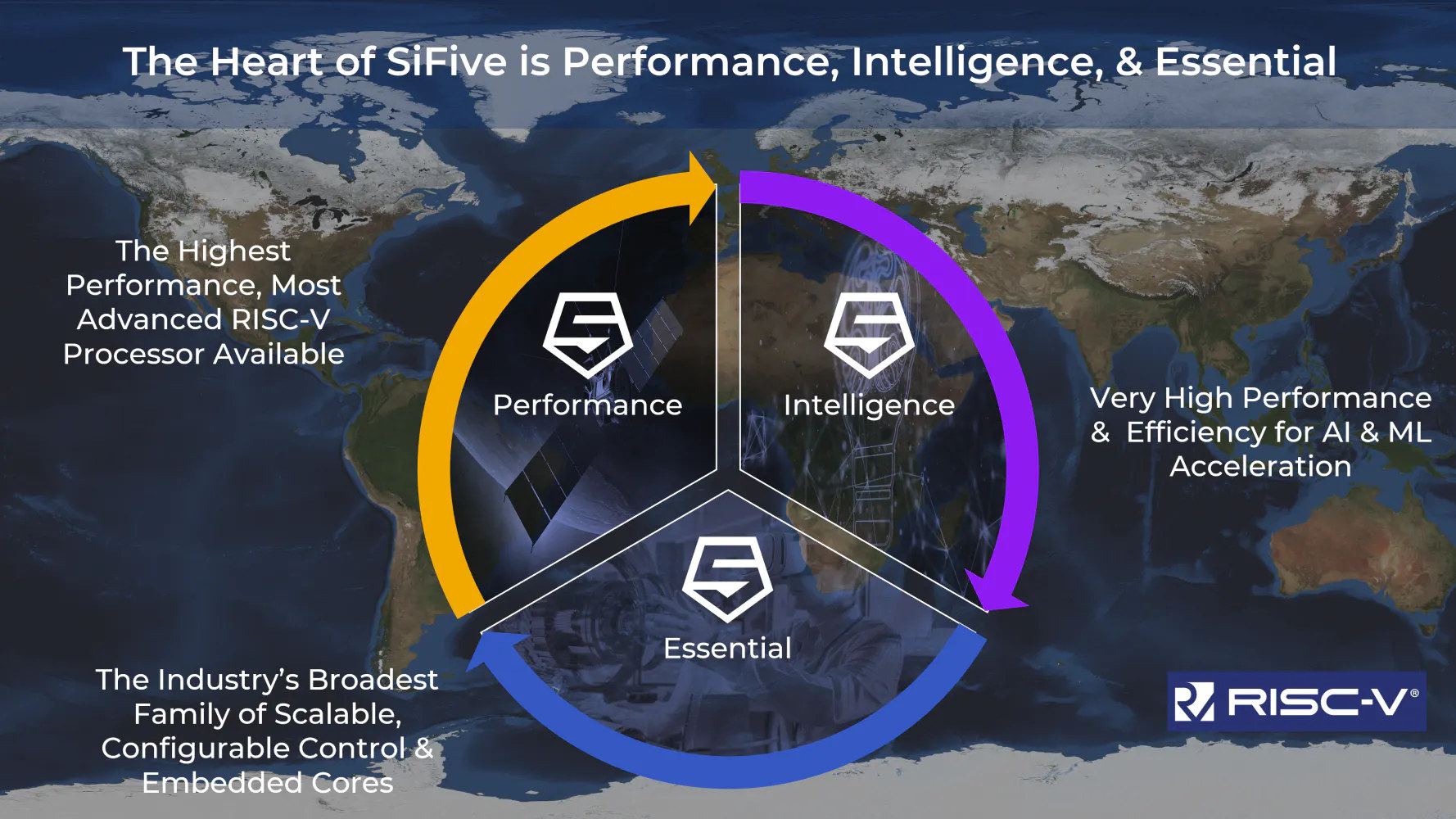

SiFive Performance, Intelligence, and Essential families

SiFive Performance, Intelligence & Essential

Patrick Little joined SiFive as President & CEO last year, and one of the things he did was to split SiFive’s products into three families:

  • Essential – Legacy SiFive embedded RISC-V core likes U-Series, S-Series, E-Series
  • Intelligence – RISC-V cores optimized for low-power AI & ML acceleration
  • Performance – Highest performance RISC-V cores designed for networking,
    edge compute, autonomous machines, 5G base stations, virtual/augmented reality

The product page about the new SiFive Performance cores only has limited information at this point in time, and the company will host a webinar on July 14 to provide more details.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
22 Comments
oldest
newest
crashoverride
crashoverride
3 years ago

It would not make any sense to create a “hybrid” x86/RISCV processor. The OS would require heterogeneous CPU support which does not exist in Linux or Windows (to my knowledge). Lakefield is x86/x86 just like ARM big.LITTLE is arm/arm.

Plinnie
Plinnie
3 years ago

I doubt if it would be used as an application processor. More likely it will be part of some controller or low-power subsystem.

dgp
dgp
3 years ago

AmigaOS (+PowerUP/WarpOS) managed to do this yonks ago. Mainly 68K OS communicating with tasks running on lightweight kernel on a PPC and it looked transparent to the user.

You don’t need to have the kernel running on both ISAs. You need to make two kernels running on the same machine look like one instead of like two machines connected via a fast network connection like Intel’s Xeon Phi did.

Pete
Pete
3 years ago

Running a variant ISA on select cores might have possibilities even for processors of the same architecture.

To run legacy code while the main OS is 64 bit. e.g. NTVDM doesn’t work on 64 bit Windows because of long mode; 16 bit programs from Windows 3.0 could run on a 32 bit core.

Bi-endian systems could alternate. e.g. ppc64 on one core handballing to ppc64le on another to run a particular algorithm.

(Yes, I know there’s virtualization and other techniques.)

Anonymous
Anonymous
3 years ago

I’m sure they could add support for mixed architectures if they wanted to.

x86 + ARM (high performance, not Cortex-M) on the same system would be interesting, but it might be better to just emulate one or the other like Apple does with Rosetta 2.

bkydcmpr
bkydcmpr
3 years ago

But, why?

Anonymous
Anonymous
3 years ago

As the industry continues to node shrink, it becomes trivial to just throw extra junk on a chip. That’s why we’re about to have 24-core consumer desktop CPUs with integrated graphics.

Pete
Pete
3 years ago

Yet.

But with today’s Android on Windows 11 announcement, Intel are promoting multi-architecture XPU technologies. I’d assume that’s just a software compiler from ARM to x86.

But suppose risc-v gains some traction as an Android platform. Offloading risc-v native code to dedicated risc-v cores when your main x86 CPU is running Windows 11 is definitely on the cards.

dgp
dgp
3 years ago

I hope SiFive is acquired by Intel and they don’t screw it up.
RISCV cores + Intels IPs that have good mainline support is a winner vs ARMs cores + a bunch of different junk IPs from whatever vendor was cheapest that day that we see time and time again.

crashoverride
crashoverride
3 years ago

RISCV makes a lot of a sense when you are replacing a licensed designed like Cortex-M0 with an in-house royalty free implementation. These scenarios are low cost / low complexity with high volume. It makes less sense when you are attempting to replace high cost / high complexity implementations that are low volume. You just replace one license fee (ARM) with another (SiFive). While the latter is presumably cheaper, it is not free as everyone seems to perceive whenever RISCV is mentioned. It also precludes having a high core count design as each core is adding to the license fee… Read more »

dgp
dgp
3 years ago

>There is no reason that Intel would require a purchase of SiFive.
>Intel is certainly capable of creating their own RISCV core

Sure. But that means throwing money at it and waiting for the result.
Buying SiFive would instantly give them the IP they want, all of the people they need to keep developing, and they can have it right now (as long as there isn’t a ton of governments getting involved).

Rufus
Rufus
3 years ago

So Intel are doing a RISC Assesment? I’ll get my coat…

sander
sander
3 years ago

So … for certain specs, faster than Arm’s Cortex-A75 … which was introduced in 2017. Sounds OK-ish.

Anonymous
Anonymous
3 years ago

That’s a big leap from previous garbage RISC-V cores, to significantly outperform a Raspberry Pi 4 and many other phone and SBC SoCs.

But the real winner is performance per area. If it’s 43% the die area of a Cortex-A75, you can have 8-core P550 in less die area (cheaper) than 4-core Cortex-A75, and 2.28 to 2.62 times the multi-threaded performance from the doubled core count and better performance per core.

Did they say anything about power efficiency vs. the Cortex-A75?

Willy
3 years ago

Note that nothing was said about multi-core performance. Efficiently using 4 cores in multi-threaded workloads adds yet another dimension which usually requires a long experience, and I doubt that RISCV reached that point yet. That doesn’t mean it’s not interesting of course, just that *some* workload might not shine as well as the graphs above, especially compared to A75 which does have LSE atomics.

Anonymous
Anonymous
3 years ago

“all a much smaller area which would enable a quad-core P550 cluster on the same footprint as a single Cortex-A75 core.”

That is not shown by the chart. They get to 3x the performance per mm^2 by assuming 1.31x the performance in 43% the area. So 1.31 / 0.43 = 3.05x

But putting a quad-core in the same die area would need 25% on that chart, not 43%. 1 / 0.43 = 2.33. They can put a dual-core in a 14% smaller area than a single Cortex-A75.

crashoverride
crashoverride
3 years ago

The chart is made up. The footnote states that it is an estimate. Additionally, notice that it does not not start at zero making it a non-linear representation. The conclusion is that it was creating by the marketing department, not the engineering department.

Anonymous
Anonymous
3 years ago

Of course it’s an estimate, the core isn’t out yet. As long as it ends up being close to being accurate, that’s no problem.

Non-linear representation also doesn’t matter. It’s misleading to the eyes, but I just used the numbers instead.

My problem is that I don’t know where Jean-Luc is getting the idea you can fit 4x P550 in the area of 1x Cortex-A75. Unless I’m overlooking something, that is MORE OPTIMISTIC than SiFive’s marketing claims. Maybe he was tricked by the bar graph? Or it has something to do with the L3 cache.

Anonymous
Anonymous
3 years ago

Thanks. I don’t get the 43% on the chart then. Maybe the quad-core has half the L3 cache in the comparison.

sander
sander
3 years ago

So when can we expect this RISC chip on SBC’s? In 6 months time? A year?

tkaiser
tkaiser
1 year ago

> P550: private 32KB+32KB L1 cache and a private 256KB L2 cache per core, up to 4MB L3 cache in a four-core cluster

With announcement of the HiFive 550 Pro board they’re now talking about 128KB L2 cache per core and 2MB shared L3 cache 🙂
