Linux-based telematics gateway offers four CAN Bus interfaces, cellular & WiFi connectivity, and more

iWave Systems already provided some Linux-based vehicle diagnostic systems such as their NXP i.MX 7 powered OBD-II dongle with 4G LTE and GPS. But their latest model, the iW-Rainbow-G41 telematics gateway, goes a step further with an NXP i.MX 8 processor controlling four CAN Bus interfaces, and offering both wired (RS232/RS485, automotive Ethernet) and wireless (cellular,  Wifi, Bluetooth) connectivity options.

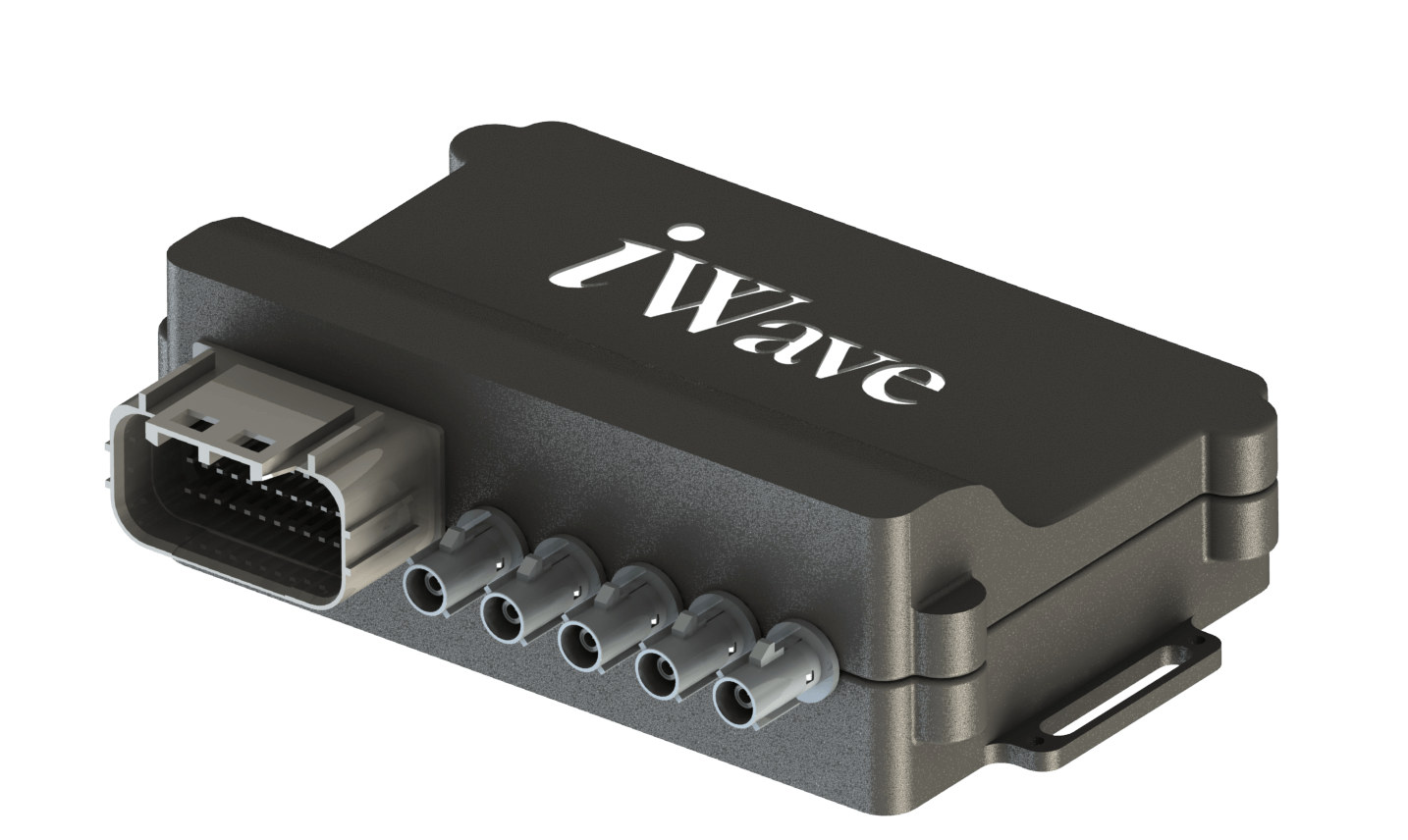

Linux Telematics GatewayiW-Rainbow-G41 telematics gateway specifications:

  • SoC – NXP i.MX 8 “DXL” Arm processor (Not sure what DXL is exactly, and iWave has yet to reply to our request for more information, but NXP shortly mentions i.MX 8X/XL processors in a page about V2X applications)
  • System Memory – 1GB LPDDR4 (Upgradable up to 2GB)
  • Storage – 8GB eMMC flash (Upgradable up to 64GB)
  • Communication Interfaces
    • Cellular – 4G LTE Cat 4, LTE Cat M1/NB1, option to upgrade to 5G; E-Call support
    • 802.11 a/b/g/n/ac WiFi 5 with optional support for 802.11ax WiFi 6
    • Bluetooth 5.0
    • 4x CAN Bus interfaces (HS CAN, CAN FD, LS CAN)
    • 10/100 Mbps Ethernet interface
    • RS232/RS485
    • K-Line/LIN Interface
  • GNSS – GPS/GLONASS/BeiDou/Galileo
  • Antenna – 1x GNSS, 1x cellular, 1x WiFi/BLE
  • Sensors – Accelerometer, gyroscope, magnetometer, temperature sensor
  • Expansion
    • M.2 with Key B/Key E socket
    • 2x Analog Inputs
    • 4x GPIOs  (2DI, 2DO)
  • Power Supply – 12V – 36V PoE support
  • IP Rating – IP 65 with tamper detection
  • Temperature Range – -20°C to +70°C

The system runs Linux 5.4.70, and supports ISO 15765-4 CAN, ISO 11898, CANopen, and CIA 447 protocol stacks. iWave Systems says the gateway is suitable for applications ranging from heavy-duty trucks, vessels, to industrial machinery and passenger cars with the solution gathering information such as location, working duration, engine performance, and engine parameters for preventive maintenance of such vehicles.

iW-Rainbow-G41 target applications
Target Applications

iWave Systems also mentions the telematics gateway complies with the J1939 protocol used in heavy-duty vehicles and commercial trucks that was standardized by the SAE (Society of Automotive Engineers), and now used worldwide. The standard includes the digital annex (DA) defining thousands of signals transmissible through the CAN bus, a subset of which are for EV-specific signals such as high voltage, battery state of charge, vehicle charging status, and more.

The iW-Rainbow-G41 gateway appears to be available now with more information on the product page, where pricing can also be requested for companies interested in purchasing in quantities.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
3 Comments
oldest
newest
rufik
rufik
3 years ago

Is it possible to buy single piece of iWave product at all?

Paul M
Paul M
3 years ago

they will sell you in small quantities like 10, with the expectation that you would go on to buy 1000’s.
it’s quite a palaver to get to the point of discussing pricing and quantities with them.
