BioAmp EXG Pill board enables ECG, EMG, EOG, and EEG biosensing (Crowdfunding)

BioAmp EXG Pill is a small Analog Front End (AFE) biopotential signal-acquisition board designed to be interfaced to any 5V MCU board with an analog-to-digital converter (ADC) such as most Arduino boards, or through a dedicated 5V ADC like the Texas Instruments ADS1115.

The board can record biopotential signals like ECG (electrocardiogram), EMG (electromyography), EOG (electrooculography), and EEG (electroencephalogram), or in more simple terms, biosignals from the heart, muscles, eyes, or brain activity.

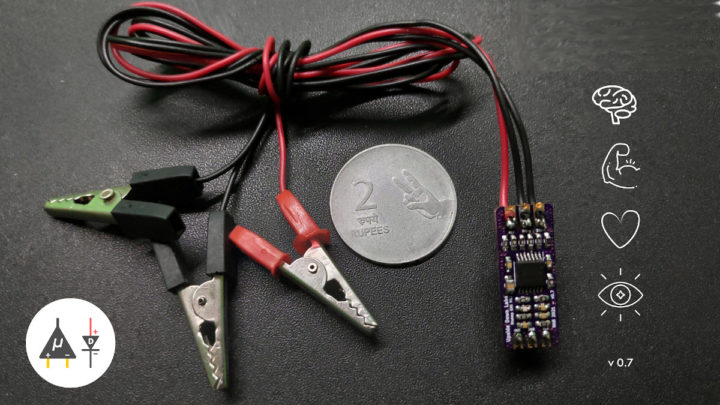

BioAmp EXG Pill biosensing

BioAmp EXG Pill key features and specifications:

  • Compatible with any 5V MCU with an ADC
  • Biopotentials: ECG, EOG, EMG, and EEG (configurable)
  • No. of channels: 1
  • Electrodes: 2 or 3 (configurable)
  • Input Voltage – 5 – 40 V
  • Input Impedance: > 35 MΩ
  • Dimensions – 25.4 x 10 mm
  • OSHWA certifications – IN000026

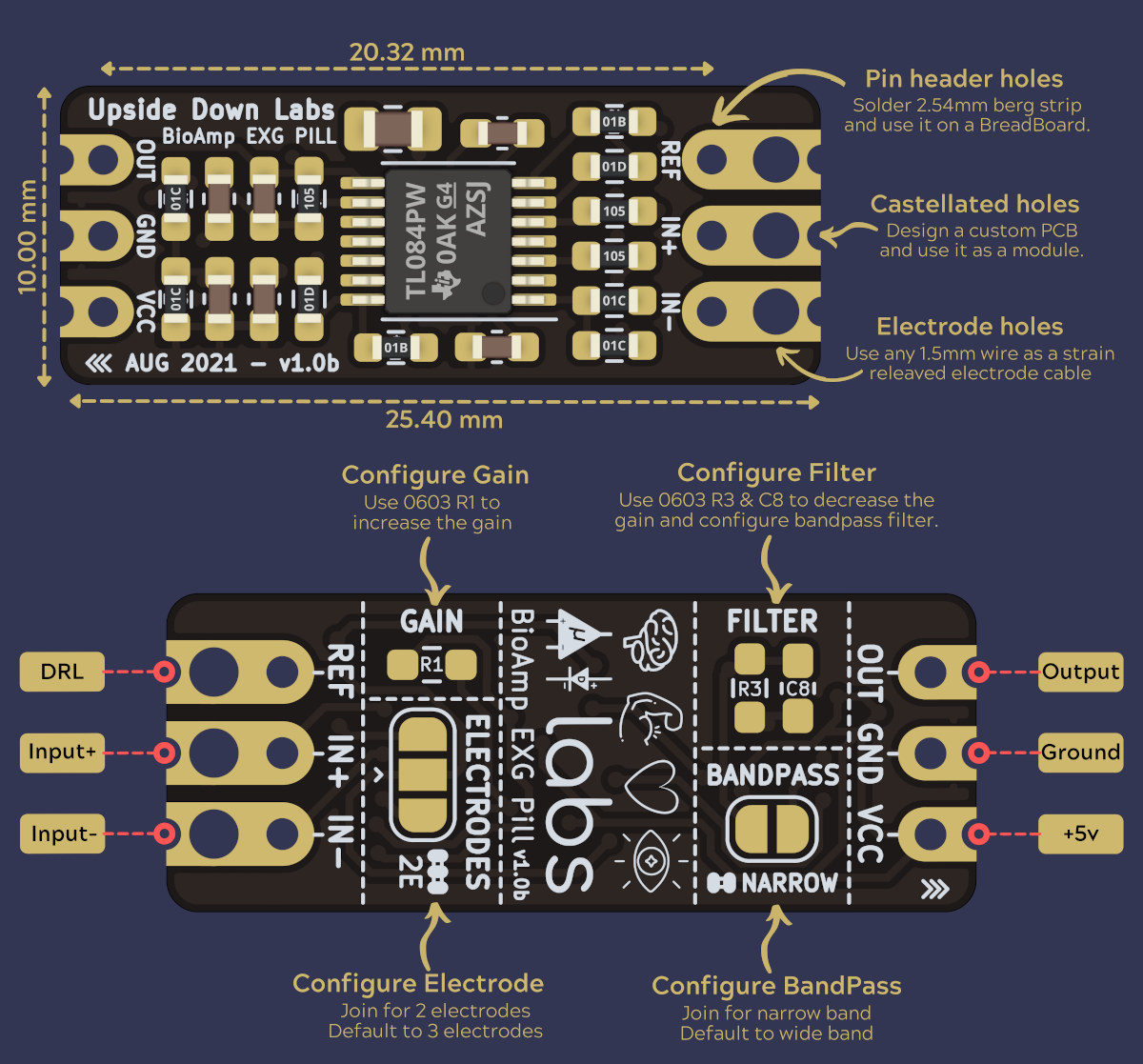

ECG, EMG, EOG, and EEG biosensing-board

The board is open-source hardware and you’ll find KiCAD hardware design files like schematics and Gerber files on Github where you’ll also find several Arduino code samples for ECG, EMG, EOG, EEG, including one controlling a servo to open/close a 2-finger hand using EMG (muscle) data, and others blinking an LED following either your heartbeat or eye blinking.

BioAmp EXG Pill is not the first hardware use to monitor biosensing data or vital signs with Arduino or Raspberry Pi boards, and we previously covered HackEEG Arduino shield for EEG, EMG, EKG, the ESP32-based E3K wireless bio-sensing platform, as well as HealthyPi v4 HAT for Raspberry Pi (ECG, SPO₂, body temperature). There are many other as shown in the comparison table below.

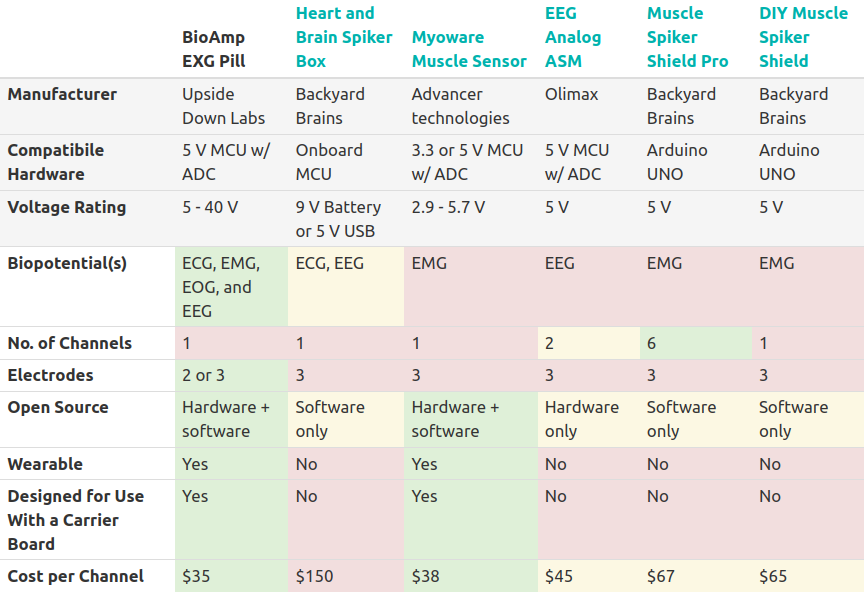

Comparison of biosensing boards

Upside Down Labs has just launched the board on Crowd Supply with a symbolic $1 funding goal. There are two main rewards with the $69 “BioAmp EXG Pill Explorer Pack” including two BioAmp EXG Pill boards, 15 gel electrodes, some pin headers, six alligator clips, and two 1.5 mm electrode cables, as well as the $249 “BioAmp EXG Pill Neuroscience Ninja Pack” with eight boards, 100 gel electrodes, plenty of headers, 24 alligator clips, and eight 1.5 mm electrode cables. Shipping adds $8 to the US, and $18 to the rest of the world with deliveries scheduled to start at the end of February 2022.
