IBASE launches 3.5-inch SBC with AMD Ryzen Embedded V2000 processor

We’ve covered plenty of AMD Ryzen Embedded V2000 SBCs in the past, but it appears IBASE IB952 might be the first 3.5-inch SBC with a Ryzen V2000 processor for the industrial and IoT markets.

The board supports up to 64GB RAM, offers two SATA III ports for storage, dual Gigabit Ethernet networking, four display outputs with DisplayPort, eDP and LVDS interfaces, USB and serial ports, as well as expansion through two M.2 sockets.

3.5-inch SBC AMD Ryzen V2000
IB952 with heatsink and cooling fan

IBASE IB952 specifications:

  • SoC – AMD Ryzen Embedded V2000 with Radeon Vega graphics
  • System Memory – DDR4-2400 SO-DIMM, up to 64GB with ECC support
  • Storage
    • 2x SATA III ports
    • M.2 M-Key socket for NVMe SSD
    • Flash for AMI BIOS
  • Video Output
    • 1x DisplayPort 1.4 port up to 4Kp60
    • 1x DisplayPort 1.2 port via USB-C port up to 4Kp60
    • 1x 24-bit dual-channel LVDS up to 1080p60
    • 1x eDP (embedded DisplayPort) up to 4Kp60
    • Four independent display support
  • Audio
    • Built-in audio with Realtek ALC888S audio codec
    • Audio header for Line-In, Line-Out, and Mic-In
  • Networking
    • Dual Gigabit Ethernet via Intel I221AT PCIe controllers
    • Optional wireless module (WiFi, Bluetooth) via M.2 socket
  • USB – 3x USB 3.1 ports, 2x USB 2.0 ports, 1x USB Type-C port
  • Serial – 1x RS232/422/485 DB9 port (Jumper-less selection) via Fintek F81964, 1x RS232 via headers
  • Expansion
    • 1x M.2 M-key, 2280 socket for NVMe
    • 1x M.2 E-key, 2230 socket for wireless
    • 8x Digital I/O (4-in/ 4-out)
  • Security – TPM 2.0
  • Misc – Watchdog Timer, H/W Monitor
  • Power Supply – +12V~+24V DC-in (+/-10%), EuP/ErP
  • Dimensions – 147 x 102mm (3.5-inch drive form factor)
  • Power Consumption
    • Up to +12V/7.61A with AMD Ryzen Embedded V2748 @ 2.9GHz,  2x 16GB DDR4-3200
    • Up to +12V/3.92A with AMD Ryzen Embedded V2718 1.70GHz, 2x 16GB DDR4-3200
  • Temperature Range – Operating: 0°C~60°C, storage: -20°C~80°C
  • Relative Humidity – 95% non-condensing @ 60°C

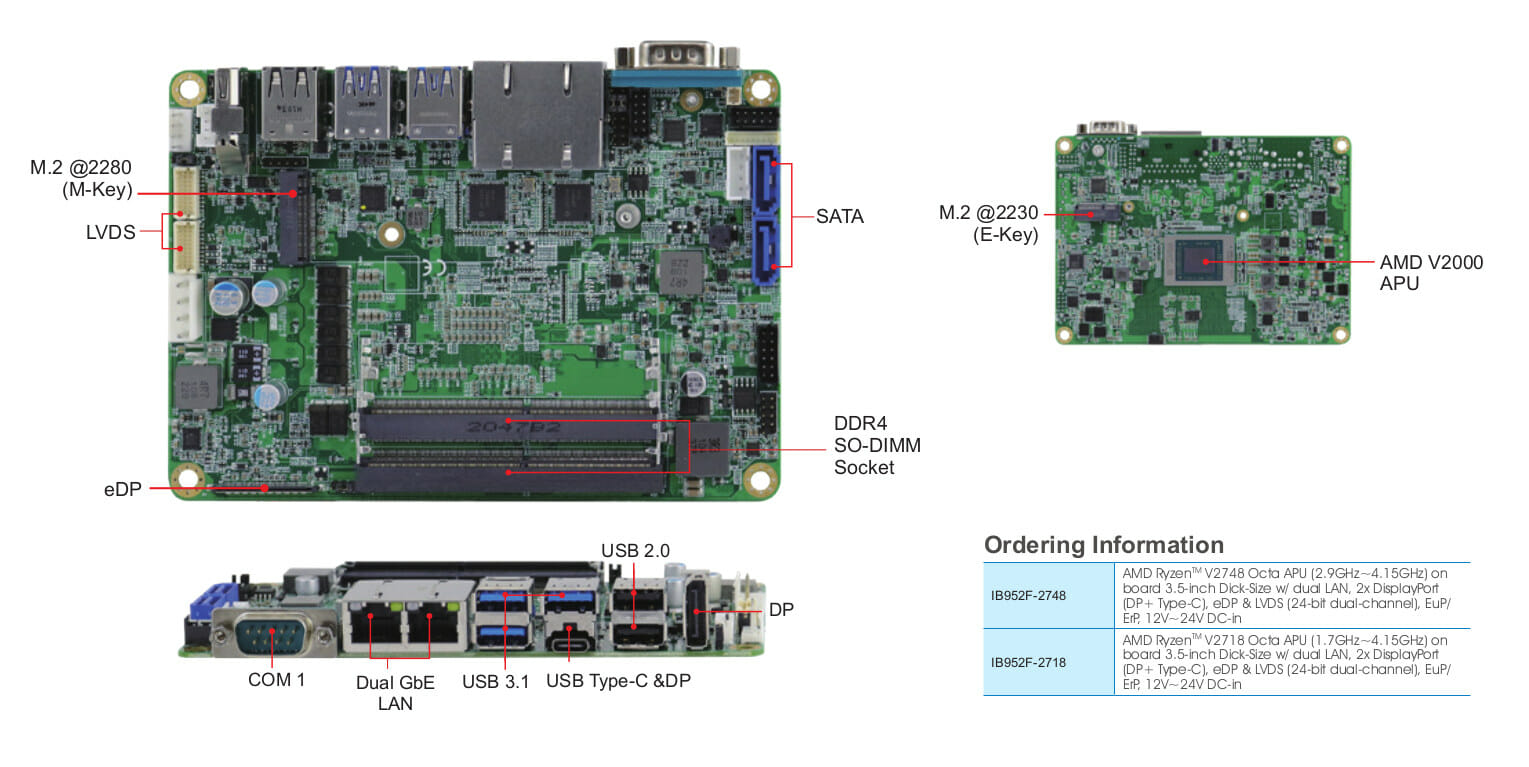

IBASE IB952The company provides support for Windows 10 and Linux Ubuntu operating systems. There are two models offered at this time with the IB952F-2748 equipped with a 35-54W octa-core AMD Ryzen V2748 processor and the IB952F-2718 with a 10-25W octa-core Ryzen V2718 processor with lower clock speed. If you’re in need of comic relief, I suggest you enlarge the photo above to have a closer look at the ordering information with a very special new SBC form factor…

More details about the 3.5-inch Ryzen V2000 SBC, including a user guide, may be found on the product page, and the press release may also contain additional information.

Via LinuxGizmos
