FOMO (Faster Objects, More Objects) enables real-time object detection on low-end embedded systems

FOMO used to stand for “Fear Of Missing Out” in my corner of the Internet, but Edge Impulse’s FOMO is completely different, as the “Faster Object, More Objects” model is designed to lower the footprint and improve the performance of object detection on resource-constrained embedded systems.

The company says FOMO is 30x faster than MobileNet SSD and works on systems with less than 200K of RAM available. Edge Impulse explains the FOMO model provides a variant between basic image classification (e.g. is there a face in the image?) and more complex object detection (how many faces are in the image, if any, and where and what size are they?). That’s basically a simplified version of object detection where we’ll know the position of the objects in the image, but not their sizes.

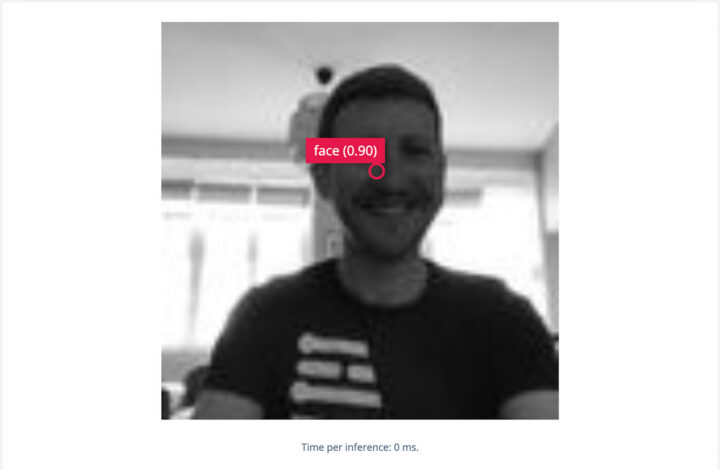

FOMO face detection

So instead of seeing the usual bounding box while the model is running, the face position will be shown with the small circle called “centroid”.  FOMO works on images as small as 96×96 resolution, it will split the image into a grid of default size 8×8 pixels, and run on image classification across all cells in the grid independently in parallel. For a 96×96 image, and an 8×8 grid, we’d get a 12×12 partitioning.

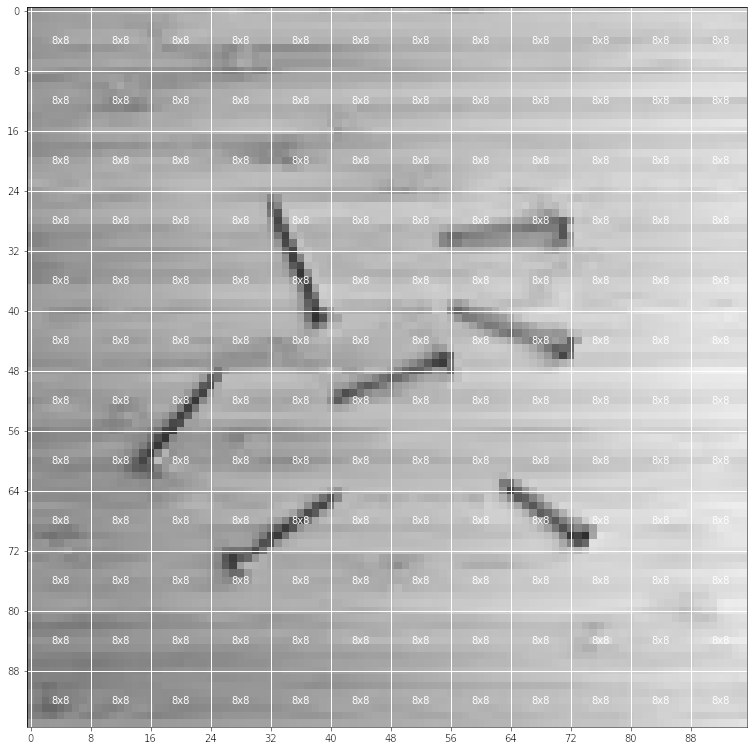

FOMO image partitioning
96×96 image split into a 12×12 grid

The smaller the image, the lower the requirements, and for instance, FOMO with 96×96 grayscale input and MobileNetV2 0.05 alpha can run at about 10 fps on a Cortex-M4F at 80 MHz while utilizing less than 100KB RAM. Interested developers should bear in mind FOMO’s limitations due to the splitting of the image: it works better when objects are all of a similar size, and when they are not too close to each other.

The video below shows 30 fps object detection (cans and bottles) on the Arduino Nicla Vision board powered by an STM32H7 Cortex-M7 microcontroller.

YouTube video player

FOMO is not limited to hardware with microcontrollers, and it can also be used on Linux hardware where you may need extra performance, and for example, you can achieve 60 fps object detection on Raspberry Pi 4 SBC.

FOMO works only on boards fully supported by Edge Impulse and equipped with a camera. More details can be found in the announcement and documentation.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

5 Replies to “FOMO (Faster Objects, More Objects) enables real-time object detection on low-end embedded systems”

    1. I think it’s probably a tongue in cheek reference to the YOLO algorithm, which also uses an acronym with an existing meaning…

    2. I like it, because it essentially has an identical meaning. You don’t “miss out” on any objects, cuz it’s fast.

  1. This seems versatile! I expected Edge Impulse was a DNN engine on certain SoC but the given examples seem to draw Arm M4 and (RasPi4) A53 faculties? So Edge Impulse is a dev project first? Thanks for that (and any promotional course correction…)

    Here’s looking to use that DNN-first spare processing area on the forthcoming SnapDragon tablets as well. [Tries madly to correlate LineageOS phones with extra ‘Edge’ GAN and DNN on their SoCs.]
