Rockchip RK3566 SoC gets into $150 Anbernic RG503 gaming handheld with OLED display

Rockchip RK3566 processor is designed for AIoT applications like NVR systems, but we’ve seen it integrated into mini PCs, TV boxes, and now a gaming handheld with the Anbernic RG503 equipped with a 4.95-inch OLED display.

The portable gaming console also includes 1GB LPDDR4 and 16GB storage, plus an optional 64GB microSD card with 4193 games, all the buttons you’d expect from a gaming handheld, plus micro HDMI output for connection to a larger screen.

RK3566 gaming handheld

Anbernic RG503 specifications:

  • SoC – Rockchip RK3566 quad-core Cortex-A55 processor @ 1.8 GHz with Arm Mali-G52 EE GPU, 0.8 TOPS NPU/AI accelerator
  • System Memory- 1GB LPDDR4
  • Storage
    • 16GB microSD card
    • Optional 64GB microSD card with 4193 games
  • Display – 4.95-inch OLED display with 960×544 resolution (non-touch)
  • Video Output – Micro HDMI 2.0a up to 4Kp60
  • Audio – Dual stereo speakers, 3.5mm audio jack
  • Connectivity – Dual-band 802.11 a/b/g/n/ac WiFi 5 and Bluetooth 4.2 (e.g. for gamepad connection)
  • USB – 1x USB OTG port
  • User input – D-Pad, 2x joysticks, X/Y/A/B, Select, Start, L1/R1, L2/R2 buttons, volume buttons, power button
  • Power Supply – DC 5V via micro USB port
  • Battery – 3,500 mAh battery good for about 6 hours of play
  • Dimensions – 19 x 8.4 x 2.1 cm
  • Weight – 235 grams
  • Certification – CE

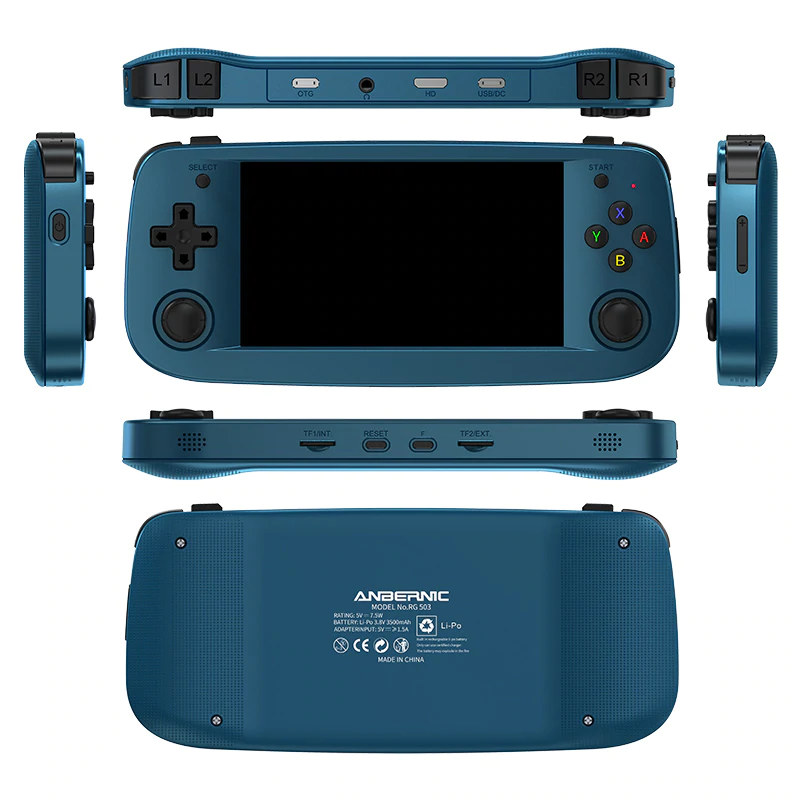

ANBERNIC RG503

The device runs Linux (EmuELEC fork) and should be able to handle PSP, Dreamcast, Nintendo DS, Nintendo 64, and PlayStation 1 emulation. Some noted that 1GB RAM may be a limiting factor for some games. Interestingly, the device does not seem to include any eMMC flash storage, and instead relies on two microSD card slots, one for the OS (16GB card), and the other for games. It should be interesting for people wanting to try alternative OS.

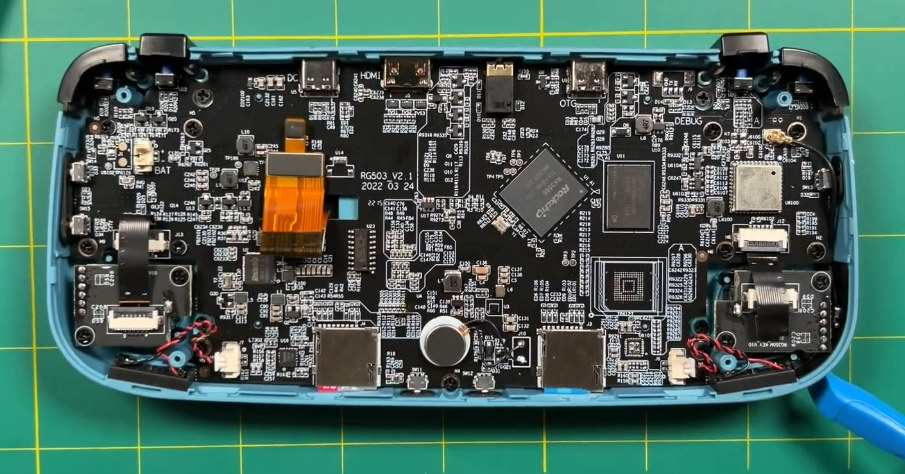

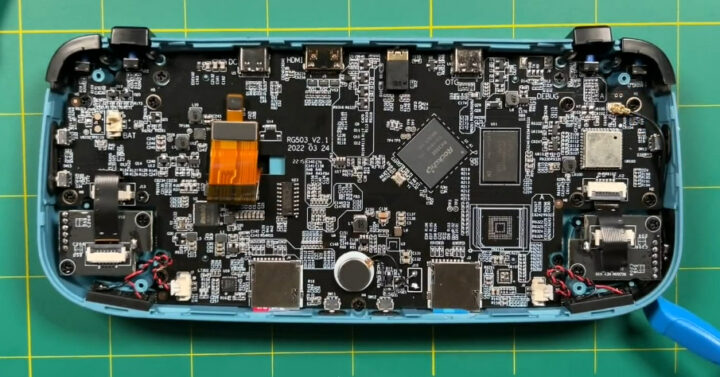

ANBERNIC RG503 board

Unless I’m mistaken, I can also see the footprint for an eMMC chip that is currently unpopulated. Rockchip RK3566 might seem like an odd choice for a portable gaming console since most interfaces are not used, but it does benefit from the efficient Cortex-A55 cores for longer battery life, and Arm Mali-G52 EE GPU supports the latest graphics APIs. Retro Game Corps has uploaded a review on YouTube that also includes a teardown (hence the board’s photo above).

Anbernic RG503 gaming handheld is now available for around $150 on Banggood, Aliexpress, or directly from Anbernic’s store. Getting the model with a 64GB microSD card with thousands of games adds $8.

Via Liliputing and Obscure Handhelds
