Panfrost now offers a fully-conformant OpenGL ES 3.1 implementation for Mali-G57 (Valhall) GPU

The Mali-G57 GPU part of the Valhall family, and found in several Arm processors such as MediaTek MT8192 and MT8195 SoC powering some Chromebooks, is now supported by the Panfrost open-source driver with a fully-conformant OpenGL ES 3.1 implementation.

Last year, Collabora updated Panfrost with support for OpenGL ES 3.1 on Midgard (Mali T760 and newer) and Bifrost (Mali G31, G52, G76) GPUs, and also announced having started working on Valhall GPUs. One part of the work was done in the summer of 2021 with some reverse-engineering work on Mali-G78 GPU’s instruction set, and this has culminated with a fully-conformant OpenGL3.1 for Mali-G57 GPU.

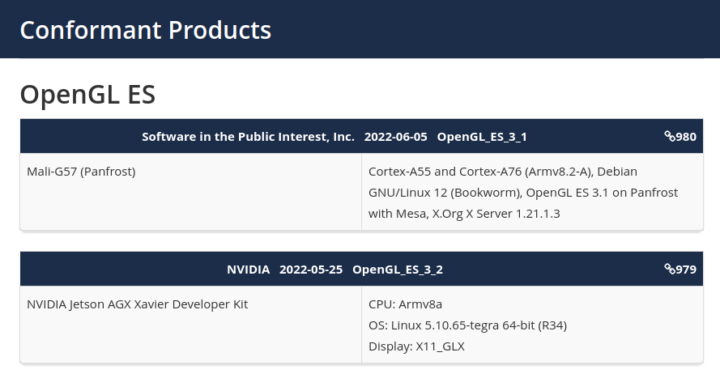

Panfrost Mali-G57 OpenGL ES 3.1Interestingly, it’s not been released by Collabora directly, but through an organization called “Software in the Public Intenerest, Inc.” (or SPI for shorts) which happens to be a non-profit organization incorporated on June 16, 1997, and described as:

a non-profit corporation registered in the state of New York founded to act as a fiscal sponsor for organizations that develop open source software and hardware. Our mission is to help substantial and significant open source projects by handling their non-technical administrative tasks so that they aren’t required to operate their own legal entity.

Alyssa Rosenzweig, a software engineer for Collabora, has written a post going into some of the technical aspects of the OpenGL ES 3.1 Valhall implementation in Panfrost, and the challenges encountered during development. We notably learn that Valhall is based on Bifrost, so they were able to reuse some of the code, but Valhall hardware is optimized for Vulkan and some of the features were broken, for instance, Collabora’s implementation of transform feedback, a deprecated feature to capture vertex shader outputs into an application buffer, which had to be rewritten to make use of compute shaders.

The main takeaway is that with Mesa 22.2 and an appropriate kernel, accelerated graphics will work out of the box on Linux on MediaTek Chromebooks with the MT8192 and MT8195 system-on-chips.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
m][sko
1 year ago

Great job everyone involved.

Faidon
Faidon
1 year ago

SPI is a fiscal sponsor organization, holding assets (money, trademarks, domains etc.) for multiple open source projects. It originated as an entity to hold the Debian project’s assets, but now covers projects like ArchLinux, ffmpeg, systemd and… X.Org, which is probably why SPI shows up here.

Stuart Naylor
1 year ago

Yeah I know them from https://www.freedesktop.org/wiki/ donate as did drop a little in that a hope a little by many may go a long way

Stuart Naylor
1 year ago

Anyone know the state of the G710/G610 ? As Valhall but think they are tweaked slightly?
