Raspberry Pi Compute Module 3E (CM3E) features Raspberry Pi RP3A0 SiP found in Pi Zero 2 W

After the Raspberry Pi Compute Module 4S which we discovered in April, it appears Raspberry Pi Trading has launched another Compute Module for their industrial and commercial customers with the Raspberry Pi Compute Module 3E (CM3E) equipped with the same Raspberry Pi RP30A0 SiP found in Raspberry Pi Zero 2W and an 8GB eMMC flash.

The new system-on-module (SoM) has not been officially announced but was discovered by Twitter user “Pi 0 in your Pocket” inside an electric vehicle (EV) charger by Wallbox.

Raspberry Pi Compute Module 3E specifications (preliminary):

  • SiP – Raspberry Pi RP3A0 with Broadcom BCM2710A1 quad-core Cortex-A53 processor @ 1.0 GHz with VideoCore IV GPU supporting OpenGL ES 1.1, 2.0 graphics, 512MB RAM
  • Storage – 8GB eMMC flash (other capacities might also be available TBC)
  • 200-pin edge connector with:
    • 48x GPIO
    • 2x I2C, 2x SPI, 2x UART
    • 2x SD/SDIO, 1x NAND interface (SMI)
    • 1x HDMI
    • 1x USB 2.0 HOST/OTG
    • 1x DPI (Parallel RGB Display)
    • 1x 4-lane CSI Camera Interface (up to 1Gbps per lane), 1x 2-lane CSI Camera Interface (up to 1Gbps per lane)
    • 1x 4-lane DSI Display Interface (up to 1Gbps per lane), 1x 2-lane DSI Display Interface (up to 1Gbps per lane)
  • Dimensions – 67.6 x 31 mm; compliant with JEDEC MO-224 mechanical specification used in DDR2 SO-DIMM memory module

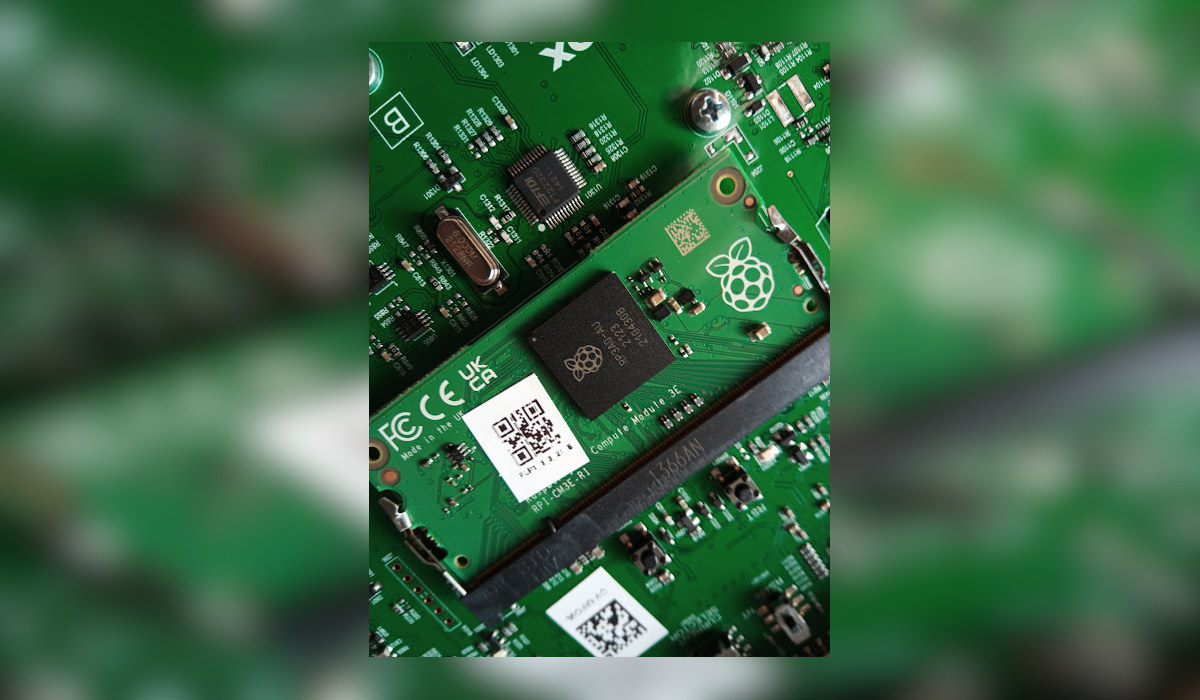

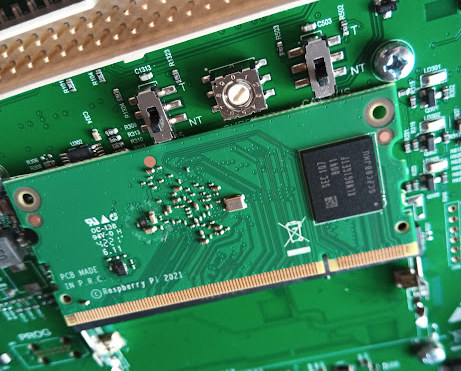

We could not find any details about the Raspberry Pi Computer Module 3E on the net, even after looking for its codename (RPI-CM3E-R1), so all information we have is from the two photos above showing the system-in-package and an 8GB Samsung eMMC flash. We’ve used Raspberry Pi CM3 specifications as the base since it’s highly likely they’ve reused the same pinout on the SO-DIMM connector for backward compatibility. The main difference is the lower RAM capacity (512MB vs 1GB).

At first, it may seem odd for Raspberry Pi Trading to launch Raspberry Pi CM4S and CM3E modules in stealth mode, but it makes sense considering the supply shortage for hobbyists, and all they’d get with announcements are complaints from the community struggling to purchase their boards for their project.

Via Tom’s Hardware
