7.9-inch ultrawide HDMI display works with Raspberry Pi SBC

If you are looking for an ultrawide display to show information on your PC or Raspberry Pi, there’s a 7.9-inch IPS display with 1280×400 resolution that may meet your requirements.

The display is powered through a USB port and takes a video source from its HDMI 1.4 input port, so it should work with any hardware equipped with HDMI output and a USB port.

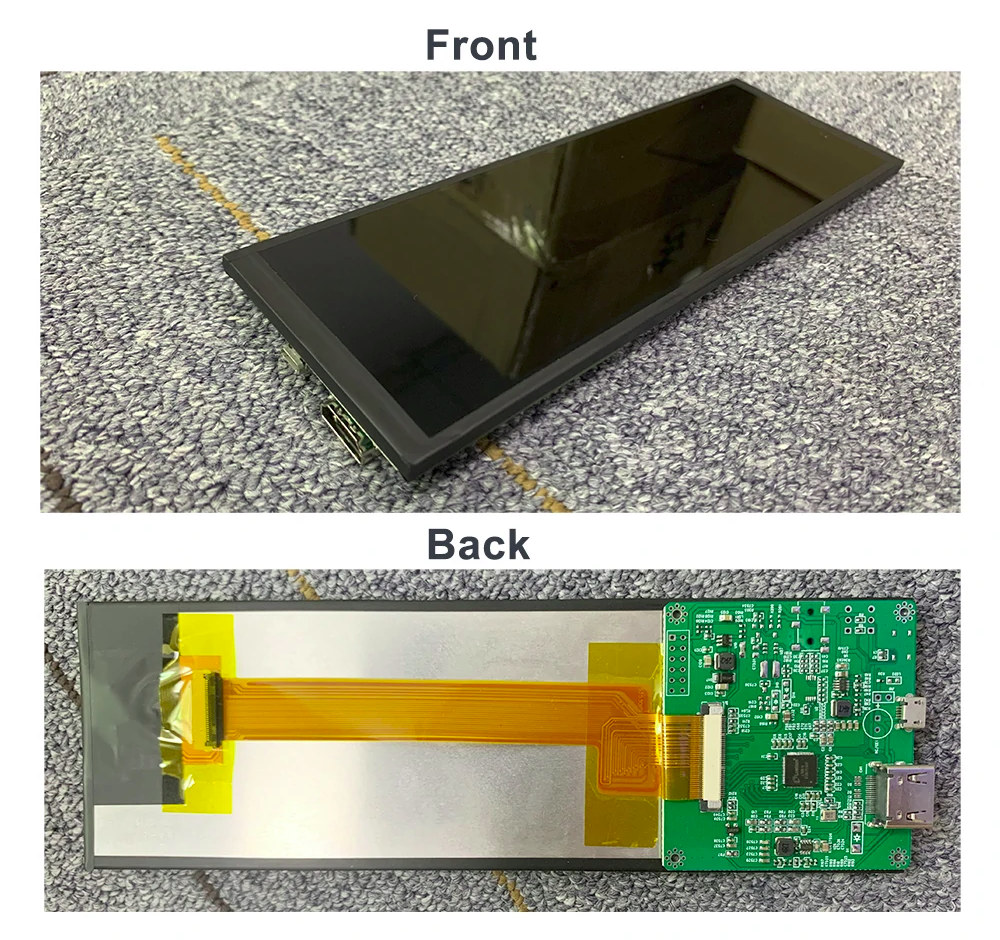

Ultra-wide display for Raspberry Pi

LR79 display specifications:

  • Display – 7.9-inch TFT-LCD IPS display with
    • 1280×400 resolution @ 60Hz, no touch function
    • 178° field of view
    • 5:16 aspect ratio
    • Response Time: 40ms(Typ.)(Tr+Tf)
    • Contrast Ratio: 900:1
    • Brightness: 500cd/
    • Color Gamut: 70% NTSC
    • Display Colors: 16.7M
    • Backlight: WLED (19.2V)
    • Connector: 30-pin ZIF
  • Display Input – HDMI 1.4
  • Power Supply – 5V via micro USB port
  • Dimensions
    • 205.8 x 67.6 x 13.3 mm
    • Active Area – 190.08 x 59.40 mm
  • Weight – 108 grams

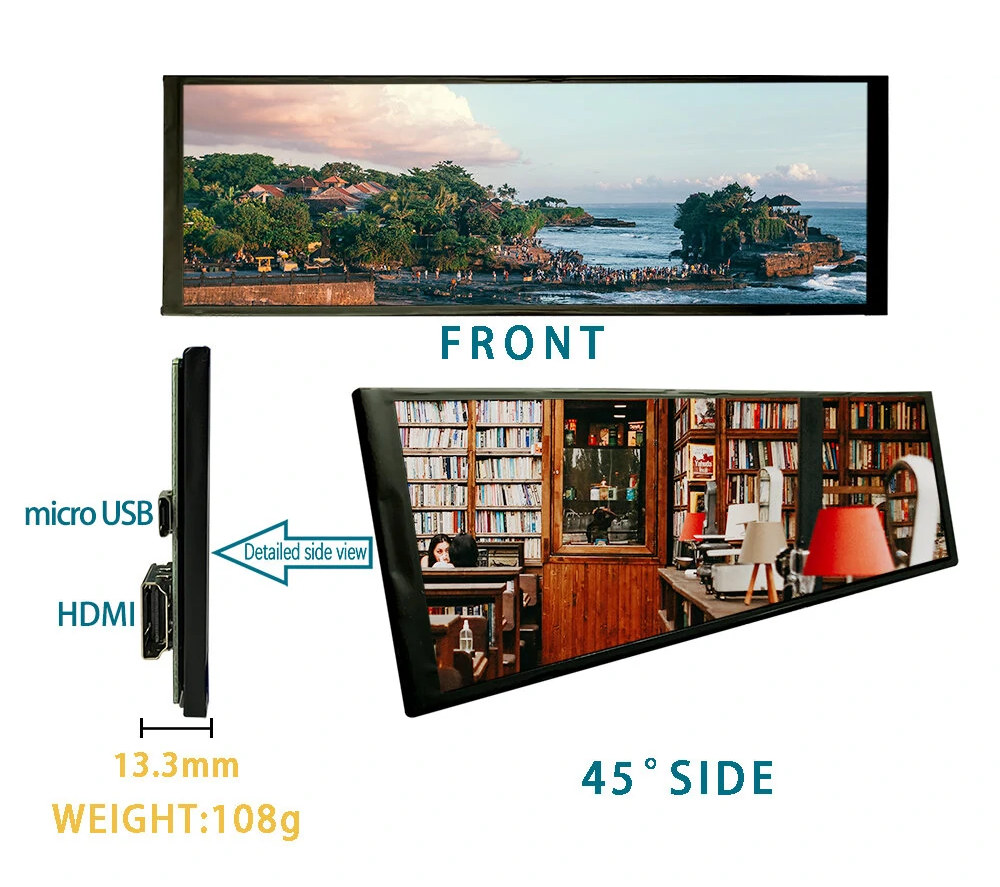

7.9-inch ultra-wide displayThe display should work with any host with HDMI output, but it’s advertised as a Raspberry Pi-compatible display where you need to change the  config.txt file as follows:


In the specific case of Raspberry Pi 4, you may also need to comment out dtoverlay=vc4-fkms-V3D to get back to the older framebuffer API, but that would mean disabling 3D acceleration.

7.9-inch ultrawide Raspberry Pi displayThe display can be purchased on Banggood for $63.99 including shipping. While looking for an alternative source, I also noticed Waveshare had a similar 7.9-inch display with touchscreen function going for $78.99 on their own website, or a little more on Amazon US. In this case, the USB connection is not only used for power, but also for the touchscreen function.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
Richard Crook
Richard Crook
2 years ago

“outputs video through an HDMI 1.4 input port”

This statement confuses me. I thought inputs were for inputs and outputs were for outputs, so how can something be outputted through an input port?

Perhaps it should have been written “displays video coming FROM an HDM 1.4 inport port”.

Cam
Cam
2 years ago

A LCD display outputs a video image from a HDMI input. Same way you’d say a light bulb outputs light from an electrical input.

josn
josn
2 years ago

Obviously, a display has a HDMI input port, through which it gets it’s video. Nothing confusing about that. Most SBC’s have HDMI output ports. The HDMI cable connects both..

Pat
Pat
4 months ago

Man, those rogue apostrophes!

smartroad
smartroad
2 years ago

Why do these screens seem to always put the HDMI and USB connectors on the edge of the display? If it were set back about 50ish mm then the cables can be hidden behind the screen or inside an enclosure.

This screen seems to have the benefit of a long cable between the controller and display so you probably can move the controller here. Many displays don’t as the PCB is the same size as the display. It makes neat installs almost impossible 😧
