WiCAN ESP32-C3 CAN Bus platform is available in USB-CAN and OBD-II form factors (Crowdfunding)

WiCAN is an ESP32-C3 CAN bus adapter that works over USB, Wi-Fi, and Bluetooth LE, and designed for car hacking and general CAN bus development.

The device is available in USB-CAN and OBD-II form factors and comes with firmware that works with RealDash to create nice-looking dashboards with the data. RealDash can be installed on Android, iOS, and Windows 10 operating systems.

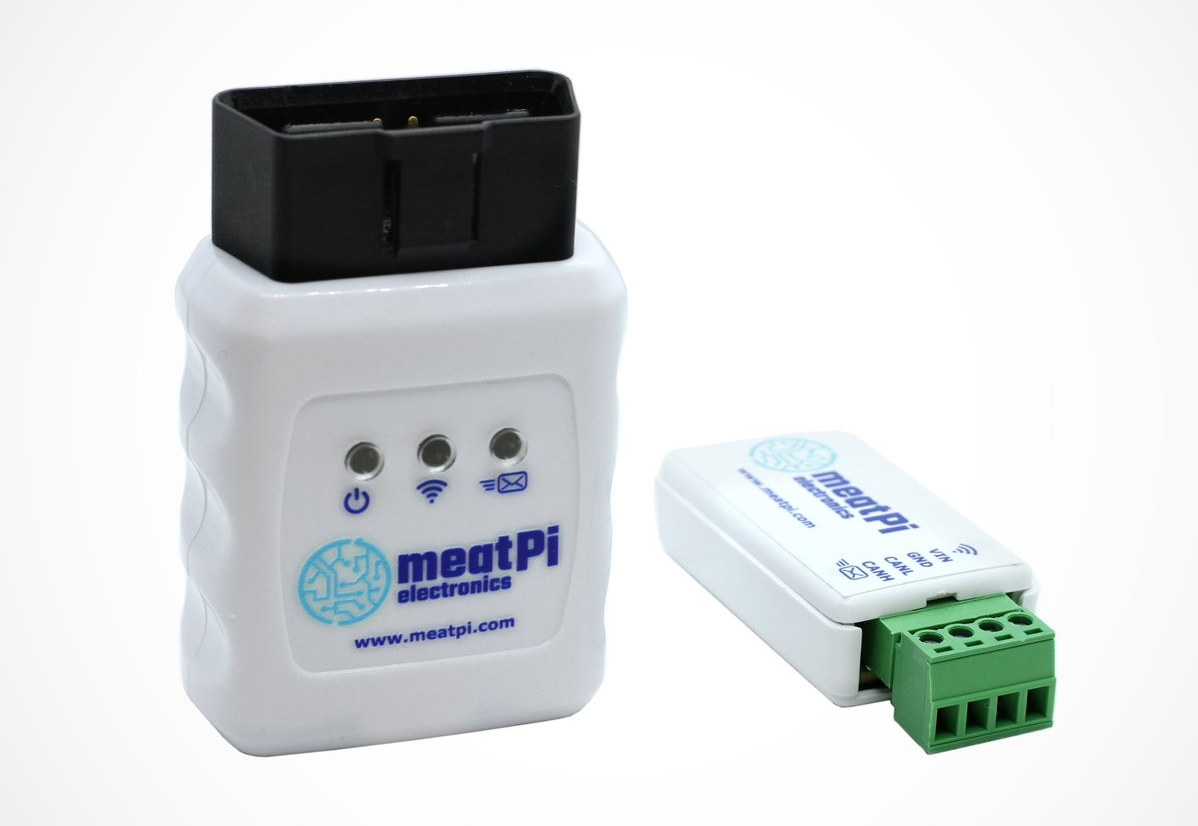

WiCAN ESP32-C3 USB OBD II CAN Bus

WiCAN specifications:

  • Wireless module – ESP32-C3-MINI-1 with ESP32-C3 RISC-V microcontroller with 2.4GHz WiFI 4 and Bluetooth 5.0 connectivity, 4 MB flash, PCB antenna
  • CAN 2.0 A/B interface up to 1 Mbps
  • Host interface
    • WiCAN-OBD – OBD-II connector
    • WiCAN-USB – Mini USB port for USB-to-UART up to 6 Mbps
  • Power Supply
    • WiCAN-ODB – 7.5V to 16V (Vbat)
    • WiCAN-USB – 7.5V to 36V via screw-terminal connector
  • Power Consumption – <= 1 mA in battery-saving mode

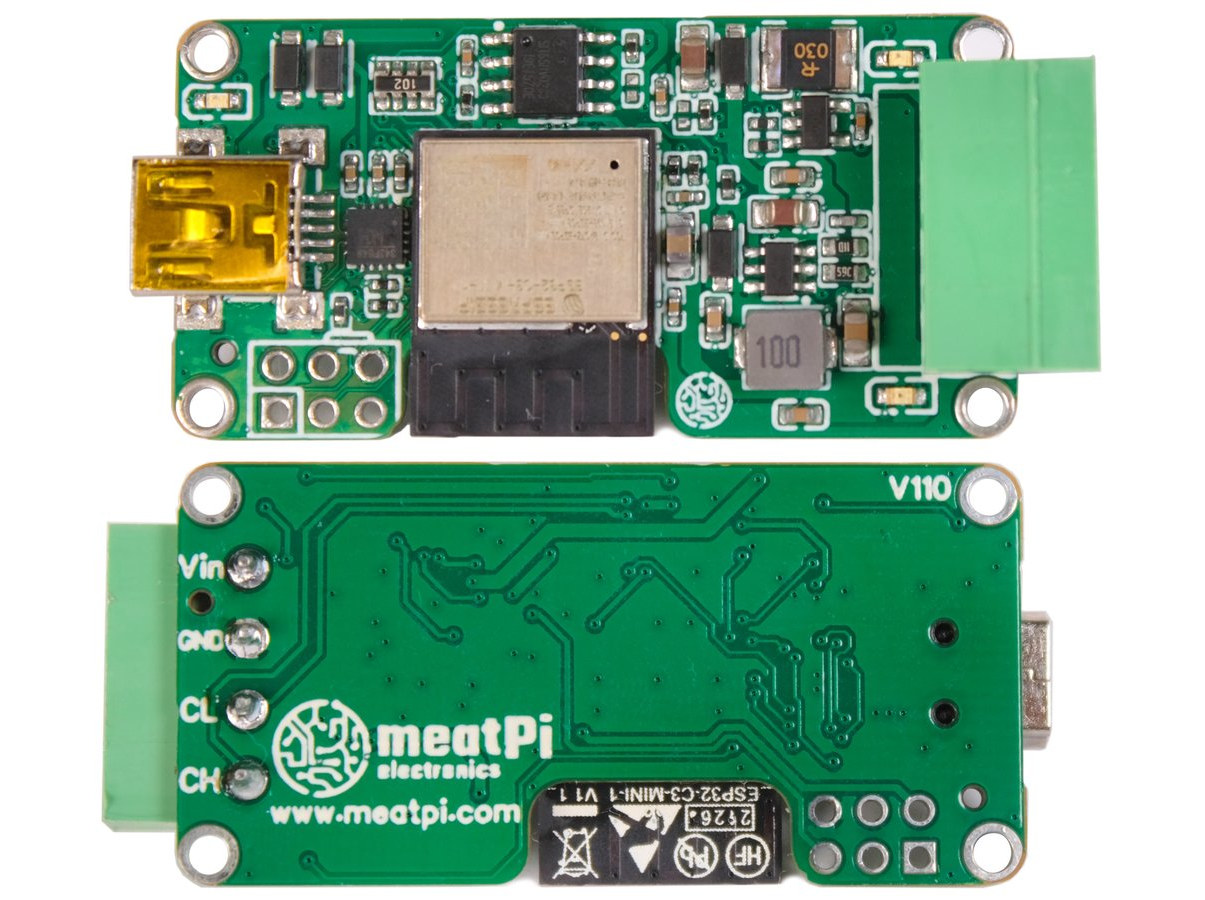

USB CAN Bus board
WiCAN-USB

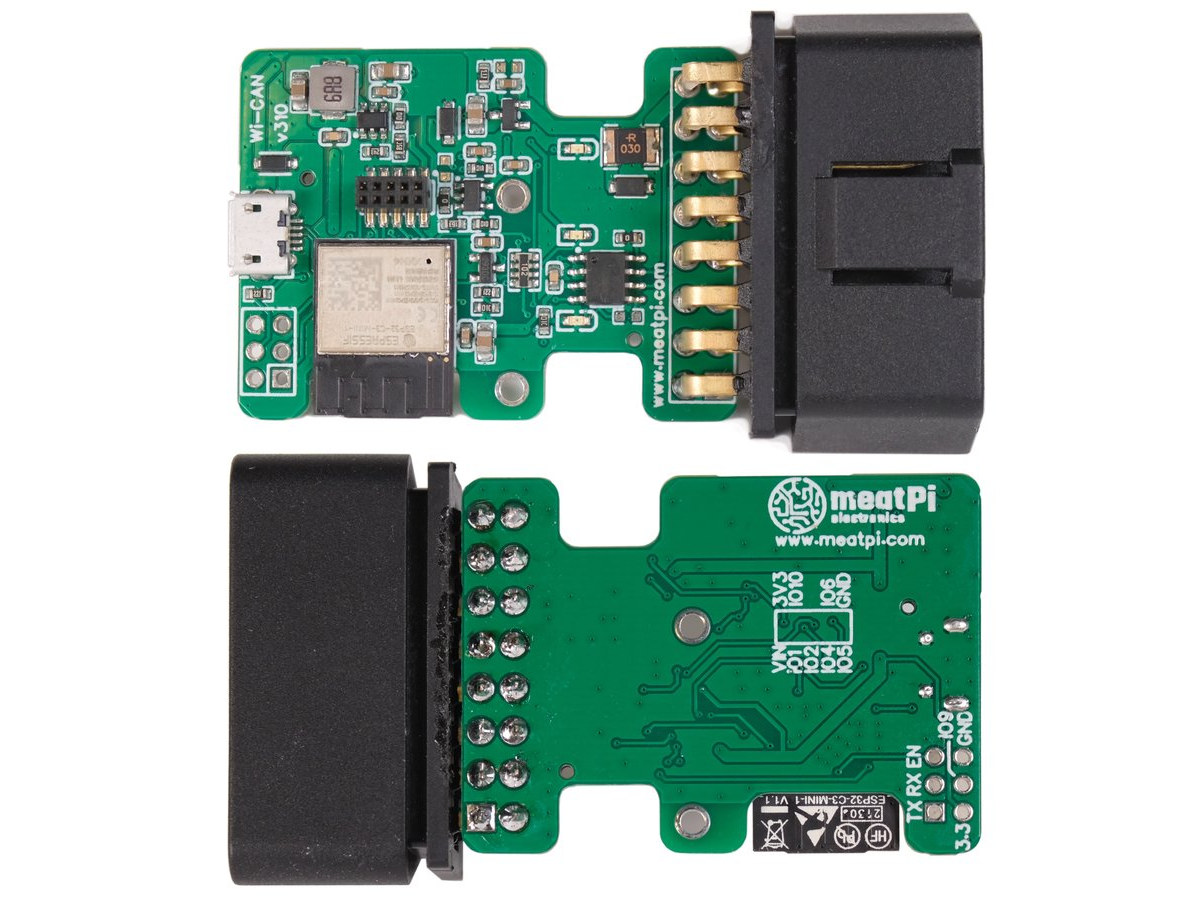

ESP32 C3 CAN Bus board
WiCAN-OBD

The CAN Bus adapter also supports firmware updates over WiFi, and can be used either in access point or station modes. While BLE is supported, it does not seem to be the focus here, and WiFi seems to be the wireless standard of choice, while USB is also an option for the WiCAN-USB board.

Besides RealDash, WiCAN can also be accessed with the company’s WebCAN web-based interface and supports open-source tools such as SavvyCAN, BUSmaster, and python-can.

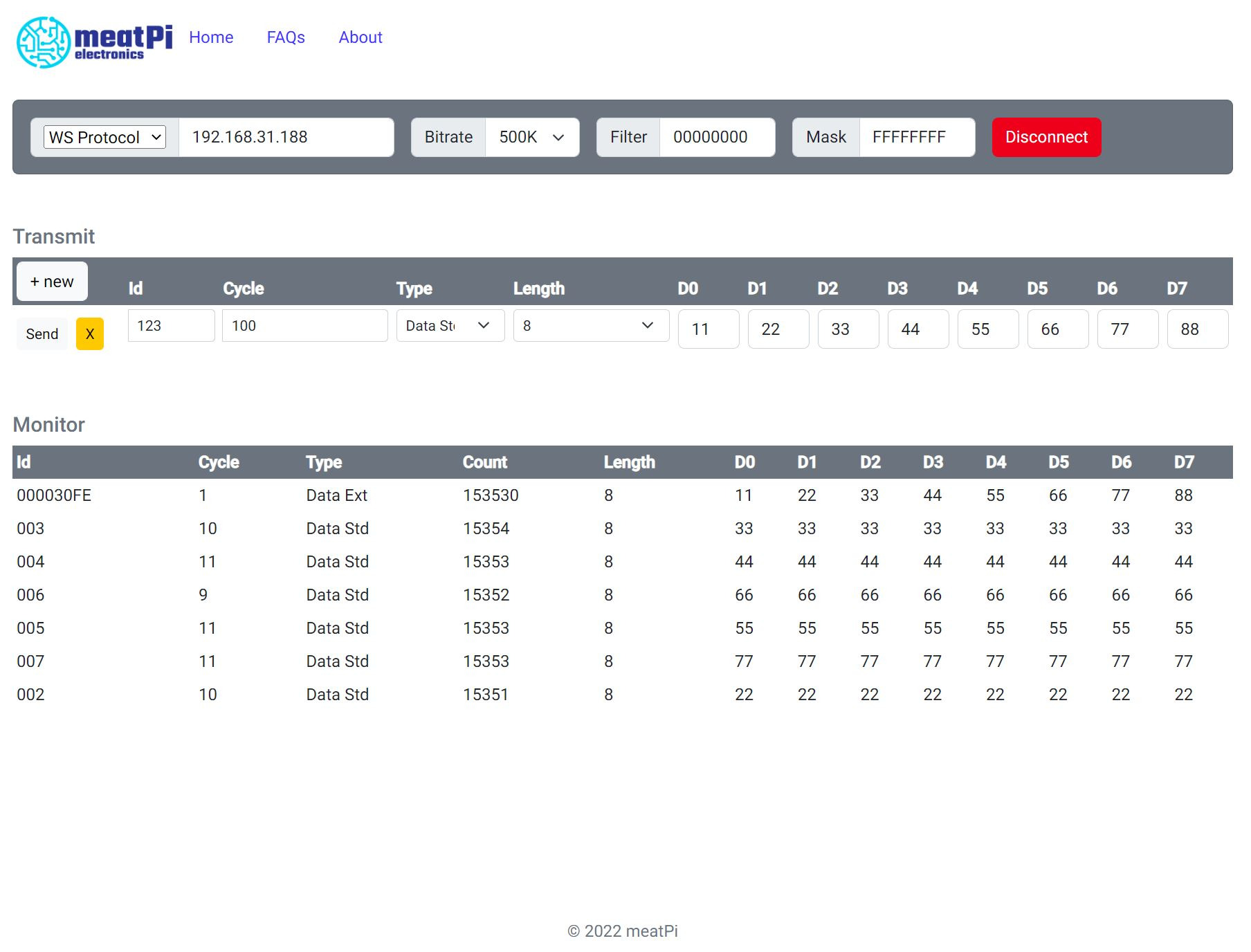

WebCAN interface
WebCAN screenshot

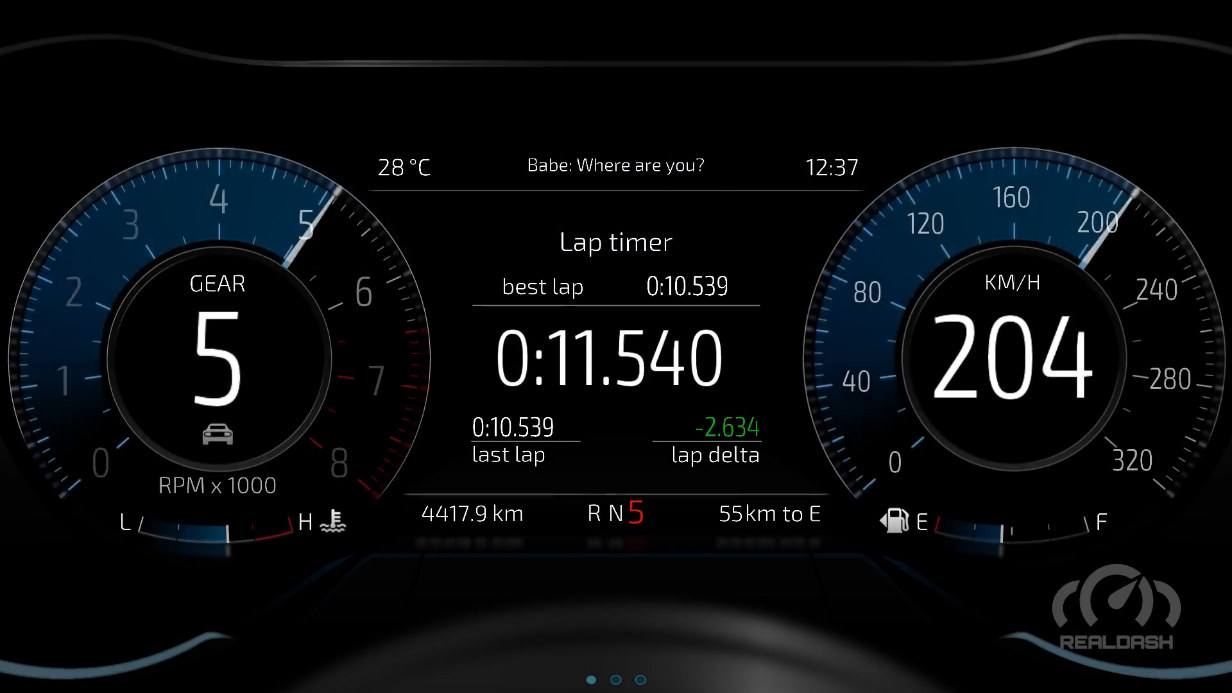

RealDash Graphical Interface example
RealDash dashboard example. More designs can be found in the gallery

You’ll find the firmware source code (working with the ESP-IDF) and instructions on Github. Another interesting feature of the WiCAN-OBD model is MQTT battery alerts with the adapter monitoring your battery voltage and sending an alert if that voltage drops under a set threshold. This is especially useful for users owning multiple cars.

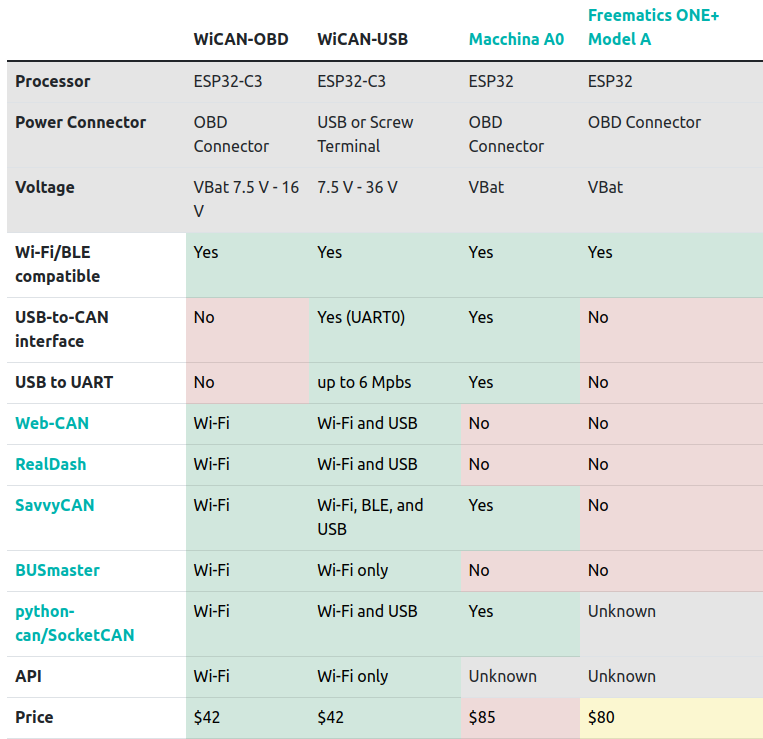

The company also provides a comparison against other wireless CAN Bus solutions based on ESP32, namely Macchina A0 and  Freematics ONE+ Model A.

WiCAN vs Macchina A0 vs Freematics ONE Plus

WiCAN-USB and WiCAN-OBD ESP32-C3 CAN Bus devices are both available on Crowd Supply crowdfunding platform for $42. Shipping is free to the US, $12 to the rest of the world, and deliveries are expected to start by mid November 2022.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
13 Comments
oldest
newest
MeatPi
2 years ago

I have a features wishlist on GitHub, what other features you’d like to add?

Hedda
Hedda
2 years ago

Please consider an integration for Home Assistant, or at least engaging with the Home Assistant community for encuraging a new CAN Bus integration that would work with it

Weldo
Weldo
2 years ago

What Hedda said. I want my car to automatically connect to Home Assistant when I get home and update certain data points.

MeatPi
2 years ago

We have an open issue on GitHub about home assistant integration. Keep an eye on it for updates.

Hedda
Hedda
2 years ago

See feature request dicusssion on GitHub https://github.com/meatpiHQ/wican-fw/issues/3

Sean Harlow
Sean Harlow
2 years ago

It has a mini USB port. What year is it?

MeatPi
2 years ago

This device was designed to be powered of the Screw Terminal connector, the USB to CAN is an extra feature, there are a lot of USB to CAN projects out there. I’m using a pre-made enclosure for this project, and I’ll be making few hundreds units only so it doesn’t really justify the cost of designing a custom enclosure.

Hedda
Hedda
2 years ago

I think Sean means that any new device should really have a USB-C port instead of USB-Micro or USB-Mini. Not having an USB-C port makes it feel old in the tech world, plus USB-Micro is a horrible physical port and not many people has USB-Mini cables lying around these days.

MeatPi
2 years ago

I’m not happy with the USB mini either. it’s a design compromise I had to make to avoid designing an enclosure. I prefer to have a nice an cheap enclosure rather than USB-C… But this is just me I know many USB-C fans will disagree.

If I get 2000 orders I’ll design a custom enclosure with USB-C 🙂

obd2center
obd2center
2 years ago

Hello

Is it possible to do diagnosis over the internet?

MeatPi
2 years ago

Currently no you cannot.

tmzt
tmzt
2 years ago

Can USB be used to recover the firmware on the OBD version, or is there another way?

MeatPi
2 years ago

Yes of course, instructions in GitHub link below. You can use the USB to debugging as well it’s connected to the internal ESP32-C3 usb interface.

https://github.com/meatpiHQ/wican-fw#2-usb
