Arylic A50+ review – An entry-level wireless stereo amplifier

The Arylic A50+ is a stereo audio streamer with a built-in power amplifier and support for wireless networks such as WiFi and Bluetooth as well as wired connections such as Ethernet, Analog RCA Line In, optical S/PDIF input, Subwoofer Out, and USB host port. All you need to do is connect the Arylic A50+ amplifier to passive speakers, and you can then easily stream music from streaming services such as Spotify, Tidal, or Qobuz in high-definition audio with the company’s 4STREAM app or another compatible app. Multiple A50+ wireless amplifiers can also be connected through your house to enable multiple rooms and/or zones support.

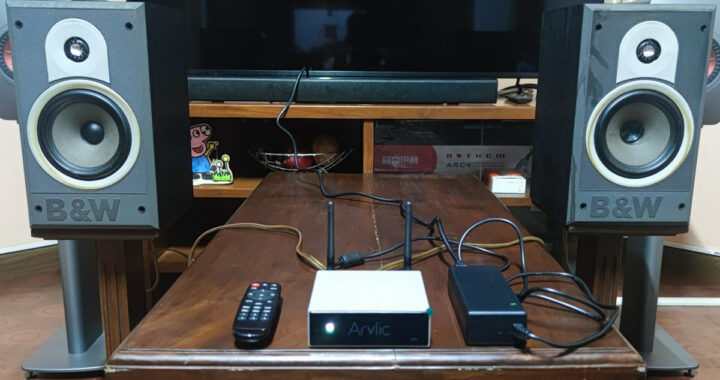

Arylic A50+ wireless amplifier review



Arylic A50+ unboxing

Arylic A50+ unboxing

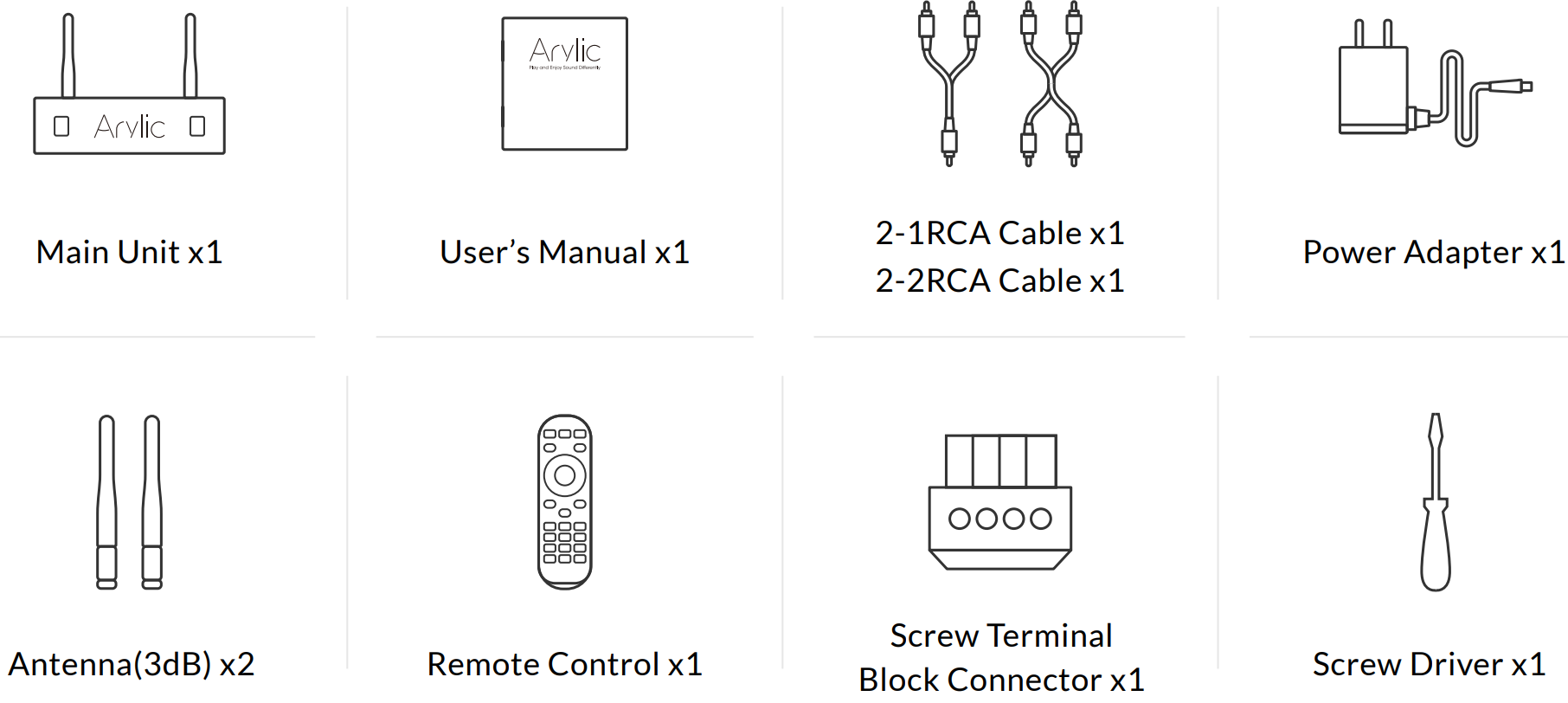

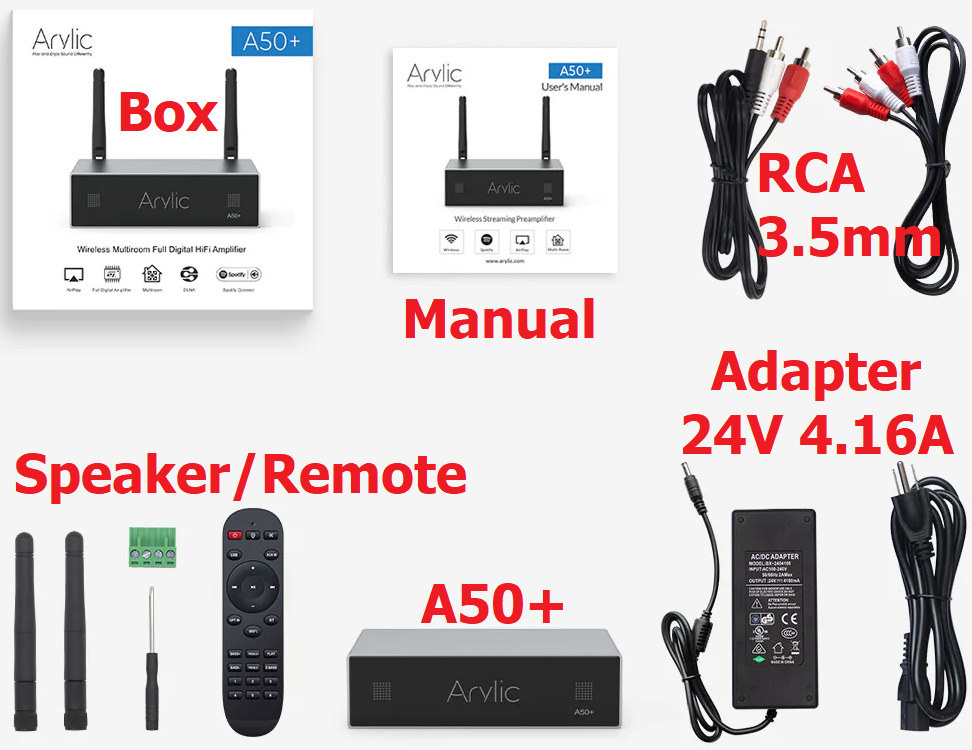

Arylic A50+ package content

Arylic A50+ wireless amplifier teardown

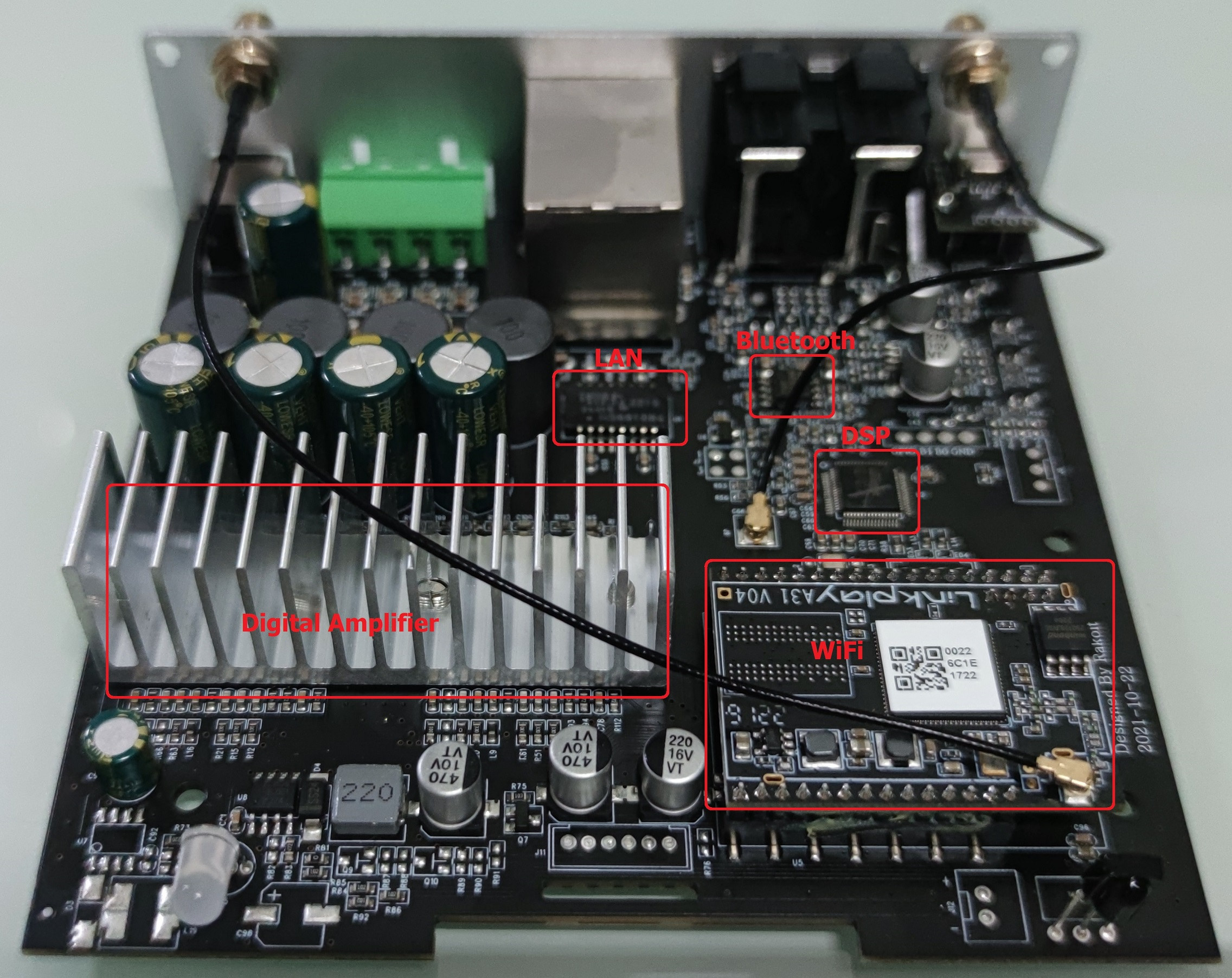

We can open the device after loosening four screws and have a look at the various electronic components used in the design. The main board, named Up2Stream A50Pro, consists of 5 important integrated ICs:

Arylic A50+ amplifier teardown

Those include:

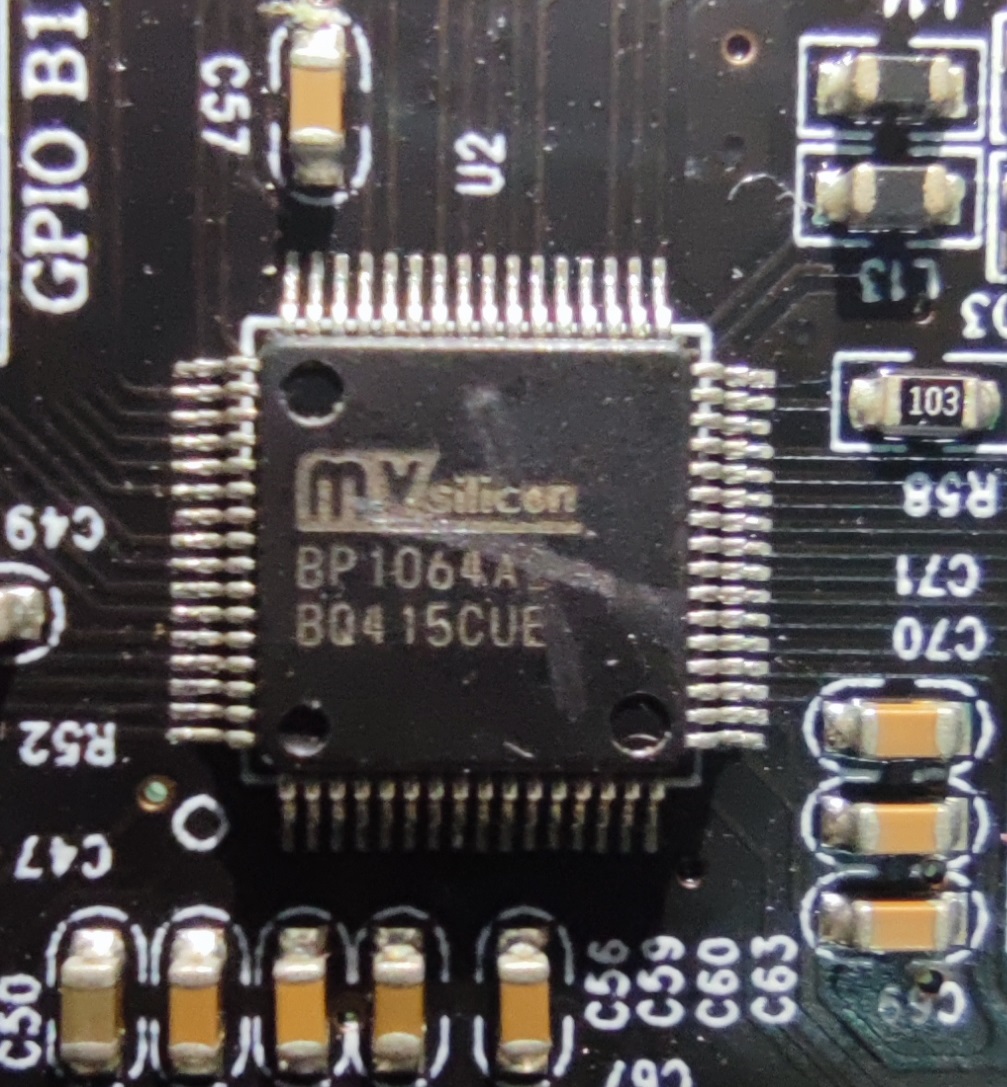

MVSilicon BP1064A2 audio DSP
MVSilicon BP1064A2 32-bit audio DSP

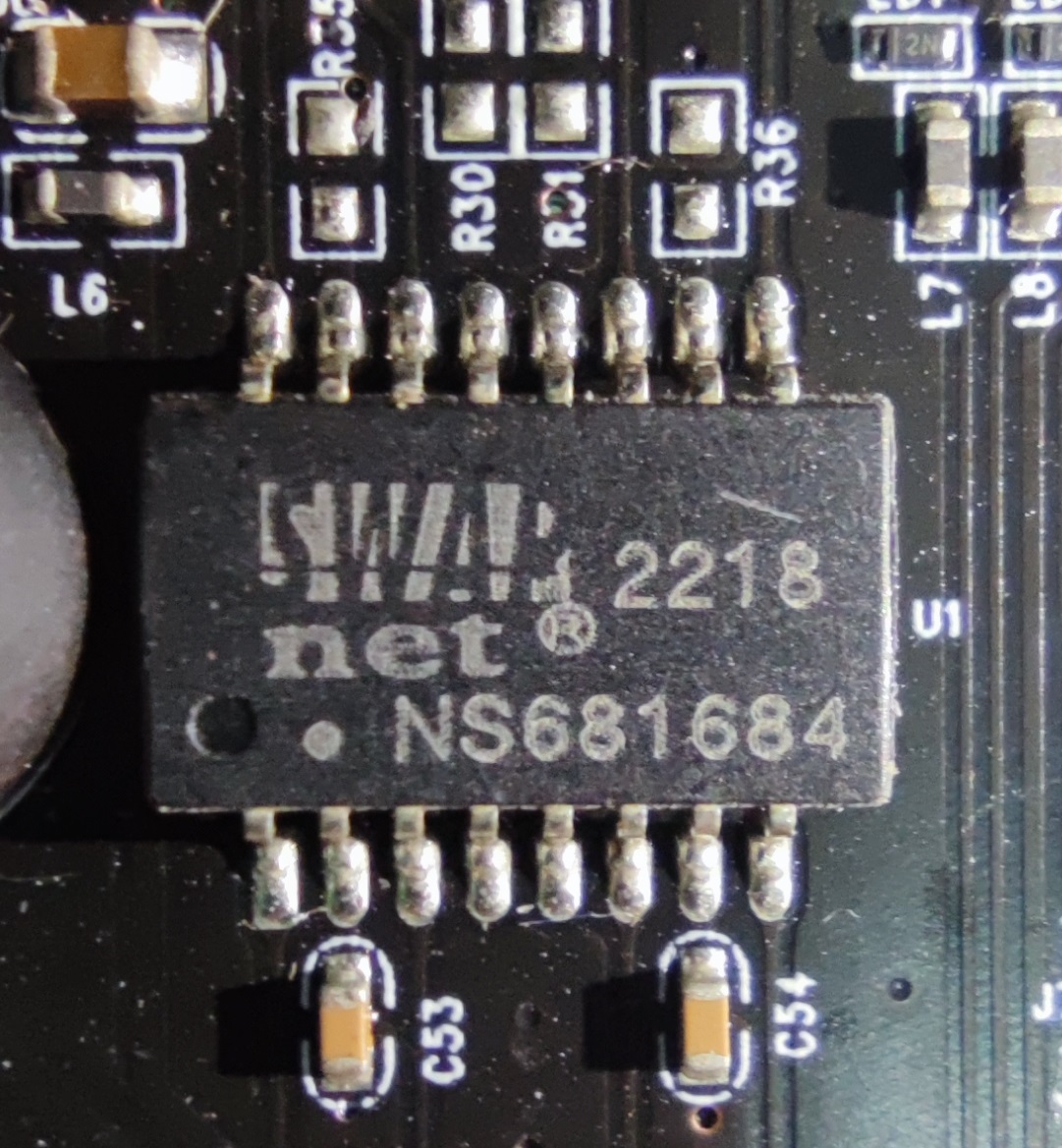

SWAPNET NS681684 Ethernet
SWAPNET NS681684 for 10/100M Ethernet

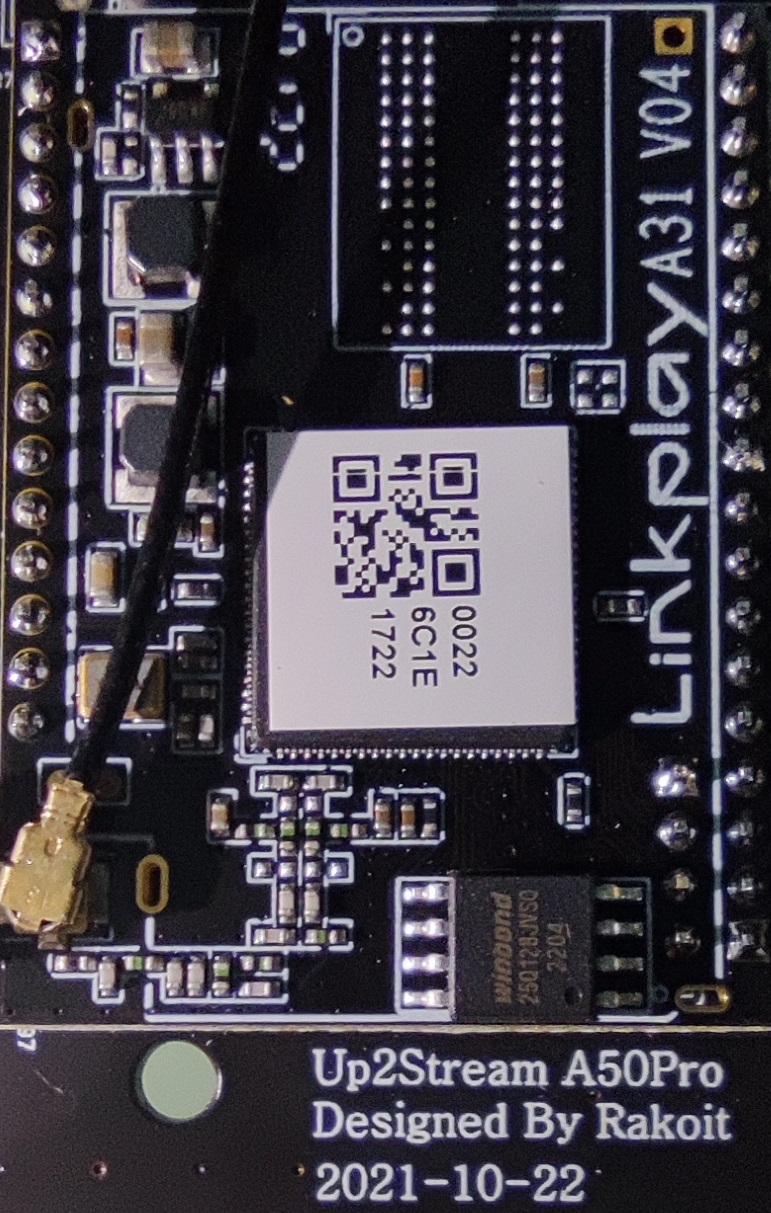

Linkplay A31 WiFi module Rakoit Up2Stream
Linkplay A31 2.4GHz IEEE802.11 b/g/n WiFi 4 module



Main features of Arylic A50+

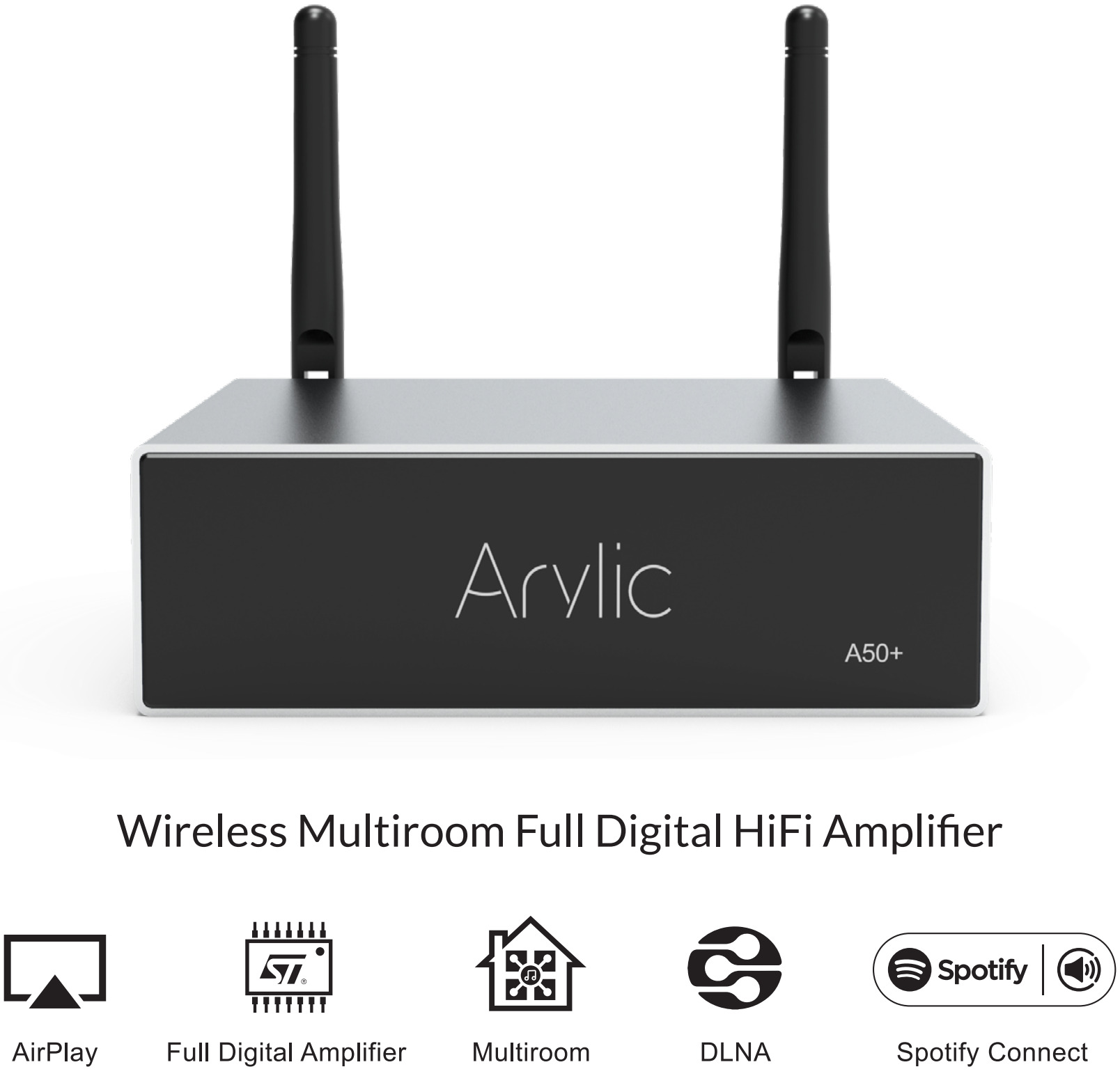

Arylic a50 plus key features

a50 50 watts

  • Built-in digital stereo amplifier that can drive speakers directly with 2x 50W speakers @ 4 ohms or 2x 30W speakers @ 8 ohms.
  • Streams music via WiFi or Bluetooth 5.0 at a range of up to 15 meters
  • Supports various streaming protocols: Spotify Connect, Airplay, Qplay, DLNA, UPnP, etc…
  • Support various streaming services such as Spotify, Deezer, Tidal, Qobuz, iHeart Radio, TuneIn, Napster, and more
  • Supports streaming from online service sources, smart device memory, USB Flash drive, NAS, Bluetooth, and analog input.
  • Supports iTunes and audio streaming can be done on your computer as well.
  • Multi-room and multi-zone streaming enabled with multiple A50+ wireless amplifiers connected to the same network.
  • All music sources can be re-streamed in sync with other Arylic models.
  • Support high-quality music streaming up to 24-bit, 192kHz
  • 4STREAM app available for iOS and Android
  • Free OTA updates for future new features.
  • Comes with a remote control, so it can also be used without a mobile phone
  • Subwoofer output to connect an external active subwoofer
  • Bass-treble adjustment via app or remote control
  • Playlists can be preset on the remote control for a one-button playback

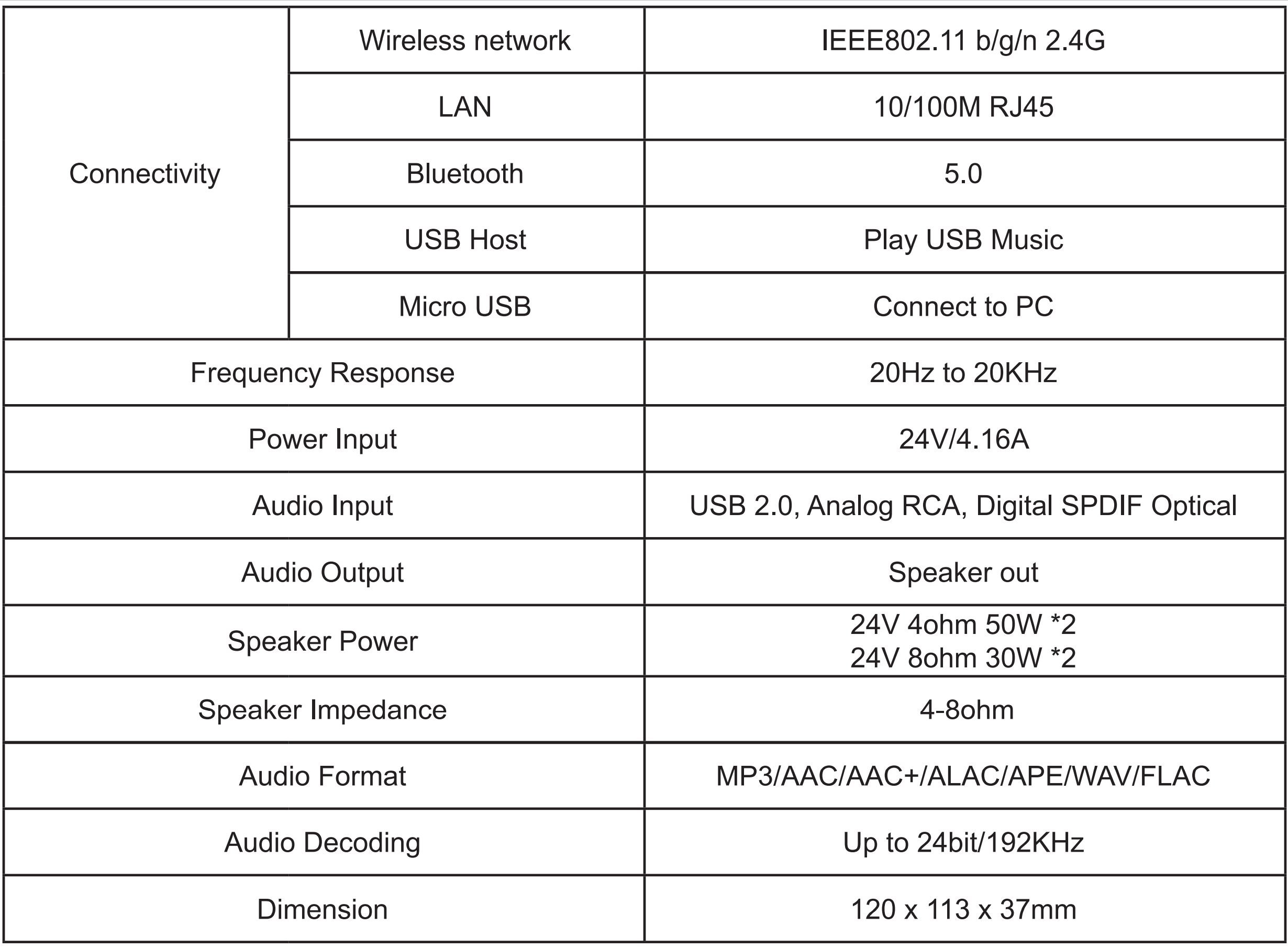

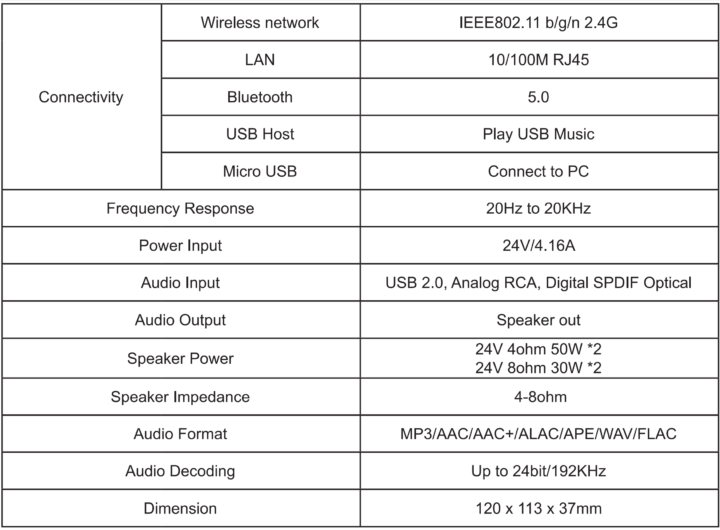

Arylic A50+ specifications

Arylic A50+ specifications

A wide range of ports

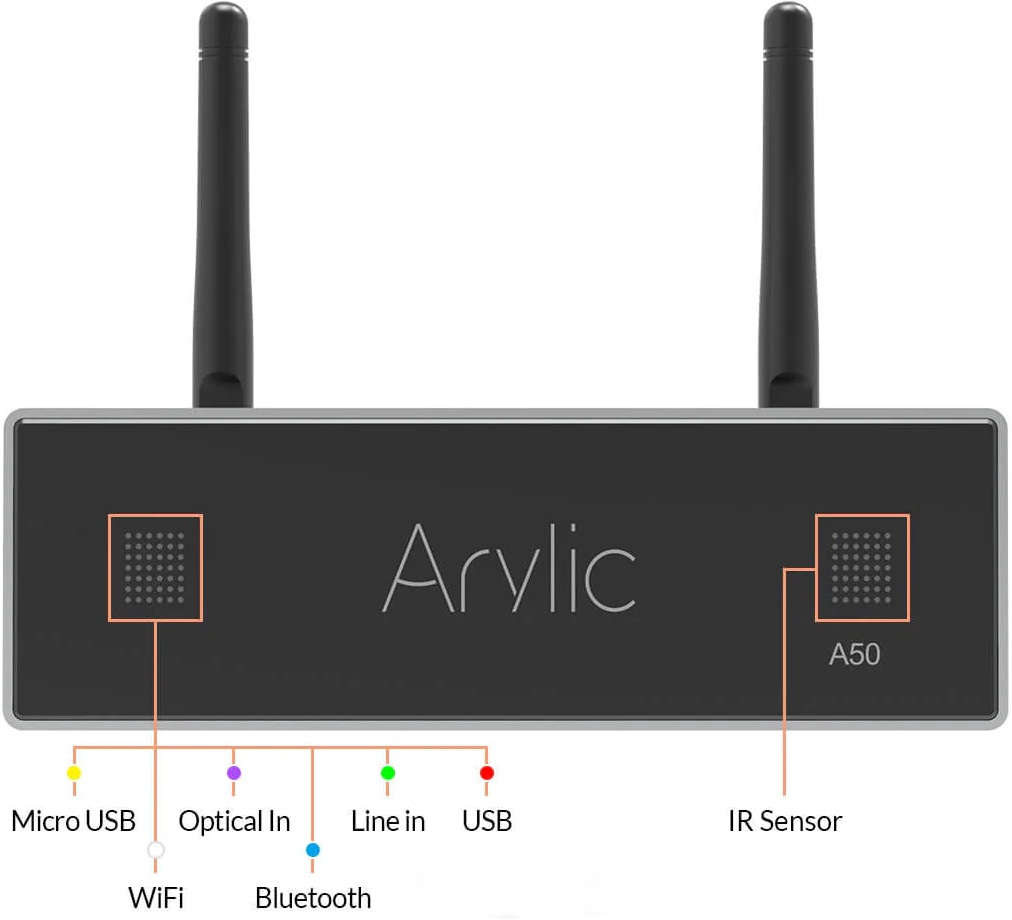

Arylic A50+ front panel
Front panel

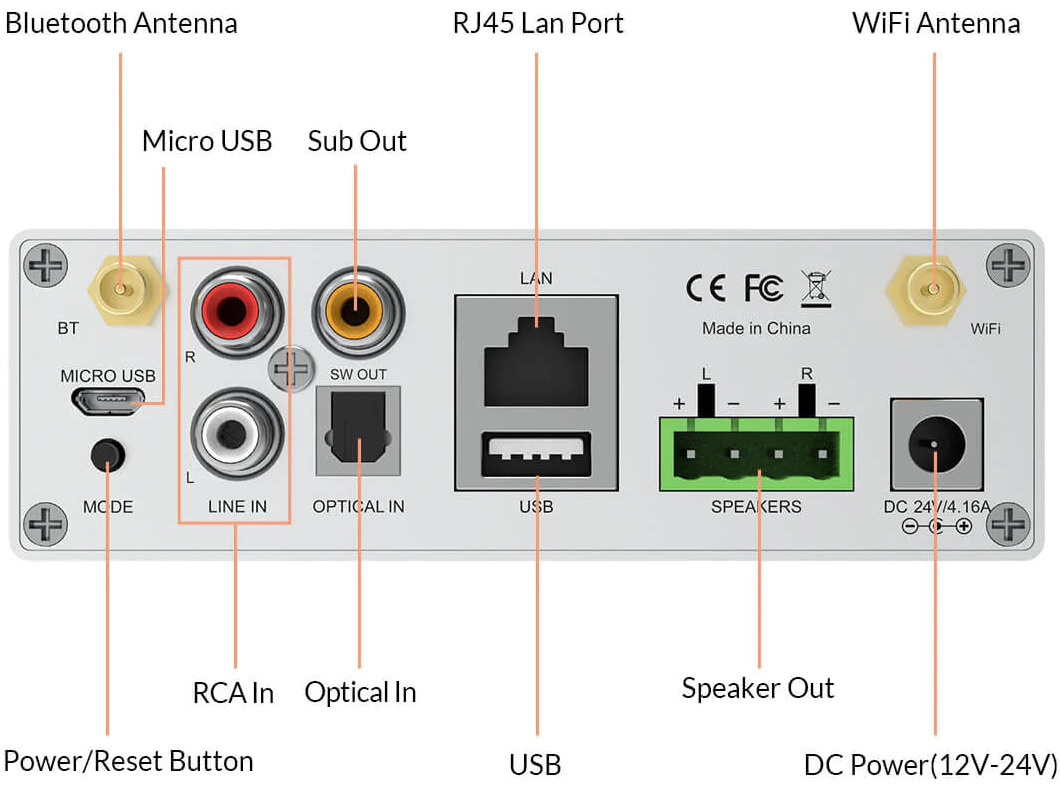

Arylic A50+ rear panel
Rear panel

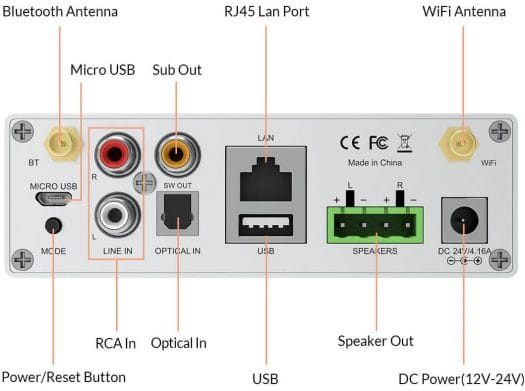

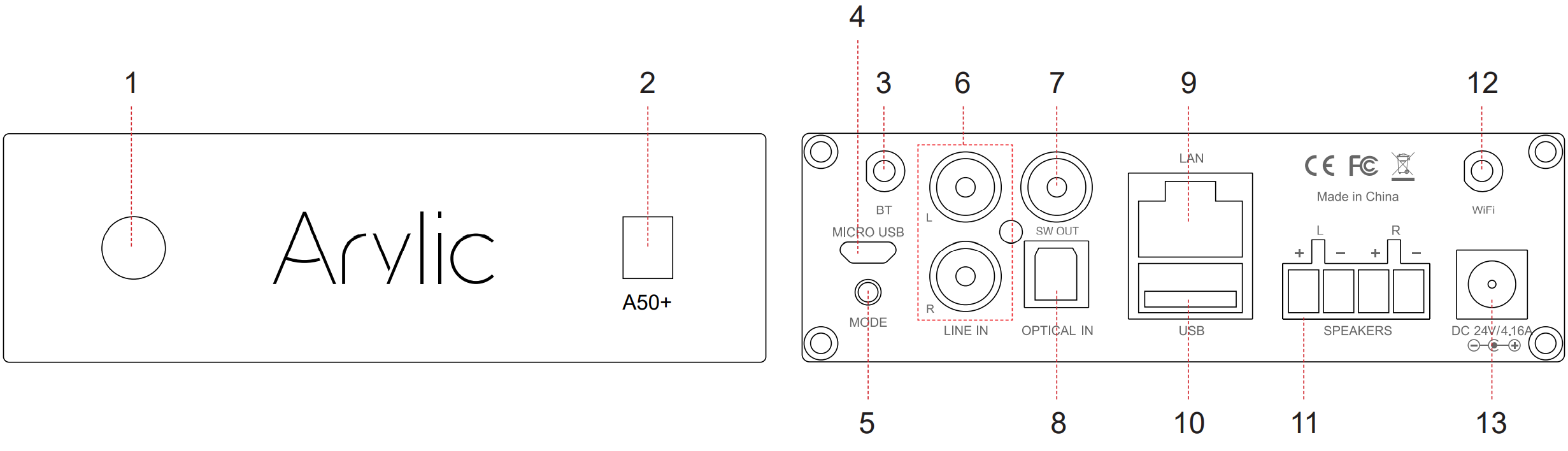

Arylic A50+ interface description
Arylic A50+ ports description
  1. Status LED
  2. IR receiver for the remote control
  3. Bluetooth antenna connector for better Bluetooth signal strength
  4. Micro USB port to connect to an external USB DAC to enhance the quality of the analog audio signal.
  5. Mode button
    • Short press the button once: select the input signal.
    • Short press the button twice: connect and pair Wi-Fi or Bluetooth again.
    • Short press the button 3 times: return to factory settings.
    • Press and hold the button once: power on/off
  6. LINE IN for external audio sources (RCA connector)
  7. SW OUT to connect an external active subwoofer.
  8. OPTICAL IN – Optical S/PDIF input connector
  9. LAN – RJ45 Ethernet connector for LAN connection
  10. USB host port to play audio files from a USB flash drive.
  11. 4-pin speaker terminal to connect passive speakers
  12. WiFi antenna connector
  13. DC Power – 24V/4.16A input

Remote control

S50/A50+ Remote control

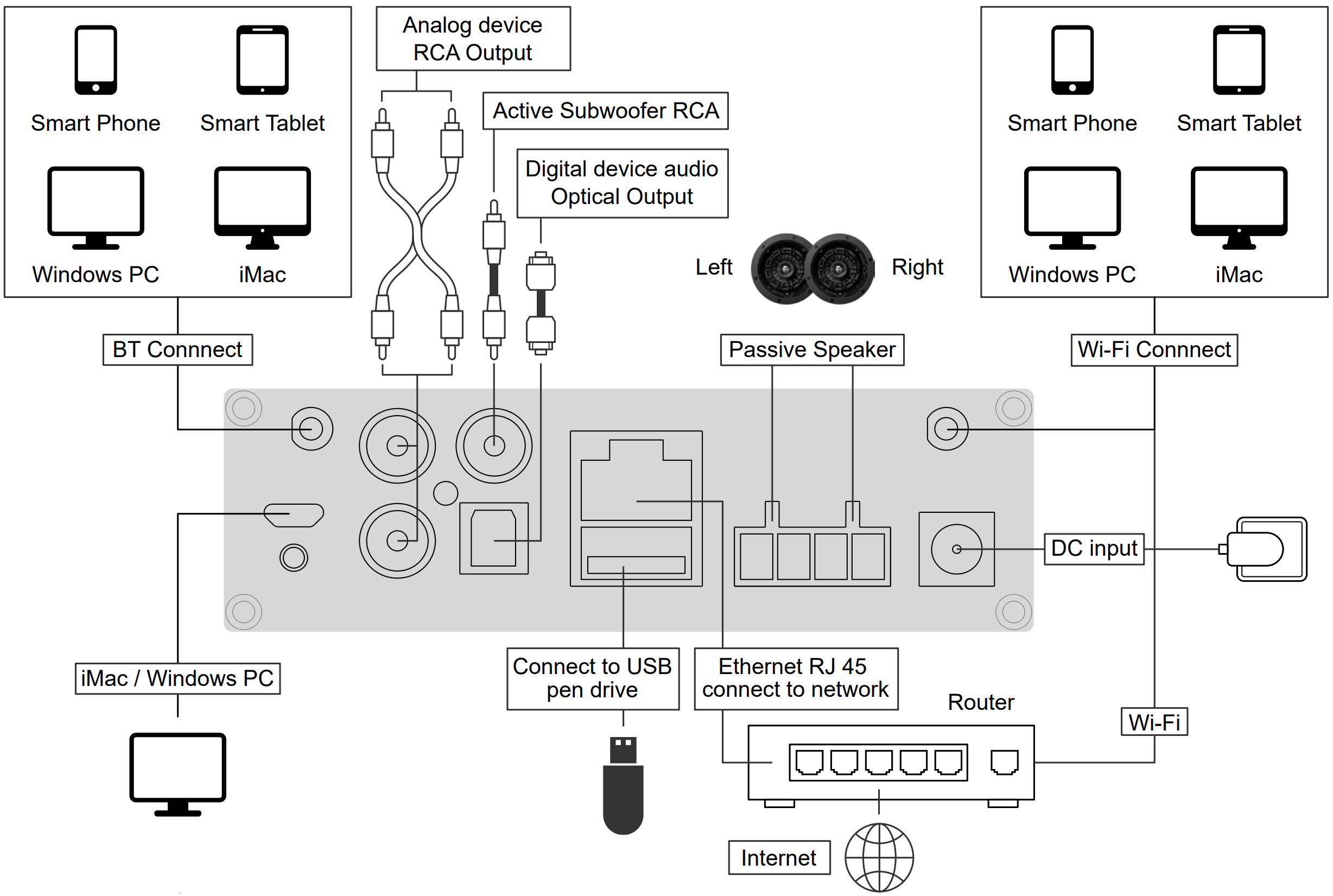

Connection diagram

Arylic a50+ connections
Wired and wireless connections

Getting started with the 4STREAM app

Download the 4STREAM application from the App Store for iOS devices and the Google Play Store for Android devices. The application supports English, Spanish, French, German, Italian, Portuguese, Korean, traditional Chinese, simplified Chinese, and Japanese.

The application consists of three main items with Browse, Device, and Settings. Let’s have a look at all three.

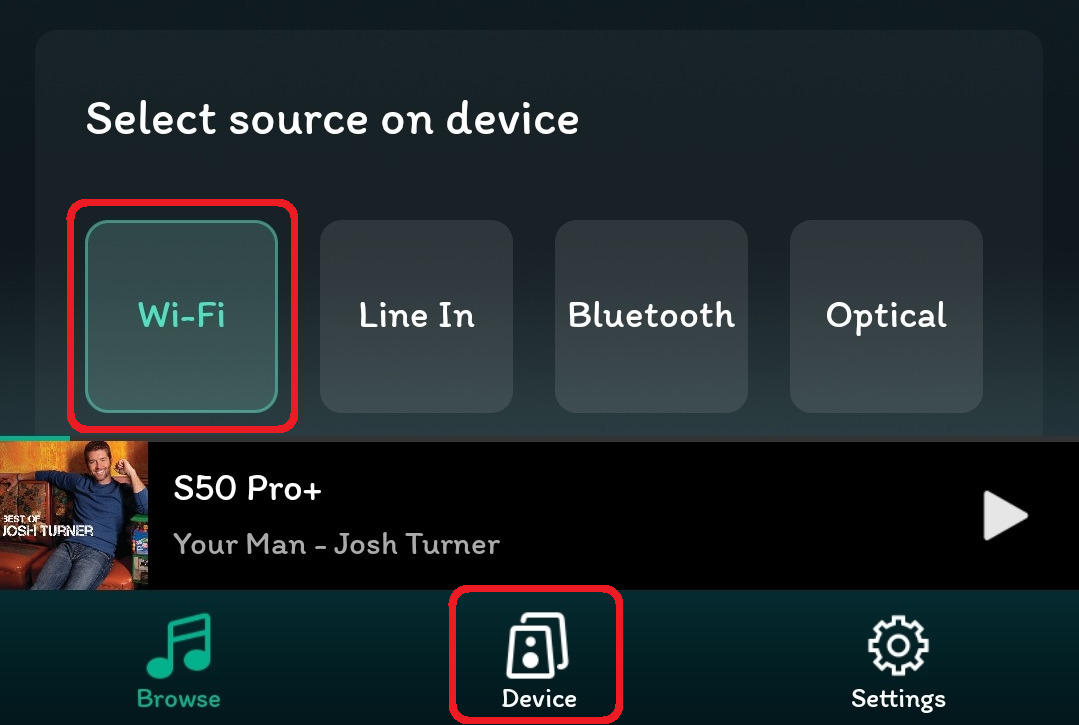

4STREAM device wifi

Device – Used to connect a new device

Let’s use WiFi as an example. We’ll need to follow four steps:

  1. Power on the device and connect your mobile device to your local network.
  2. Go to your mobile device’s WLAN settings, and connect your phone to SoundSystem_ xxxx SSID (Short press the Reset button if the hotspot is not found)
  3. Open the 4STREAM application, and follow the instructions in the application.
  4. Select a 2.4GHz Wi-Fi network (only 2.4GHz networks will appear), enter the router password, and wait for device initialization

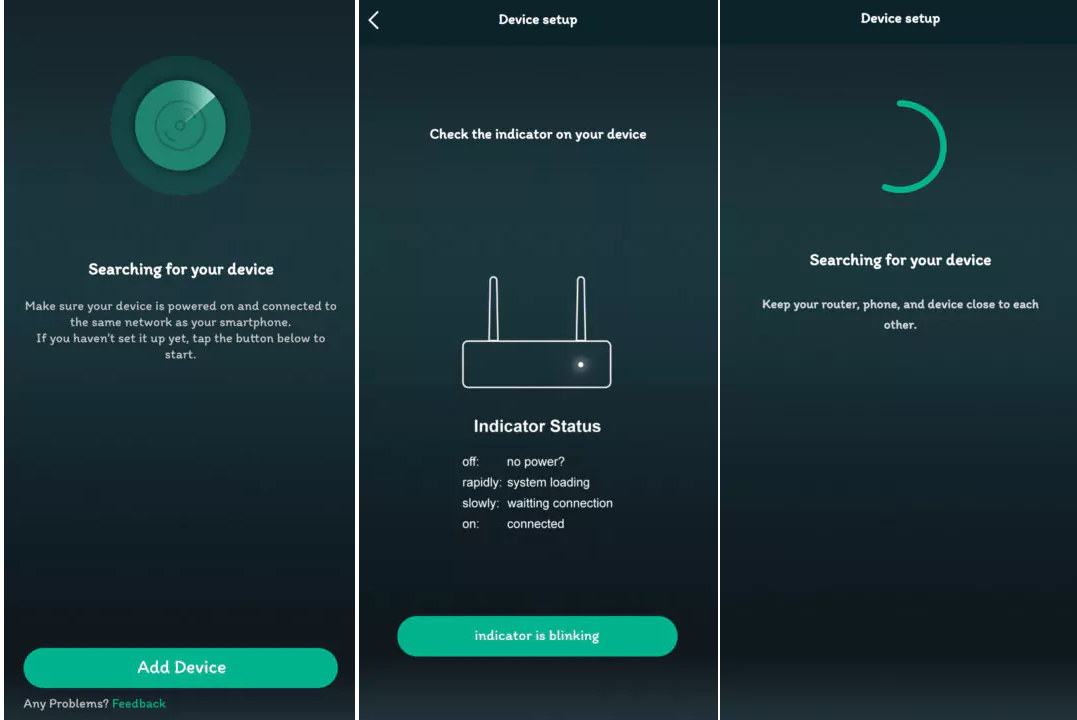

Arylic 50+ WiFi setup 1

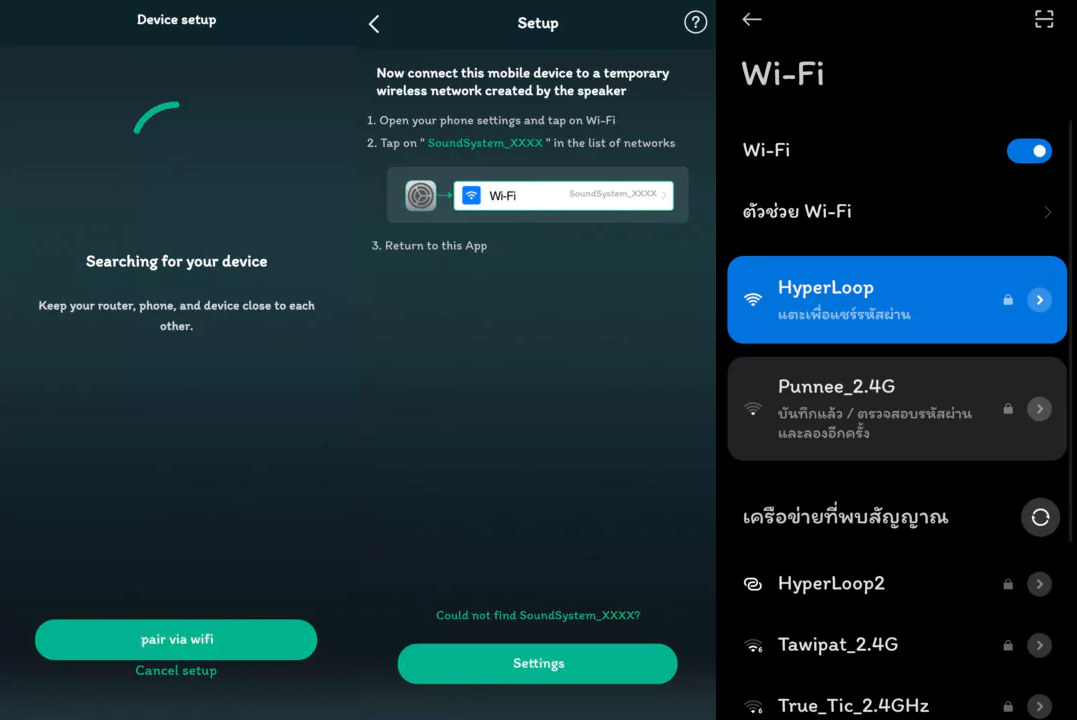

Arylic 50+ WiFi setup 2

Notes:

  • If you have multiple A50+, or other Arylic devices connected to the same router, the router password is now saved.
  • Some Android phones may ask you to allow the use of the SoundSystem WiFi network. Please select “Yes”. If “No” is selected, you will not be able to set up the system successfully.

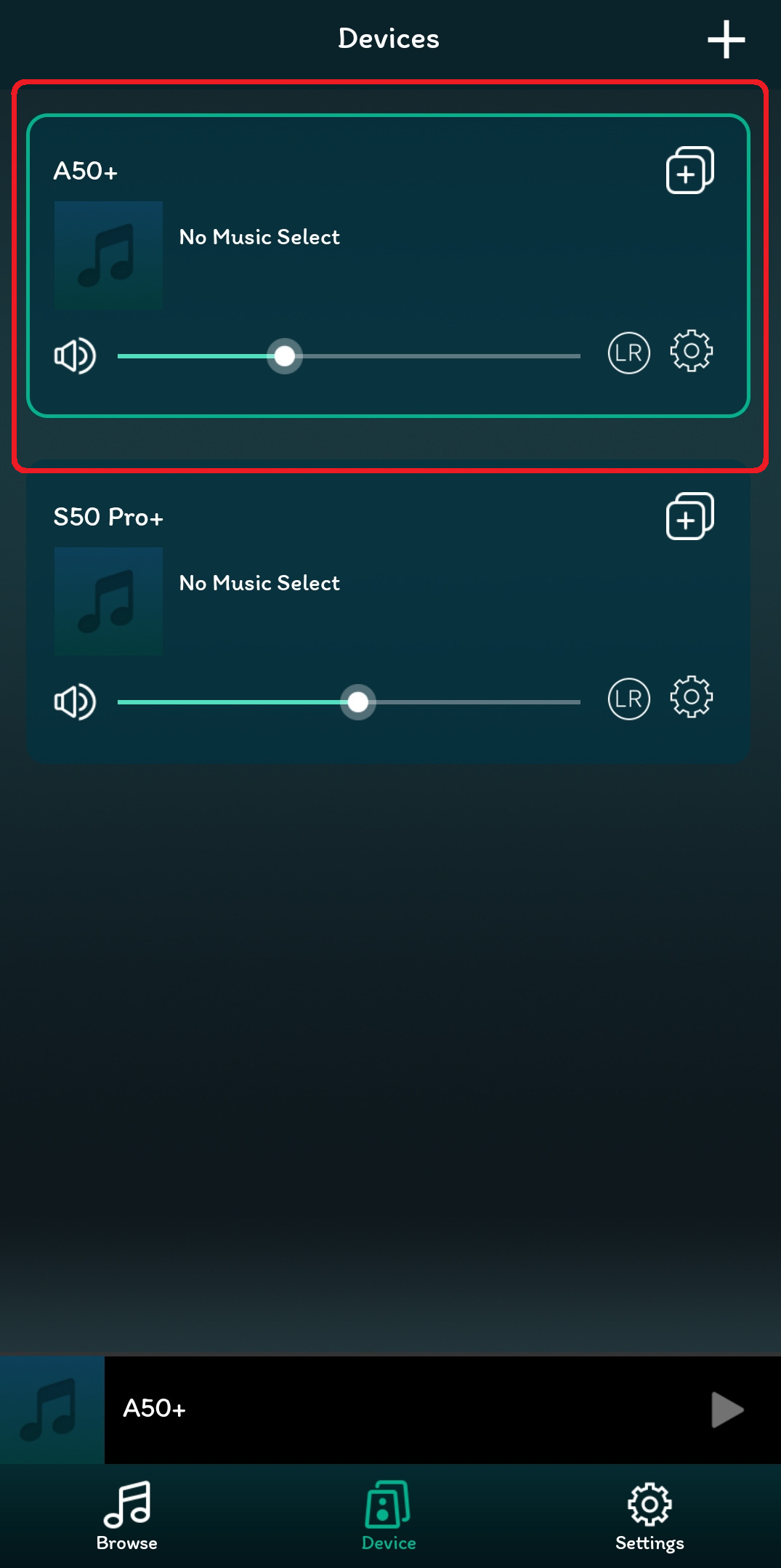

4STREAM A50+ and S50 Pro+ devices

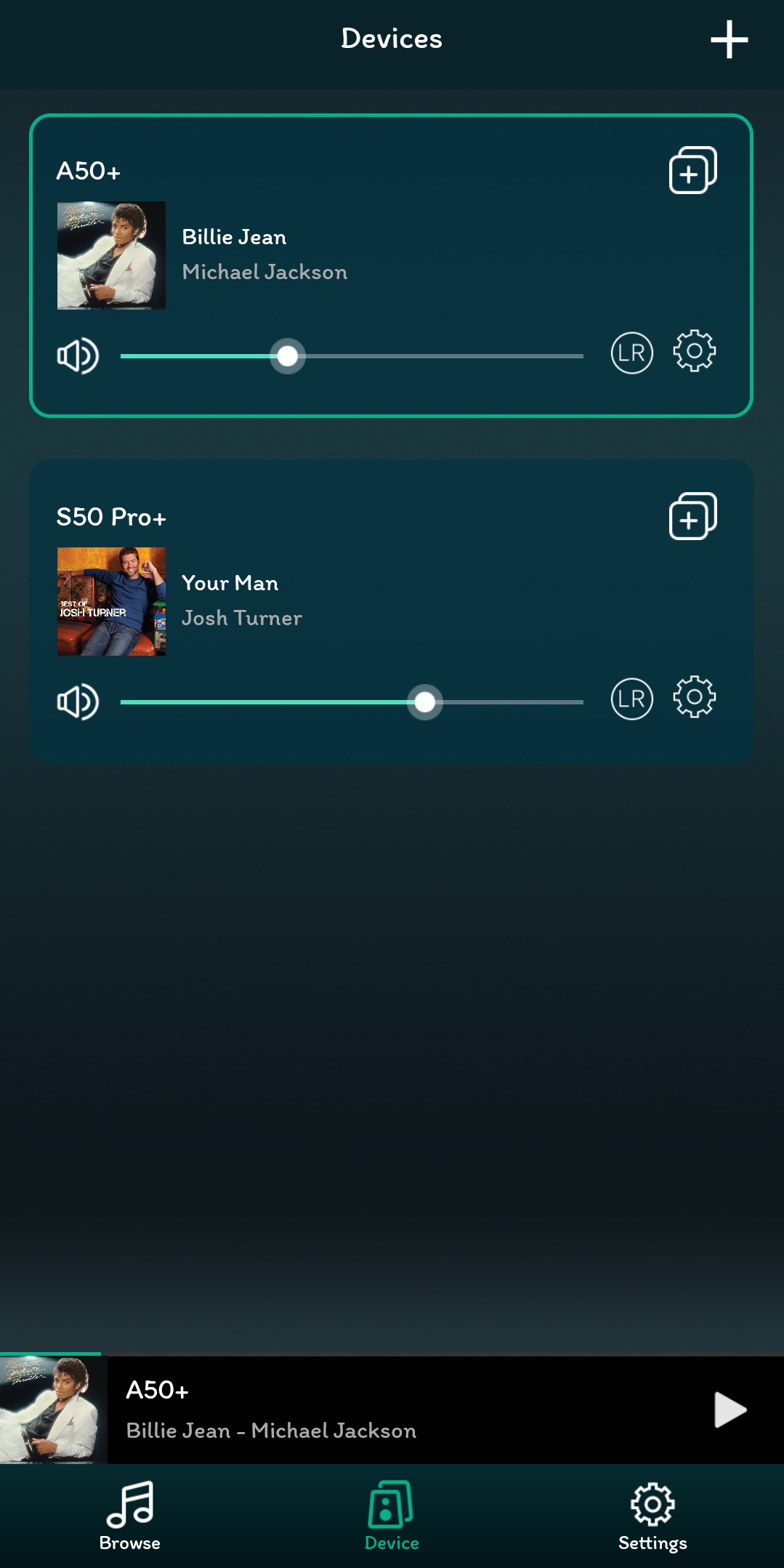

Our A50+ amplifier now shows up in the app together with the S50 Pro+ wireless pre-amplifier we have just reviewed. You can check other methods such as Bluetooth and Ethernet in our earlier review.

Settings

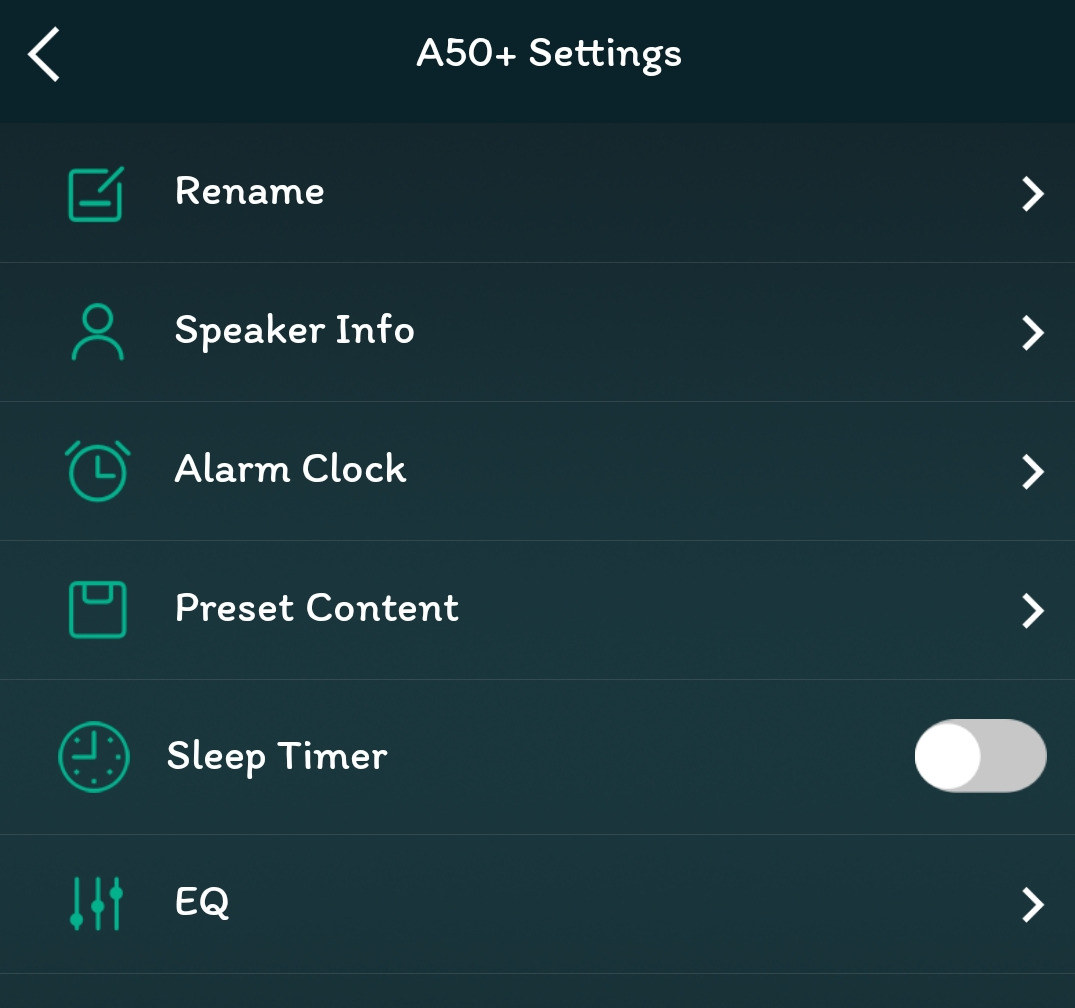

Arylic A50+ Settings List

Let’s go through the six options from the Settings section.

Rename

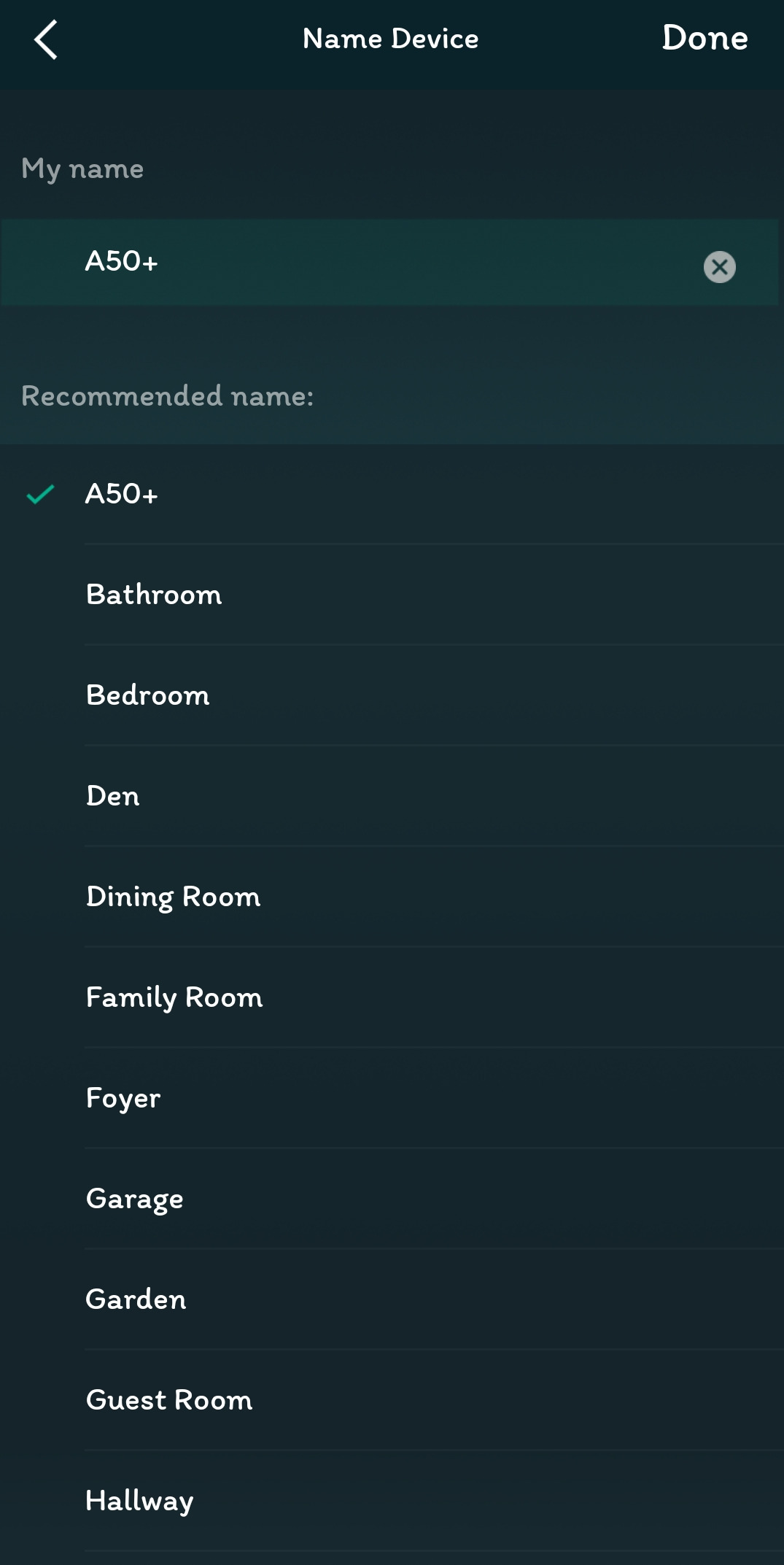

4STREAM rename device

We can change the name of the device to something more meaningful

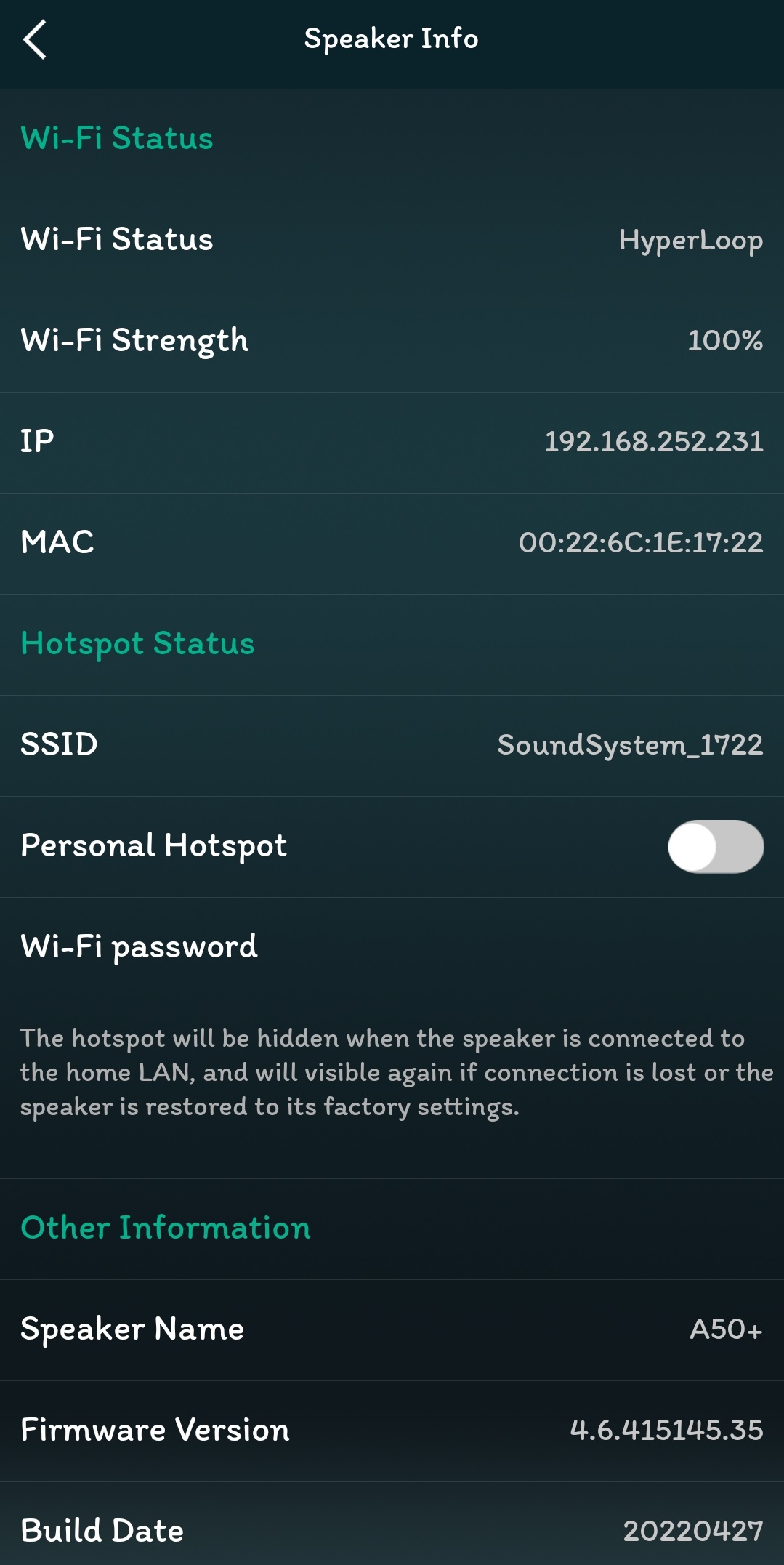

Speaker Info

app A50+ Speaker info

It displays the information of the connected device such as the IP address, the MAC address, the SSID, and more.

Alarm Clock

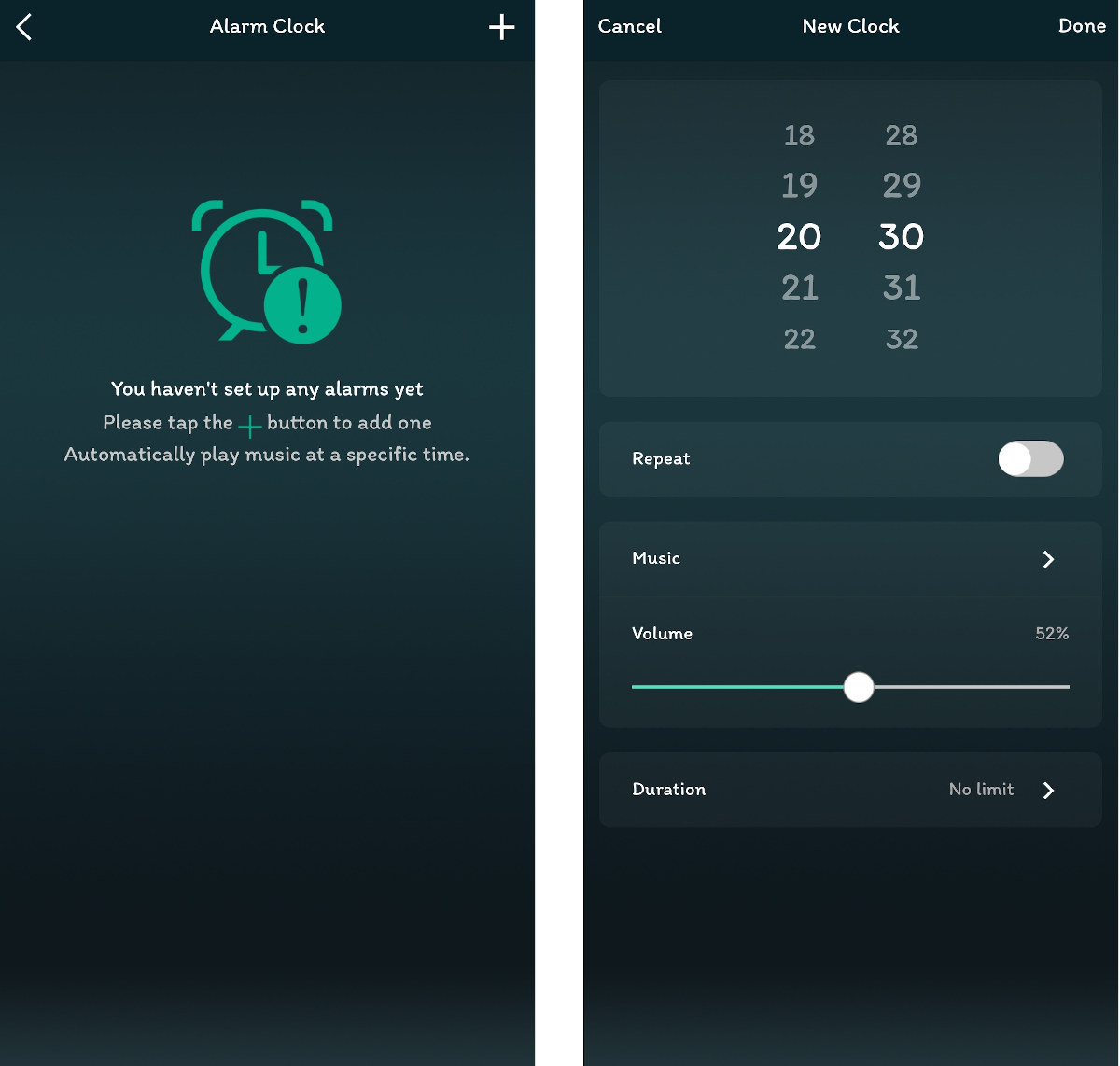

4STREAM Alarm Clock

We can set the time to start the device automatically, for example, to play music in the morning to wake us up.

Preset Content

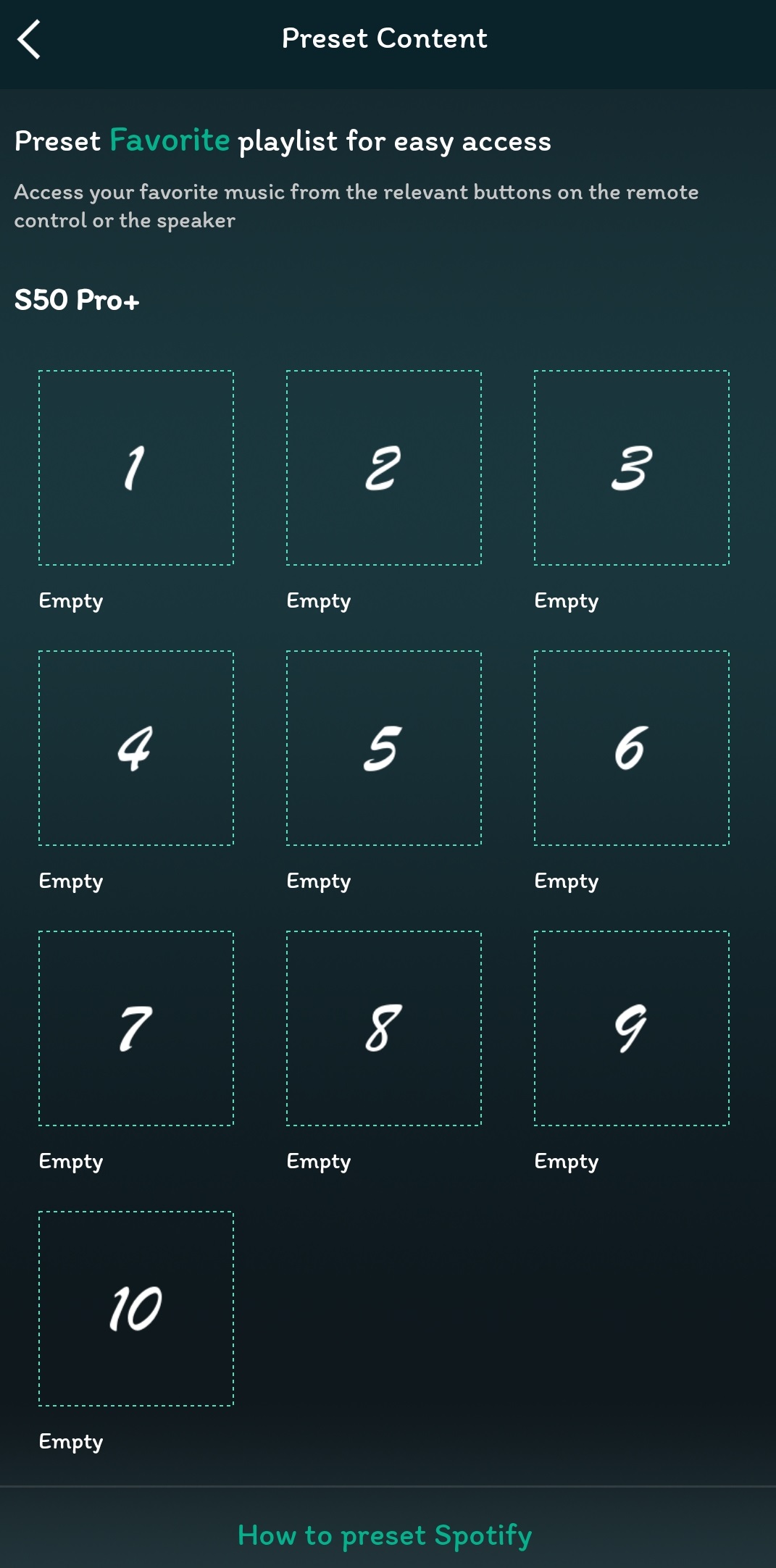

4STREAM app presets

We can define up to 10 presents for our preferred playlists in the app. The first six can be accessed with the preset keys from the remote control as well.

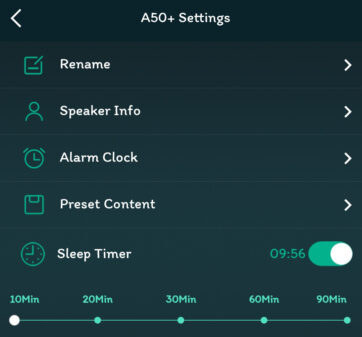

Sleep Timer

Arylic A50+ Settings

This is used to enable an automatic shutdown after a period of time defined by the user, and up to 90 minutes.

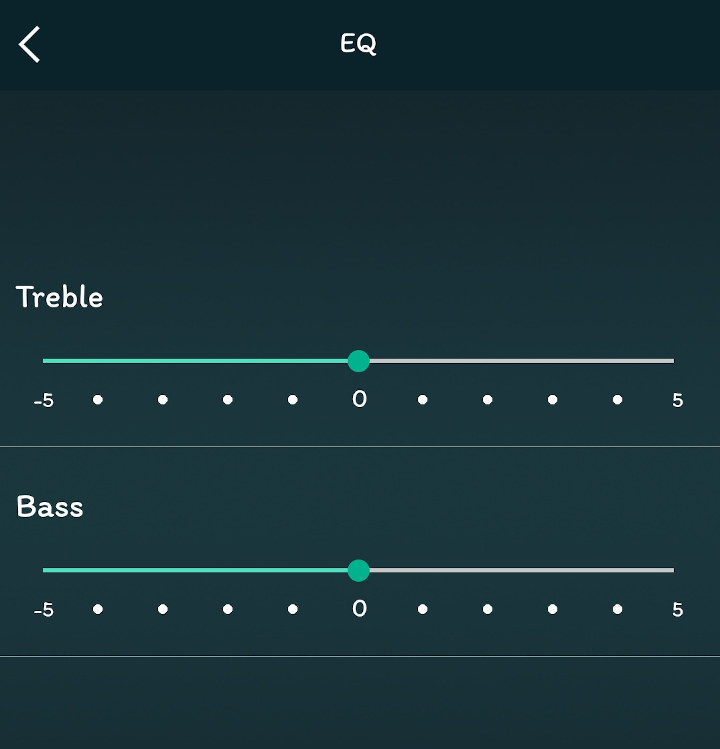

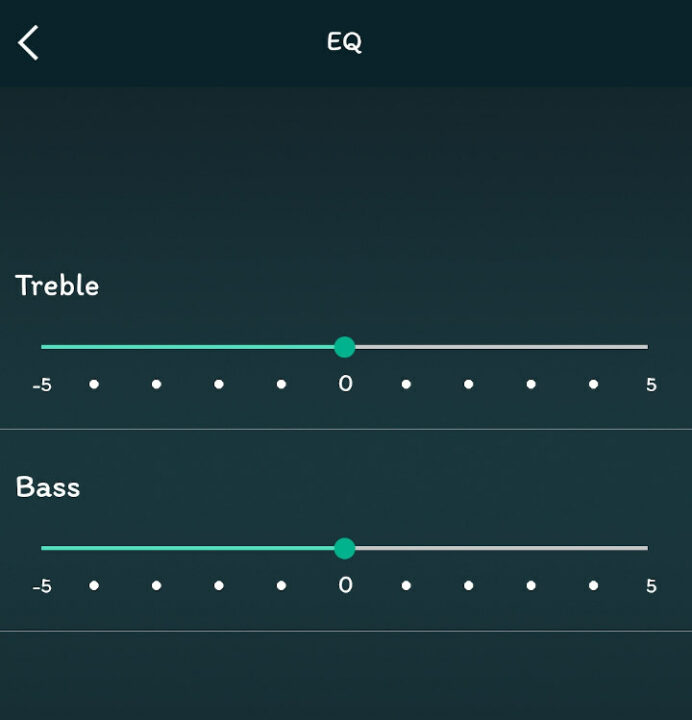

EQ

EQ Equalizer

Equalizer function to adjust Treble and Bass values.

Browse

That’s where you will be playing music from online streaming services such as iHeartRadio, Spotify, Tidal, Qobuz, and Deezer all of which may require account registration.

Audio test with the Arylic A50+ wireless stereo amplifier

Test requirements

For the purpose of this test, we choose to play music from the TIDAL Hi-Fi wireless streaming app. The connection is easier than with the pre-amplifier, since an amplifier is integrated and we can just find a pair of passive speakers to connect to the Arylic A50+ and listen to music.

We’ll need the following

  1. 4STREAM app
  2. TIDAL Hi-Fi streaming app
  3. Arylic A50+ wireless stereo amplifier
  4. B&W DM500 series speakers by Bowers and Wilkins

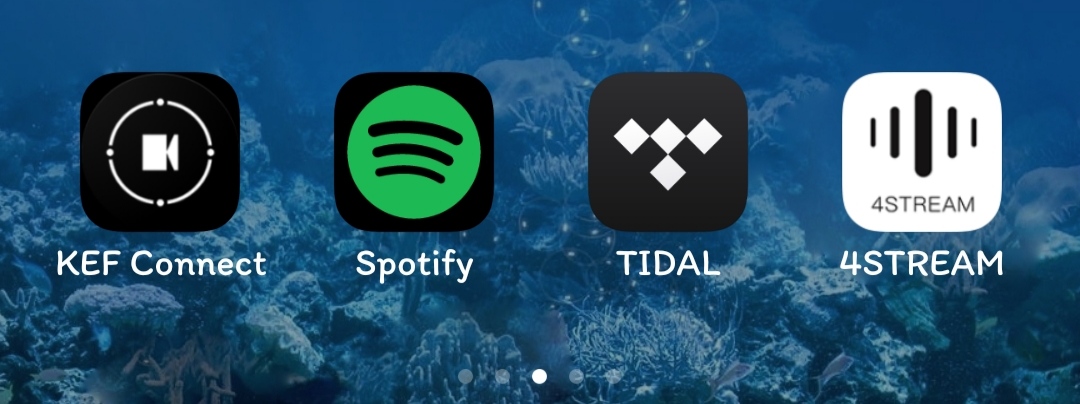

KEF Connect Spotify TIDAL 4STREAM

Wiring

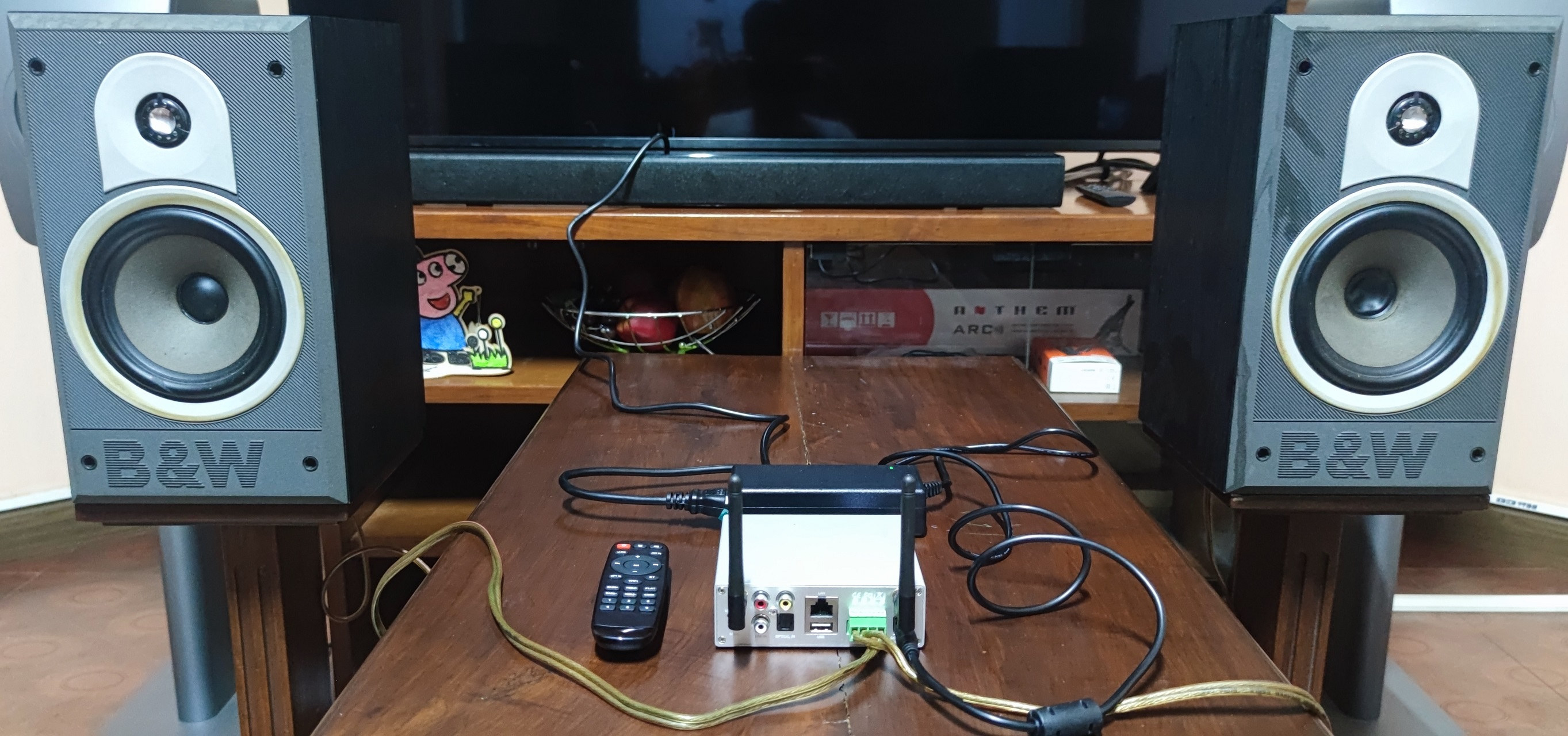

Wiring could not get any simpler, as we just had to connect the left/right speaker cables from the B&W DM500 series speakers to the Arylic A50+ speaker terminal.

Arylic A50+ speaker connection

Connecting to the TIDAL app

TIDAL with A50+ and S50 Pro+

Country music test

The song chosen for the test was Your Man by Josh Turner from the album Best Of streaming from the Tidal app.

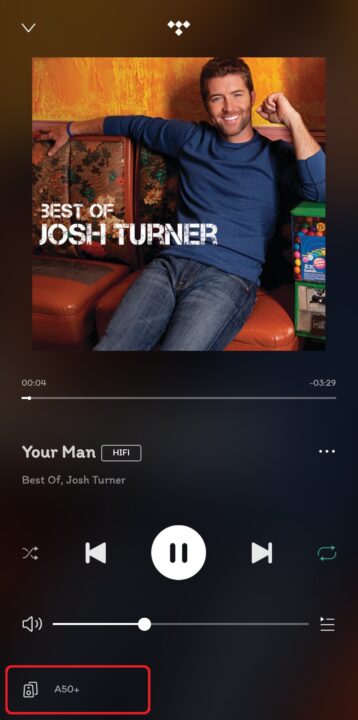

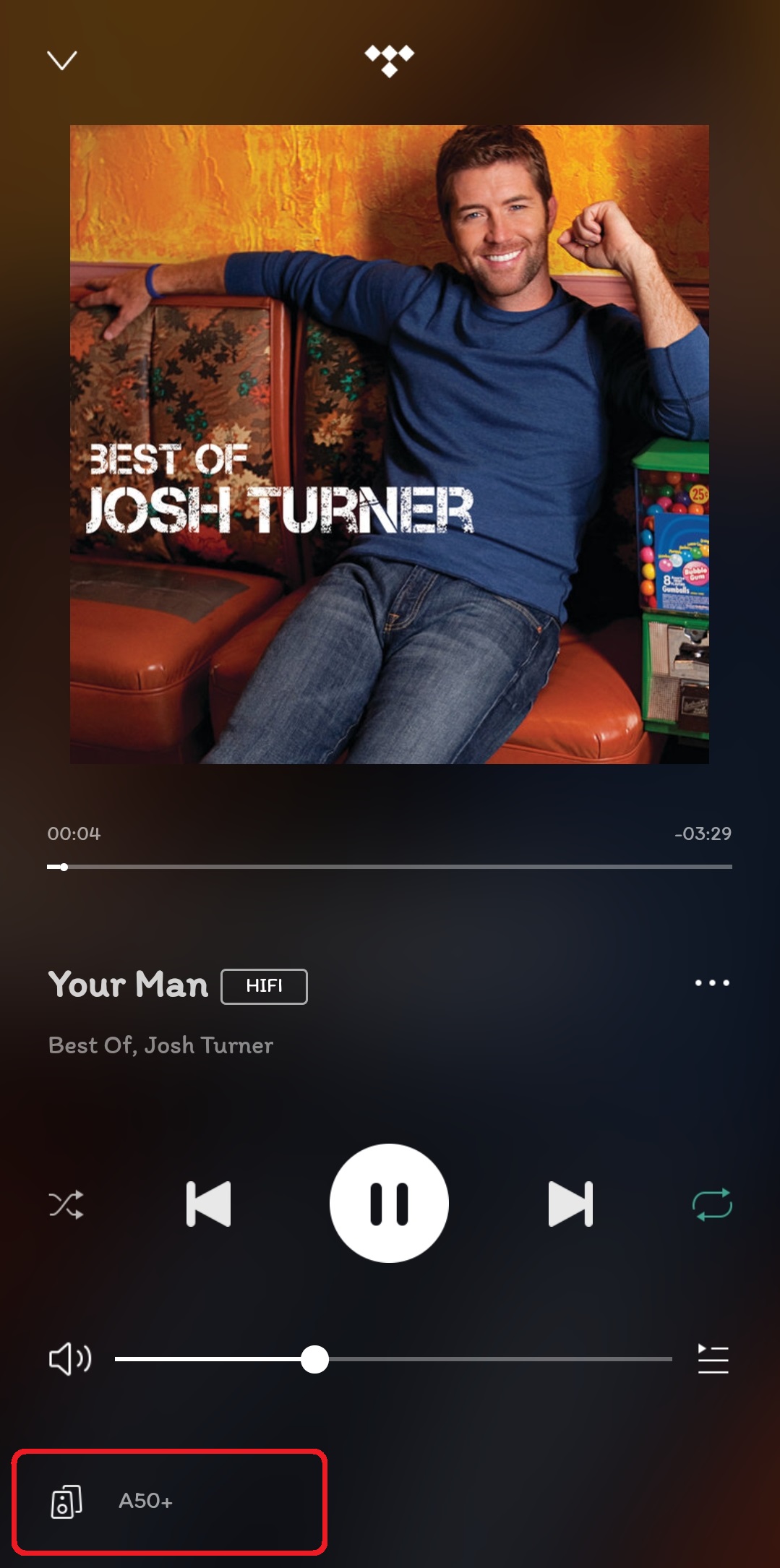

TIDAL app Arylic A50+ "your man"

The song “Your Man” is particularly striking with the unique vocals of Josh Turner, especially the deep bass. The volume is constant, and the atmosphere of listening to music is comfortable and enjoyable.

We did not adjust the equalizer, treble, and bass in the 4STREAM app in order to listen to the unmodified sound from the original song.

Note: The audio tested through the Tidal app is copyright protected. The reviewer has no intention of infringing on the copyright of the song in any way. Therefore, only short videos were recorded up to 2 minutes long, and not the complete song to use as an example.

You can listen to the Arylic A50+ compared to the Arylic S50 Pro+ from our review “Arylic S50 Pro+ Wireless Stereo Preamplifier Review“.

Pop-dance and R&B audio test

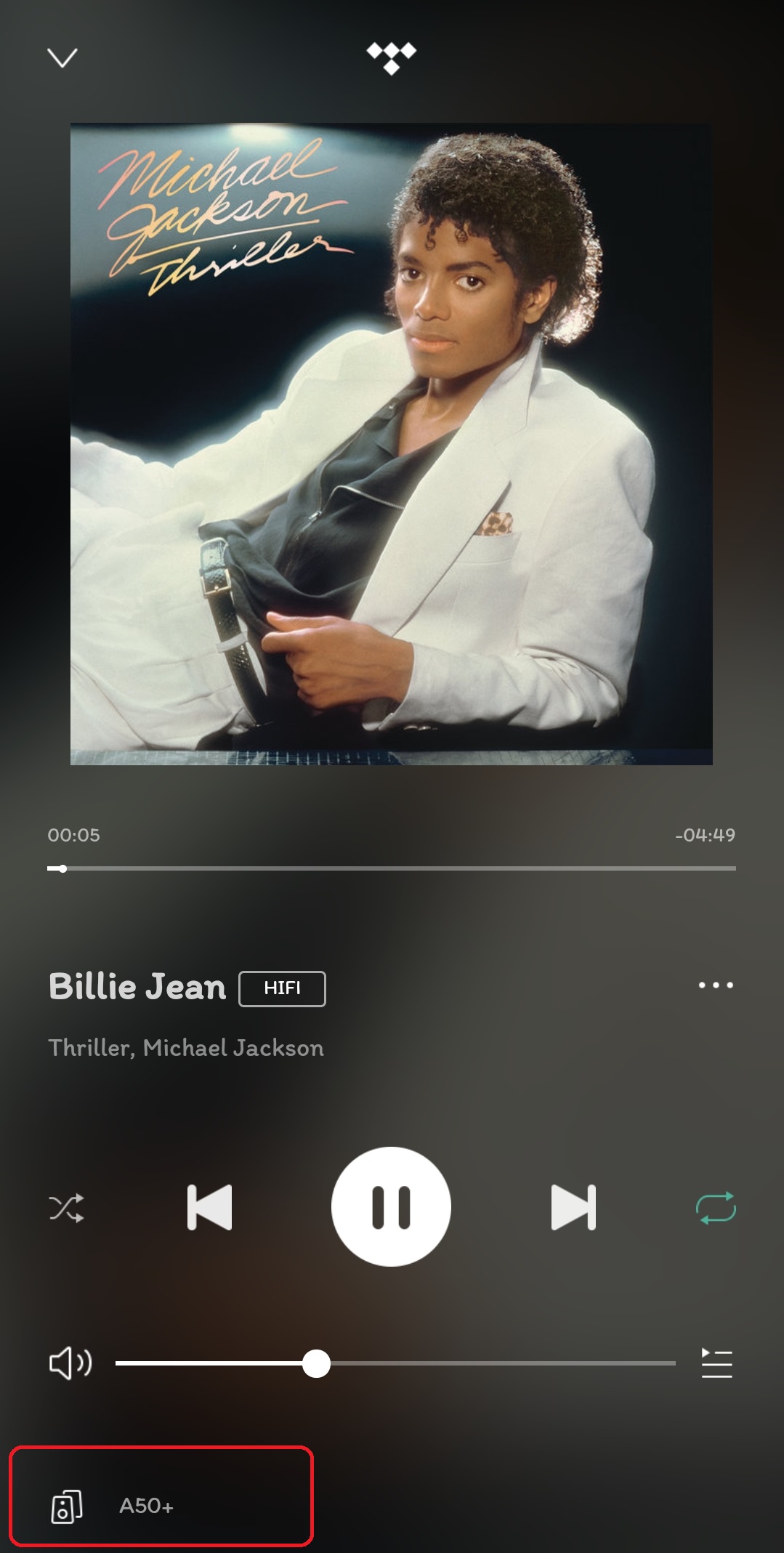

The song chosen for this test was Billie Jean by Michael Jackson, and part of the Thriller album on the Tidal app.

TIDAL billie jean

Billie Jean’s song stands out for its unique rhythm, fun drum beats, and low bass. If you watch the music video, you’ll see the artist’s dance moves following the rhythm smoothly with the music until the end of the song.

Conclusion

The Arylic A50+ is perfect for listening to music in small rooms with an area not more than 4 x 4 meters, or larger rooms with the Arylic A50+ and several sets of speakers covering the whole area. That would be using the Multiroom/Multizone feature and combining the Arylic A50+ with wall-mounted or in-ceiling speakers so can play music in various rooms/areas in the house, so we can enjoy listening to music wherever we move. That is truly a music paradise.

The Arylic A50+ is an entry-level Hi-Fi audio system whose main highlights include support for modern wireless music streaming, and a built-in digital power amplifier that delivers music at an affordable price. The wireless stereo amplifier is sold for $199 on the Arylic.com website. We’d like to thank Rakoit for sending Arylic A50+ Wireless Stereo Amplifier, and the S50 Pro+ pre-amplifier for review.

This post is a translation of the review on CNX Software Thailand by Ninephon Kongangkab
