$10 HDMI to USB 3.2 video acquisition board is based on MS2130 chip

We’ve just written about an open-source hardware Allwinner V851S camera board from YuzukiHD, but he/she has made another interesting board with the YuzukiLOHCC PRO HDMI to USB 3.2 video acquisition board based on MacroSilicon MS2130 HDMI to USB chip, as well as MS9332 one-to-two active splitter, and MS8003/MS8005 microcontroller.

YuzukiLOHCC PRO stands for Yuzuki Loop Out HDMI Capture Card PRO, and there are two HDMI ports, one for input and one for output, as well as a USB Type-C port to connect to the host and capture the video input.

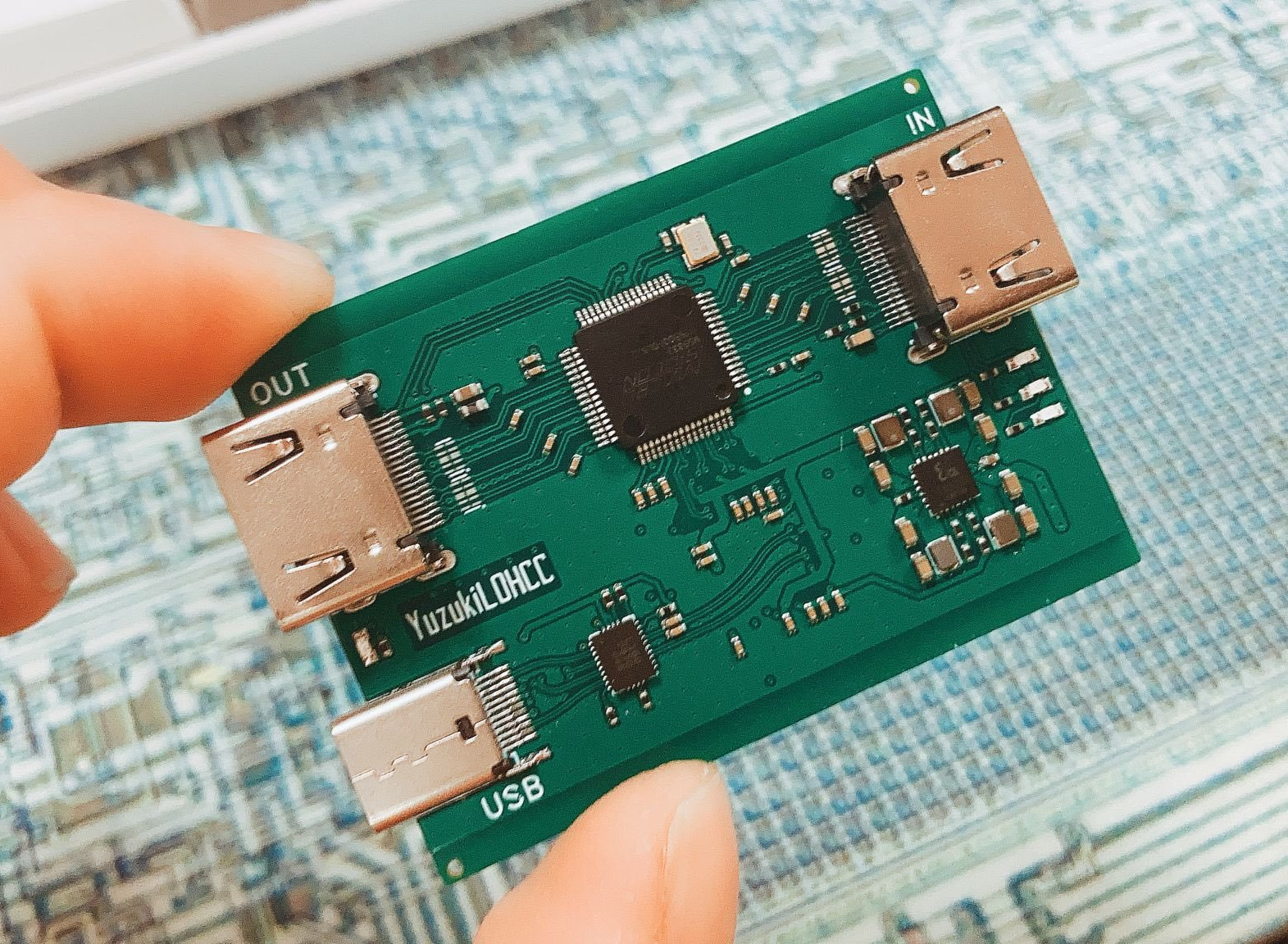

YuzukiLOHCC PRO

YuzukiLOHCC PRO key features and specifications:

  • Main chip – MacroSilicon/UltraSemi MS2130 USB 3.2 Gen 1 high-definition video and audio acquisition chip
  • MCU – MacroSilicon MS8005/MS8003 8051-core MCU
  • Splitter – MacroSilicon MS9332 one-to-two active splitter
  • Video Input – HDMI up to 4Kp30 or 1080p60
  • Video Output – HDMI 2.0 YCbCr420 4Kp60 loop out, 10/12/16-bit deep color, adaptive input equalization, pre-programmed HDCP keys, embedded EDID RAM
  • Host interface – USB Type-C USB3.2 Gen 1 interface compatible with UVC 1.0
  • Capture
    • YUV422 & MJPEG USB video output up to 1080p60
    • Audio capture supported
HDMI to USB 3.2 capture card

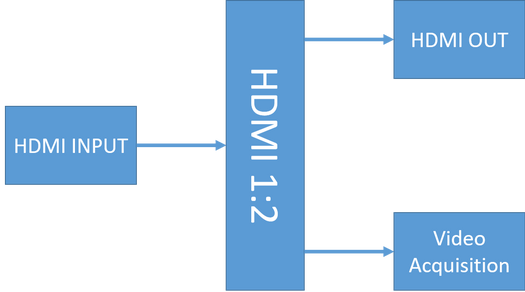

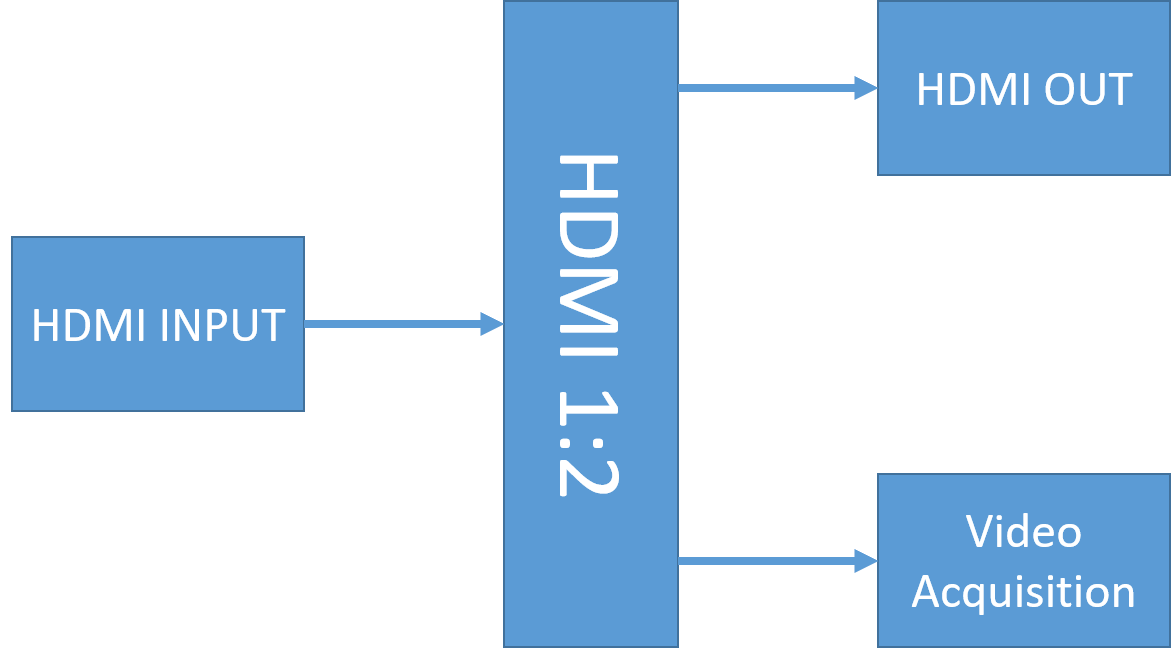

Simplified block diagram

Since the board is UVC compliant, it can work with most operating systems including Windows XP/7/8/10, Android 5.0 and up, macOS, and Linux. Capture can be done with OBS Studio, FFmpeg, and other programs.

The board has been designed with EasyEDA, and you’ll find the hardware design files, MS8003/MS8005 firmware (binary only), and some more documentation including the list of resolutions and refresh rates supported for USB capture on GitHub. There’s additional information on the OSHWHub website but in Chinese only. A short video demo of the board in action can be found on Twitter.

The board is not for sale, so you’d have to build it yourself. The tricky part might be to obtain the MS2130 chip, as it seems rather new, and hard to source based on comments on Twitter. If you don’t feel like making your own board, and would prefer to buy something to use, there should be hope as we’ve previously seen cheap HDMI to USB 2.0 video capture dongles based on the previous generation MacroSilicon MS2109 chip, and it’s probably just a question of time before similar devices based on MS2130 come to market. There may not be any HDMI loop out port though.

Thanks to TLS for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
22 Comments
oldest
newest
Impressed guy
Impressed guy
2 years ago

Impressive Work

WereCatf
WereCatf
2 years ago

A cheap dongle capable of doing uncompressed 1080p60 is exactly what I’ve been looking for for a long time now. I’ll have to see about sourcing the IC somewhere, maybe even a couple ones.

osmarks
2 years ago

Is it actually uncompressed? The other cheap Macrosilicon ones weren’t unless you did ridiculously low resolutions/FPSes.

TLS
TLS
2 years ago

USB 3.0 should be able to handle a 1080p60 YUV422 stream uncompressed using the UVC protocol.

osmarks
2 years ago

The chip might not actually run at full USB 3 speeds. The MS2130 webpage seems to say that it can do 1920×1080@60Hz, though, so it’s probably fine. Something like this might be a nice alternative to the slow USB 2 ones you can get if it can do lower latency.

WereCatf
WereCatf
2 years ago

YUV is uncompressed, so unless the specs are lies, yes.

Dav_Daddy
Dav_Daddy
2 years ago

That is because of the transfer rate of USB 2.0. USB 3.# should have the bandwidth to be able to handle 4k without breaking a sweat if memory serves right?

I remember reading about predictions we’d be swamped with cheap USB 3 monitors and such by now.

Autonetics
Autonetics
2 years ago

Wicked piece of kit!

ben
2 years ago

A while back, the great Bunnie Huang made the NeTV2 that is capable of removing HDCP from the HDMI stream.

Would the MacroSilicon/UltraSemi MS2130 board do the same?

giani
giani
2 years ago

the best use case for this would be video piracy…

Nugu
Nugu
2 years ago

You could use this for Safety monitoring/recording for various touch screens/displays used by air traffic controllers / military drone operators.

Willy
Willy
2 years ago

the use cases I have in mind and which made me order such a device a week ago are booting SBCs on my desk where there’s no HDMI screen at all. It’s really annoying to require a display at an era where laptops have completely replaced tower PCs.

Alex
Alex
2 years ago

Nice guide ! You cover all public infos about this nice project !

David Jashi
2 years ago

Any information on how does it handle HDCP?

David Jashi
2 years ago

Sorry, missed it – “pre-programmed HDCP keys”. Not very inspiring.

eworm
eworm
2 years ago

YUV bit stream bitrate

eworm
eworm
2 years ago

https://www.youtube.com/watch?v=kAtxyaZD6b0&t=98s
史诗级海啸! 超低价USB3.0采集卡抢先开箱测试 #MS2130

uiop
uiop
2 years ago

Wow, thanks for sharing this. Super useful.

God
God
2 years ago

just what to say my opinion if there’s not comment section that is the scam.. Just think about google and pixel 7 😉

Kaz
Kaz
2 years ago

The link to the page for the MS2130 also mentions a new MS2131 which has HDMI pass-through built in to the capture IC itself, so I suspect there will be some inexpensive USB 3.x capture devices with HDMI pass-through to be had soon 😉

david
david
7 months ago

HI
How can I write YuzukiLOHCCPro.bin on MS8005?
