ASRock introduces 4X4 BOX 7000/D5 mini PCs with AMD Ryzen 7000U-Series APU

ASRock Industrial has just launched the 4X4 BOX 7000/D5 Series mini PCs powered by AMD Ryzen 7000U-Series laptop APUs offering up to eight Zen3+ cores clocked at up to 4.75GHz.

The mini PC supports up to 64GB dual-channel DDR5 4800MHz memory and SATA 3.0 plus M.2 NVMe storage, offers four display outputs with one 8K capable HDMI 2.1 port and three DisplayPort 1.4a outputs, five USB ports including two USB4 ports, as well as 2.5GbE and Gigabit Ethernet, Wi-Fi 6E, and Bluetooth 5.2 connectivity.

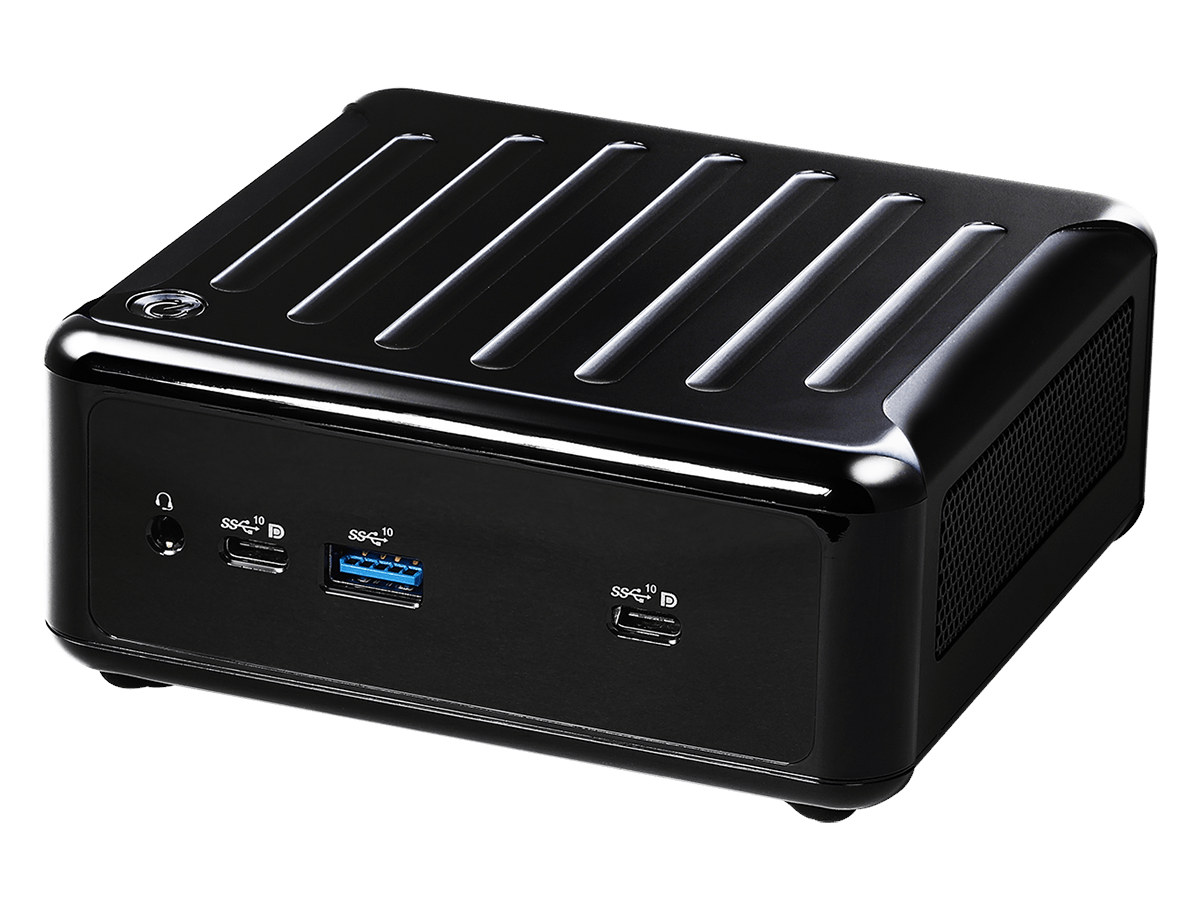

ASROCK 4X4 BOX-7000/D5 mini PC

Two models are currently available, 4X4 BOX-7735U/D5 and 4X4 BOX-7535U/D5, with the following specifications:

  • SoC (one or the other)
    • 4X4 BOX-7535U/D5 – AMD Ryzen 5 7535U hexa-core/12-thread processor up to 4.55GHz with 6-core AMD Radeon 660M @ 1900 MHz; TDP: 28W
    • 4X4 BOX-7735U/D5 – AMD Ryzen 7 7735U octa-core/16-thread processor up to 4.75GHz with 12-core AMD Radeon 680M @ 2200 MHz; TDP: 28W
  • System Memory – Dual-channel DDR5 4800 MHz SO-DIMM sockets up to 64GB (2x 32GB)
  • Storage
    • M.2 Key M (2242/2260/2280) PCIe Gen4 x4 socket for NVMe SSD (M.2 Key M 2280 supported by bracket)
    • SATA 3.0
    • 256 Mbit SPI flash for AMI BIOS/UEFI
  • Video Output
    • 1x HDMI 2.1 up to 8K resolution (7680 x 4320 @ 60Hz max)
    • 3x DisplayPort 1.4a, DP++ up to 4K resolution (4096×2160 @ 60Hz max) including two via USB-C ports
    • Up to four independent displays
  • Audio
    • Realtek ALC233 high-definition audio
    • 3.5mm audio jack with headphone and microphone
  • Connectivity
    • 2.5GbE RJ45 via Realtek RTL8125BG controller
    • Gigabit Ethernet RJ45 port via RTL8111FPV controller with DASH support
    • Wi-Fi 6E 802.11ax and Bluetooth 5.2 via M.2 Key E (PCIe x1 + USB 2.0)
  • USB – 2x USB4 Type-C ports with DP 1.4a Alt mode, 1x USB 3.2 Gen2 Type-A port, 2x USB 2.0 Type-A ports
  • Misc – Watchdog timer, TPM 2.0, active cooling
  • Power Supply – 19V/90W power adapter, support for AT/ATX with AT: Direct PWR on as power input ready, ATX: Press button to PWR on after power input ready
  • Dimensions – 110.0 x 117.5 x 47.85 mm
  • Weight – 1kg
  • Temperature Range – Operating: 0ºC ~ 40ºC; storage: -40°C ~ 85°C
  • Humidity – 5% ~ 90%
  • Certifications – CE, FCC Class A

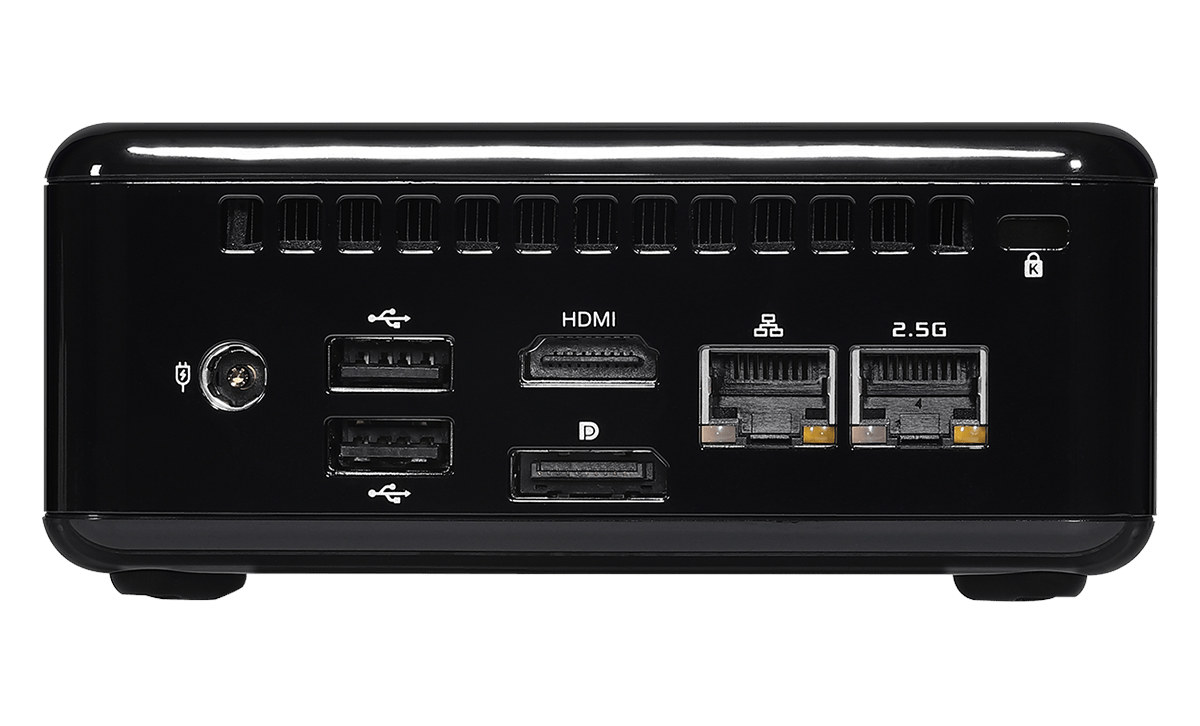

AMD Ryzen 7000U mini PC

The mini PC ships with a 90W power adapter, a screw package, and a VESA mounting bracket. ASRock only lists Windows 10 and Windows 11 operating systems, but the AMD CPU pages also add RHEL x86 64-bit and Ubuntu x86 64-bit while mentioning that operating system support will vary by manufacturer.

ASRock Industrial says the 4X4 BOX 7000/D5 Series mini PCs are suitable for gaming, entertainment, content creation, office productivity, business, and AIoT use cases. More details may be found on the product pages.
