VAR-SOM-AM62 System-on-Module features TI AM625x Cortex-A53/M4 SoC

Variscite VAR-SOM-AM62 is a System-on-Module (SoM) powered by a Texas Instruments Ti AM625x quad-core Cortex-A53 processor @ up to 1.4 GHz with a 400MHz Cortex-M4F cores and 333MHz PRU real-time co-processors to control I/Os.

The module also supports up to 4GB RAM and 128GB eMMC flash, features a single or dual-band WiFi + BT/BLE5.2 module, and offers up to 3x CAN Bus, dual GbE, audio, camera in, and dual USB, among other interfaces. It is designed for industrial applications with a -40 to 85°C operating temperature range.

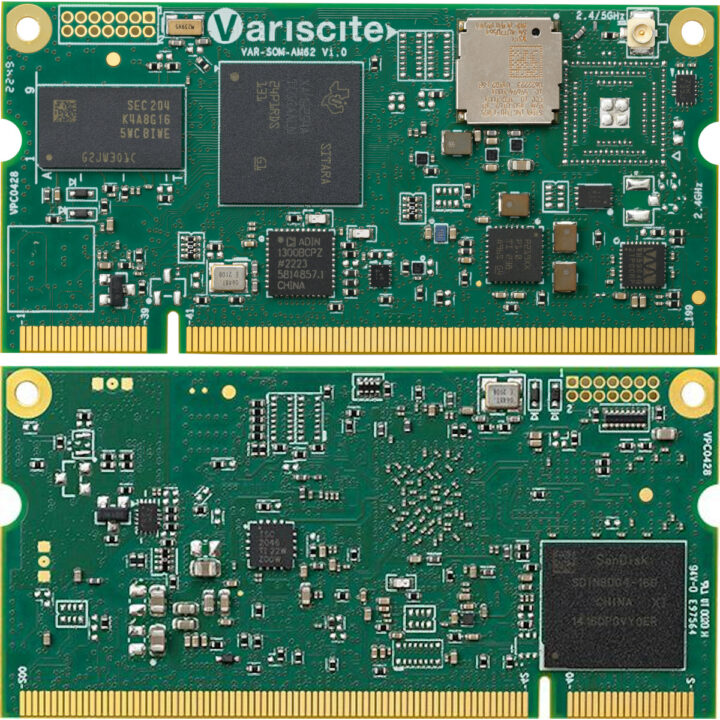

Variscite VAR-SOM-AM62

VAR-SOM-AM62 specifications:

  • SoC – Texas Instruments Sitara AM62x (AM6252 or AM6254) with
    • Up to 4x Arm Cortex-A53 @ 1.4 GHz
    • 1x Ar, Cortex M4F up to @ 400 MHz
    • 1x PRUSS up to @ 333 MHz (only in industrial-grade modules)
    • GPUs – 3D GPU with OpenGL ES 3.1 & Vulkan1.2, 2D graphics engine
  • System Memory – 512MB to 4GB DDR4-3200 RAM @ 800MHz
  • Storage – 8GB to 128GB eMMC flash for OS boot and storage
  • Networking
    • 1x Gigabit Ethernet PHY
    • Wireless module – Certified Wi-Fi 802.11 ac/a/b/g/n WiFi 5, Bluetooth: 5.2/BLE
  • Audio – On-module audio codec
  • 200-pin SO-DIMM edge connector with
    • Media and data storage
      • SDIO/MMC
      • OSPI/QSPI
      • GPMC parallel bus
    • Display – 2x 4-lane OLDI/LVDS interfaces up to 1920×1080 @ 60fps, resistive touch controller
    • Networking – 2x Gigabit Ethernet Interfaces
    • Camera – 4-lane MIPI CSI2 interface
    • Audio
      • Analog stereo line in
      • Analog headphones out
      • Digital microphone
      • Up to 3x Digital audio (McASP)
    • USB – 2x USB 2.0 Host/Device
    • Low-speed I/Os
      • SPI, I2C, UART, ePWM, eCAP, eQEP, up to 3x CAN FD
      • GPIOs
    • Debugging – JTAG
  • Supply Voltage – 3.3V
  • Dimensions – 67.6 x 33 x 3.4 mm (VAR-SOM Pin2Pin compliant)
  • Temperature Range – Industrial: -40°C to 85°C

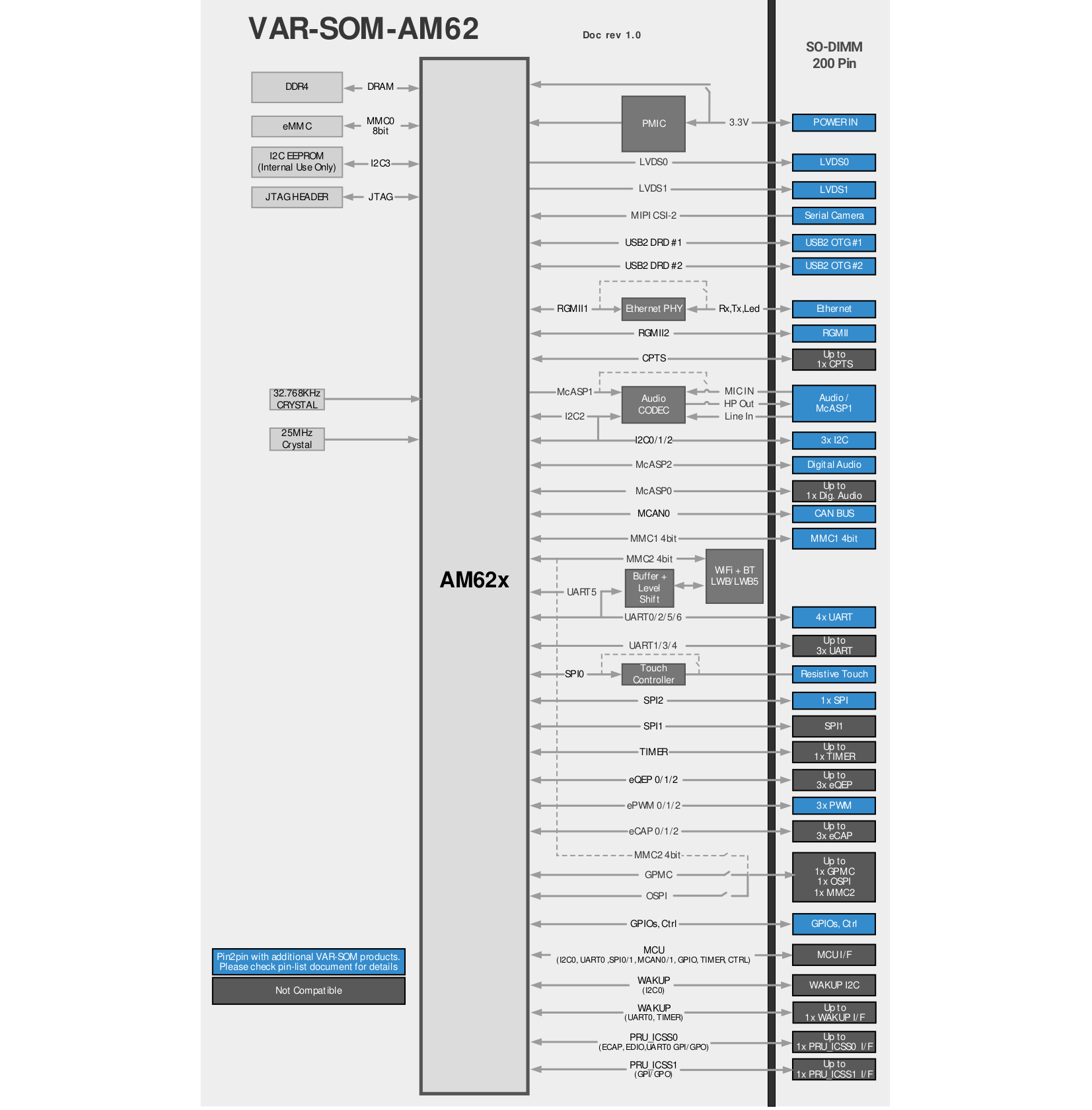

VAR-SOM-AM62 block diagram
VAR-SOM-AM62 block diagram

Variscite provides support for Linux (Yocto, Debian, Boot2Qt), Android, and FreeRTOS for the module, as well as evaluation kits with the Symphony carrier board and an optional LVDS display with a touch panel. The wiki is up with currently under construction with limited information. The VAR-SOM-AM62 AM625x system-on-module is compatible with the VAR-SOM Pin2Pin family that already includes modules powered by NXP i.MX6UL/6ULL, NXP i.MX 8M NANO/MINI/PLUS and i.MX 93, up to the higher-end i.MX 8X and 8QuadMax SoCs.

Texas Instruments AM625x development board
VAR-SOM-AM62 evaluation kit

Pricing the Variscite VAR-SOM-AM62 system-on-module starts at $33, with a longevity of 15 years, and the company says the solution is suitable for embedded industrial products that require high performance and low power. More details may be found on the product page.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Notify of
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
1 year ago

1x Gigabit Ethernet PHY, but the evaulation kit seems to have 2 nics?

1 year ago

The module exposes a second RGMII, so presumably there is a second PHY on the carrier
