Cincoze P2202 Alder Lake-P embedded computer powers industrial panel PCs

Cincoze P2202 is an Intel Alder Lake-P embedded computer based on the Core i3-1215UE or Core i5-1245UE processor and designed for industrial, sunlight readable, or open-frame panel PCs from the company with sizes ranging from 12.1-inch to 24-inch.

The P2202 supports up to 64GB DDR5 memory and two 2.5-inch SATA drives, and the system also offers four display interfaces including the company’s CDS (Convertible Display System) interface, two gigabit Ethernet ports, optional WiFi and 4G LTE/5G connectivity, multiple USB ports, four serial RS232/RS422/RS485 ports, digital I/Os, and various M.2, mPCIe, and PCIe sockets and slots for expansion.

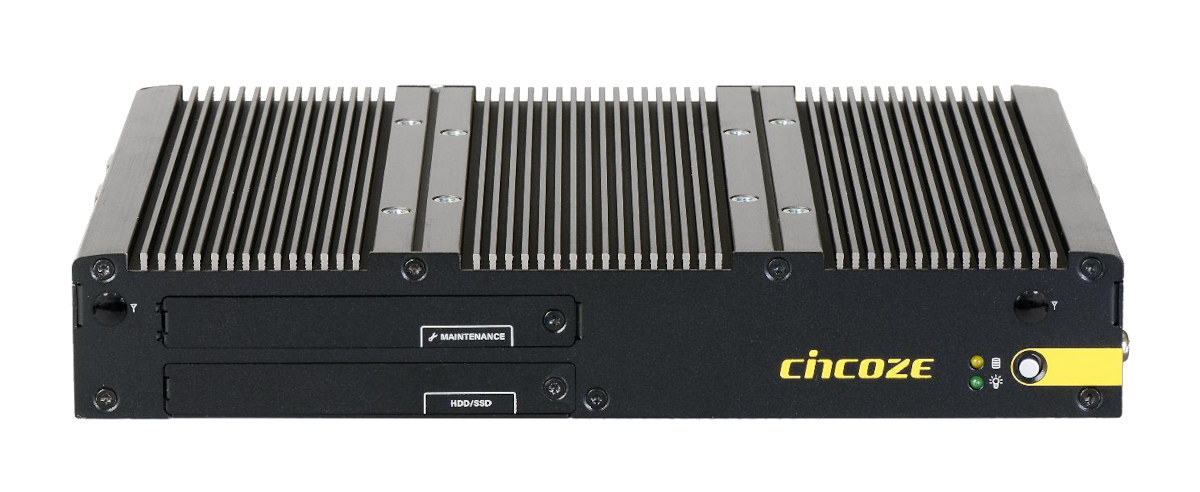

Intel Alder Lake-P embedded computer

Cincoze P2202 specifications:

  • Intel Alder Lake-P U-series SoC (one or the other)
    • Intel Core i3-1215UE hexa-core processor up to 4.40 GHz with Intel UHD Graphics; TDP: 15W
    • Intel Core i5-1245UE deca-core processor up to 4.40 GHz with Intel Iris Xe Graphics; TDP 15W
  • System Memory – 2x DDR5 4800MHz SO-DIMM sockets for up to 64GB un-buffered and non-ECC memory
  • Storage – 2x 2.5-inch SATA 3.0 HDD/SSD bays with support for RAID 0/1
  • Video Output
    • 1x CDS connector up to 1920 x 1080 @ 60Hz
    • 1x DisplayPort connector up to 4096 x 2304 @ 60Hz
    • 1x HDMI connector up to 3840 x 2160 @ 30Hz
      1x VGA connector up to 1920 x 1200 @ 60Hz
    • Up to 4x independent displays
  • Audio
    • Realtek ALC888 HD audio codec
    • 3.5mm Line-out jack, 3.5mm microphone in jack
    • Internal Speaker – AMP 2W + 2W
  • Networking
    • 2x gigabit Ethernet RJ45 ports, one via Intel I219 controller, the other using Intel I210
    • Optional WiFi and Bluetooth via M.2 CNVi module
    • Optional cellular module via M.2 module and SIM card socket
  • USB
    • 3x 10Gbps USB 3.2 Gen 2 x1 Type-A ports
    • USB 2.0 Type-A port
  • Serial – 4x RS-232/422/485 DB9 COM ports with Auto Flow Control (5V/12V)
  • Expansion
    • 16x isolated Digital I/O (8in/8out) via 20-Pin terminal block
    • 2x full-size Mini-PCIe sockets
    • P2202E only – 1x PCI or 1x PCIe x4 expansion slot with optional riser card up to 169x111mm
    • 1x M.2 Key E Type 2230 socket for Intel CNVi/Wireless module
    • CFM (Control Function Module) Interface
      • 1x CFM interface for optional IGN Module Expansion
      • 1x CFM Interface for optional PoE Module Expansion
    • CDS (Convertible Display System) Interface for display module
  • Misc
    • Clear CMOS Switch
    • Reset Button, buttons for LCD On/Off, brightness up, brightness down
    • Power LED, HDD LED
    • Instant Reboot with 0.2sec Instant Reboot Technology
    • Watchdog Timer
    • ATX Power On/Off button, AT/ATX mode switch
    • SuperCap integrated for CMOS battery maintenance-free operation
  • Power Supply
    • 9 – 48V DC via 3-pin terminal block
    • Remote power on/off via 2-pin terminal block
    • Reverse power input protection range – 51~58V
    • Over-current protection – 15A
  • Dimensions and weight
    • PS2202 – 254.5 x 190 x 41.5 mm | 2.22kg
    • PS2202E – 254.5 x 190 x 61 mm | 2.74kg
  • Materials – Extruded aluminum with heavy-duty metal
  • Mounting options – Wall / VESA / CDS / DIN Rail
  • MTBF – 216,747 Hours (Database: Telcordia SR-332 Issue3, Method 1, Case 3)
  • Temperature Range – Operating: -40°C to 70°C; storage: -40°C to 70°C
  • Relative Humidity• -95% RH @ 70°C (non-condensing)
  • Shock – Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
  • Vibration
    • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
    • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
  • EMC
    • CE, UKCA, FCC, ICES-003 Class A
    • EN IEC 61000-6-4, EN IEC 61000-6-2(24VDC Input Only)
  • EMI
    • CISPR 32 Conducted & Radiated: Class A
    • EN/BS EN 55032 Conducted & Radiated: Class A
    • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
    • EN/BS EN61000-3-3 Voltage fluctuations & flicker
    • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
  • EMS
    • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
    • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
    • EN/IEC 61000-4-6 CS: 10V
    • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
    • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycle at 60 Hz
Cincoze P2202 P2202E

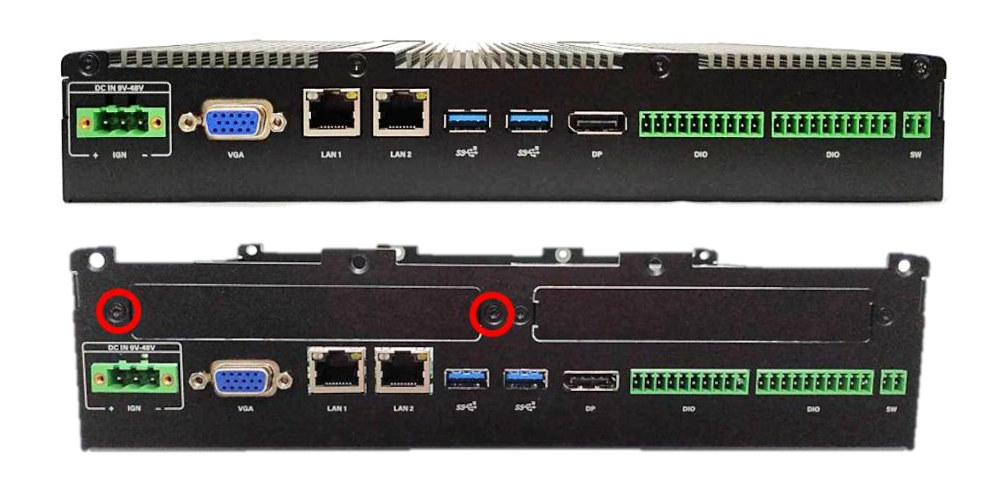

Cincoze P2202 (top) and P2202E (bottom) rear panels

Cincoze provides support for Windows 10 with drivers available for download from the product page, and Linux can also be supported upon request. The Cincoze P2202 is an update to the company’s earlier P2102 (Whiskey Lake-based) and P2002 (Skylake-based) embedded computers, and the first to support DDR5 memory.

Like its predecessors, the P2202 is designed to be plugged into monitors through the CDS interface to enable various panel PC models with different display sizes and characteristics.

Alder Lake-P industrial Panel PCs

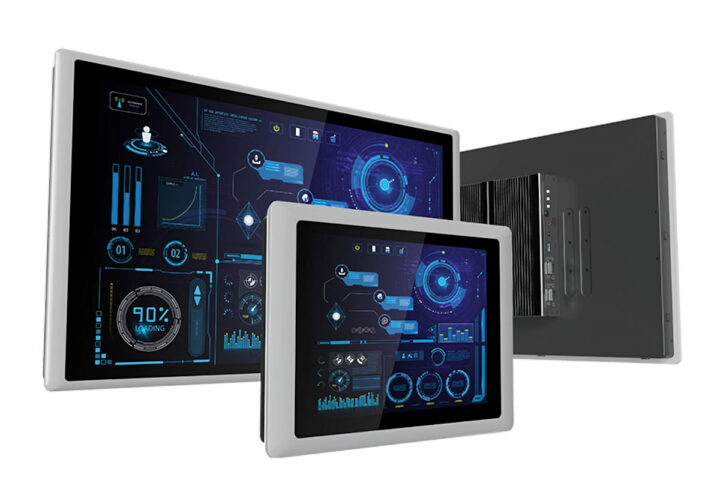

Cincoze offers three display families of panel PCs powered by the P2202/P2202E embedded computer with the CV series industrial Panel PCs, the CS series sunlight readable Panel PCs, and the CO series Open Frame Panel PCs each available in the following sizes and resolutions:

  • 12.1-inch TFT with 1024×768 resolution (4:3)
  • 15-inch TFT with 1024×768 resolution (4:3)
  • 17-inch TFT with 1280×1024 resolution (5:4)
  • 19-inch TFT with 1280×1024 resolution (5:4)
  • 15.6-inch TFT with 1366×768 resolution (16:9)
  • 21.5-inch TFT with 1920×1080 resolution (16:9)
  • 24-inch TFT with 1920×1080 resolution (16:9)

The P2202 embedded computer and related panel PCs appear to be available now, but pricing is not available publicly with Cincoze asking interested parties to contact them to get a quote. You’ll find further details on the product page for the embedded computer and the panel PCs.
