Sipeed Tang Primer 25K board features 23,040 Logic Cells for FPGA prototyping and development

Sipeed has recently introduced the Tang Primer 25K, an FPGA board powered by Gowin Semi GW5A-LV25MG121 chip. This board features 23,040 LUTs, USB Host capability, and an optional SDRAM module that unlocks vintage gaming.

We have previously covered many FPGA boards like Sipeed Tang Mega 138K Pro, Fudan Micro JFM7K325T, ILYGO T-FPGA, and many other development boards by Sipeed including the Sipeed Tang Nano 20K with a Gowin GW2A FPGA. You can check those out if interested.Shipped has recently introduced the Tang Prime 25K, an FPGA board powered by Gowin Semi GW5A-LV25MG121 chip. This board features 23,040 LUTs, USB Host capability, and an optional SDRAM module that unlocks vintage gaming.

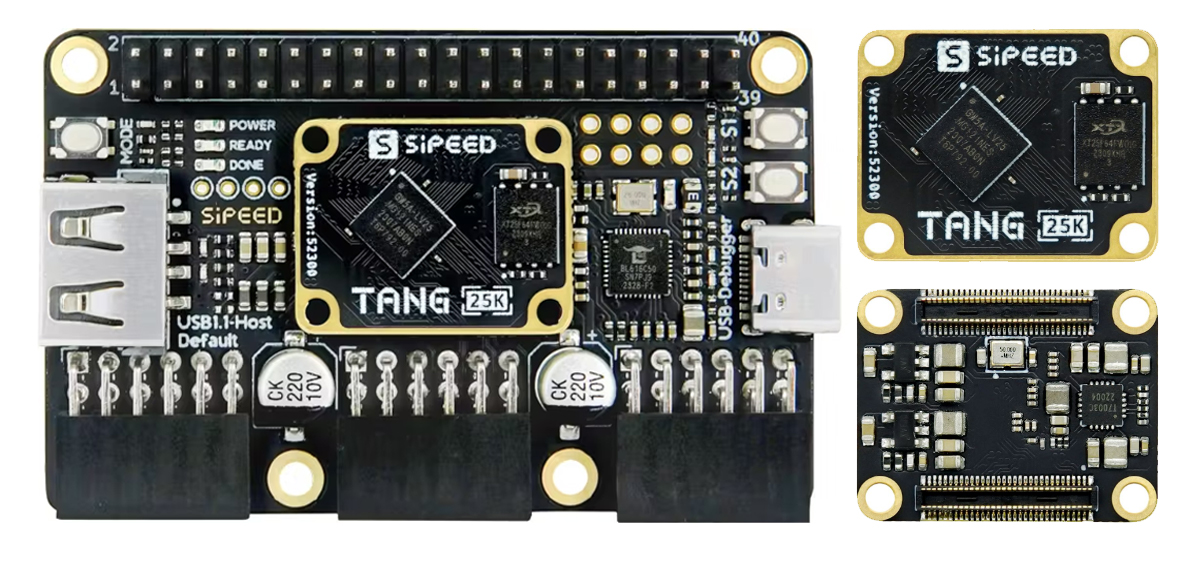

The Tang Primer 25K development board is divided into the 25K SoM Board and the 25K Dock Board together they offer a comprehensive set of features:

  • GW5A-LV25MG121 specifications:
    • 23040 LUT4
    • 23040 Registers (FF)
    • 28x 18×18 Multipliers
    • 6x PLLs
  • Memory/Storage:
    • 64Mbit NOR Flash
    • 180K Distributed S-SRAM
    • 1008K B-SRAM (bits)
    • 56 Number of B-SRAM
  • I/O Interfaces:
    • 3x PMOD
    • 40-pin header
    • 2x buttons
    • 8x I/O banks
    • 75x General IO
    • MIPI IO – 4lane Data
  • USB Ports:
    • 1x USB Type-C port (using BL616 MCU)
    • 1x USB-A port
  • Other Features:
    • 3x LEDs
    • JTAG debugger
    • 50MHz Crystal oscillator
  • Power – 5V DC
  • Debugger – Supports JTAG+UART
  • Mechanical:
    • Core size: 23 x 17.8mm
    • Dock size: 64 x 40mm

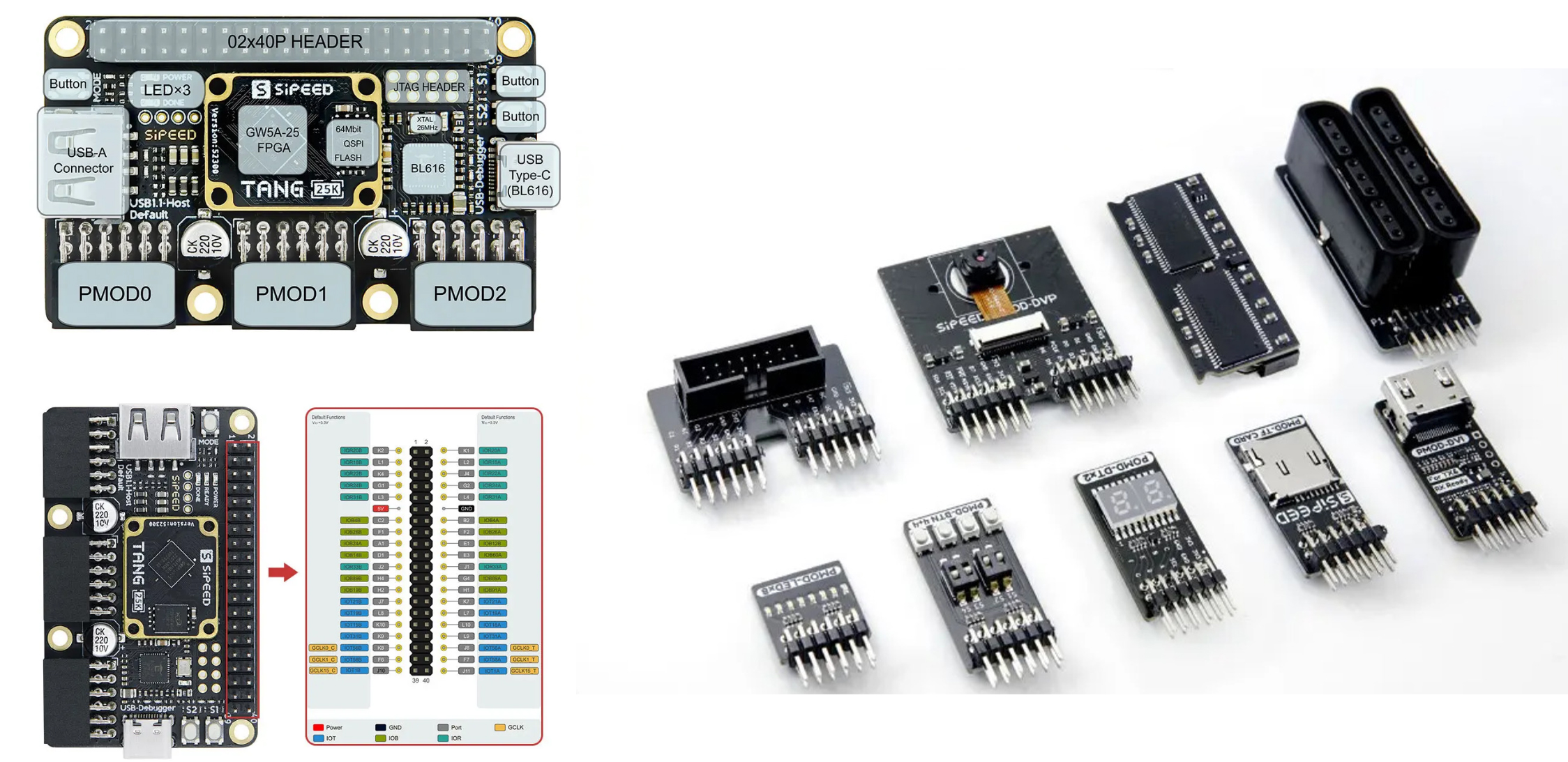

Sipeed Tang Primer 25K modules pinout

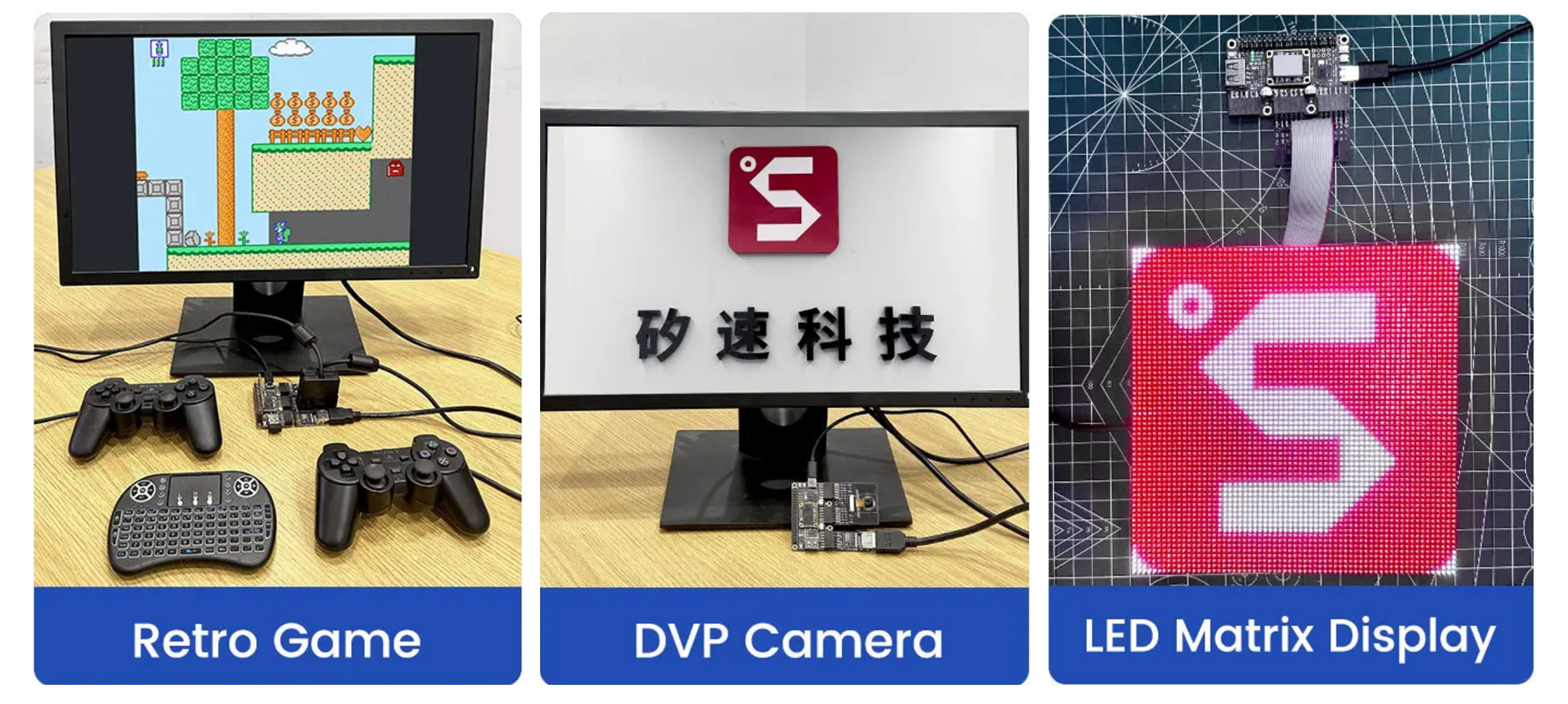

The company also offers a range of modules including a camera, SDRAM, a display unit, a joystick, HUB75E, and a 64×64 LED matrix among others.multi application

Sipeed indicates that their product supports retro gaming, DVP camera management, and LED matrix control. To make the programming part simpler Sipeed provides a collection of sample projects on their GitHub and documentation on their Wiki page. The company also provides essential resources including board specifications, schematic, 3D model files, a Core board package, and a comprehensive Getting Started Guide all can be found on their resource page.

Sipeed’s board is available on their AliExpress Store where the Core Board Package is priced at $19.00, while the Basic Package costs $29.00. Additionally, the PMOD Camera Kit is available for $8.00, the PMOD Basic Kit for $12.00, the PMOD Joystick Kit for $8.00, and the PMOD LED Matrix Kit for $18.00. There’s also an SDRAM kit priced at $10.00. You’ll also find the board and bundles on Amazon US.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
David Willmore
David Willmore
4 months ago

Has anyone gotten any of these chips to work with an open source toolchain? I’m not really interested in trying to run some Windows only tools from a third party.

Andreas
Andreas
4 months ago

The older boards like the Tang Nano 9k are supported quite well at this point but tho some of the advanced features might be a bit buggy still.
‘Newer’ boards like this one are still unsupported.
You can check the progress at https://github.com/YosysHQ/apicula

Tim Michals
4 months ago

I thought gowin had Linux tools https://www.gowinsemi.com/en/support/download_eda/

aaron bingaman
aaron bingaman
3 months ago

Yes the ide runs on both windows and Linux. And it’s really quite easy to use and small and fast.
