Fanless Intel N100 mini PC supports PoE power input, provides four 2.5GbE ports

‎NEOSMAY is selling a fanless Intel Processor N100 mini PC with support for PoE power input, four 2.5GbE ports, HDMI and DisplayPort video outputs, and a choice of USB ports for $249 (after ticking the $150 coupon code) on Amazon with 8GB RAM and a 128GB SATA SSD.

The mini PC also supports 12V DC power input if you don’t use PoE power input, and comes with an additional RJ45 port acting as an RS232 console. There’s no built-in wireless, but the mini PC can take a WiFi and Bluetooth module, as well as a 4G LTE or 5G module, and features a SIM card slot for the latter.

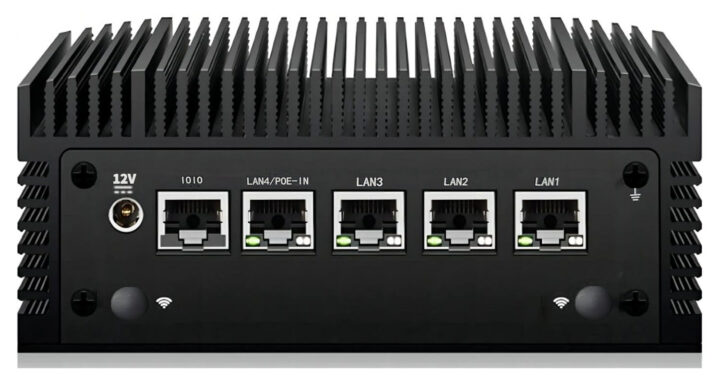

NEOSMAY PoE Alder Lake-N Mini PC

Specifications:

  • SoC – Intel Processor N100 quad-core Alder Lake-N processor @ up to 3.4 GHz (Turbo) with 6MB cache, 24EU Intel HD graphics @ 750 MHz; TDP: 6W
  • System Memory – 8GB DDDR4-3200, upgradable to 32GB
  • Storage
    • 128GB M.2 SATA SSD, upgradeable up to 2TB
    • MicroSD card slot (which I can’t find in photos)
  • Video and audio outputs
    • 1x HDMI 2.0 ports up to 4Kp60
    • 1x DisplayPort 1.4 output up to 4Kp60
    • Up to 2x independent displays supported
  • Connectivity
    • 4x 2.5GbE RJ45 ports via Intel i225/i226 controllers, with LAN4 also supporting PoE power input
    • Optional WiFi 5/6 via (M.2?) module
    • Optional 4G LTE/5G via (M.2?) module and SIM card slot
    • Two antenna holes
  • USB – 1x USB 3.2 port, 1x USB 3.2 Type-C port, 4x USB 2.0 ports
  • Serial – RJ45 jack for RS232 console
  • Misc
    • Power Button
    • Power and Storage LEDs
    • BIOS with support for Wake on LAN, Auto Power on, and PXE boot
  • Power Supply
    • 12V/3A DC jack
    • Up to 36W via PoE capable LAN4 port
  • Dimensions – 15.5 x 12.65 x 6.2 cm
  • Weight – 1.7 kg

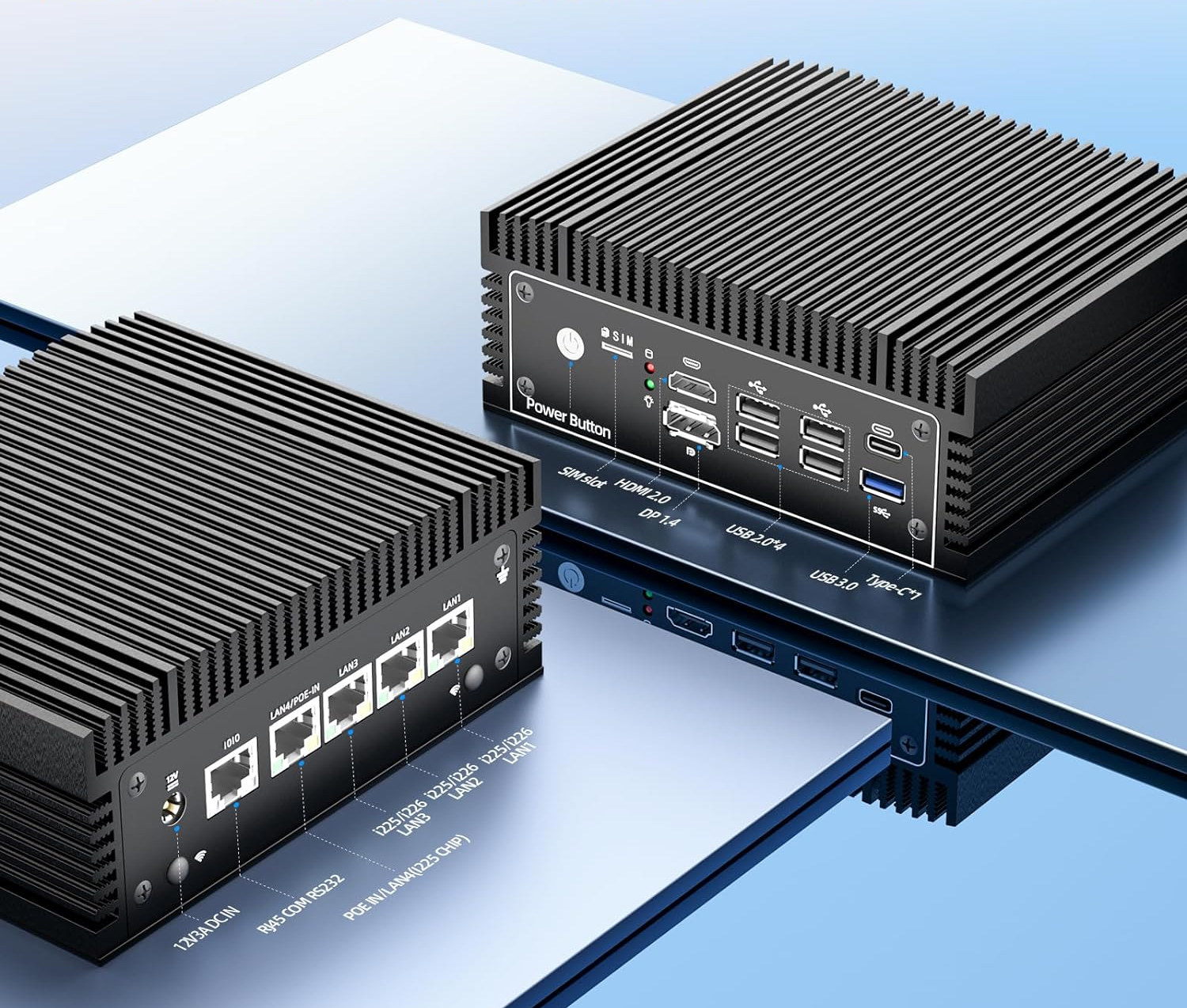

Fanless Intel N100 mini PC PoE power input

The mini PC comes preloaded with Windows 11, but considering its four 2.5GbE ports, it’s also sold as a “micro firewall appliance” and “soft router” supporting pfSense, Proxmox VE, Ubuntu, and so on. The features are quite similar to the iKOOLCORE R2 we’ve just reviewed with Proxmox VE running Ubuntu 22.04 Desktop and pfSense, but with a larger form factor that enables a few more ports and features.

The mini PC ships with a 12V power adapter, an HDMI cable, two antennas, a VESA mount, a screw set, and a user manual. It looks like an OEM mini PC that would typically be sold by several vendors, and while I could not find this exact model anywhere else, XCY is selling a very similar Intel N100 mini PC on Aliexpress, minus PoE support, but with an extra RS485 terminal block for $142 and up with the lowest price being for a barebone model without RAM and storage.

Via Fanless Tech

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
2 Comments
oldest
newest
Yaroslav Fedevych
Yaroslav Fedevych
8 months ago

I have noticed that this thing doesn’t have a setting in its UEFI setup to power on automatically upon receiving power. Which means that after any power outage you have to push the power button. This sucks, considering it’s a nice machine otherwise.

Yaroslav Fedevych
Yaroslav Fedevych
8 months ago

A correction:

Power on after power failure IS supported. However, it’s somewhat obscure: in BIOS Settings, you need to go to “Advanced” -> “Misc. Onboard Setting”, and there, set “Power state after G3” to “S0”. This is the exact opposite of what the manual is saying. “S5” means stay off, S0 means power on.
