SB’s Dual Roundy and Squary Displays are powered by RP2040 or ESP32-S3 microcontrollers (Crowdfunding)

SB-Components has launched Dual Roundy and Dual Squary display modules powered by Raspberry Pi RP2040 or ESP32-S3 microcontrollers. These compact modules feature a 6-DoF IMU, interchangeable displays, and multiple storage and connectivity options.

The Dual Roundy is equipped with two 1.28-inch round displays, with a 240 x 240 resolution, and uses the GC9A01 display driver IC. In contrast, the Dual Squary features two 1.54-inch square displays with a 240 x 240 resolution but utilizes the ST7789 display driver. Both displays offer a choice between a Raspberry Pi RP2040 MCU and the ESP32-S3-WROOM-1 module catering to different needs in performance and wireless capabilities.

We’ve previously explored other rounded displays like the MaTouch ESP32-S3, T-RGB ESP32-S3, and ESP32-S3 Round SPI TFT. We’ve also examined other products from SB Components such as the Cluster HAT, PiMecha, PiTalk 3G HAT, and Micro RP2040. Feel free to check these out for more interesting tech insights.

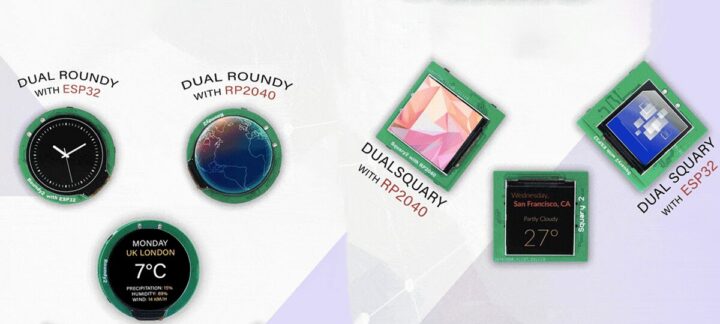

Dual Display Modules Roundy and Squary by SB Components

Dual Roundy & Dual Squary Specifications:

The company said that the devices will also support HID, UART, I2C, Motion Control, and many other features further enhancing the versatility of this device.

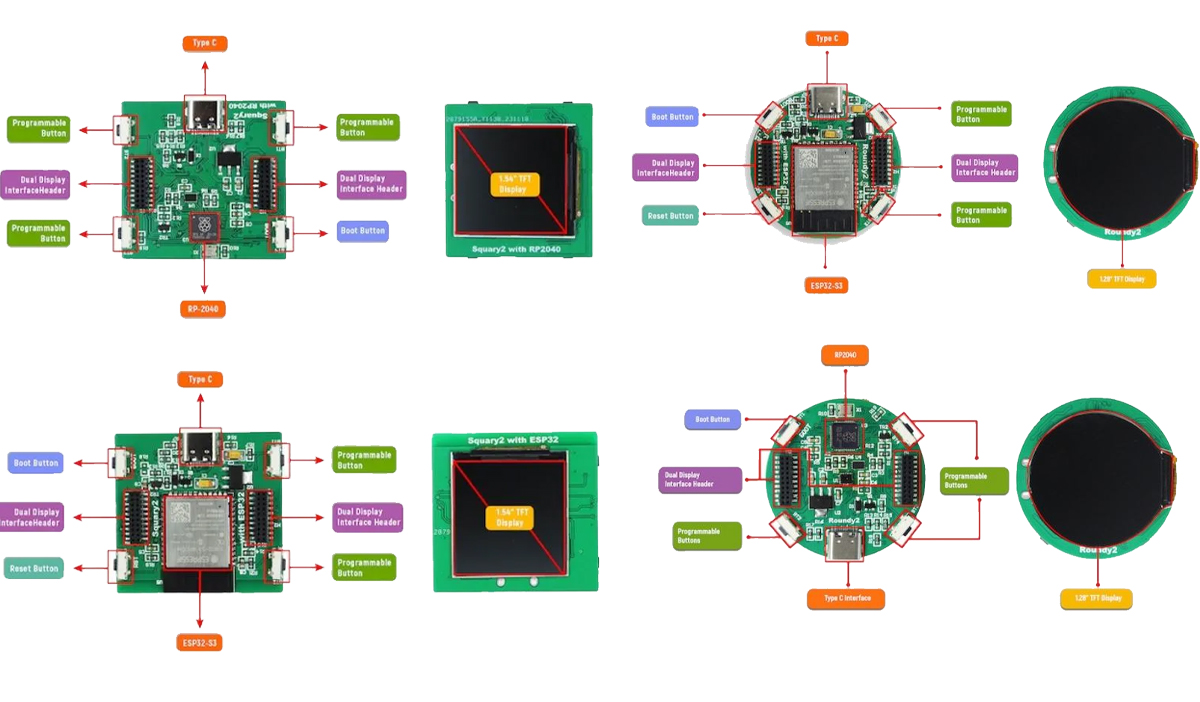

Dual Roundy and Dual Squary All Modules
All Variants of the Dual Roundy and Dual Squary Displays

The “Super Early Bird – Dual Roundy” and “Super Early Bird – Dual Squary” packages on Kickstarter are both available for  £45 (approximately $58). Each of these options includes three interchangeable displays equipped with RP2040, ESP32, and microSD configurations. Additionally, there’s a “Super Saving Deal – Display Combo” priced at £90 (around $115), which includes three interchangeable display packs from both the Squary and Roundy editions, all featuring RP2040, ESP32, and microSD. This combo deal also includes a special item, the Micro RP2040, offering an even greater value for backers.
