MaaXBoard OSM93 – Business card-sized SBC features NXP i.MX 93 AI SoC, supports Raspberry Pi HATs

MaaXBoard OSM93 is a single board computer (SBC) based on a Size-S OSM module powered by an NXP i.MX 93 Cortex-M55/M33 AI SoC and offered in a business card form factor with support for Raspberry Pi HAT boards through a 40-pin GPIO header and mounting holes.

The board also comes with 2GB LDDR4, 16GB eMMC flash, MIPI CSI and DSI interfaces for optional camera and display modules, two gigabit Ethernet ports, optional support for WiFi 6, Bluetooth 5.3, and 802.15.4, three USB 2.0 ports, and two CAN FD interfaces with on-board transceivers.

MaaXBoard OSM93 SBC

MaaXBoard OSM93 specifications:

  • SoC – NXP i.MX93
    • CPU
      • 2x Arm Cortex-A55 up to 1.7 GHz
      • 2x Arm Cortex-M33 up to 250 MHz
    • GPU – 2D GPU with blending/composition, resize, color space conversion
    • NPU – 1x Arm Ethos-U65 NPU @ 1 GHz up to 0.5 TOPS
    • Memory – 640 KB OCRAM w/ ECC
    • Security – EdgeLock Secure Enclave
  • System Memory – 2 GB LPDDR4 SDRAM
  • Storage
    • 16 GB eMMC 5.1 flash
    • 16 MB QSPI NOR Flash
  • Display Interface – 4-lane MIPI DSI interface
  • Camera Input – 2-lane MIPI CSI camera interface
  • Networking
    • 2x Gigabit Ethernet RJ45 ports
    • Optional WiFi 6, Bluetooth 5.3, and 802.15.4 via M.2 module (likely based on NXP iW612)
  • USB – 2x USB 2.0 Host Type-A ports, 1x USB 2.0 Host Type-C port
  • Expansion
    • 40-pin Raspberry Pi HAT compatible header with UART, SPI, I2C, I2S, and GPIO interfaces
    • 4-pin ADC header
    • 6-pin CAN-FD header (incl. CAN transceivers)
  • Debugging –  10-pin JTAG header, 2x 3-pin console debug header
  • Misc – RTC battery socket footprint
  • Power Supply – 5V/3A via USB-C port
  • Dimensions – 85 x 56mm (business card sized)

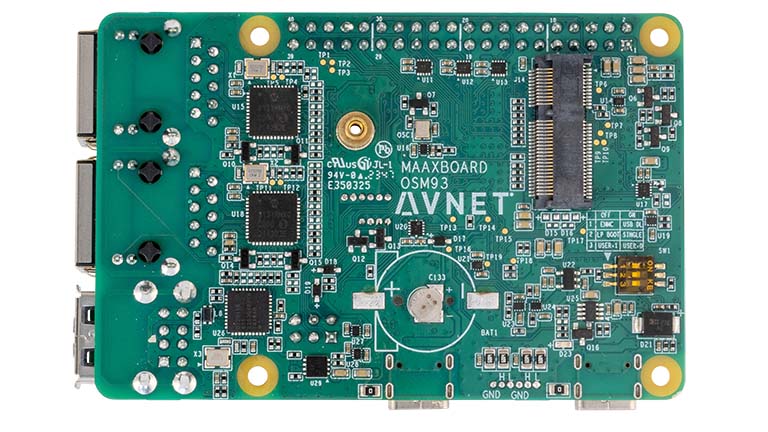

NXP iMX 93 SBC with M.2 socket

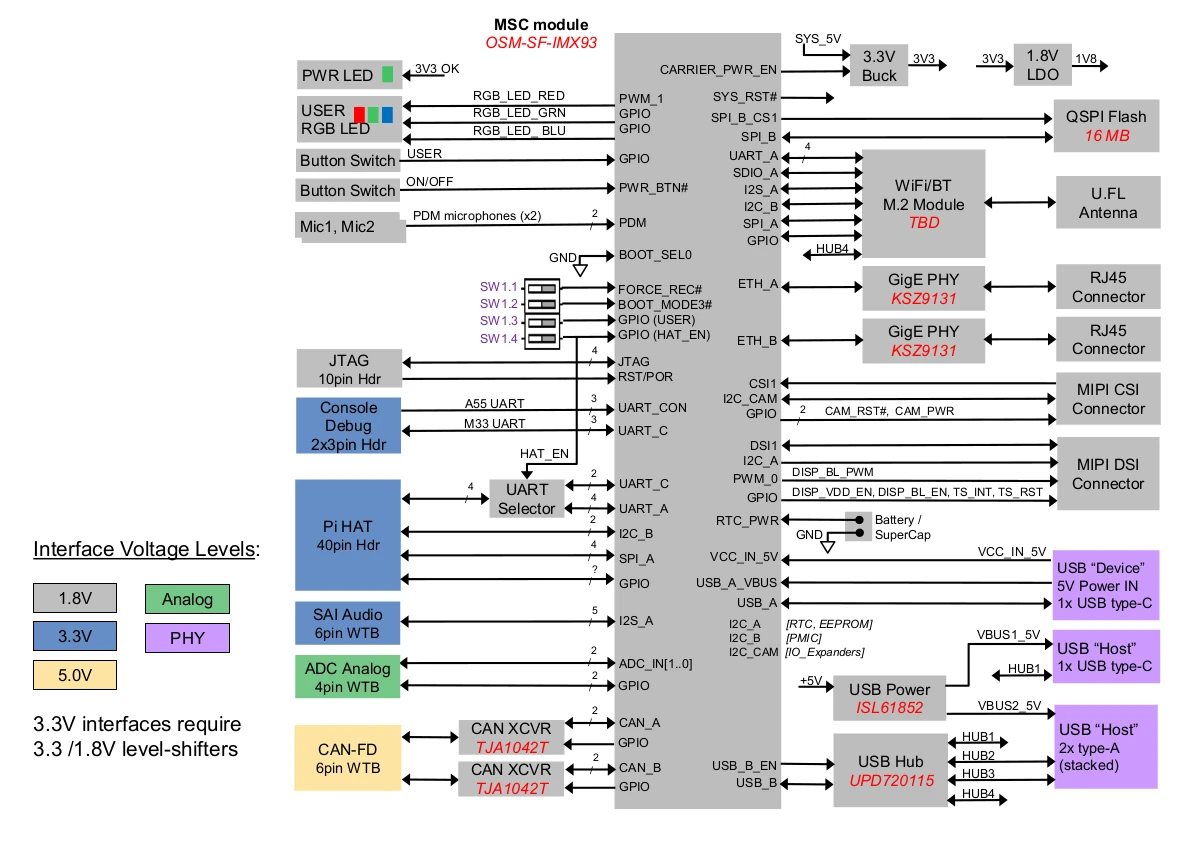

MaaXBoard OSM93 Block Diagram
Block diagram

The MaaXBoard OSM93 development kit is supported by a Yocto-based Linux board support package (BSP) and a range of example designs to help developers get started. The company also offers optional accessories such as 5-inch and 7-inch MIPI-DSI LCD touch panels, a 5V/3A USB-C power supply, and an M.2 wireless module.  The original MaaxBoard was first introduced in 2019  with an NXP i.MX 8M processor and other versions have come out since then with the MaaxBoard Mini, MaaxBoard Nano, MaaxBoard 8ULP, and MaaxBoard RT all based on other variants of the NXP i.MX processor family.

Users will be able to get some support on Element14’s forums, and I also noticed two GitHub repositories for the new board: one for an information hub (currently empty) that should provide user and developer getting started guide and links to the BSP, and another for demos with currently a fitness demo (empty) and a web server written in Python.

As the status of the documentation already implies, the MaaXBoard OSM93 (part number AES-MAAXB-OSM93-DK-G) is not available yet, but Avnet plans to launch it in Q2 2024, along with the i.MX 91 (OSM-SF-IMX91) and i.MX 93 SOMs (OSM-SF-IMX93), and the accessories. Eventually, more details will surface on the product page including purchase links. Avnet probably announced the board early because they will be showcasing it at Embedded World 2024 on April 9-11 in Nuremberg, Germany alongside other development boards from the company.
