$6.99 Waveshare’s ESP32-C6-Pico Board resembles Raspberry Pi Pico board

Waveshare’s ESP32-C6-Pico and ESP32-C6-Pico-M development boards are equipped with the ESP32-C6-MINI-1 module supporting Wi-Fi 6(802.11ax), Bluetooth 5, Zigbee 3.0, and Thread 1.3, and inspired by the Raspberry Pi Pico form factor. They can be powered either through USB Type-C or an external 5V DC supply connected to the pins.

Previously we have written about similar ESP32-C6-based boards like the SparkFun Thing Plus, ePulse Feather C6, and WeAct ESP32-C6 dev board. However, these boards are priced way over the $6.99 that Waveshare is offering. One exception is the DFRobot’s FireBeetle 2 ESP32-C6 board, which cuts costs by using the IC directly instead of the fully shielded ESP32-C6-MINI-1 module.

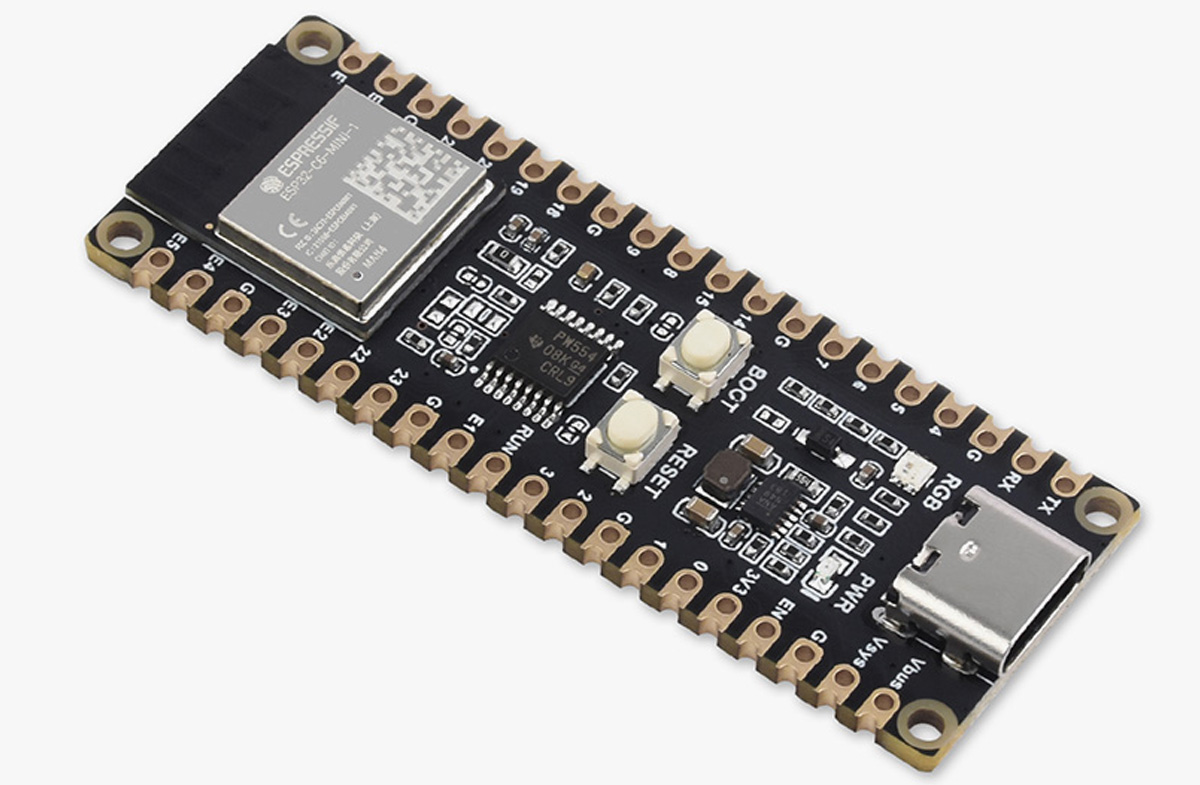

Waveshare ESP32 C6 Pico Devlopment Board

Waveshare’s ESP32-C6-Pico board specifications:

  • Wireless module – ESP32-C6-MINI-1
    • SoC – ESP32-C6H4 32-bit RISC-V microprocessor up to 160 MHz with 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, 4MB flash
    • Wireless – 2.4 GHz WiFi 6 with Target Wake Time (TWT) support, Bluetooth 5.3 LE and Mesh, 802.15.4 radio with Zigbee, Thread, and Matter
    • PCB Antenna
  • USB – 1x USB Type-C port for power/charging and programming
  • Expansion – 20x multi-function GPIO pins and 7x expanded IO pins
  • Power management
    • Supply Voltage
      • 5V via USB-C port
      • 3.3 to 6V via VBUS pin
    • MP28164 buck-boost Converter with 2A max load
  • Power Consumption – Deep sleep: around 18uA above 3.3V or about 33uA below 3.3V
  • Dimensions – 57.3 x 21 mm (Raspberry Pi Pico compatible)

Two main features make this board different than others. First, it includes a TCA9554PWR IO expander IC that adds 7 more pins to the board, and secondly, it has the form factor of the Raspberry Pi Pico, making it compatible with various Waveshare modules like LED displays, RS-232, NB-IoT, and more boards.

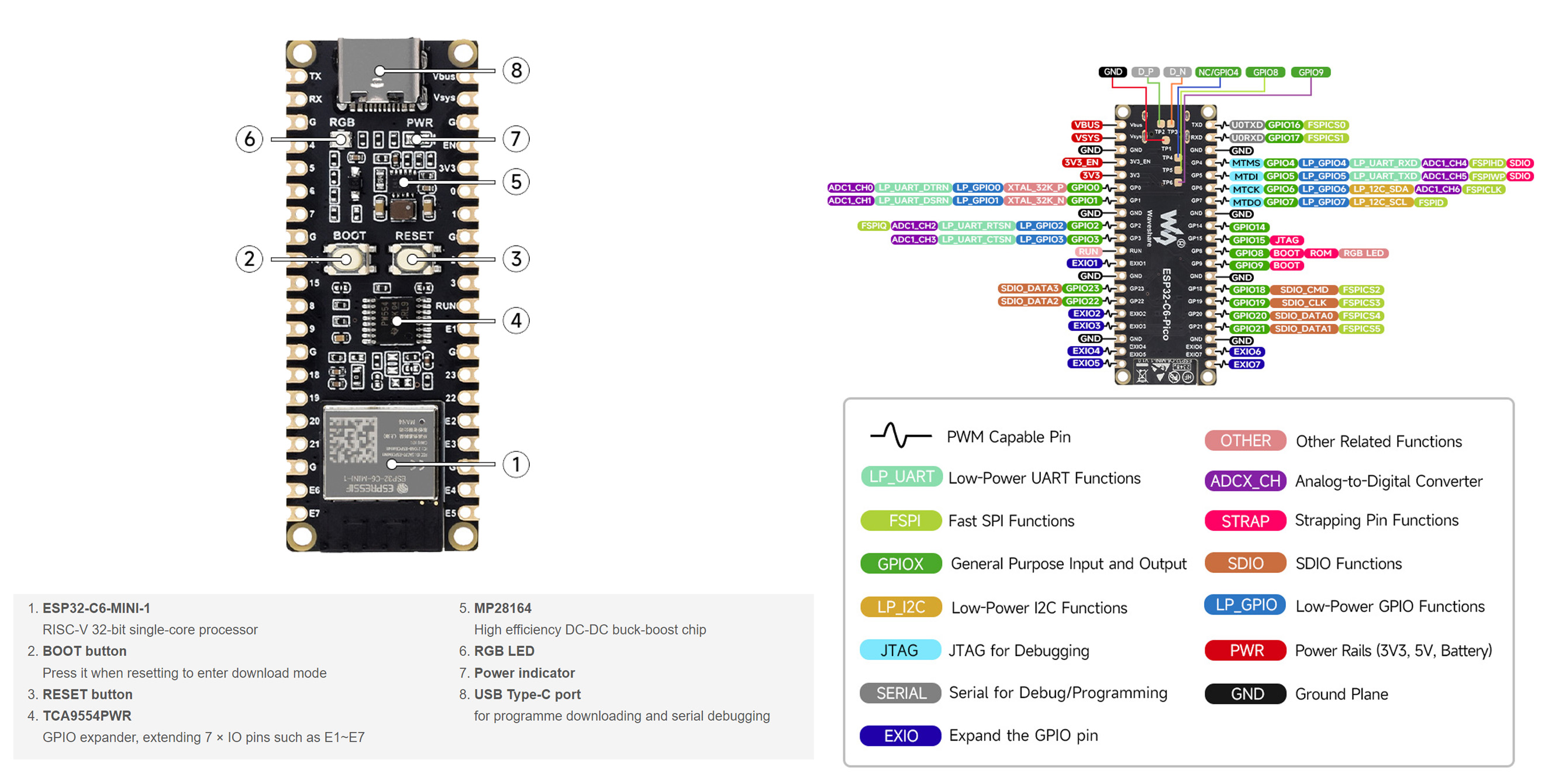

Waveshare's ESP32 C6 Pico Board pinout and Parts Markings

The company also provides a pinout diagram and an onboard parts diagram along with a Wiki Page to help users get started with the board quickly and easily, and as this board uses the ESP32-C6 module it can also be programmed with the ESP-IDF framework or the Arduino IDE for which various examples are available on the Internet.

Waveshare’s ESP32-C6-Pico board can be purchased for $12.99 on Amazon and $13.49 including shipping on Aliexpress but the price drops to as low as $6.99 (ESP32-C6-Pico) and $7.99 (ESP32-C6-Pico-M with soldered headers) on Waveshare’s online store. As a side note, there is an anniversary sale on Aliexpres, and you should be able to use coupon codes like US02, US04, US05, etc.. to get a discount depending on the amount of your order. Those codes are valid in the US, but you can try to use CNXSOFT5, CNXSOFT10, CNXSOFT20, etc… in (some) other countries.
