SparkFun Thing Plus – ESP32-C6 board comes with 16MB flash, LiPo battery support

SparkFun has launched yet another ESP32-C6 board with the “Thing Plus – ESP32-C6”  based on the ESP32-C6-WROOM-1-N16 module with 16MB flash and a PCB antenna and  range of I/Os and power options.

The board features 28 through holes with up to 23 multi-function GPIOs and a Qwicc connector for expansion, and supports 5V or LiPo battery power through respectively a USB-C port a 2-pin JST connector combined with a charging chip, and a fuel gauge.

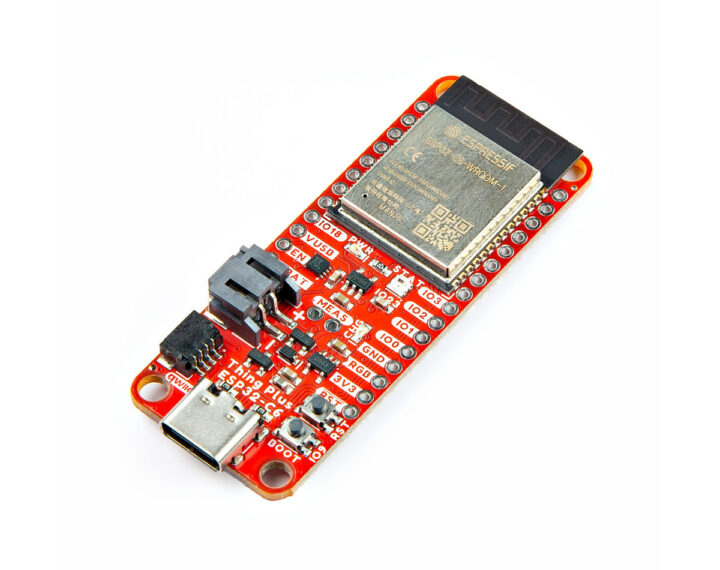

SparkFun Thing Plus ESP32-C6

SparkFun Thing Plus – ESP32-C6 specifications:

  • Wireless module – ESP32-C6-WROOM-1-N16
    • MCU – ESP32-C6 32-bit single-core RISC-V microcontroller with 2.4 GHz WiFI 6, Bluetooth 5 LE, and 802.15.4 radio (Zigbee and Thread); Matter-compatible
    • Storage – 16 MB flash
    • PCB Antenna
  • Storage – MicroSD card slot
  • USB – 1x USB Type-C port for power and programming
  • Expansion
    • 12-pin + 16-pin headers with
      • 23x multifunctional GPIOs
      • Up to 7x 12-bit ADC channels
      • Up to 2x UART channels (with flow control)
      • 1x Low Power UART, 1x I2C, 1x Low Power I2C
      • LED PWM
      • 1x I2S Channel
    • 4-pin Qwiic connector
  • Misc
    • LEDs for Power (Red), charging status (Yellow), and system status (Blue)
    • 1x WS2812 RGB LED
    • BOOT and RESET buttons
  • Power Supply
    • 5V via USB-C port
    • 2-pin JST connector for LiPo battery
    • MCP73831 battery charger – Charge Rate: 213mA @ 3.3V
    • MAX17048 fuel gauge – I2C Address: 0x36
  • Dimensions – 64.8 x 22.9 mm; 2x mounting holes

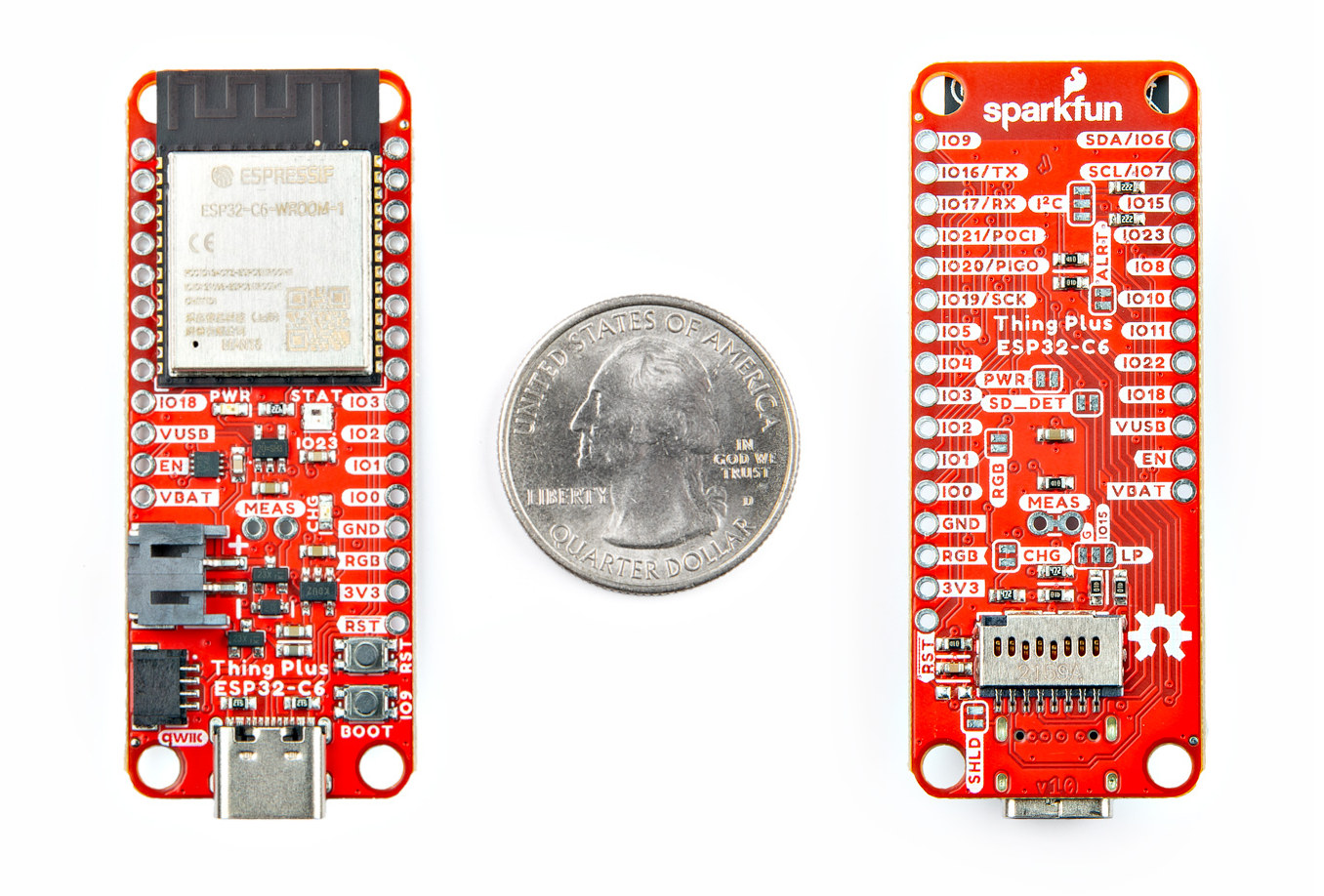

ESP32-C6 board wih 16MB flash, LiPo battery support

The ESP32-C6 board is open-source hardware with Sparkfun providing the hardware design files (EAGLE and Gerber files),  some datasheets, and documentation on GitHub. I’m not sure who thought it was a good idea but the documentation is distributed as MD files and provides instructions to get started with Arduino programming.

The market for ESP32-C board is starting to get crowded starting from the cheap WeAct ESP32-C6 to DFRobot FireBeetle 2 also supporting LiPo batteries, or even Olimex ESP32-C6-EVB with more features for home automation, and many others. The “Sparkfun Things Plus – ESP32-C6” board adds another option with a larger flash (16MB) than most competitors and compatibility with Qwiic modules and the Things Plus form factor.

The company is selling the board for $19.95 plus shipping on its store.

Thanks to TLS for the tip.
