GIGAIPC PICO-N97A is a Pico-ITX SBC powered by an Intel Processor N97 CPU

GIGAIPC PICO-N97A Pico-ITX SBC features an Intel Processor N97 quad-core Alder Lake-N processor coupled with up to 16GB DDR5 SO-DIMM memory and M.2 SATA or NVMe storage designed for passively cooled and enclosed systems for Industry 4.0 applications in the smart cities, retail, and healthcare sectors.

The single board computer supports up to two independent displays via HDMI and LVDS interfaces. It also provides dual Gigabit Ethernet, two USB 3.1 ports, an additional M.2 Key-B socket for wireless, and various headers for RS232/RS422/RS485, GPIO, USB 2.0, and more.

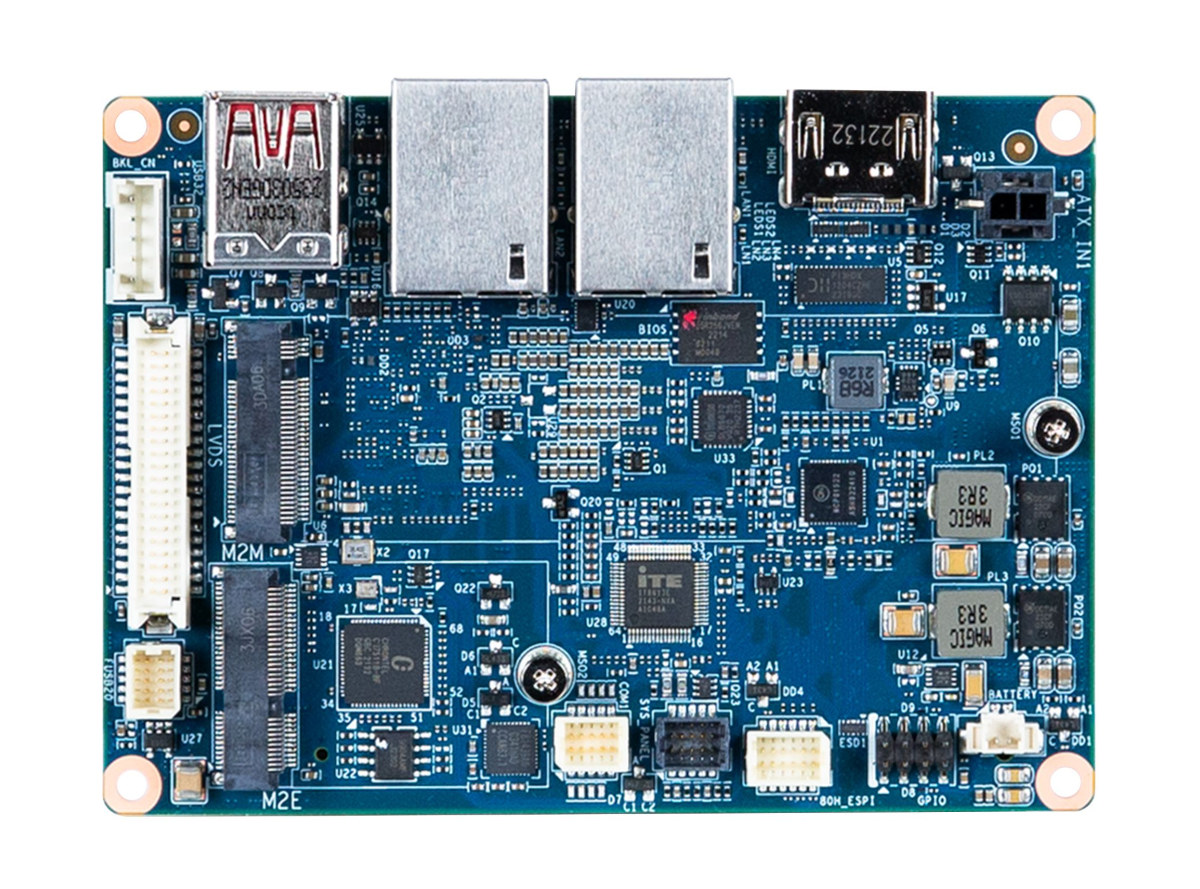

GIGAIPC PICO-N97A

GIGAIPC PICO-N97A specifications:

  • SoC – Intel Processor N97
    • CPU – Alder Lake-N quad-core/quad-thread processor @ up to 3.6 GHz
    • Cache – 6MB cache
    • GPU – 24 EU Intel UHD graphics @ up to 1.20 GHz
    • TDP: 12W
  • System Memory – Up to 16GB DDR5-4800 via a single SO-DIMM socket
  • Storage – SATA or NVMe SSD via M.2 M-Key socket (See expansion)
  • Video Output
    • HDMI 2.0 port up to 4096×2160 @ 60Hz
    • LVDS connector up to 1920×1200 @ 60Hz plus backlight control header
    • Up to 2x independent display supported
  • Networking – 2x Gigabit Ethernet ports via RealTek controllers
  • USB – 2x USB 3.2 Gen1 Type-A ports, 2x USB 2.0 by headers
  • Serial – RS232/422/485 header for COM port
  • Expansion
    • M.2 2230 M.2 E-Key socket (PCIe x1, USB 2.0)
    • M.2 2280 M.2 M-Key socket (PCIe x2, SATA 6Gb/s)
    • 4x GPIO
  • Security – Infineon SLB9670VQ2.0 TPM 2.0 security chip
  • Misc – Front panel header
  • Power Supply – 12V DC via 2-pin box connector
  • Dimensions – 100 x 72mm (Pico-ITX form factor)
  • Temperature Range – Operating: 0°C to 60°C; storage: -40°C to 85°C
  • Humidity – 0-90% (non-condensing)

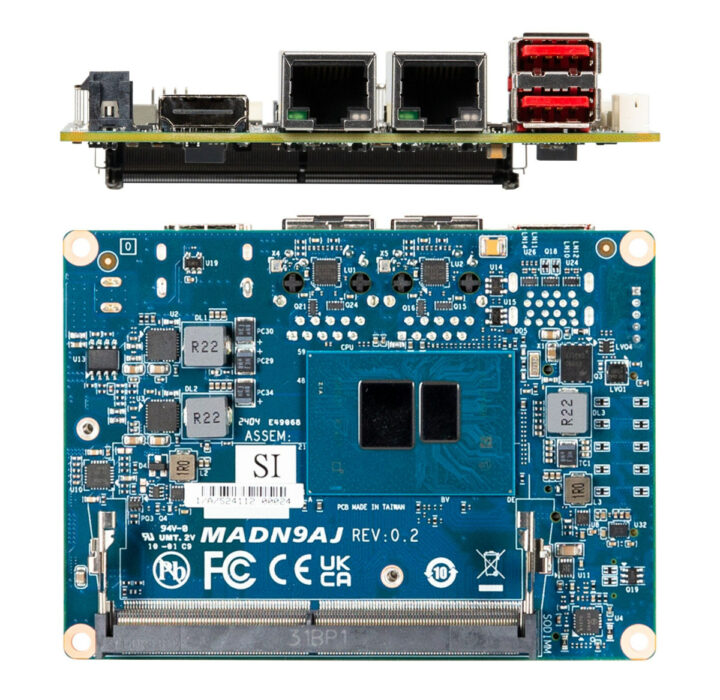

Intel Processor N97 Pico-ITX SBCGIGAIPC did not provide any information about OS support, but it will be Windows and/or Linux depending on driver support…  It’s not the first Intel N97 Pico-ITX SBC we’ve covered, as the AAEON PICO-ADN4 is offered with Intel N50, N97, Core i3-N305, or Atom x7425E Alder Lake-N processors.

Availability and pricing information were not disclosed, but for reference, the AAEON sells samples of the PICO-ADN4 (N97) for $309. A few more details about the PICO-N97A may be found on the product page and press release.

Thanks to TLS for the tip.
