ESP32-S3 1.69-inch touch display features 6-axis IMU, RTC, UART, and more

The Waveshare ESP32-S3 1.69-inch touch display is a development board that uses an ESP32-S3 as the main controller. The board features a 240×280 touchscreen LCD that supports 262K colors and is equipped with an accelerometer, gyroscope, RTC, battery management IC, and a USB-C port for programming and power.

Previously we wrote about the Waveshare ESP32-S3-LCD-1.28 1.28-inch fully rounded LCD screen that is also built around an ESP32-S3 MCU, and we have also recently written about the similar-looking Waveshare 1.69-inch IPS touch LCD with no onboard MCU that is meant to connect to Raspberry Pi, ESP32-S3, Raspberry Pi Pico, Arduino, STM32, and other boards with I2C or SPI interfaces.

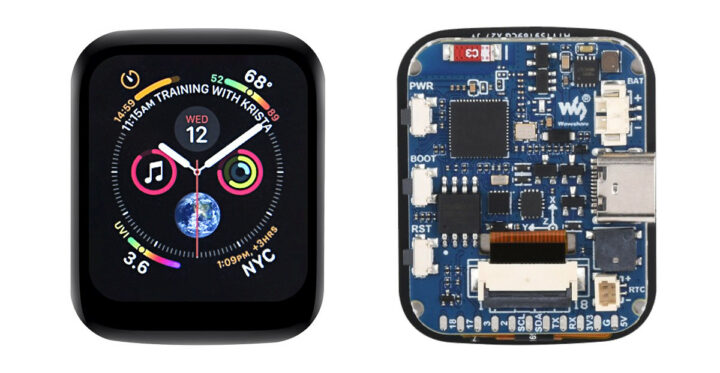

ESP32 S3 1.69 inch Touch Display Development Board with Wi-Fi Bluetooth 5, Accelerometer & Gyroscope

ESP32-S3 1.69-inch touch display board specifications:

  • Wireless MCU – Espressif Systems ESP32-S3R8.
    • CPU – Dual-core Tensilica LX7 @ up to 240 MHz with vector instructions for AI acceleration.
    • Memory – 512KB RAM, 8MB PSRAM
    • ROM – 384KB
    • Connectivity – 2.4 GHz WiFi 4 and Bluetooth 5.0 LE with support for long-range, up to 2Mbps data rate, mesh network.
  • Storage – 16MB Flash memory (W25Q128JVSIQ).
  • Display
    • 1.69-inch semi-round IPS Touch LCD.
    • Resolution – 240×280 pixels
    • 262K color.
    • Display controller – ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C.
  • IMU Parameters
    • Sensor – QMI8658 6-axis IMU.
    • Accelerometer resolution – 16-bit; Range (Optional): ±2, ±4, ±8, ±16g.
    • Gyroscope resolution – 16 bits; Range (Optional) – ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec.
  • GPIO – 4 x multi-function GPIO with I2C and UART.
  • Power
    • Onboard MX1.25 battery header with ETA6096 lithium battery recharge/discharge management chip.
    • USB Type-C connector for charging and data.
  • Other Features
    • PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging)
    • Buzzer
    • Onboard solderable antenna
    • Solderable GPIO, I2C, and UART pads onboard.
    • Supports low power consumption modes.
    • BOOT and RESET buttons.
    • PWR Button with single-press, double-press, multi-press, and long-press operations.

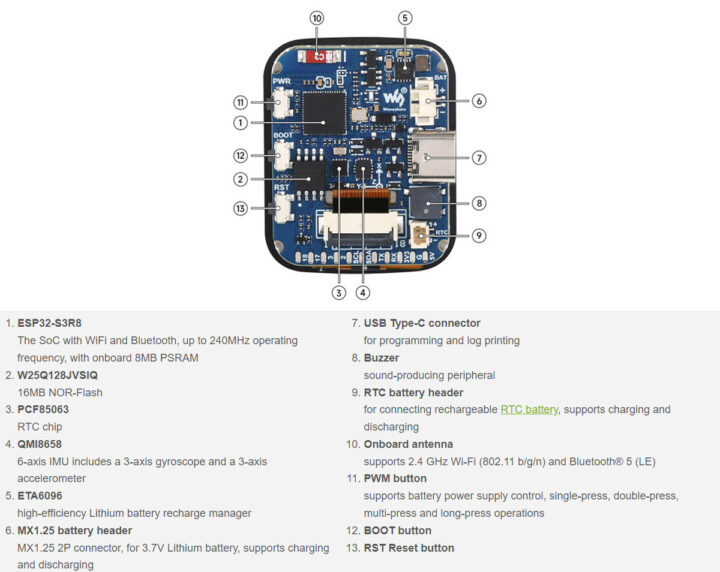

ESP32 S3 1.69 inch Touch Display Development Board Specifications

The WaveshareESP32-S3-Touch-LCD-1.69 development board is compatible with CircuitPython and MicroPython, as well as C/C++ programming using Arduino and ESP-IDF. Users can easily download the MicroPython firmware and find additional resources on the Waveshare Wiki page to get started.

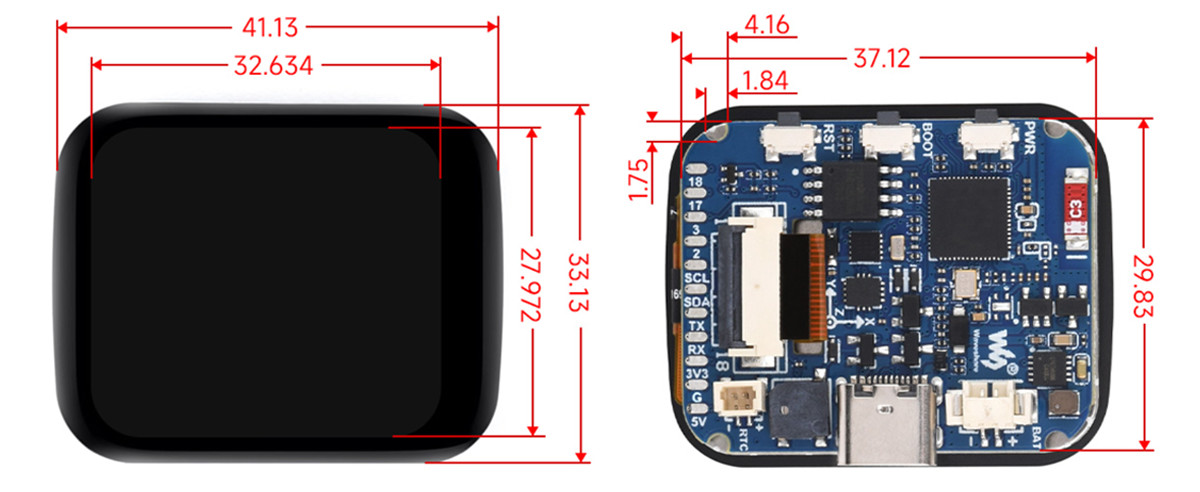

ESP32 S3 1.69 inch Touch Display Development Board Dimension

The Waveshare ESP32-S3 1.69-inch touch display development board is available on Amazon for $30.99 with shipping included, at least to the US. Alternatively, the development board can be purchased on Aliexpress for $26.50 excluding shipping, or directly on the Waveshare store for $21.99 plus shipping.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

6 Replies to “ESP32-S3 1.69-inch touch display features 6-axis IMU, RTC, UART, and more”

  1. It’s a shame that the marketing image of the face is a scam. 240×280 is incapable of reproducing that image at that fidelity. It’s a composite image with some vector art for the case and a cropped shot from some other product’s marketing. That mars what is probably otherwise a good maker product.

    I’d appreciate more journalistic integrity in reporting these things, please. Ie when something is obvious to the reviewer that it is a marketing image, not a product image, then please flag it as such, to protect your readership from what you are promoting.

    1. > the marketing image of the face is a scam. 240×280 is incapable of reproducing that image

      It’s actually not certain. The one on the photo is ~307×360, which is not far from this. Once resized to 240×280 it’s almost the same.

    2. I have an Amazfit GT4 Mini smartwatch with a 336 x 384 1.65-inch AMOLED display (a bit higher resolution).

      This is what it looks like. I took the photos with my smartphone and it’s a bit blurry, but I think we can get the idea…

      I’m also not convinced the image above has been photoshopped.

      1. As I said, it’s a composite. I’m not in a habit of making baseless claims. Load it in Gimp. Select the Colours menu, then the Curves tool. Drag the middle of the gamma ramp up so you can plainly see the boundaries of the vector (noiseless) image which the photo (noisy) was cropped into.

        For comparison, apply the same tool to your own real unedited photo. You will see detail in all areas, with a uniformity of noise.

        I get it when companies do aspirational artwork for Kickstarter and don’t have the real product yet. I’m not criticising that context. I am criticising this one. Disagree if you like. I think the readership deserves better.

  2. This and the 1.28″ version are really cool. I’d like to see a power consumption spec. It would be nice to have more sensors like temperature and a magnetometer. Maybe there can be an add-on board.
