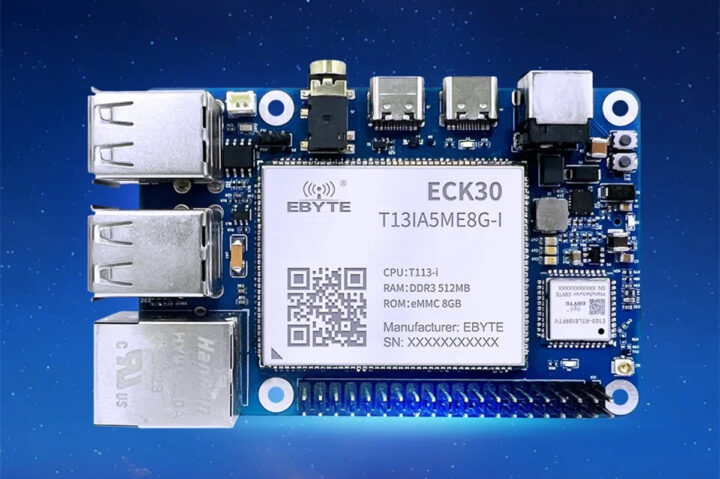

Ebyte ECB30-P4T13IA5ME8G-I is a credit card-sized industrial-grade SBC powered by an Allwinner T113-i Cortex-A7 SoC with 512MB DDR3 RAM and 8GB flash, all part of the company’s ECK30-T13IA5ME8G-I castellated system-on-module.

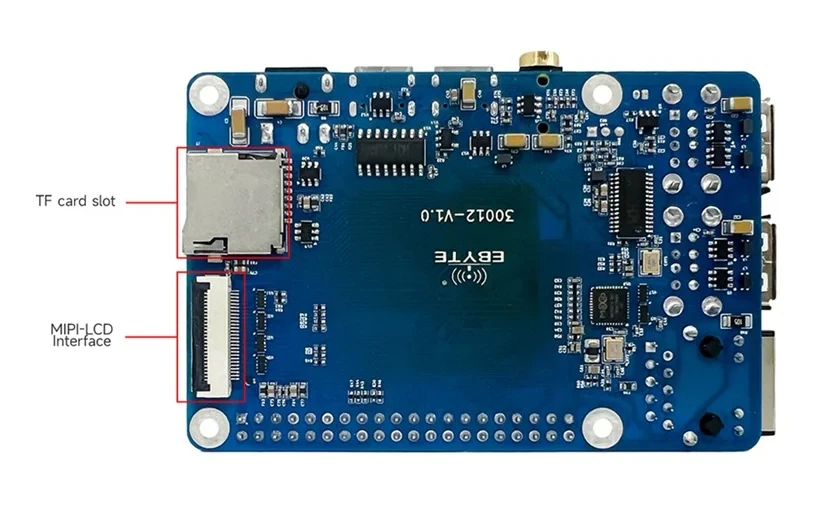

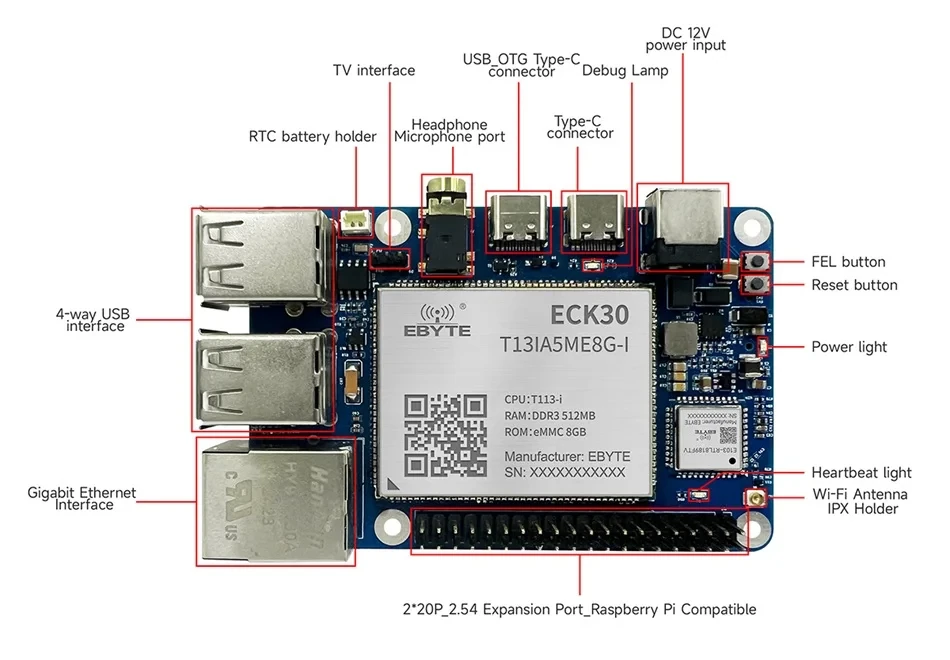

The single board computer is also equipped with a microSD card slot, a gigabit Ethernet port, four USB 2.0 ports, a 3.5mm audio jack, a WiFi 4 module, and the usual 40-pin GPIO header that’s more or less compatible with the one found on Raspberry Pi SBCs. What’s different is the lack of HDMI output, and the board features an MIPI DSI connector instead.
Ebyte ECB30-P4T13IA5ME8G-I specifications:
- System-on-Module – Ebyte ECK30-T13IA1GE8G-I
- SoC – Allwinner T113-i
- CPU
- Dual-core Arm Cortex-A7 clocked at up to 1.2 GHz
- 64-bit XuanTie C906 RISC-V real-time core
- DSP – HiFi4
- VPU
- Video decoder – H.265 up to 4K @ 30 FPS, H.264 up to 4K @ 24 FPS, MPEG-1/2/4, JPEG, Xvid, Sorenson Spark up to 1080p60
- Video encoder – JPEG/MJPEG up to 1080p60
- Package – LFBGA 337 balls, 13 x 13 mm
- CPU
- System Memory – 512MB DDR3 (default), 256MB or 1GB DDR3 as an option
- Storage
- 8GB eMMC flash
- Optional 256MB SPI NAND flash
- Dimensions – 45 x 35 mm (8-layer PCB)
- SoC – Allwinner T113-i
- Display Interfaces
- 26-pin MIPI DSI FPC connector for LCD and touchscreen up to 1920×1080 @ 60 Hz
- 3-pin TV header for CVBS input and CVBS output
- Audio – 3.5mm audio (headphone+mic) jack
- Networking
- Gigabit Ethernet RJ45 port
- 2.4GHz WiFi 4 module with IPEX antenna connector
- USB
- 4x USB 2.0 host ports
- USB 2.0 Type-C OTG port
- Expansion – 40-pin Raspberry Pi-compatible GPIO header with I2C, UART, SPI, PWM, CAN Bus, PCM In/Out, 5V, 3.3V, GND
- Debugging – USB-C debug connector
- Misc
- FEL and Reset buttons
- Power, heartbeat, and Debug LEDs
- RTC battery connector
- Power Supply – 12V DC via power barrel jack
- Dimensions – 85 x 56 mm
- Temperature Range – -40°C to +85°C
Ebyte provides a Linux SDK with buildroot 2019.02 or 2022.05, u-boot 2018, Linux 5.4, OpenWrt, and all required drivers. Unsurprisingly, it looks to be the same SDK as offered with MYiR Tech’s MY-EVC700S-V2 industrial gateway based on Allwinner T113-i SoC. The Linux SDK, tools, and related documentation are shared on a Google Drive share.
The board is expected to be used in a range of applications for Smart Cities, Smart Home, industrial control, and Smart Agriculture. The Allwinner T113-i SBC is sold on AliExpress for $57.99, and the module can be purchased on company’s website for $32.80. Additional information may be found on the product page (which can be slow to load).
