Cool Pi CM5 evaluation board features Rockchip RK3588/RK3588J system-on-module

Cool Pi CM5 is a system-on-module based on Rockchip RK3588 or RK3588J (industrial temperature range) octa-core Arm Cortex-A76/A55 processor with up to 32GB RAM, 256GB eMMC flash, offered with a development board with dual GbE, two 8K HDMI 2.1 ports, a PCIe 3.0 x2 slot, M.2 NVMe and SATA storage, and more…

At the end of last year, we wrote about the Cool Pi 4 as a much faster alternative to Raspberry Pi 4 SBC, and the company has now launched a Raspberry Pi Compute Module 4 and Radxa CM5 alternative with the Cool Pi CM5 MXM 3.0 system-on-module that they offer along with a feature-rich evaluation board (EVB).

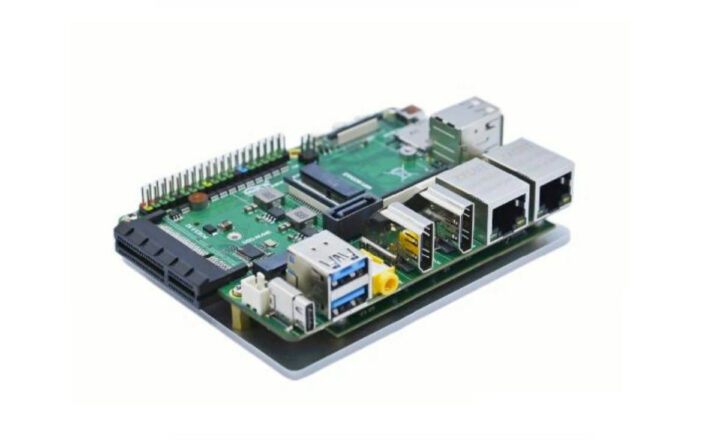

Cool Pi CM5 SBC

Cool Pi CM5 EVB specifications:

  • System-on-Module
    • SoC – Rockchip RK3588(J) octa-core processor with
      • 4x CortexA76  cores @ up to 2.4GHz, 4x CortexA55 core @ 1.8GHz
      • Arm Mali-G610 MP4 “Odin” GPU
      • Video decoder – 8Kp60 H.265, VP9, AVS2, 8Kp30 H.264 AVC/MVC, 4Kp60 AV1, 1080p60 MPEG-2/-1, VC-1, VP8
      • Video encoder – 8Kp30 H.265/H.264 video encoder
      • 6 TOPS NPU
    • System Memory – 2GB, 4GB, 8GB, 16GB, or 32GB LPDDR4/4X SDRAM
    • Storage – 8GB, 16GB, 32GB, 64GB, 128GB, or 256GB eMMC flash memory
    • Audio – Realtek ES8336 audio codec
    • Networking – RTL8111HS and RTL8211F Gigabit Ethernet chips
    • 314-pin MXM 3.0 edge connector for insertion into a carrier board
    • Supply voltage – 4.2 to 4.8V DC
    • Dimensions – 82 x 60 mm
    • Temperature Range – Commercial: 0 to 70°C (RK3588); industrial: -40 to +85°C (RK3588J)
  • Carrier board
    • Storage – 1x SATA 3.0, M.2 2242 PCIe 3.0 x2 socket
    • Video Output
      • 2x HDMI 2.1 up to 8Kp60
      • 2x eDP up to 4Kp60
      • 4-lane MIPI DSI interface
    • Video Input
      • 2x 4-lane MIPI CSI or 4x 2-lane MIPI CSI connector
      • Micro HDMI input up to 4Kp60
    • Audio – 3.5mm earphone jack
    • Networking
      • 2x Gigabit Ethernet RJ45 ports, one with PoE support
      • Optional WiFi/Bluetooth via M.2 module
    • USB – 2x USB 3.0 Type-A ports, 4x USB 2.0 interfaces with 2x Type-A, 2x via headers
    • Expansion
      • PCIe 3.0 x2 slot
      • M.2 2242 PCIe socket for SSD storage
      • M.2 2230 PCIe socket for WiFi module
      • 40-pin Raspberry Pi-compatible color-coded GPIO header
    • Misc – Power, Reset, Loader buttons; RTC connector; thick heat spreader for cooling
    • Power Supply
      • 12V via USB Type-C or 2-pin connector
      • PoE support via optional add-on
    • Dimensions – 104 x 78 mm

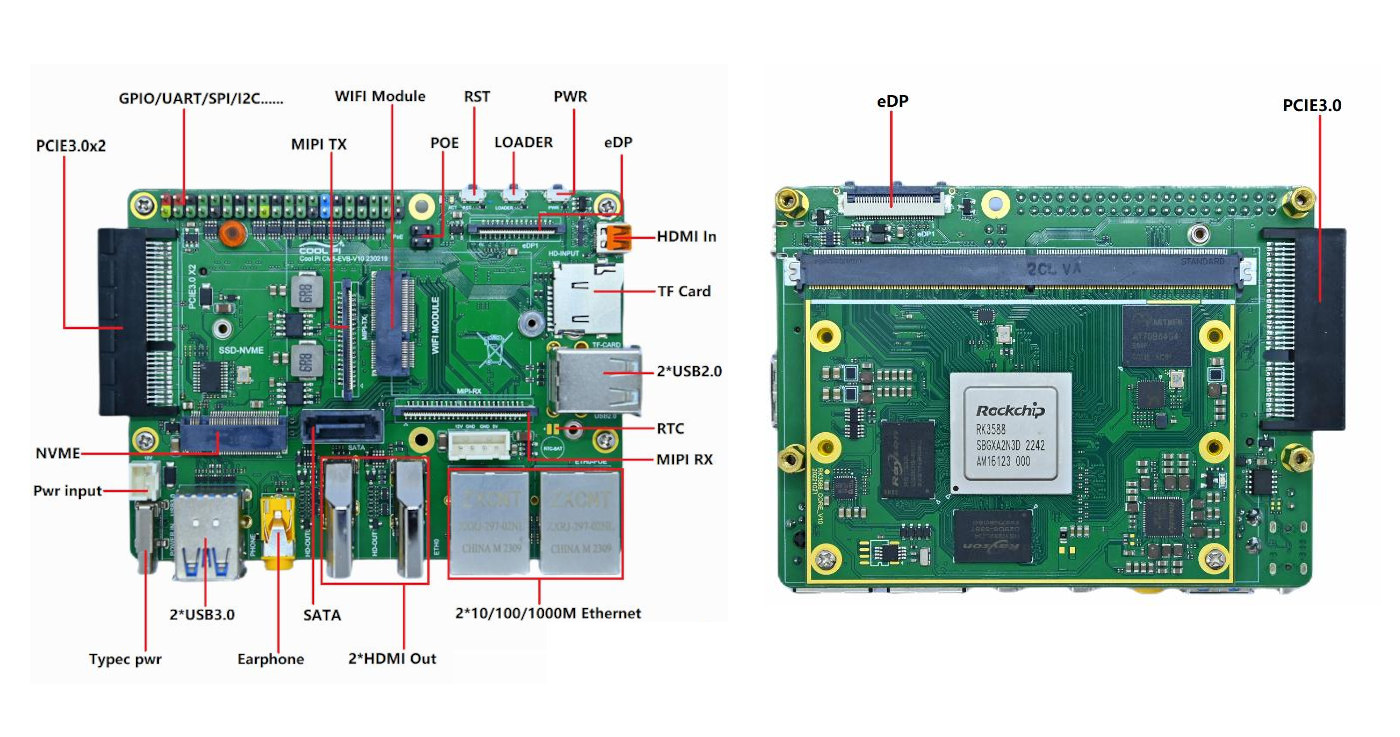

Cool Pi CM5 Rockchip RK3588 system on moduleThe Cool Pi CM5 EVB (RCP-CM5-EVB-2GNORK3588) is only offered with the commercial-grade CM5 module with 8GB RAM and 64GB flash, but the system-on-module itself is customizable and can be produced to be industrial grade with the Rockchip RK3588J processor.

Just like the Cool Pi 4 Model B, the Cool Pi CM5 SoM and EVB can run Android 12, Ubuntu, and Debian operating systems with images and more technical details provided in the Wiki, and support offered in a bilingual (Chinese/English) forum. The board has a fanless design with cooling achieved via a heat spreader placed underneath the board in direct contact with the Rockchip RK3588 processor.

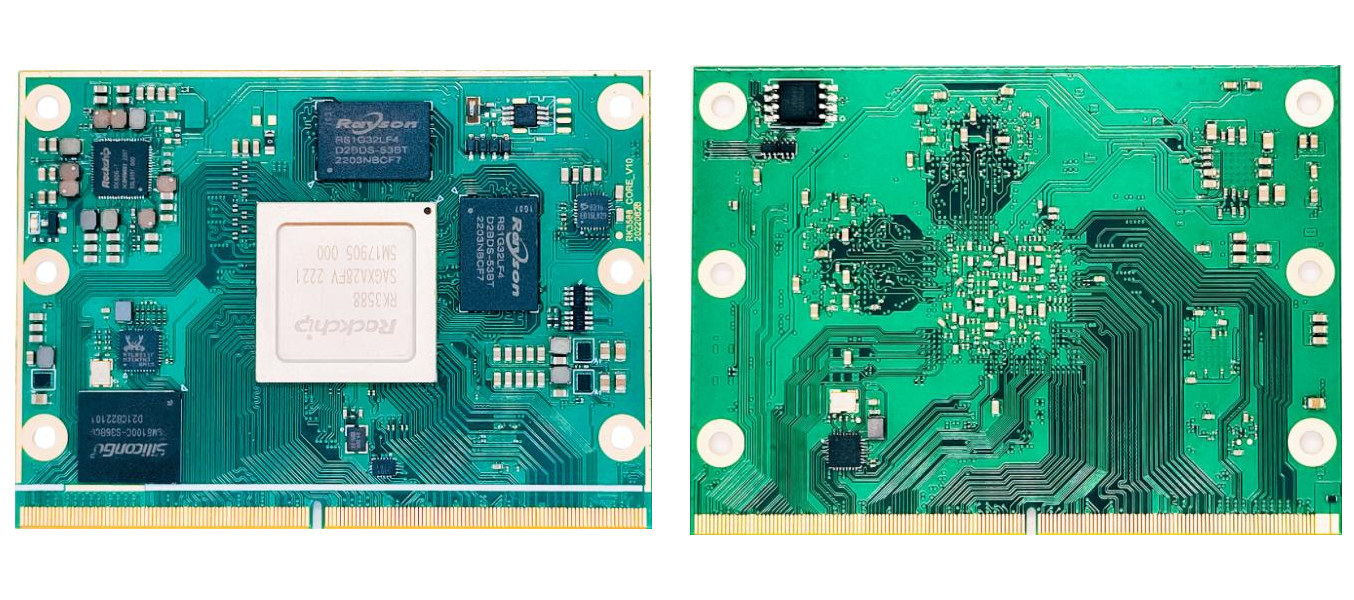

Rockchip RK3588 system-on-module
Cool Pi Rockchip RK3588 system-on-module with MXM edge connector

I don’t know pricing for the Cool Pi CM5 system-on-module, but samples of the Cool Pi CM5 EVB are sold on Aliexpress for $218.70 including shipping, but excluding potential taxes.
