Home > Android, Hardware, Rockchip RK30xx > Kimdecent B12 Rockchip RK3066 HDMI TV Dongle Features a 2MP Webcam

Kimdecent B12 Rockchip RK3066 HDMI TV Dongle Features a 2MP Webcam

Kimdecent has added a new Rockchip RK3066 Android 4.1.1 mini PC to its offering. The device comes with 1GB RAM, 8GB Flash, Wi-Fi & Bluetooth connectivity, and a feature I’ve never seen in any other PC-on-a-stick: a 2 MP camera for video conferencing with Skype or Google talk.

Kimdecent B12Apart from the webcam, the rest of B12 specifications are very similar to MK808:

  • SoC – Rockchip RK3066 dual core Cortex A9 @ 1.6GHz + Mali400 quad core GPU
  • System Memory – 1GB RAM
  • Storage – 8GB ROM + microSD slot (up to 32GB)
  • Connectivity
    • WiFi 802.11/b/g/n 150Mbps
    • Build-in Bluetooth 2.1
  • USB – 1x Full Size USB 2.0 + 2x micro USB ports
  • Video Output – HDMI 1.4 output+ AV output
  • Camera – Build-in 2MP webcam
  • Audio I/O – Mic
  • Misc – Hardware Standby key, software power off key, and recovery hole.
  • Dimensions – 97.5 x 39.8 x 9.8mm
  • Weight – 42g

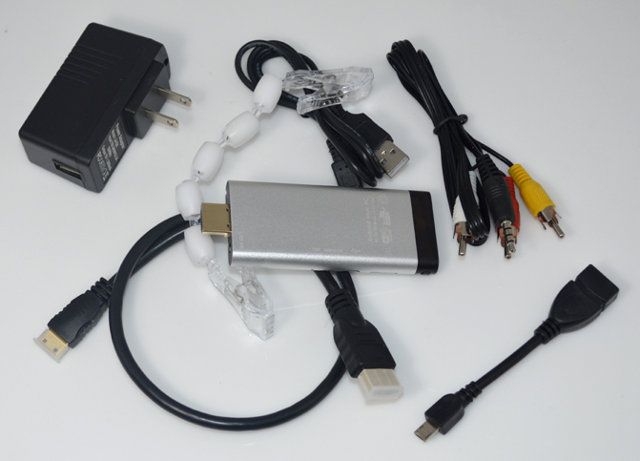

The package contains Kimdecent B13 Android Mini PC, a power supply, a USB Cable, an HDMI Cable, an OTG cable, an AV cable, an “hold” kit, and a user manual in English.Kimdecent B12 AccessoriesThe “hold” kit (there must be a better word) is used to hold the mini PC horizontally in order to use the webcam. I’m not sure how convenient this is compared to a standard USB webcam connected to a mini PC.

The firmware has been improved with software power off, and video playback is now full screen (Status bar hidden). This is the mini PC with the most features I’ve seen, and it costs $67.99 on Kimdecent shop on Aliexpress. I could not find it on other shops for now.

Digg This
Reddit This
Stumble Now!
Buzz This
Vote on DZone
Share on Facebook
Bookmark this on Delicious
Kick It on DotNetKicks.com
Share on LinkedIn
Bookmark this on Technorati
Post on Twitter

  1. João Falcão
    January 7th, 2013 at 19:56 | #1

    The mic is also build in?
    I couln’t understand it from the pictures.

    I was looking for a device like this one but with audio I/O so I can connect a headset.

  2. January 7th, 2013 at 20:43 | #2

    @João Falcão
    Yes, the MIC is built-in.

  3. WHATS THIS BOX CALLED
    January 7th, 2013 at 22:58 | #3

    so the audio/”mic” port, can it be audio-out?

  4. January 8th, 2013 at 09:13 | #4

    @WHATS THIS BOX CALLED
    The Mic is built-in. You have audio out via HDMI and AV connector.
    So no, you can’t connect your own headset.

  5. January 9th, 2013 at 00:47 | #5

    Thanks for the laugh!

    This isn’t going to be the device to take user experience of Chinese android devices to the next level (unless the next level is even worse than before). The camera placement is terrible. There is really no justification for a camera on one of these things. No amount of cables and “hold” kit (which doesn’t look like it will actually hold this thing) is going to change that.

  6. Slowstream
    January 11th, 2013 at 06:04 | #6

    @cnxsoft
    Rather look upon the mk806/ak806/mp802 if you want to plug your headset in.

    On this one the mic should have been at the extremity rather then in the middle like it is now since it can be blocked by your tv panel if plugged into the side of your tv…

    @cnx: if physically you can plug av cable along the hdmi cable, will it be possible to use the av out for audio and while using simultaneously the hdmi for image?

  7. January 11th, 2013 at 10:15 | #7

    @Slowstream
    I’m not sure, this would have to be tried.

  8. Slowstream
    January 16th, 2013 at 23:37 | #8

    A part from kimdecent b12/NX003-II and mk806/ak806/mp802 there is a new rk3066 with analog output (here it’s 3.5mm headset) that is now available for the market, the one we can see in N Charbonnier video: http://www.youtube.com/watch?v=HT21YIVBy80&feature=youtu.be

    It just fell into amazon.com during last weekend but with small quantity. Amazon should received a little more soon. 55$ + 5$ for shipping: http://www.amazon.com/gp/product/B00AZR1TG2

    At the eyes it seem more sturdy and well constructed from the outside and inside than the others. And the constructor as already sent a couple of new updates on its website http://www.timingpower.com/rk3066-android-mini-pc

    If this device proves to be of better quality than the others maybe it’s a good idea to bump it at the head of cnx blog.

  9. Javi
    January 17th, 2013 at 03:23 | #9

    I see this “thing” (product) a little strange, is not? I’m sure can find applications, but… strange to place the camera built-in there.

  10. January 18th, 2013 at 14:27 | #10

    The device is called NX003II on dealextreme and sells for $65
    http://dx.com/p/nx003ii-android-4-1-1-dual-core-mini-pc-google-tv-player-w-wi-fi-camera-dlna-metallic-brown-182799
    This could actually work with my TV, as the Camera would just show on the right side of the TV.

  11. Slowstream
    January 19th, 2013 at 23:38 | #11

    @Slowstream
    Just a little update on this one. The manufacturer told me it will be available soon on amazon an order can now be made through its website http://www.timingpower.com/rk3066-android-mini-pc

    I was waiting for a good stick with audio out and I think this is it. Will definitely give this one a try…

    Related links:
    http://www.engadget.com/2013/01/12/the-rk3066-android-4-1-mini-pc-hands-on/
    http://www.pcworld.com/article/2025298/one-more-ces-gem-a-55-mini-pc-that-runs-android-4-1.html
    And I just created I thread on slatedroid about it
    http://www.slatedroid.com/topic/47458-android-mini-pc-rk3066-with-audio-out-from-the-creator-of-mk802/

  12. January 31st, 2013 at 20:32 | #12

    Geekbuying now sells a model with the same specs, but different casing, called Measy U2C for $75 http://www.geekbuying.com/item/Measy-U2C-TV-Dongle-TV-BOX-RK3066-Dual-Core-1G-8G-Built-in-2-0MP-Camera—Mic-with-BT-AV-Output-White-314220.html

    I would have called it UC2 (You see too) since there’s a webcam :p

  13. former
    February 2nd, 2013 at 05:43 | #13

    yes, you can connect your own headset. tested.@WHATS THIS BOX CALLED

  14. cyberjo
    February 13th, 2013 at 03:31 | #14

    is there an android stick with analog mic in? or that works with any known USB headset? bluetooth is not such a good option for me

  15. February 13th, 2013 at 11:14 | #15

    @cyberjo
    I don’t know any mini PC with an analog mic in. I haven’t tried myself, but I suppose @former was successful with an USB headset.

  16. cramm
    February 22nd, 2013 at 18:28 | #16

    Got mine after 36 days via Hnk Kong Post, bought at the AliExpress Kimdecent store. I’ve posted an unboxing video at http://youtu.be/-4B90OwC7Bc

    Enjoy.

  17. michael
    March 1st, 2013 at 23:20 | #17

    Has anybody tested the measy with 3G dongle.

  18. former
    March 4th, 2013 at 07:43 | #18

    @cnxsoft
    im successful with 3.5 standard headphones. sorry for misunderstanding

  19. len
    March 20th, 2013 at 05:06 | #19

    what is interface for the camera to the chip?

    thank you

  20. March 20th, 2013 at 09:10 | #20

    @len
    I’m not sure, but maybe you can find out by looking at the PCB picture at the end of the following post
    http://www.cnx-software.com/2013/02/07/review-of-measy-u2c-rockchip-rk3066-mini-pc-with-built-in-camera/

    Measy U2C is based on B12 board.
