100 Euros “Little Black Box” Runs XBMC Linux

Most set-top boxes running XBMC, are actually Android devices running XBMC as an app, and I don’t know of other media players that are sold with XBMC Linux pre-installed. Until today, as an XBMC Linux STB called The Little Black Box has been officially announced today. This XBMC device is powered by AMLogic AML8726-M3 @ 1 GHz, and comes with 1GB RAM, 4GB Flash, HDMI and AV output and more.

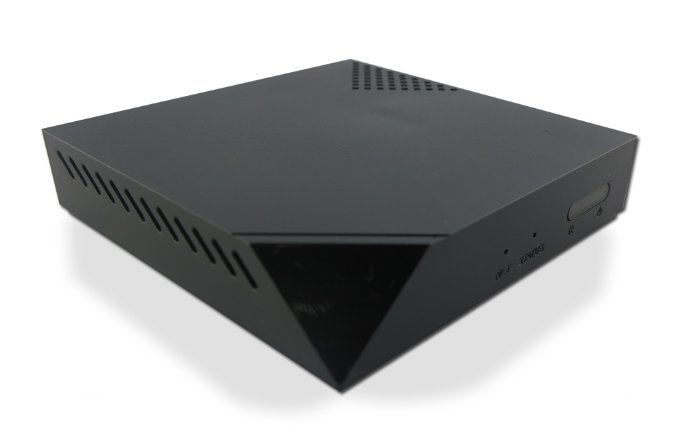

Little_Black_Box

Little Black Box hardware specifications:

  • SoC – AMLogic AML8726-M3 ARM Cortex A9 @ 1GHz + Mali-400 GPU

    Little_Black_Box_Remote
    Dual Sided Remote

  • System Memory – 1GB RAM
  • Storage – 4GB NAND Flash
  • Video Output – HDMI (1080p) and composite
  • Connectivity – 10/100M Ethernet + 802.11 b/g/n Wi-Fi
  • USB – 2x USB host ports
  • Weight – 500 g
  • Dimensions – 10 x 10 x 3 cm

The package will come with the box, a dual sided RF remote  with a qwerty keyboard and standard remote buttons (pictured on the right), an HDMI cable, a power supply, and a quick start guide.

The device was initially scheduled for the 1st of May, but following some delays it should now be available at the end of May. It can be pre-ordered for 99.99 Euros including free shipping to Europe and US which is still reasonable considering you get an RF remote, and price includes VAT. Shipping to Asia, Thailand at least, costs about 30 Euros.

The exact source code used in the device will not be made completely available. There will be a TLBB version (closed source) shipped with the product, as well as a community build (See j1nx) which will be fully open source. Correction: So as per Peter comment, there will be two versions TLBB, specific to this set-top box, and a community build. The source code of both version is available via github.

You watch watch the teaser video below.

Further information and link to pre-order are available on The Little Black Box site.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus

15 Replies to “100 Euros “Little Black Box” Runs XBMC Linux”

  1. I am happy to answer any question or comments. This is the outcome of my earlier Indiegogo campaign.

    Would like to correct a little mistake;

    Both the TLBB and J1nx firmware are fully opensource and available for anybody who want to change, tweak or help out with the development. The TLBB version is actually a seperate branch on the j1nx github sources.

    Although they are based on the same sources, at a certain point the TLBB version will be kept stable, while the community build will have bleeding edge code, tweaks and features. Although I do think that at a certain point there is no need for it on other hardware as some TLBB development might be tailored to that hardware only And the J1nx version will always be insync or ahead of the TLBB version.

    I would like to see the TLBB branch as the RedHat while the J1nx community build is more the Fedora playground 😉

  2. If FULL source code is available, does that mean there’s source to the GPU and most importantly the VPU available as well?

    Or only to parts of the kernel (sans GPU, sans VPU and what not) and userland (sans libgl(es) and sans ‘libVPU’).

  3. @oliver,
    No only sources of the software used as received from Amlogic. The VPU is closed source, the kernel parts and libraries are included.

    @yoda,
    No trueHD/DTD HD, the normal versions are included.

    @cnxsoft,
    No problem. Like you said it would have been a violation and destroys everything I stand for 😉

  4. oliver :
    If FULL source code is available, does that mean there’s source to the GPU and most importantly the VPU available as well?
    Or only to parts of the kernel (sans GPU, sans VPU and what not) and userland (sans libgl(es) and sans ‘libVPU’).

    amlogic don’t hide anything related to VPU
    I think amlogic VPU microcode is peaty much same but not as complex as reaspberry pi broadcom Videocore

  5. @Barusch, It is indeed out goal to extend the lifetime of this SoC by support. But if you mean that you can upgrade your XBMC yourself from main line then, no. Updates will be provided with firmware updates.

    @Mikkel Frank, it is apssively cooled. No movable parts what so ever.
