Rockchip SoCs Comparison Table, RK32xx Quad Core Cortex A12 Coming Up in 2014

Orange Pi Development Boards

They guys at Linux Rockchip have setup a comparison table between Rockchip processors, but it’s not quite complete yet, and Rockchip noticed it, so they’ve just sent them the most recent Company Presentation that provides more details, including a roadmap.

In this documentation, we can see the company targets different types of products with their SoCs:

  • Android OTT dongle/box (aka mini PC, HDMI TV dongles…) – RK2928, RK3066, RK3068, and RK3188
  • Tablets – RK2926, RK2928, RK3028, RK3066, RK3168, and RK3188
  • EPD E-Book – RK2818, RK2906 and RK2918
  • MP3 player – RKnanoC

Rockchip_Product_Structure

On page 12 of the presentation, they have a convenient comparison table for the SoC used in mini PCs and Tablets.

Series RK2926 /RK2928 RK3066 /RK3068 RK3168 RK3188
Process 55nm 40nm 28nm HKGM 28nm HKGM
CPU Cortex A9 Dual Cortex A9 Dual Cortex A9 Quad Cortex A9
MAX CPU Frequency 1.0 GHz 1.6 GHz 1.2 GHz 1.6 GHz
L1 32KB 32KB 32KB 32KB
L2 128KB 512KB 256KB 512KB
GPU Mali 400 Mali-400 MP4 PowerVR 540 Mali-400 MP4
MAX GPU Frequency 330 MHz 400 MHz 600 MHz 600 MHz
Memory DDR3/L LPDDR2 DDR3/L LPDDR2 DDR3/L LPDDR2 DDR3/L
FLASH support eMMC, MLC, NAND eMMC, MLC, NAND eMMC, MLC, NAND eMMC, MLC, NAND
Video Decoder Multi-Format, VP8, H.264 Multi-Format, VP8, H.264 MVC Multi-Format, VP8, H.264 Multi-Format, VP8, H.264, MVC
Video Encoder H.264 H.264, VP8, MVC H.264 H.264, VP8, MVC

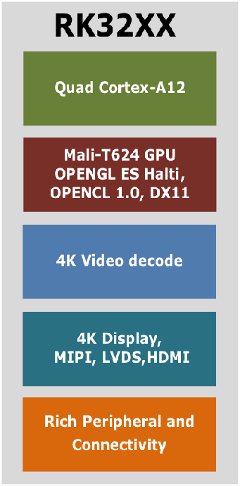

We also learn Rockchip is working on a new RK32xx SoC (RK3288?) that will become available in Q2 2014 (Engineering Samples) with four of the latest ARM Cortex 12 cores, and the following features:

  • Rockchip_RK32xx_Block_Diagram28nm HKMG Process
  • 1.8GHz Quad ARM A12 core
  • ARM Mali-T624 GPU, support OPENGL ES1.1/2.0/Halti, OPEN VG1.1, OPENCL, Directx11
  • High performance dedicated 2D processor
  • Dual channels DDR controller, support, DDR3, DDR3L, LPDDR2, LPDDR3
  • Display resolution up to 3840X2160, MIPI, LVDS, HDMI transmitter
  • Embed 1300M ISP and MIPI-CSI interface
  • 4K video multi format video decoding
  • 1080P video encoding for H.264 and VP8, MVC
  • Support MLC NAND, eMMC
  • Image enhancement HW
  • Low power display improvement HW
  • Rich peripheral and connectivity

Interestingly, there’s no hardware support for H.265/HEVC and VP9 even in this 2014 processor, so they’ll have to decode these codecs by software, just like they plan to do with RK3188 up to 1080p.

Other interesting bits (to me) include:

  • RK3168 and RK3188 are pin-to-pin compatible
  • RK3068 has more pins than RK3066, yet it’s much smaller thanks to a smaller pitch (BGA548 14X14 0.5mm pitch vs BGA453 19X19, 0.8mm pitch)
  • RK292X allows for low cost TV-BOX solution (“wireless HDMI”) with a PCBA cost of about $10 US.
