Tronsmart Orion R28 Meta RK3288 TV Box Unboxing

GeekBuying sent me one of their Tronsmart Orion R28 Meta (Beta) Android TV boxes powered by Rockchip RK3288 SoC. This model comes with 2GB DDR3, 16 eMMC, and 802.11 b/g/n/ac Wi-Fi. R28 Mega is the mid-range model, and there are two others models R28 Pro (entre-level) and R28 Telos (premium). I’ve already listed specifications for the three Tronsmart Orion R28 models. Today, I’ll show some picture of the device, and the board to find out more about the design of the product. Before reviewing the product in another post, I’ll probably build the image using the provided Android 4.4 SDK (provided I can download it), and perform the full review next week with the resulting firmware.

Tronsmart Orion Meta R28 Unboxing

I’ve received the parcel via DHL within 2 days. The same package will be used for all three models, but you’ll have a sticker on the side for Pro, Meta or Telos, as well as specifications at the back with options for 2 or 4 GB RAM, 8, 16 or 32 GB eMMC, and 802.11 a/b/g/n/ac or 802.11 b/g/n.
Tronsmart_Orion_R28_Meta_PackageThe box comes with an external Wi-Fi antenna, a IR remote control requiring 2x AAA batteries (not included) a micro USB to USB cable, an HDMI cable, and a 5V/3A power adapter. There’s also a user’s manual in English that I forgot to include in the picture below.

Tronsmart_Orion_R28_Accessories
Orion R28 and Accessories (Click to Enlarge)

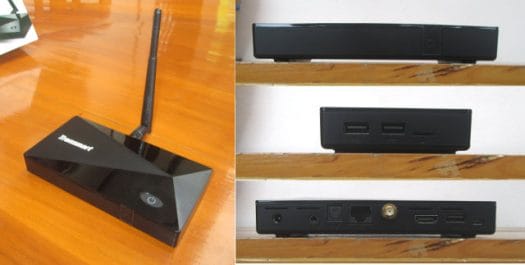

There’s a new good trend for power buttons which are now located on the top of the boxes that I recently received, and it’s the same for Orion R28. On the front panel, there’s just the window for the IR receiver, two USB 2.0 ports and a micro SD slot can be found on the side, and the rear panel has most of the ports: DC in barrel, AV output, optical S/PDIF, Gigabit Ethernet, antenna connector, HDMI 2.0 output, another USB 2.0 host port, and a micro USB OTG port. A micro SD card with the SDK was supposed to be included, but they forgot to include it in my package, so instead I’ll have to download it (link provided at the end of this post).

Tronsmart Orion R28 (Click to Enlarge)
Tronsmart Orion R28 (Click to Enlarge)

Markings for FCC and CE are written on the package, but on the bottom of the enclosure I can only see a CE marking.

Unboxing video:

Tronsmart Orion Meta R28 Board

Now let’s open the enclosure. Removing the two rubbers pads on the bottom reveals three screws. After I had untightned them I expected the box to open easily, but it would not come off despite all my efforts… That’s because there’s another screw, under the “Tronsmart Orion R28” sticked. After you remove that one, it becomes much easier…

Orion R28 Meta Board (Click to Enlarge)
Orion R28 Meta Board (Click to Enlarge)

The wireless module is indeed AP6335 which supports 802.11 b/g/n, 802.11ac, and Bluetooth 4.0. Sandisk SDIN7DP4-16G is a 16GB eMMC, and RK1000 chip is used for composite output. Access to the serial console should be very easy since there are the four through holes for Tx, Rx, GND and 5V on the top right. Other accessible I/Os are I2C and UART3 (bottom right), and 4 more pins for USB. The board name is not readable as they’ve stuck a “Tronsmart Orion R28” sticker on top.

Bottom of Orion R28 Board (Click to Enlarge)
Bottom of Orion R28 Board (Click to Enlarge)

The only noticeable chip on the back of the board is Realtek RTL8211E Gigabit Ethernet transceiver.

Rockchip RK3288 Soc and RAM (Click to Enlarge)
Rockchip RK3288 Soc and RAM (Click to Enlarge)

Removing the heatsink is easy as there’s just two small bits with springs holding it. Instead of using thermal pad like in Kingnovel K-R68, there’s some thermal paste between the heatsink and Rockchip RK3288. Four DDR3 memory chips (MIRA P3P4GF4BLF) are used to get 2GB RAM.

That’s all for today,. The next step is to download the Android SDK (if somebody can re-upload it to mega.co.nz, it would be help Link to mega.co.nz mirror. Thanks Kostas!), build the Android image, and flash it to the box. You can pre-order the final version of Tronsmart Orion R28 Meta for $119.99 on GeekBuying, but if you don’t need 802.11ac, and can do with 8GB eMMC instead of 16GB, the Orion R28 Pro goes for $99.99.
