VIA ARTiGO 1300 Quad Core x86 Rugged Digital Signage Player

VIA has recently announced ARTiGO 1300, a rugged digital signage player powered by a VIA quad core E-Series x86 processor with VX11PH media processor, provides two HDMI outputs for independent displays, USB 3.0 ports, Gigabit Ethernet and more. Beside digital signage applications, it can also be used for kiosks, menu boards, HMIs, and other IoT applications.

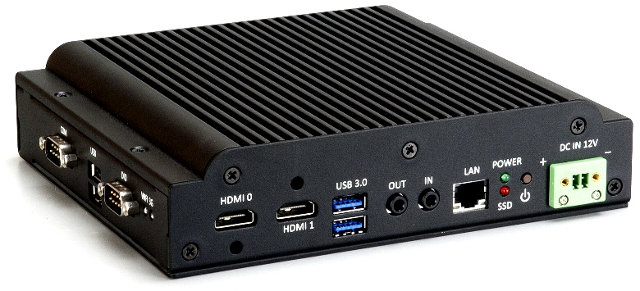

ARTiGO_A1300_Rugged_Signage_Player

ARTiGO A1300 Specifications:

  • Processor – VIA QuadCore E-Series @ 1.0 GHz
  • Chipset – VIA VX11PH Media System Processor with Chrome 645/640 GPU for 2D/3D, and hardware video decoding  support (MPEG-2, WMV9, VC-1 and H.264)
  • System Memory – 1x DDR3 1066/1333 SODIMM socket (up to 8GB)
  • Storage – Support 1x 2.5” SATA SSD/HDD, 1x mSATA SSD. 32Mbit Flash memory for AMI Aptio UEFI BIOS.
  • Video Output – 2x HDMI ports supporting resolutions up to 1920 x 1080 pixels. Dual independent HDMI display support.
  • Audio – VIA VT2021 High Definition Audio Codec, Line-in and Line-out
  • Connectivity – 1x Gigabit Ethernet port (Realtek RTL8111G) with support for Wake-On-LAN and Boot from LAN (PXE), optional Wi-Fi and 3G support
  • USB – 2x USB 3.0 ports and 2x USB 2.0 ports
  • Serial Port – 1x COM portfor RS-232/422/485
  • Expansion Slot – 1x Mini-card slot (PCIe + USB 2.0), 1x SIM card slot, 1x DIO port for 8-bit GPIO
  • Misc – Blue LEDs for 3G and USB Wi-Fi, 1x Red LED for SSD activity, 1x Green LED for power status, power on/off button, Watch Dog Timer
  • Power – 12V DC-in (typical: 28W). ACPI 3.0 compliant
  • Dimensions – 185mm(W) x 44.4mm(H) x 162mm(D)
  • Weight – 2.0 kg without HDD

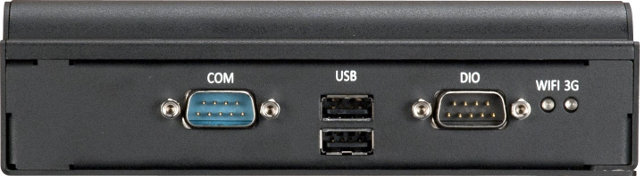

ARTiGO_A1300_COM_DIO_USB_LEDThe design is fanless, and supports Windows 8, Windows 7, WES 7, and Linux based operating systems. Wi-Fi and 3G connectivity can be added with respectively VNT9271 802.11 b/g/n Wi-Fi module and Ublox 3.75G HSPA/UMTS mini PCIe module.

VIA ARTiGO A1300 is available now on VIA Embedded Store for $550 plus shipping ($45 to Thailand). Further details can be found on Artigo A1300 product page.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
2 Comments
oldest
newest
Harley
Harley
9 years ago

Does XBMC / Kodi support this VIA VX11PH Media System Processor under Linux?

Does it support VAAPI or VDPAU API for hardware accelerated video?

Gergely Imreh
9 years ago

@Harley

Hi, the VX11 driver supports VAAPI. It’s a binary driver, unfortunately, so I don’t think it’s included in XMBC by default, but the driver can be downloaded from http://download.viatech.com/en/support/driversSelect.jsp (choose Linux-current for the OS, and Ubuntu 12.04, that should take you to the relevant download page). Manual set up is not ideal, but that’s available at the moment…
