Intrinsyc Introduces Snapdragon 810 Powered Mobile and Tablet MDPs, DragonBoard Development Kit

Intrinsyc has recently announced availability for three development platforms based on Qualcomm Snapdragon 810 ARM Cortex A53/A57 processor, namely a smartphone Mobile Development Platform (MDP), a tablet MDP, and a DragonBoard development kit integration Open-Q 8094 system-on-module, making these one of the first ARM64 development platforms available to individual developers, or at least small software development companies (approved by Qualcomm). All three platforms will run Android 5.0 Lollipop.

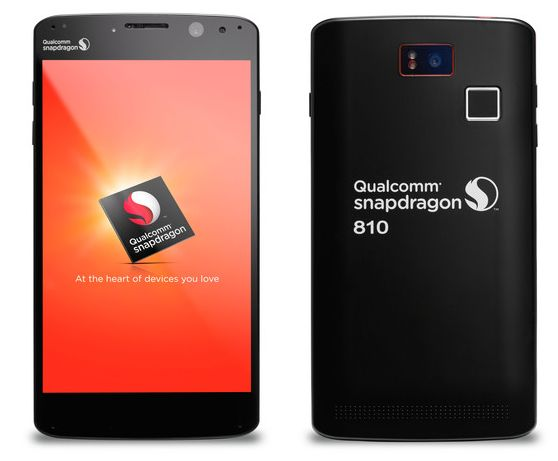

Intrinsyc Snapdragon 810 MDP Smartphone

Snapdragon_810_MDPIntrinsyc MDP/S specifications:

  • SoC – Qualcomm Snapdragon 810 (8994)  64-bit octa-core processor with 4x Cortex A57 cores, 4x Cortex A53 cores, Adreno 430 GPU, and Hexagon V56 DSP
  • System Memory – 3 GB LP-DDR4
  • Storage – 32 GB eMMC 5.0  micro SD slot (under battery door)
  • Display – 6.17” QHD (2560×1600) 490ppi, 10-finger multi-touch capacitive touchscreen
  • Video Output – micro HDMI type D
  • Audio
    • Headset jack with ANC support
    • 8 microphones (2 analog/ 6 digital) with support for Qualcomm Fluence Pro technology and Snapdragon digital pen technology
    • Ultrasound emitter for gesture applications
    • Mono speaker
  • Connectivity – 802.11 a/b/g/n/ac Wi-Fi 2.5 GHz/5 GHz,  Bluetooth 4.1, Qualcomm IZat Gen8C GPS
  • Cameras
    • 13 MP rear camera with OIS, Dual LED flash (4K at 30 fps, 1080p @ 60fps)
    • 4 MP front camera with AF (1080p at 120 fps)
  • Sensors – 3-axis accelerometer and 3-axis gyro, 3-axis magnetometer (compass), ambient light sensor, proximity sensor, pressure sensor, temperature and humidity sensor, UV sensor, and Mobeam sensor (for barcodes)
  • USB – micro USB 3.0 OTG port
  • Misc – Volume, power, and home buttons, finger print reader, tri-color status/notification LED
  • Battery – 3020 mAh Lithium-ion battery. Qualcomm Quick Charge 2.0 support when used with optional HVDCP charger

This developer smartphone has some serious specs, and should ship late December 2014 for $799. Please note that there does not seem to be any 3G/LTE support. More details are available on the product page.

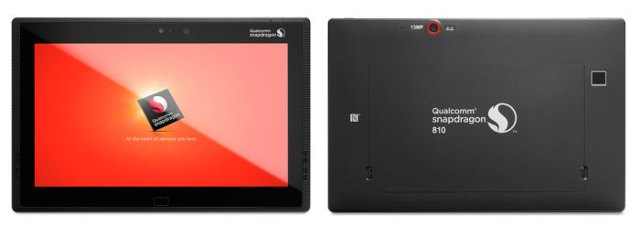

Intrinsyc Snapdragon 810 MDP Tablet

Snapdragon_810_MDP-TIntrinsyc MDP/T specifications are somewhat similar to the 810 MDP/S, but with more RAM and storage, a larger screen (possibly even the first 4K UHD screen on a tablet), a larger battery, stereo speakers, and a dual 3D gesture camera, but less sensors:

  • SoC – Qualcom Snapdragon 810 (8994)  64-bit octa-core processor with 4x Cortex A57 cores, 4x Cortex A53 cores, Adreno 430 GPU, and Hexagon V56 DSP
  • System Memory – 4 GB LP-DDR4
  • Storage – 64 GB eMMC 5.0  micro SD slot (under battery door)
  • Display – 10.1” UHD 4K (3840×2160), 10-finger multi-touch capacitive touchscreen, dual display capable (tablet + HDMI)
  • Video Output – micro HDMI type D
  • Audio
    • Headset jack with ANC support
    • 8 microphones (2 analog/ 6 digital) with support for Qualcomm Fluence Pro technology and Snapdragon digital pen technology
    • Two ultrasound emitters for gesture applications
    • Front-facing stereo speakers
    • 8-channel audio over HDMI
  • Connectivity – 802.11 a/b/g/n/ac Wi-Fi 2.5 GHz/5 GHz,  Bluetooth 4.1, Qualcomm IZat Gen8C GPS
  • Cameras
    • 13 MP rear camera with OIS, Dual LED flash (4K at 30 fps, 1080p @ 60fps)
    • 4 MP front camera with AF (1080p at 120 fps)
    • Dual 3D IR gesture camera
  • Sensors – 3-axis accelerometer and 3-axis gyro, 3-axis magnetometer (compass), ambient light sensor, proximity sensor, temperature and pressure sensor, and ambient humidity sensor.
  • USB – micro USB 3.0 OTG port
  • Misc – Volume, power, reset, and home buttons.
  • Battery – 7,560 mAh Lithium-ion battery. Qualcomm Quick Charge 2.0 support when used with optional HVDCP charger, and Qualcomm WiPower charging capable.

The tablet will ship by mid December 2014, and can be purchased for $999. Check out the product page for more information.

DragonBoard Development Kit based on Snapdragon 810 (APQ8094)

ARM64_development_boardIntrinsyc DragonBoard 64-bit ARM development board technical specs:

  • SoC – Qualcomm Snapdragon 810 processor with 4x Cortex A57, 4x Cortex A53, Adreno 430 GPU and Hexagon v56 DSP
  • System Memory – 4GB LPDDR4 RAM
  • Storage – 16GB eMMC 5.0 flash + 2x SATA + 1 MicroSD card slot
  • Connectivity – Wi-Fi 802.11n/ac, Bluetooth 3.0/4.1, GNSS (GPS and GLONASS)
  • Video Output / Display I/F  – HDMI, 1x MIPI dual 4-lane DSI + touch panel
  • USB – 2x USB 3.0 + 2x USB 2.0 + 1x USB 2.0 micro-AB
  • Camera I/F – 3x MIPI CSI with support for 3D camera configuration
  • Expansions
    • PCI Express Slot with support for Gigabit Ethernet card
    • 4x Expansion headers for additional features, test, and debug

The kit is comprised of a baseboard, and an OpenQ-8094 SoM, which can be procured separately for commercial applications.

This “Early Adopter” board is currently only available to “select customers approved by Qualcomm” for $499, but as time passes by, individuals will hopefully be able to purchase as board, as is the case with other DragonBoards.

Via Liliputing and LinuxGizmos
