Intel Curie Board Designed for Wearables is Powered by Quark SE SoC

Orange Pi Development Boards

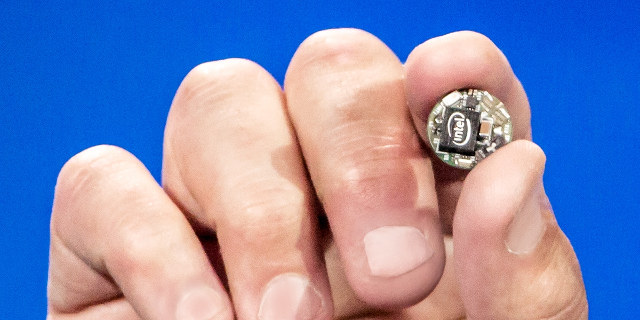

Intel announced the Edison board at CES 2014, a board targetting wearables and IoT applications about the size of an SD card. At CES 2015, the company has gone smaller, by unveiling the button-sized Intel Curie module powered by a new Intel Quark SE SoC with a motion sensor, Bluetooth Low Energy connectivity and battery charging capabilities.

Intel_CurieIntel Curie specifications:

  • Low-power, 32-bit Intel Quark SE SoC
  • 384kB Flash memory, 80kB SRAM
  • Low-power integrated DSP sensor hub with a proprietary pattern matching accelerator
  • Bluetooth Low Energy
  • 6-axis combo sensor with accelerometer and gyroscope
  • Battery charging circuitry (PMIC)

The module runs an unnamed open source RTOS, and the company will provide IQ software kits for references applications for wearables, such as counting steps, apps for mobile device, and so on. Intel Curie is  expected to be found in smart products such as rings, bags, bracelets, pendants, fitness trackers and buttons.

There’s basically no other information about Quark SE SoC per se, but Intel said it will ship in the second half of this year in the Intel Curie module. You an check the Fact Sheet for a few more details.

Via Connectedly

Support CNX Software - Donate via PayPal or become a Patron on Patreon

4
Leave a Reply

avatar
4 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
3 Comment authors
Arduino 101 Board Features Intel Curie Module, Bluetooth LE, and SensorsanonanonBrian Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Brian
Guest
Brian

LOL, the ‘fact sheet’ does not have many facts. I would be interested to know the power consumption in run and sleep modes.

anon
Guest
anon

> power consumption in run and sleep modes.

That’s what they will measure another half-year – what would you think?

anon
Guest
anon

@anon
Another ‘anon’, eh? 🙂

trackback

[…] With that backdrop, Arduino LLC has now introduced Arduino 101 (aka Genuino 101) board powered by Intel Curie module with Quark SE x86 SoC with Bluetooth LE and a 6-axis combo […]
