Axiomtek Introduces a Fanless 17″ Touch Panel Computer Powered by Intel Celeron J1900 Processor

Axiomtek, a Taiwan based manufacturer of industrial computers & embedded systems, has (not-so-recently) launched GOT3177T-834-FR fanless  panel computer with a 17″ multi-touch screen, and powered by an Intel Celeron J1900 “Bay Trail-D” quad core processor with up to 8GB RAM, and SATA or CFast interfaces. Target applications include transportation, train, control platform of ships, heavy industry, and oil pipe monitoring systems.

Axiomtek_Intel_Celeron_WIndows_Flat_PanelGOT3177T-834-FR panel compute specifications:

  • SoC – Intel Celeron Processor J1900 quad core processor (2M Cache, up to 2.42 GHz) with Intel HD graphics
  • System Memory – 1x 204-pin DDR3L SO-DIMM socket (Maximum memory up to 8GB)
  • Storage – 1x 2.5” SATA, 1x CFast slot or mSATA
  • Display – 17” SXGA(1280×1024) LCD with LED backlight; Flat resistive touch
  • Audio – 1x Line-out
  • Connectivity – 2x RJ45 for Giga Ethernet (Intel i210IT), optional WLAN/3G module & antenna
  • USB – 2x USB 3.0 port, 2x USB 2.0 host ports
  • Serial – 2x RS232/422/485 port (DB9)
  • Expansion – 1x PCIe Mini-card slot (w/SIM slot);  1x PCIe Mini-card slot (supports mSATA, optional)
  • Misc – Power button, backlight switch, brightness adjustment buttons
  •  Power Supply
  • Dimensions – 389.02 x 59.9 x 330.44 mm
  • Weight – 4.8 Kg
  • IP Rating – IP65 (front bezel)
  • Temperature Range – -10°C to 50°C (Operating)
  • Relative Humidity – 20% to 90% @ 40°C, Non-Condensing

The kits comes with a phoenix connector, a panel mount kit, four screws for the hard drive, and a Driver CD. The company can also provide VESA arm, desktop stand, or wall mount options.

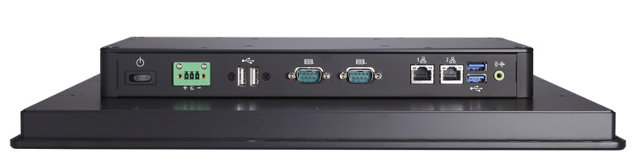

Flast_Panel_Computer_Serial_HDMI_Ethernet_USB_3.0 The computer comes with an America Megatrends UEFI BIOS. I have hoping and expecting the panel to support multiple operating systems, but it turned out to be a Windows only system with support for Windows 7 (64-bit) / 8, Windows Embedded Standard 7 (WES7), or Windows Embedded 8 Standard (WE8S).

Axiomtek GOT3177T-834 is available since September 2014, at an undisclosed price. For more details, check the product page.
