Xilinx Zynq-Z7015 FPGA + ARM based System-on-Modules Include High Speed Transceivers

There’s a fair amount of low cost boards powered by Xilinx Zynq Z-7010 and Z-7020 with dual core Cortex A9 processor and Artix-7 FPGA, but those who wanted to have PCIe ports or high speed transceivers had to go with the higher-end Xilinx Z-7030/7040/7050 with Kintex-7 FPGA fabric for a much higher cost. But Xilinx introduced Zynq Z-7015 late last year, a low cost Artix-7 FPGA + Cortex A9 SoC that also adds four 6.25Gbps SerDes ports and one PCIe Gen2 x4 integrated block. At least two modules based on the new SoC are currently available with DAVE Embedded Systems’ BORA Xpress  and Trenz Electronic TE0715 Series.

DAVE Zynq XC7Z015/XC7Z030 BORA Xpress

BORA_XpressBORA Xpress specifications:

  • SoC
    • Xilinx ZYNQ XC7Z015 dual ARM Cortex-A9 @ up to 866MHz with Artix-7 FPGA with 74K logic cells, 46K LUTs, 92K Flip flops, 380 KB RAM. 32 KB I-cache, 32 KB D-cache, 512 KB L2 for each core
    • Xilinx ZYNQ ZC7Z030 dual ARM Cortex-A9 @ up to 1GHz with Kintex-7 FPGA with 125K logic cells, 78K LUTs, 157K Flip flops, 1,060KB RAM. 32 KB I-cache, 32 KB D-cache, 512 KB L2 for each core.
  • System Memory – Up to 1GB DDR3 @ 533 MHz
  • Storage – 8 or 16 MB SPI bootable NOR flash, NAND flash on request (256 to 1024MB), up to 2 x SD/MMC card
  • Connectivity – 10/100/1000 Mbps Ethernet, additional RMII interface
  • CPU I/Os
    • up to 2x UART ports
    • up to 2x 2.0 OTG ports
    • up to 2x CAN
    • Up to 6x I²C, Up to 6x SPI
    • GPIOs available
  • High speed I/Os – Up to 4 PCI Express gen2; SERDES: 6.25Gbps transceivers
  • Debugging
    • JTAG IEEE 1149.1 Test Access Port
    • CoreSight and Program Trace Macrocell (PTM)
  • Supervisor – On-board power supply supervision and power sequencer, Watchdog and RTC
  • Expansion Connectors – 3 x 140 pin 0.6mm pitch
  • Power Supply – 3V, on-board voltage regulation; FPGA banks: 1.2 to 3.3V
  • Dimensions –  85 mm x 50 mm
  • Temperature Range –  Commercial: 0°C / +70°C; Industrial: -40°C / +85°C

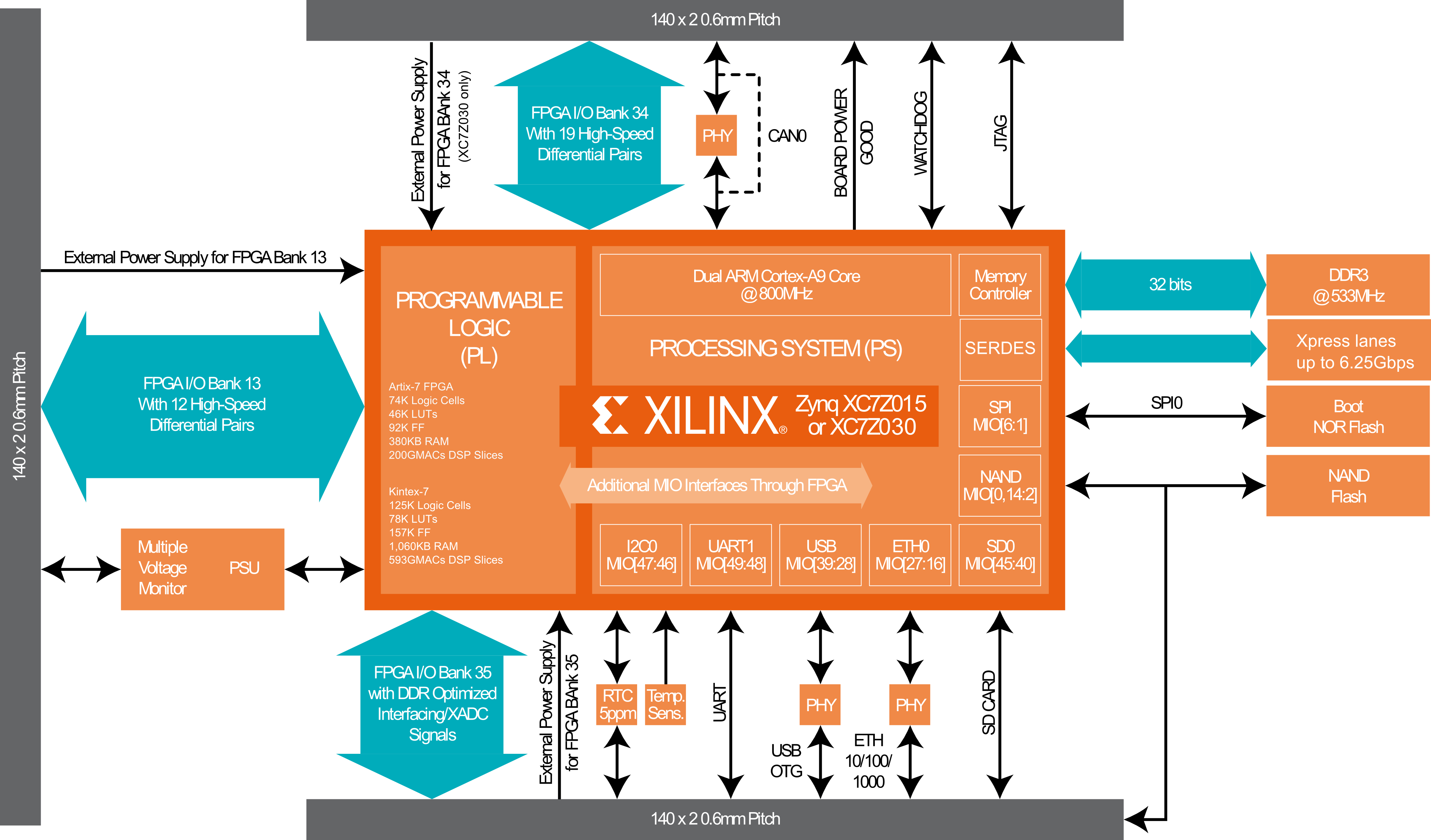

Z-7015/Z-7030 BORA Xpress Block Diagram (Click to Enlarge)
Z-7015/Z-7030 BORA Xpress Block Diagram (Click to Enlarge)

The company provide a U-Boot and Linux 3.x.x BSP for the board. A development kit (BORA Xpress devkit) is said to be available with one SoM, one carrier board and all accessories required for immediate startup, but no details are currently provided for the kit on DAVE’s BORA Xpress page. More documentation should eventually be uploaded the site, and I could not find any pricing nor availability information.

Trenz Electronic TE0715 Series SoM

Trentz

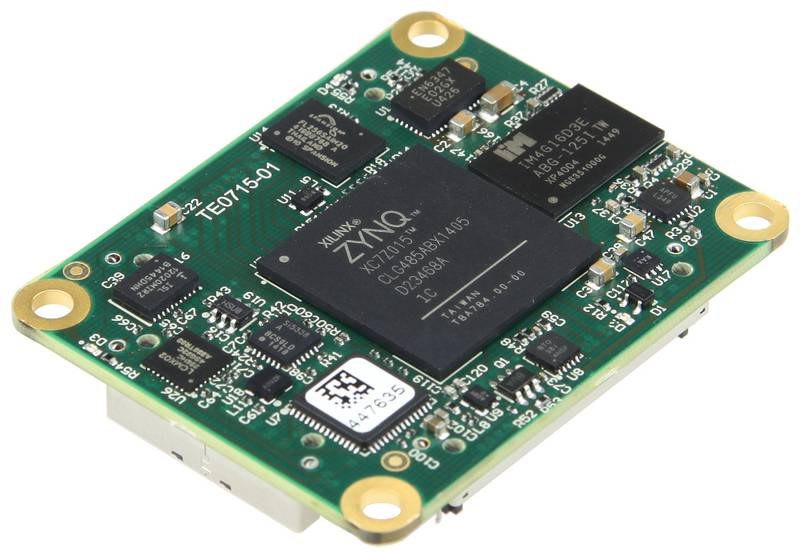

Trentz TE0715-01-15 SoM ((Click to Enlarge)

TE0715 Series modules are more compact than DAVE’s, and feature the following hardware specifications:

  • SoC
    • Xilinx Zynq 7015 XC7Z015-1CLG485C dual ARM Cortex-A9 @ up to 866 MHz with Artix-7 FPGA with 74K logic cells, 46K LUTs, 92K Flip flops, 380 KB RAM. 32 KB I-cache, 32 KB D-cache, 512 KB L2 for each core
    • Xilinx Zynq 7030 XC7Z030-1SBG485C dual ARM Cortex-A9 @ up to 1GHz with Kintex-7 FPGA with 125K logic cells, 78K LUTs, 157K Flip flops, 1,060KB RAM. 32 KB I-cache, 32 KB D-cache, 512 KB L2 for each core.
  • System Memory – 1GB DDR3 32-bit SDRAM
  • Storage – 32 MB QSPI flash with XiP support,
  • Connectivity – 10/100/1000M gigabit Ethernet transceiver (PHY) with SGMII
  • USB – USB 2.0 high-speed ULPI transceiver
  • 132 FPGA I/Os (65 LVDS pairs possible) and 14 PS-MIO available on board-to-board connectors
  • 4 GTP/GTX (high-performance transceiver) lanes, GTP/GTX (high-performance transceiver) clock input
  •  Expansion Connectors – 2× 100-pin and 1× 60-pin high-speed hermaphroditic strips
  • Power Supply – High efficiency DC-DC converters: 4.0 A x 1.0 V power rail; 1.5 A x 1.5 V power rail; 1.5 A x 1.8 V power rail.
  • Dimensions –  N/A
  • Temperature Range –  Commercial: 0°C / +70°C

The company claims the “latest documentation, design support files, reference design with source files and tools” are available on the Wiki, but for now at least, this looks very much like a work in progress. I can only see they recommend Vivaldo Webpack for development.

Trentz TE0715 Series modules appear to be available now for 319 Euros for the Z-7015 SoC version and 369 Euros for the Z-7030 SoC version. You may be able to find a few more details on Trentz Electronic’s TE0715 Series product page.
