Cubieboard4 (CC-A80) Unboxing and Getting Started Guide

A few samples of Cubieboard4 board may have been available in China in October 2014, but Cubietech only officially launched their Allwinner A80 development board about ten days ago, and you can buy it for $125 + shipping on sites like R0ck.me, Eleduino, Seeed Studio, and many other distributors. The company decided to send a sample for evaluation, and today I’ll start with a post showing some pictures of the kit, and explaining how to get started with assembly and first boot.

Cubieboard 4 Pictures

I received the board within two days after the company told me they would send a sample, as they used DHL. I also had to pay a bit of import tax and DHL’s handling fee. There should be CC-A80 box with the board and accessories, a white box for the power supply, and a power cord.

Cubieboard4_PackageThere’s quite a few items to play with…

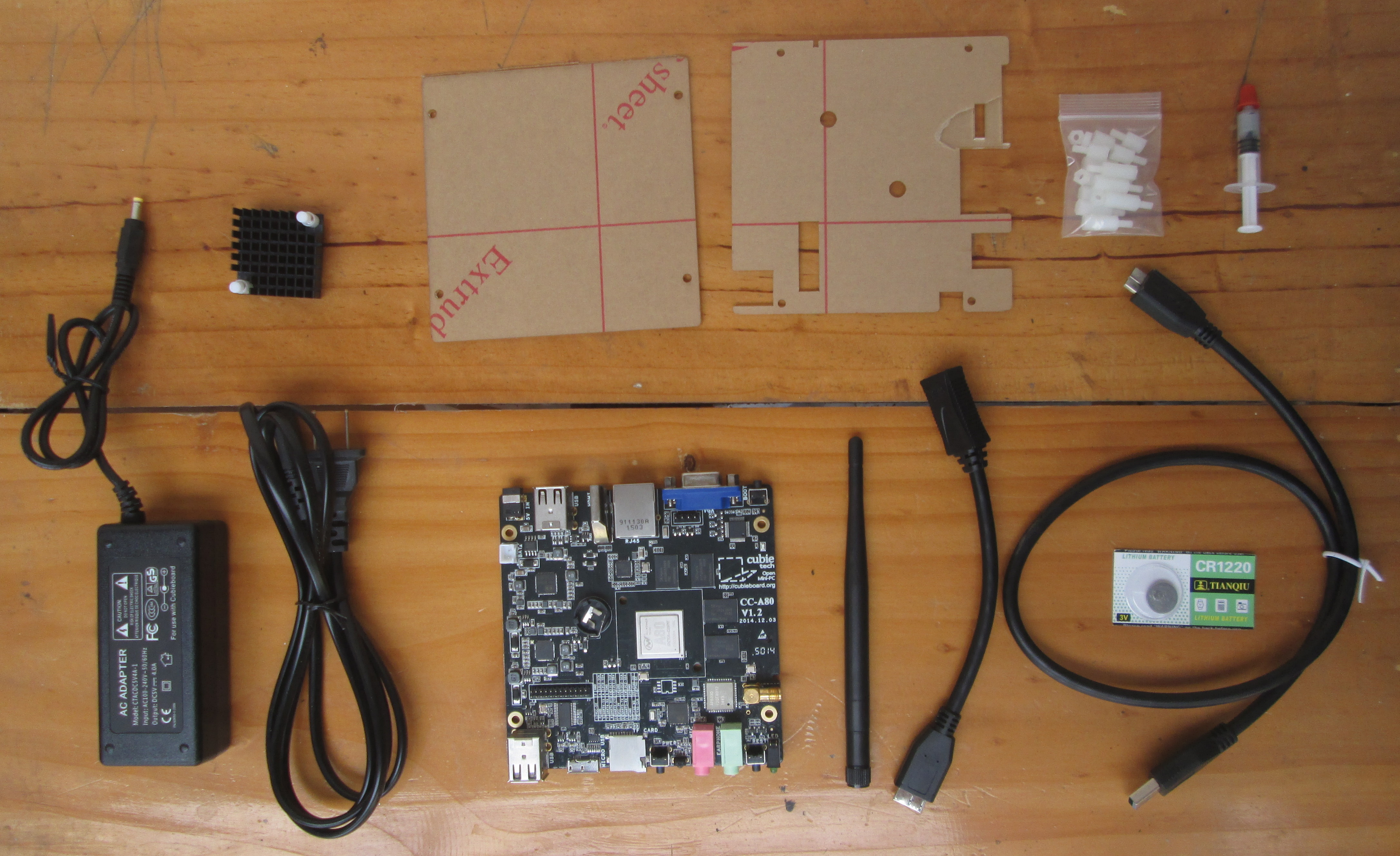

Cubieboard 4 and Accessories (Click to Enlarge)

Cubieboard 4 and Accessories (Click to Enlarge)

The power brick is 5V/4A which should be plenty enough. USB 3.0 OTG and device cables are provided, as well as an external Wi-Fi antenna, a CR1230 battery for the RTC, an heatisnk with syringe with thermal paste, and two acrylic covers with spacers and screws to make a simple enclosure.

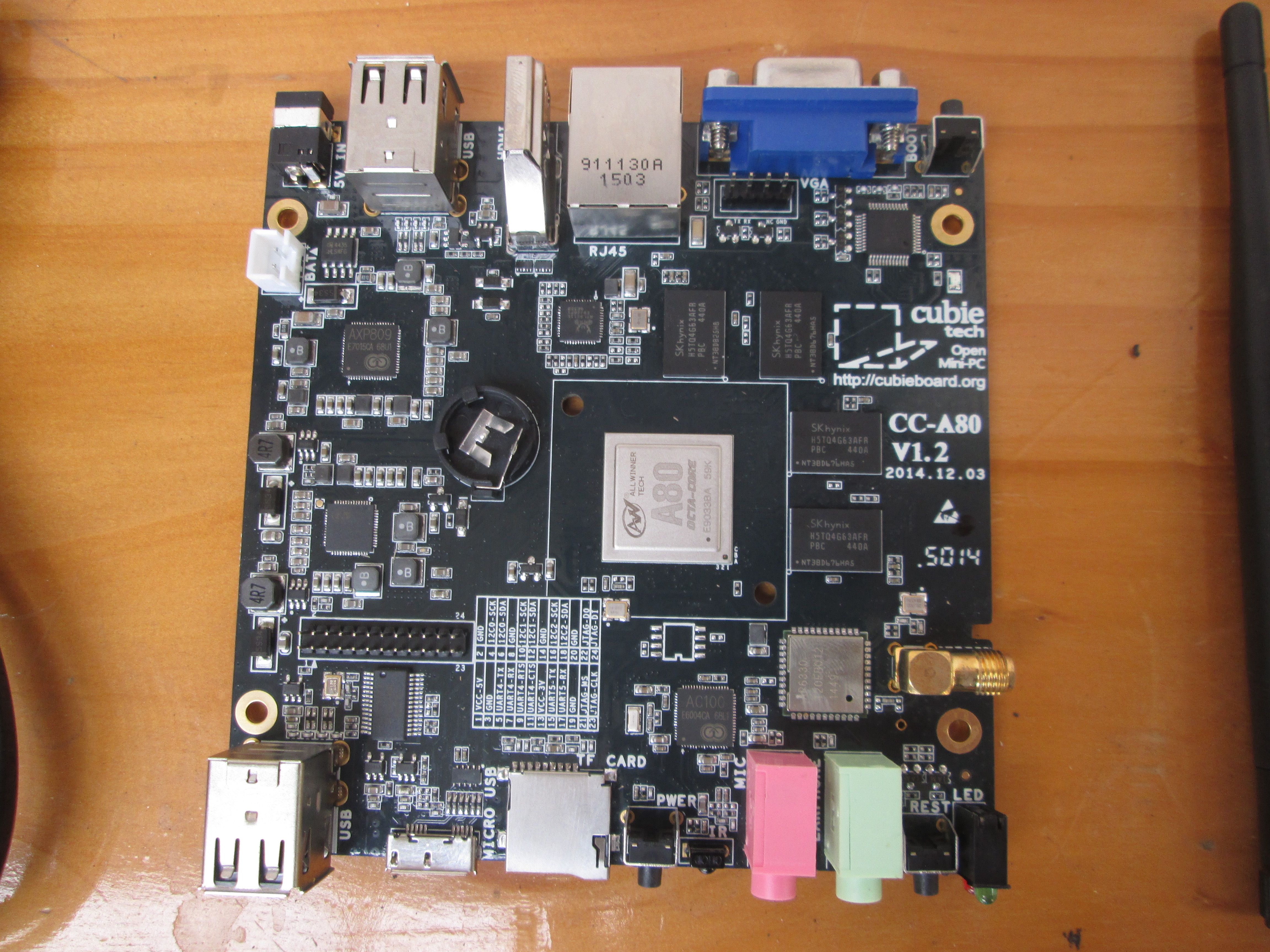

Top of CC-A80 Board (Click to Enlarge)

Top of CC-A80 Board (Click to Enlarge)

The board comes with 4 USB 2.0 host ports, a USB 3.0 OTG port, HDMI and VGA connectors, microphone and headphone audio jacks, a Gigabit Ethernet port, an micro SD card slot, a battery slot for RTC, reset/power/boot buttons, an IR sensor, and power and network activity LEDs. There are also three headers: a 2-pin battery header, a 4-pin UART header for serial console (close to VGA D-SUB connector), and a 24-pin header (J20) with access to 3x I2C, 2x UART, JTAG, and power signals, so expansion capabilities are somewhat limited. Please note that the board is now CC-A80 V1.2, and if you have an older revision, J20 expansion header may only have 20-pins without the 4 extra JTAG signals. The board features 2GB RAM thanks to four SKhynix H5TQ4G63AFR DDR3 chips, as well as AP6330 dual band Wi-Fi + Bluetooth module.

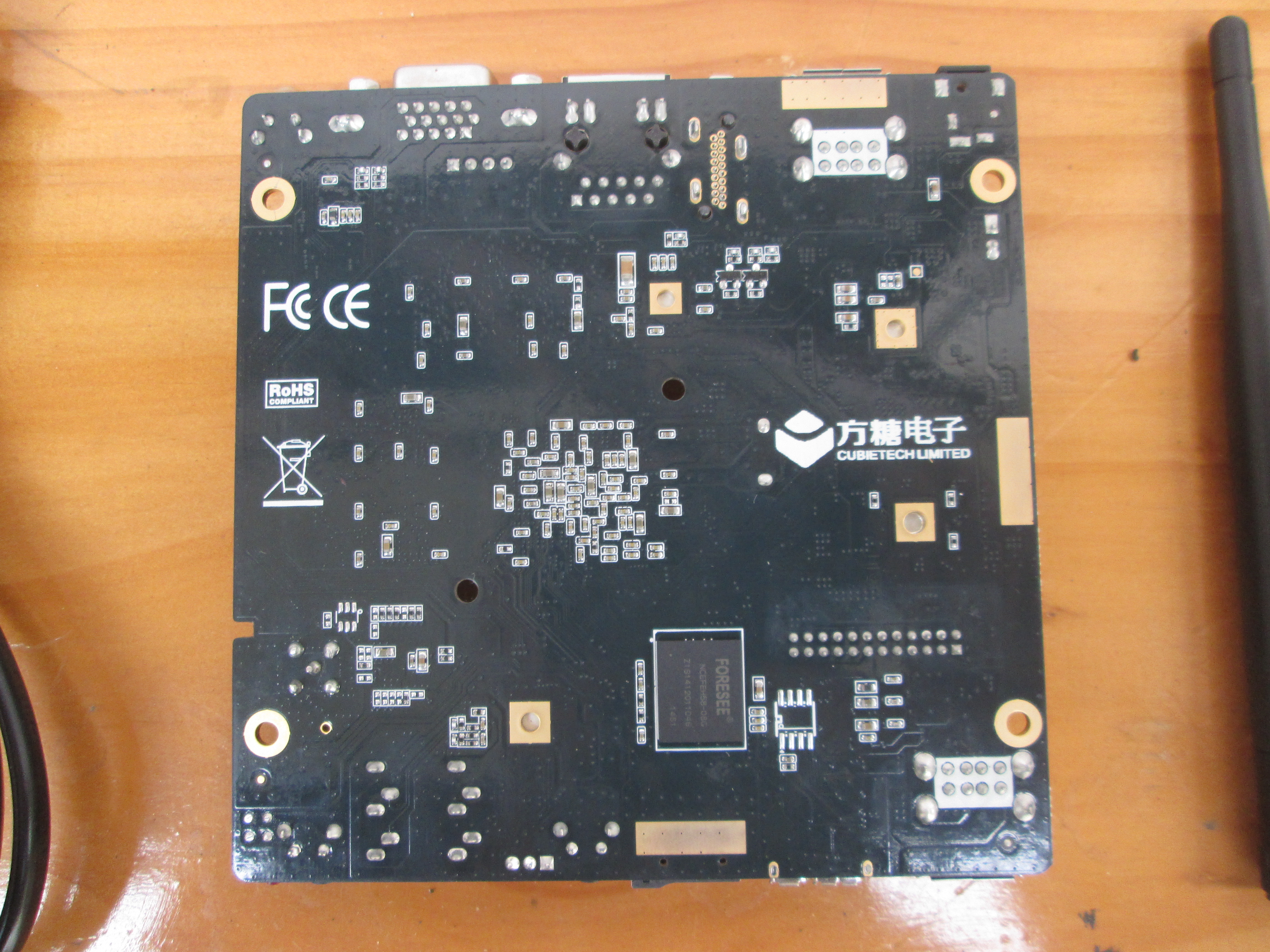

Bottom of CC-A80 Board (Click to Enlarge)

Bottom of CC-A80 Board (Click to Enlarge)

On the back of the board, there’s mostly a FORESEE NCEFEH58-08G eMMC with 8GB capacity that’s said to have 25MB/s read and write speed. Certainly not the fastest on the market, but it should do for most use case.

You may also want to watch the unboxing video below, that is not sponsored by Red Bull…

Cubieboard 4 Kit Assembly

So we’ve got all these small bits and pieces that we need to put together. It’s fun to do and should take less than 5 minutes. The main steps are:

  • Inserting the CR1230 battery into the battery slot
  • Adding thermal paste and the heatsink on top of Allwinner A80 processor
  • Mounting the board in the acrylic enclosure with spacer. I had to use a damp sponge to remove peel the protection on the acrylic covers.
  • Screw the Wi-Fi antenna

I’ve shot a short video to show how to perform this step.

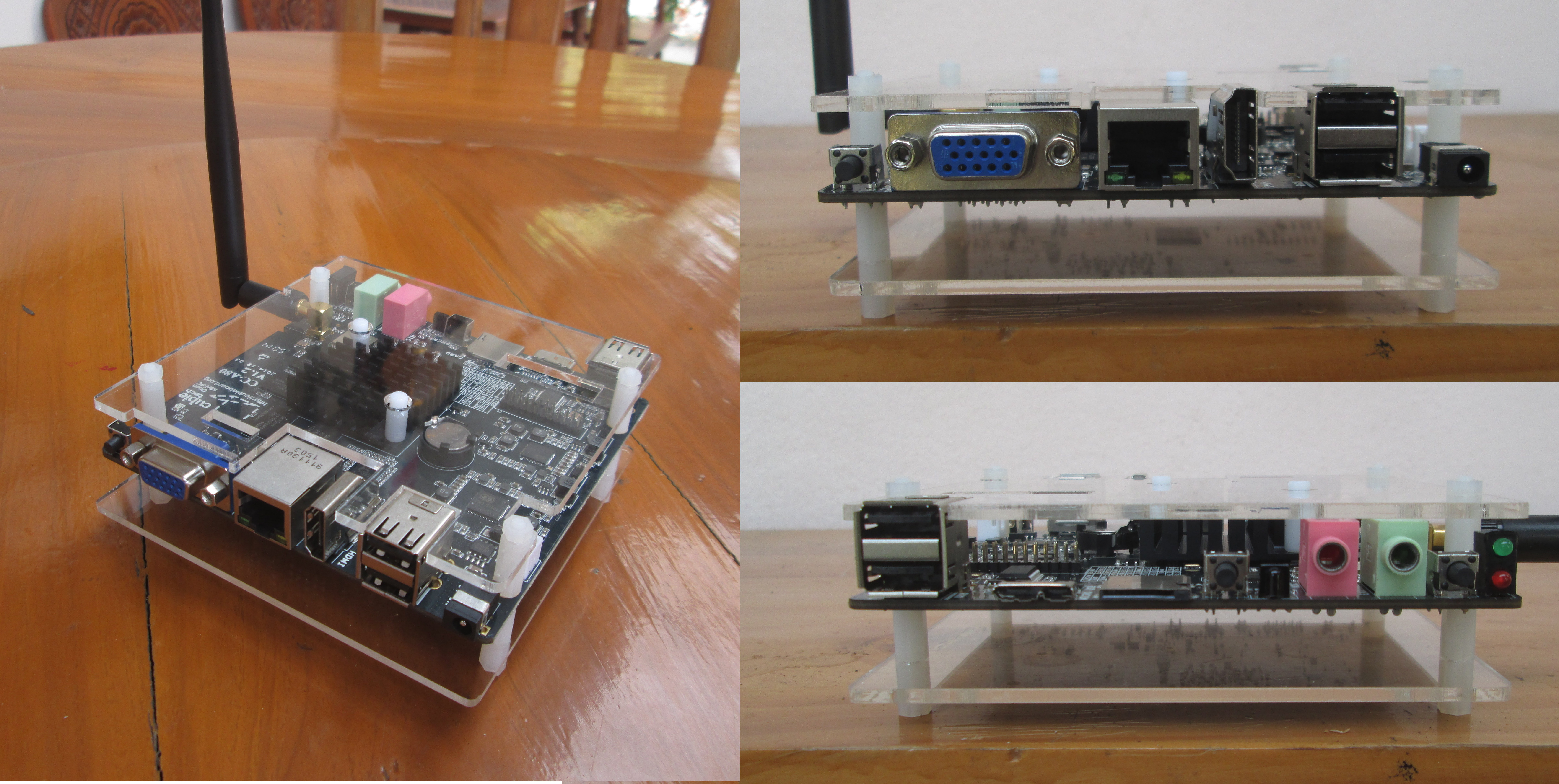

This is what the board should look like once you’re done.

Cubieboard4 after Assembly

Cubieboard4 after Assembly (Click to Enlarge)

Booting Cubieboard4 Board

Since the board has an eMMC, you don’t need to prepare a micro SD to install or boot an operating system. By default, CC-A80 is p=-reloaded with Android 4.4 since Cubietech uses an apk for factory testing, so it’s more convenient for them, but you could also install Debian Server or Ubuntu Linaro Desktop/Server on the board. The company publishes a test report with their image, and their Ubuntu Desktop image support 3D graphics acceleration, as well as hardware video decoding with VideoLAN (VLC).

But today, I’ll just boot the pre-installed image. I’ve connected the 5V/4A power supply, an Ethernet cable, an HDMI cable to my TV, a RF dongle for Mele F10 Deluxe air mouse, as well as a UART debug board to access the serial console via minicom on a netbook running Lubuntu. The boot took about 30 seconds, which was to be expected because of the mid-range eMMC used with the board.

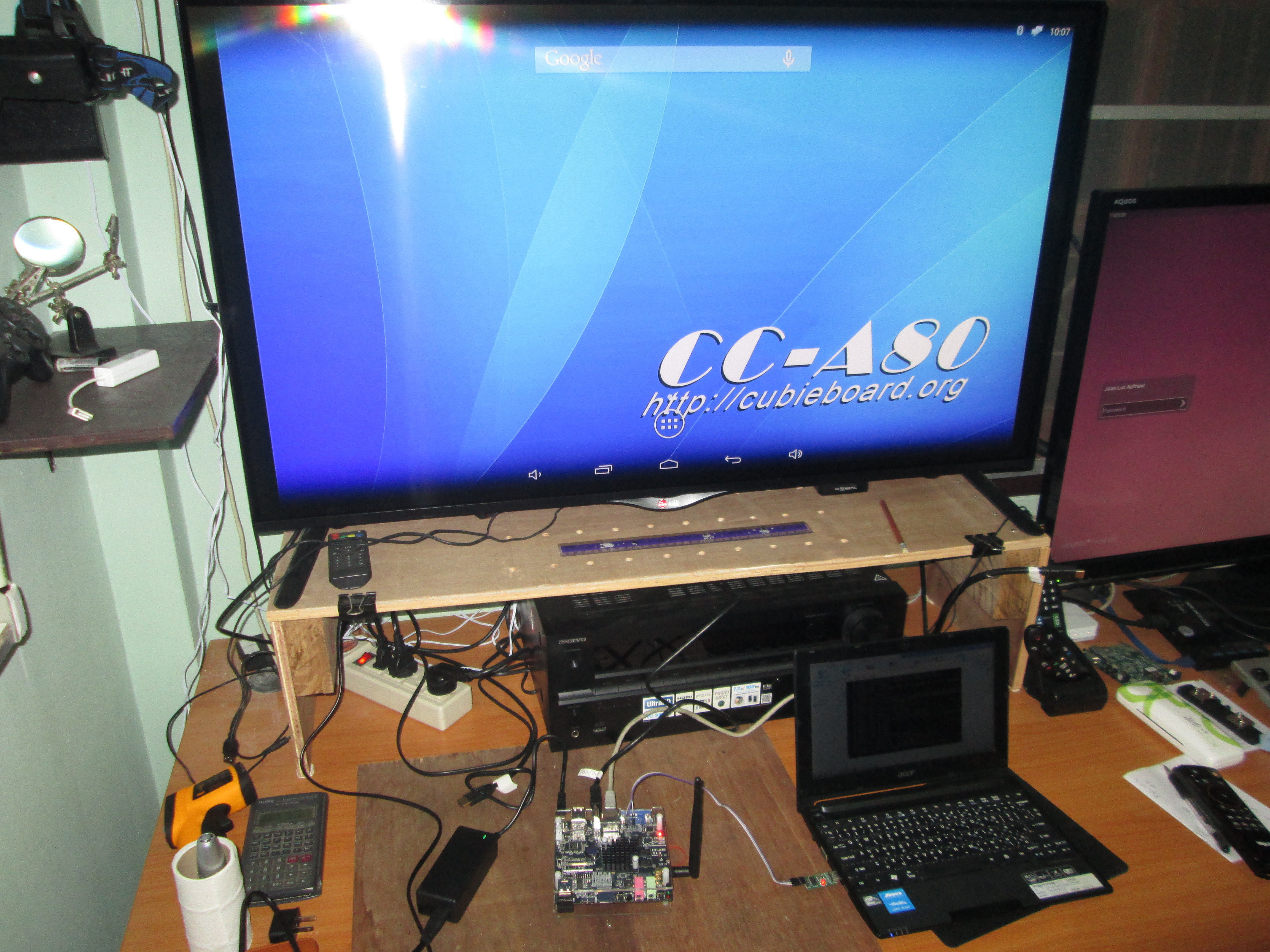

Cubieboard 4 connected to UHD TV and Ubuntu Laptop for Serial Console Access (Click to Enlarge)

Android 4.4 running in Cubieboard 4 connected to UHD TV and Ubuntu Laptop for Serial Console Access (Click to Enlarge)

For those who are interested in the boot details, I’ve included the boot log below:

boot0 version : 3.1.0
rtc 1 value 0x00010000
rtc 2 value 0x00020000
rtc 3 value 0x00030000
INFO: dram code V2.2
dram clk=672
dram_zq = 0x0x003f3fdd!!
DDR3 used!!
dram channle 2
0x0x00100001
0x0x00100001
pmu id=0x00000062
VTC Disabled!!
Channel 0 OK!
VTC Disabled!!
Channel 1 OK!
dram size=2048MBytes!
dram size =2048
card boot number = 2
card no is 2
sdcard 2 line count 0
[mmc]: mmc driver ver 2014-06-05 14:18
[mmc]: ***Try SD card 2***
[mmc]: mmc 2 cmd 8 timeout, err 0x00000100
[mmc]: mmc 2 cmd 8 err 0x00000100
[mmc]: mmc 2 send if cond failed
[mmc]: mmc 2 cmd 55 timeout, err 0x00000100
[mmc]: mmc 2 cmd 55 err 0x00000100
[mmc]: mmc 2 send app cmd failed
[mmc]: ***Try MMC card 2***
[mmc]: MMC ver 4.5
[mmc]: SD/MMC Card: 4bit, capacity: 7475MB
[mmc]: vendor: Man 0x00880103 Snr 0x201e0181
[mmc]: product: NCard
[mmc]: revision: 2.0
[mmc]: ***SD/MMC 2 init OK!!!***
sdcard 2 init ok
The size of uboot is 0x000c4000.
sum=0x230343d5
src_sum=0x230343d5
Succeed in loading uboot from sdmmc flash.
Ready to disable icache.
Jump to secend Boot.
[ 0.690]U-Boot 2011.09-rc1-dirty (Jul 15 2014 – 17:20:29) Allwinner Technology[ 0.698]version: 1.1.0
[ 0.705]a7 boot
[ 0.707]pmbus: ready
[ 0.710]PMU: AXP809
[ 0.712]PMU: AXP809 found
[ 0.715]PMU: AXP806
[ 0.717]PMU: AXP806 found
[ 0.720]PMU: bat ratio = 100
try to set dcdc3 to 900 mV
[ 0.725]PMU: dcdc3 900
[ 0.728]PMU: pll1 1008 Mhz
set power on vol to default
dcdc1_vol = 3000, onoff=1
dcdc2_vol = 900, onoff=0
dcdc3_vol = 900, onoff=1
dcdc4_vol = 900, onoff=1
dcdc5_vol = 1500, onoff=1
dc5ldo_vol = 900, onoff=1
dldo2_vol = 3000, onoff=1
eldo3_vol = 1800, onoff=1
aldo1_vol = 3000, onoff=1
aldo3_vol = 3000, onoff=1
find power_sply to end
slave power
dcdca_vol = 900, onoff=1
dcdcb_vol = 0, onoff=0
dcdcc_vol = 0, onoff=0
dcdcd_vol = 900, onoff=1
dcdce_vol = 2100, onoff=1
aldo1_vol = 3000, onoff=1
bldo1_vol = 1800, onoff=1
bldo2_vol = 1800, onoff=1
cldo1_vol = 0, onoff=0
find slave power sply to end
supply=gpio1
axp=axp809, supply=gpio1, vol=2500
reg addr=0x6000b00, value=0x6, pmu_vol=2500
supply=aldo2
axp=axp809, supply=aldo2, vol=1800
reg addr=0x6000b04, value=0x0, pmu_vol=1800
supply=dcdc1
axp=axp809, supply=dcdc1, vol=3000
reg addr=0x6000b08, value=0xa, pmu_vol=3000
supply=bldo1
axp=axp806, supply=bldo1, vol=1800
reg addr=0x6000b0c, value=0x0, pmu_vol=1800
supply=eldo2
axp=axp809, supply=eldo2, vol=1800
reg addr=0x6000b10, value=0x0, pmu_vol=1800
supply=dcdc1
axp=axp809, supply=dcdc1, vol=3000
reg addr=0x6000b14, value=0xa, pmu_vol=3000
supply=gpio0
axp=axp809, supply=gpio0, vol=3000
reg addr=0x6000b18, value=0xa, pmu_vol=3000
supply=dcdc1
axp=axp809, supply=dcdc1, vol=3000
reg addr=0x6000b1c, value=0xa, pmu_vol=3000
supply=dldo2
axp=axp809, supply=dldo2, vol=3000
reg addr=0x8002f00, value=0xa, pmu_vol=3000
supply=eldo3
axp=axp809, supply=eldo3, vol=3000
reg addr=0x8002f04, value=0xa, pmu_vol=3000
config gpio bias voltage finish
no battery, limit to dc
fel key old mode
run key detect
no key found
no key input
dram_para_set start
dram_para_set end
[ 0.892]DRAM: 2 GiB
relocation Offset is: 75b08000
deu_mode1 not exist.
get clock handle by id 36 fail!
get clock handle by id 36 fail!
lcd1.lcd_pwm_freq is ZERO
lcd 2 is not register
screen 0 do not support HDMI TYPE!
screen 2 do not support HDMI TYPE!
smcl’s set manager is NULL
smbl’s set manager is NULL
plugin
screen_id 0 do not support HDMI TYPE!
get hdmi0 failed!
[ 1.195]boot_disp.output_disp=1
[ 1.199]boot_disp.output_type=3
[ 1.202]boot_disp.output_mode=10
[ 1.205]boot_disp.auto_hpd=1
hdmi open
Hdmi_open
Hdmi_hal_video_enable_sync
video_config
workmode = 0
MMC: 2
[ 1.251][mmc]: mmc driver ver 2014-06-17 14:57:30
[ 1.256][mmc]: mmc->host_caps 911
[ 1.260][mmc]: get sdc_odly_25M fail,use default dly 0
[ 1.265][mmc]: get sdc_sdly_25M fail,use default dly 5
[ 1.270][mmc]: get sdc_odly_50M fail,use default dly 5
[ 1.276][mmc]: get sdc_sdly_50M fail,use default dly 4
[ 1.281][mmc]: get sdc_f_max fail,use default sdc_f_max 48000000
[ 1.287][mmc]: PC Bias: 0x06000b08 0x0000000a
[ 1.292][mmc]: SUNXI SD/MMC: 2
[ 1.296][mmc]: mmc 2 old config clk 0
[ 1.309][mmc]: ************Try SD card 2************
[ 1.314][mmc]: mmc 2 cmd 8 timeout, err 100
[ 1.321][mmc]: mmc 2 mmc cmd 8 err 0x00000100
[ 1.325][mmc]: mmc send if cond failed
[ 1.329][mmc]: mmc 2 cmd 55 timeout, err 100
[ 1.335][mmc]: mmc 2 mmc cmd 55 err 0x00000100
[ 1.339][mmc]: send app cmd failed
[ 1.342][mmc]: ************Try MMC card 2************
[ 1.369][mmc]: mmc 2 old config clk 0
[ 1.380][mmc]: mmc 2 old config clk 0
[ 1.390][mmc]: mmc 2 old config clk 0
[ 1.399][mmc]: MID 000088 PSN 1e018122
[ 1.402][mmc]: PNM NCard — 0x4e-43-61-72-64-20
[ 1.407][mmc]: PRV 2.0
[ 1.410][mmc]: MDT m-1 y-2015
[ 1.413][mmc]: MMC ver 4.5
[ 1.416][mmc]: —————mmc->clock 48000000———–
[ 1.421][mmc]: —————mmc->bus_width 4————–
[ 1.427][mmc]: SD/MMC Card: 4bit, capacity: 7475MB
[ 1.432][mmc]: boot0 capacity: 4000KB,boot1 capacity: 4000KB
[ 1.438][mmc]: ************SD/MMC 2 init OK!!!************
[ 1.444]sunxi flash init ok
In: serial
Out: serial
Err: serial
——–fastboot partitions——–
-total partitions:10-
-name- -start- -size-
bootloader : 1000000 1000000
env : 2000000 1000000
boot : 3000000 1000000
system : 4000000 30000000
misc : 34000000 1000000
recovery : 35000000 2000000
cache : 37000000 28000000
metadata : 5f000000 1000000
private : 60000000 1000000
UDISK : 61000000 0
———————————–
base bootcmd=run setargs_nand boot_normal
bootcmd set setargs_mmc
key 0
cant find rcvy value
cant find fstbt value
misc partition found
misc_message->command = 0
to be run cmd=run setargs_mmc boot_normal
WORK_MODE_BOOT
board_status_probe
sunxi_bmp_logo_display
screen_id =1, screen_width =1920, screen_height =1080
[ 1.648]Hit any key to stop autoboot: 0
read boot or recovery all
[ 3.400]sunxi flash read :offset 3000000, 13855176 bytes OK
no signature
[ 3.411]ready to boot
[ 3.414][mmc]: mmc exit start
[ 3.418][mmc]: mmc 2 old config clk 0
[ 3.428][mmc]: mmc 2 old config clk 0
[ 3.440][mmc]: mmc 2 cmd 8 timeout, err 100
[ 3.447][mmc]: mmc 2 mmc cmd 8 err 0x00000100
[ 3.451][mmc]: mmc send if cond failed
[ 3.455][mmc]: mmc 2 cmd 55 timeout, err 100
[ 3.461][mmc]: mmc 2 mmc cmd 55 err 0x00000100
[ 3.465][mmc]: send app cmd failed
[ 3.476][mmc]: mmc 2 exit ok
[ 3.479]
Starting kernel …[sun9i_fixup]: From boot, get meminfo:
Start: 0x20000000
Size: 2048MB
[mcpm_smp_init_cpus] ncores=8
[ 0.000000] Booting Linux on physical CPU 0
[ 0.000000] Initializing cgroup subsys cpu
[ 0.000000] Linux version 3.4.39 ([email protected]) (gcc version 4.6.3 201202014
[ 0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c5387d
[ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instructie
[ 0.000000] Machine: sun9i
[ 0.000000] Memory policy: ECC disabled, Data cache writealloc
[ 0.000000] On node 0 totalpages: 524288
[ 0.000000] free_area_init_node: node 0, pgdat c09c1a00, node_mem_map c127800
[ 0.000000] Normal zone: 1404 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 158340 pages, LIFO batch:31
[ 0.000000] HighMem zone: 3204 pages used for memmap
[ 0.000000] HighMem zone: 361340 pages, LIFO batch:31
[ 0.000000] PERCPU: Embedded 8 pages/cpu @c2487000 s11072 r8192 d13504 u32768
[ 0.000000] pcpu-alloc: s11072 r8192 d13504 u32768 alloc=8*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [0] 4 [0] 5 [0] 6 [0] 7
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pa0
[ 0.000000] Kernel command line: console=ttyS0,115200 root=/dev/block/mmcblk8
[ 0.000000] PID hash table entries: 4096 (order: 2, 16384 bytes)
[ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes)
[ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes)
[ 0.000000] Memory: 2048MB = 2048MB total
[ 0.000000] Memory: 1670160k/1670160k available, 426992k reserved, 1064956K m
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] vector : 0xffff0000 – 0xffff1000 ( 4 kB)
[ 0.000000] fixmap : 0xfff00000 – 0xfffe0000 ( 896 kB)
[ 0.000000] vmalloc : 0xe7800000 – 0xff000000 ( 376 MB)
[ 0.000000] lowmem : 0xc0000000 – 0xe7000000 ( 624 MB)
[ 0.000000] pkmap : 0xbfe00000 – 0xc0000000 ( 2 MB)
[ 0.000000] modules : 0xbf000000 – 0xbfe00000 ( 14 MB)
[ 0.000000] .text : 0xc0008000 – 0xc08f71dc (9149 kB)
[ 0.000000] .init : 0xc08f8000 – 0xc0948b40 ( 323 kB)
[ 0.000000] .data : 0xc094a000 – 0xc09c4358 ( 489 kB)
[ 0.000000] .bss : 0xc09c709c – 0xc0b461d8 (1533 kB)
[ 0.000000] Preemptible hierarchical RCU implementation.
[ 0.000000] NR_IRQS:544
[ 0.000000] try to syncboot of clk hdmi_slow
[ 0.000000] try to syncboot of clk sdmmc2
[ 0.000000] try to syncboot of clk trace
[ 0.000000] try to syncboot of clk ats
[ 0.000000] try to syncboot of clk uart0
[ 0.000000] try to syncboot of clk gt
[ 0.000000] try to syncboot of clk de
[ 0.000000] try to syncboot of clk hdmi
[ 0.000000] try to syncboot of clk lcd1
[ 0.000000] try to syncboot of clk sdr0
[ 0.000000] try to syncboot of clk cci400
[ 0.000000] try to syncboot of clk pio
[ 0.000000] try to syncboot of clk lradc
[ 0.000000] try to syncboot of clk twd
[ 0.000000] try to syncboot of clk ahb2
[ 0.000000] try to syncboot of clk dma
[ 0.000000] try to syncboot of clk sdram
[ 0.000000] try to syncboot of clk axi1
[ 0.000000] try to syncboot of clk axi0
[ 0.000000] Architected local timer running at 24.00MHz.
[ 0.000000] Switching to timer-based delay loop
[ 0.000000] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 1789s
[ 0.000000] Console: colour dummy device 80×30
[ 0.000239] Calibrating delay loop (skipped), value calculated using timer f)
[ 0.000265] pid_max: default: 32768 minimum: 301
[ 0.000429] Security Framework initialized
[ 0.000452] SELinux: Initializing.
[ 0.000499] SELinux: Starting in permissive mode
[ 0.000582] Mount-cache hash table entries: 512
[ 0.001738] Initializing cgroup subsys debug
[ 0.001756] Initializing cgroup subsys cpuacct
[ 0.001768] Initializing cgroup subsys freezer
[ 0.001810] CPU: Testing write buffer coherency: ok
[ 0.001864] ftrace: allocating 23829 entries in 70 pages
[ 0.047379] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[ 0.047436] Setting up static identity map for 0x2062c5a0 – 0x2062c5f8
[ 0.150592] CPU1: Booted secondary processor
[ 0.150666] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[ 0.190655] CPU2: Booted secondary processor
[ 0.190722] CPU2: thread -1, cpu 2, socket 0, mpidr 80000002
[ 0.230774] CPU3: Booted secondary processor
[ 0.230840] CPU3: thread -1, cpu 3, socket 0, mpidr 80000003
[ 0.267632] CPU4: failed to boot: -22
[ 0.307664] CPU5: failed to boot: -22
[ 0.347723] CPU6: failed to boot: -22
[ 0.387787] CPU7: failed to boot: -22
[ 0.387957] Brought up 4 CPUs
[ 0.387970] SMP: Total of 4 processors activated (19200.00 BogoMIPS).
[ 0.388872] devtmpfs: initialized
[ 0.395520] script_init enter!
[ 0.396299] script_init exit!
[ 0.396345] sched: registering cpufreq notifiers for scale-invariant loads
[ 0.397398] pinctrl core: initialized pinctrl subsystem
[ 0.398286] dummy:
[ 0.398774] NET: Registered protocol family 16
[ 0.399323] script_sysfs_init success
[ 0.399509] sunxi_dump_init success
[ 0.399934] sunxi pinctrl probe enter
[ 0.401469] gpiochip_add: registered GPIOs 0 to 447 on device: sunxi-pinctrl
[ 0.403625] sunxi-pinctrl sunxi-pinctrl: initialized sunXi PIO driver
[ 0.404232] axp_pinctrl_probe enter…
[ 0.404414] gpiochip_add: registered GPIOs 1024 to 1031 on device: axp-pinctl
[ 0.404438] mainkey total count : 96
[ 0.404448] mainkey name : product, pin count : 0
[ 0.404458] mainkey name : platform, pin count : 0
[ 0.404468] mainkey name : target, pin count : 0
[ 0.404477] mainkey name : charging_type, pin count : 0
[ 0.404487] mainkey name : key_detect_en, pin count : 0
[ 0.404497] mainkey name : power_sply, pin count : 0
[ 0.404507] mainkey name : slave_power_sply, pin count : 0
[ 0.404517] mainkey name : gpio_bias, pin count : 0
[ 0.404527] mainkey name : card_boot, pin count : 0
[ 0.404537] mainkey name : pm_para, pin count : 0
[ 0.404547] mainkey name : card0_boot_para, pin count : 6
[ 0.404560] mainkey name : card2_boot_para, pin count : 6
[ 0.404573] mainkey name : boot_disp, pin count : 0
[ 0.404584] mainkey name : twi_para, pin count : 2
[ 0.404596] mainkey name : uart_para, pin count : 2
[ 0.404607] mainkey name : jtag_para, pin count : 4
[ 0.404619] mainkey name : clock, pin count : 0
[ 0.404630] mainkey name : dram_para, pin count : 0
[ 0.404640] mainkey name : gmac0, pin count : 16
[ 0.404654] mainkey name : wakeup_src_para, pin count : 3
[ 0.404665] mainkey name : twi0, pin count : 2
[ 0.404675] mainkey name : twi1, pin count : 2
[ 0.404685] mainkey name : twi2, pin count : 2
[ 0.404696] mainkey name : twi3, pin count : 2
[ 0.404706] mainkey name : twi4, pin count : 2
[ 0.404716] mainkey name : uart0, pin count : 2
[ 0.404726] mainkey name : uart1, pin count : 4
[ 0.404737] mainkey name : uart2, pin count : 4
[ 0.404747] mainkey name : uart3, pin count : 4
[ 0.404758] mainkey name : uart4, pin count : 4
[ 0.404768] mainkey name : uart5, pin count : 4
[ 0.404778] mainkey name : spi0, pin count : 4
[ 0.404789] mainkey name : spi1, pin count : 0
[ 0.404798] mainkey name : spi2, pin count : 4
[ 0.404809] mainkey name : spi3, pin count : 7
[ 0.404820] mainkey name : spi_devices, pin count : 0
[ 0.404831] mainkey name : spi_board0, pin count : 0
[ 0.404842] mainkey name : rtp_para, pin count : 0
[ 0.404853] mainkey name : ctp_para, pin count : 0
[ 0.404863] mainkey name : ctp_list_para, pin count : 0
[ 0.404874] mainkey name : tkey_para, pin count : 0
[ 0.404884] mainkey name : motor_para, pin count : 0
[ 0.404894] mainkey name : ths_para, pin count : 0
[ 0.404905] mainkey name : cooler_table, pin count : 0
[ 0.404915] mainkey name : nand0_para, pin count : 19
[ 0.404929] mainkey name : nand1_para, pin count : 19
[ 0.404943] mainkey name : disp_init, pin count : 0
[ 0.404953] mainkey name : lcd0_para, pin count : 29
[ 0.404967] map mainkey [lcd0_para] to pinctrl, map number [2]
[ 0.404983] mainkey name : hdmi_para, pin count : 0
[ 0.404993] mainkey name : pwm0_para, pin count : 1
[ 0.405004] mainkey name : pwm1_para, pin count : 1
[ 0.405015] mainkey name : csi0, pin count : 5
[ 0.405025] mainkey name : csi1, pin count : 0
[ 0.405035] mainkey name : tvout_para, pin count : 0
[ 0.405046] mainkey name : tvin_para, pin count : 0
[ 0.405056] mainkey name : mmc0_para, pin count : 7
[ 0.405067] mainkey name : mmc1_para, pin count : 6
[ 0.405079] mainkey name : mmc2_para, pin count : 11
[ 0.405092] mainkey name : mmc3_para, pin count : 11
[ 0.405105] mainkey name : smc_para, pin count : 0
[ 0.405116] mainkey name : usbc0, pin count : 2
[ 0.405127] map mainkey [usbc0] to pinctrl, map number [2]
[ 0.405139] mainkey name : usbc1, pin count : 1
[ 0.405150] mainkey name : usbc2, pin count : 1
[ 0.405160] mainkey name : usbc3, pin count : 0
[ 0.405171] mainkey name : usb_feature, pin count : 0
[ 0.405181] mainkey name : msc_feature, pin count : 0
[ 0.405192] mainkey name : serial_feature, pin count : 0
[ 0.405203] mainkey name : gsensor_para, pin count : 1
[ 0.405214] mainkey name : gsensor_list_para, pin count : 0
[ 0.405225] mainkey name : gps_para, pin count : 0
[ 0.405235] mainkey name : wifi_para, pin count : 11
[ 0.405247] mainkey name : 3g_para, pin count : 5
[ 0.405259] mainkey name : gy_para, pin count : 1
[ 0.405271] mainkey name : gy_list_para, pin count : 0
[ 0.405283] mainkey name : ls_para, pin count : 1
[ 0.405296] mainkey name : ls_list_para, pin count : 0
[ 0.405308] mainkey name : compass_para, pin count : 0
[ 0.405320] mainkey name : leds_para, pin count : 2
[ 0.405333] mainkey name : bt_para, pin count : 0
[ 0.405343] mainkey name : s_i2s1, pin count : 9
[ 0.405355] mainkey name : audio0, pin count : 3
[ 0.405366] mainkey name : spdif0, pin count : 2
[ 0.405376] mainkey name : s_cir0, pin count : 1
[ 0.405387] mainkey name : cir, pin count : 1
[ 0.405398] mainkey name : pmu1_para, pin count : 0
[ 0.405409] mainkey name : pmu2_para, pin count : 0
[ 0.405419] mainkey name : dvfs_table, pin count : 0
[ 0.405430] mainkey name : vf_table0, pin count : 0
[ 0.405440] mainkey name : vf_table1, pin count : 0
[ 0.405451] mainkey name : Vdevice, pin count : 0
[ 0.405461] mainkey name : s_uart0, pin count : 2
[ 0.405472] mainkey name : s_rsb0, pin count : 2
[ 0.405483] mainkey name : s_jtag0, pin count : 4
[ 0.405494] mainkey name : s_powchk, pin count : 0
[ 0.405505] mainkey name : dram_dvfs_table, pin count : 0
[ 0.405516] mainkey name : dram_scene_table, pin count : 0
[ 0.405525] axp pinctrl driver probe ok
[ 0.408187] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint.
[ 0.408204] hw-breakpoint: maximum watchpoint size is 8 bytes.
[ 0.408819] [sunxi-module]: [sunxi-module.0] probe success
[ 0.409007] Not Found clk pll3 in script
[ 0.409018] Not Found clk pll7 in script
[ 0.409039] script config pll8 to 297 Mhz
[ 0.409078] script config pll10 to 2376 Mhz
[ 0.409087] sunxi_default_clk_init
[ 0.455494] bio: create slab at 0
[ 0.455953] [ARISC] :sunxi-arisc driver v2.00
[ 0.501686] [ARISC] :arisc version: [v0.0.37]
[ 0.501706] [sunxi-module]: arisc register success
[ 0.506468] arisc_dvfs_cfg_vf_table: vf table type [1=vf_table1]
[ 0.506487] arisc_dvfs_cfg_vf_table: freq [L_LV1_freq-0=1200000000]
[ 0.506501] arisc_dvfs_cfg_vf_table: volt [L_LV1_volt-0=1020]
[ 0.506514] arisc_dvfs_cfg_vf_table: freq [L_LV2_freq-1=1104000000]
[ 0.506528] arisc_dvfs_cfg_vf_table: volt [L_LV2_volt-1=960]
[ 0.506541] arisc_dvfs_cfg_vf_table: freq [L_LV3_freq-2=1008000000]
[ 0.506555] arisc_dvfs_cfg_vf_table: volt [L_LV3_volt-2=900]
[ 0.506568] arisc_dvfs_cfg_vf_table: freq [L_LV4_freq-3=0]
[ 0.506581] arisc_dvfs_cfg_vf_table: volt [L_LV4_volt-3=840]
[ 0.506597] arisc_dvfs_cfg_vf_table: freq [B_LV1_freq-0=1800000000]
[ 0.506610] arisc_dvfs_cfg_vf_table: volt [B_LV1_volt-0=1100]
[ 0.506624] arisc_dvfs_cfg_vf_table: freq [B_LV2_freq-1=1608000000]
[ 0.506638] arisc_dvfs_cfg_vf_table: volt [B_LV2_volt-1=1020]
[ 0.506651] arisc_dvfs_cfg_vf_table: freq [B_LV3_freq-2=1416000000]
[ 0.506665] arisc_dvfs_cfg_vf_table: volt [B_LV3_volt-2=960]
[ 0.506678] arisc_dvfs_cfg_vf_table: freq [B_LV4_freq-3=1200000000]
[ 0.506692] arisc_dvfs_cfg_vf_table: volt [B_LV4_volt-3=900]
[ 0.506705] arisc_dvfs_cfg_vf_table: freq [B_LV5_freq-4=0]
[ 0.506718] arisc_dvfs_cfg_vf_table: volt [B_LV5_volt-4=840]
[ 0.908060] [ARISC] :sunxi-arisc driver v2.00 startup succeeded
[ 0.961915] CPU4: Booted secondary processor
[ 0.961981] CPU4: thread -1, cpu 0, socket 1, mpidr 80000100
[ 1.008577] CPU5: Booted secondary processor
[ 1.008644] CPU5: thread -1, cpu 1, socket 1, mpidr 80000101
[ 1.058648] CPU6: Booted secondary processor
[ 1.058719] CPU6: thread -1, cpu 2, socket 1, mpidr 80000102
[ 1.108715] CPU7: Booted secondary processor
[ 1.108784] CPU7: thread -1, cpu 3, socket 1, mpidr 80000103
[ 1.116116] SCSI subsystem initialized
[ 1.117088] usbcore: registered new interface driver usbfs
[ 1.117465] usbcore: registered new interface driver hub
[ 1.117723] usbcore: registered new device driver usb
[ 1.118419] sunxi_i2c_adap_init()1438 – [Nov 20 2014 14:32:34]Sunxi I2C init
[ 1.118446] twi_chan_cfg()350 – [twi0] fetch twi_regulator from sysconfig fad
[ 1.118464] twi_chan_cfg()350 – [twi1] fetch twi_regulator from sysconfig fad
[ 1.118481] twi_chan_cfg()350 – [twi2] fetch twi_regulator from sysconfig fad
[ 1.118497] twi_chan_cfg()350 – [twi3] fetch twi_regulator from sysconfig fad
[ 1.118514] twi_chan_cfg()350 – [twi4] fetch twi_regulator from sysconfig fad
[ 1.120167] Linux video capture interface: v2.00
[ 1.121172] axp22_board axp22_board: AXP (CHIP ID: 0x62) detected
[ 1.126672] axp22_dcdc1: 1600 3400 mV at 3000 mV
[ 1.127162] axp22_dcdc2: 600 1540 mV at 900 mV
[ 1.127619] axp22_dcdc3: 600 1860 mV at 900 mV
[ 1.128042] axp22_dcdc4: 600 2600 mV at 900 mV
[ 1.128476] axp22_dcdc5: 1000 2550 mV at 1500 mV
[ 1.128929] axp22_rtc: 3000 mV
[ 1.129357] axp22_aldo1: 700 3300 mV at 3000 mV
[ 1.129761] axp22_aldo2: 700 3300 mV at 1800 mV
[ 1.130174] axp22_aldo3: 700 3300 mV at 3000 mV
[ 1.130575] axp22_dldo1: 700 4200 mV at 3400 mV
[ 1.130972] axp22_dldo2: 700 3300 mV at 3000 mV
[ 1.131382] axp22_eldo1: 700 3300 mV at 3000 mV
[ 1.131793] axp22_eldo2: 700 3300 mV at 1800 mV
[ 1.132197] axp22_eldo3: 700 3300 mV at 3000 mV
[ 1.132606] axp22_dc5ldo: 700 1400 mV at 900 mV
[ 1.133020] axp22_ldoio0: 700 3300 mV at 3000 mV
[ 1.133437] axp22_ldoio1: 700 3300 mV at 2500 mV
[ 1.133841] axp22_sw0: at 700 mV
[ 1.134243] axp22_dc1sw: at 700 mV
[ 1.134342] axp22_dc1sw: supplied by axp22_dcdc1
[ 1.135098] input: axp22-supplyer as /devices/platform/axp22_board/axp22-sup0
[ 1.138716] now_rest_vol = 100
[ 1.139753] axp15_board axp15_board: AXP (CHIP ID: 0x60) detected
[ 1.144045] axp15_dcdc1: 600 1520 mV at 900 mV
[ 1.144505] axp15_dcdc2: 1000 2550 mV at 1350 mV
[ 1.144946] axp15_dcdc3: 600 1520 mV at 900 mV
[ 1.145407] axp15_dcdc4: 600 3300 mV at 900 mV
[ 1.145838] axp15_dcdc5: 1100 3400 mV at 2100 mV
[ 1.146239] axp15_aldo1: 700 3300 mV at 3000 mV
[ 1.146659] axp15_aldo2: 700 3300 mV at 700 mV
[ 1.147058] axp15_aldo3: 700 3300 mV at 700 mV
[ 1.147457] axp15_bldo1: 700 1900 mV at 1800 mV
[ 1.147543] axp15_bldo1: supplied by axp15_dcdc5
[ 1.148015] axp15_bldo2: 700 1900 mV at 1800 mV
[ 1.148103] axp15_bldo2: supplied by axp15_dcdc5
[ 1.148541] axp15_bldo3: 700 1900 mV at 700 mV
[ 1.148629] axp15_bldo3: supplied by axp15_dcdc5
[ 1.149849] axp15_bldo4: 700 1900 mV at 700 mV
[ 1.149946] axp15_bldo4: supplied by axp15_dcdc5
[ 1.150651] axp15_cldo1: 700 3300 mV at 3000 mV
[ 1.151261] axp15_cldo2: 700 4200 mV at 700 mV
[ 1.151711] axp15_cldo3: 700 3300 mV at 700 mV
[ 1.152109] axp15_sw0: at 700 mV
[ 1.153785] Advanced Linux Sound Architecture Driver Version 1.0.25.
[ 1.155002] Bluetooth: Core ver 2.16
[ 1.155207] NET: Registered protocol family 31
[ 1.155219] Bluetooth: HCI device and connection manager initialized
[ 1.155234] Bluetooth: HCI socket layer initialized
[ 1.155245] Bluetooth: L2CAP socket layer initialized
[ 1.155279] Bluetooth: SCO socket layer initialized
[ 1.155855] cfg80211: Calling CRDA to update world regulatory domain
[ 1.158577] Switching to clocksource arch_sys_counter
[ 1.181363] FS-Cache: Loaded
[ 1.181924] CacheFiles: Loaded
[ 1.205888] [sunxi_hci_sunxi]: sunxi-ehci1(restrict_gpio) is invalid
[ 1.205911] [sunxi_hci_sunxi]: get usb_restrict_flag failed
[ 1.205925] [sunxi_hci_sunxi]: get usb_regulator is failed
[ 1.205945] [sunxi_hci_sunxi]: sunxi-ohci1(restrict_gpio) is invalid
[ 1.205958] [sunxi_hci_sunxi]: get usb_restrict_flag failed
[ 1.205968] [sunxi_hci_sunxi]: get usb_regulator is failed
[ 1.206191] [sunxi_hci_sunxi]: sunxi-ehci2(restrict_gpio) is invalid
[ 1.206209] [sunxi_hci_sunxi]: get usb_restrict_flag failed
[ 1.206221] [sunxi_hci_sunxi]: get usb_regulator is failed
[ 1.206239] [sunxi_hci_sunxi]: sunxi-ohci2(restrict_gpio) is invalid
[ 1.206252] [sunxi_hci_sunxi]: get usb_restrict_flag failed
[ 1.206262] [sunxi_hci_sunxi]: get usb_regulator is failed
[ 1.206300] [sunxi_hci_sunxi]: sunxi-ehci3(restrict_gpio) is invalid
[ 1.206315] [sunxi_hci_sunxi]: sunxi-ehci3(drv vbus) is invalid
[ 1.206329] [sunxi_hci_sunxi]: get usb_restrict_flag failed
[ 1.206340] [sunxi_hci_sunxi]: get usb_regulator is failed
[ 1.206358] [sunxi_hci_sunxi]: sunxi-ohci3(restrict_gpio) is invalid
[ 1.206369] [sunxi_hci_sunxi]: sunxi-ohci3(drv vbus) is invalid
[ 1.206381] [sunxi_hci_sunxi]: get usb_restrict_flag failed
[ 1.206391] [sunxi_hci_sunxi]: get usb_regulator is failed
[ 1.207673] [usb_manager]: CONFIG_USB_SUNXI_USB0_OTG
[ 1.207696] get usbc(0) usb_restrict_flag failed
[ 1.207712] no usbc(0) det_vbus gpio and try to axp det_pin
[ 1.207725] get usbc0(usb_restrict pin) failed
[ 1.208719] [ddrfreq] dram_clk value is 672
[ 1.208730] [ddrfreq] sunxi_dramfreq_max=672000
[ 1.208740] [ddrfreq] dram_type value is 3
[ 1.208751] [ddrfreq] dram_zq value is 0x3f3fdd
[ 1.208762] [ddrfreq] dram_odt_en value is 1
[ 1.208772] [ddrfreq] dram_para1 value is 0x10f40800
[ 1.208782] [ddrfreq] dram_para2 value is 0x1200
[ 1.208793] [ddrfreq] dram_mr0 value is 0x1a50
[ 1.208802] [ddrfreq] dram_mr1 value is 0x40
[ 1.208812] [ddrfreq] dram_mr2 value is 0x10
[ 1.208822] [ddrfreq] dram_mr3 value is 0x0
[ 1.208832] [ddrfreq] dram_tpr0 value is 0x4e214ea
[ 1.208842] [ddrfreq] dram_tpr1 value is 0x4214ad
[ 1.208852] [ddrfreq] dram_tpr2 value is 0x10a75030
[ 1.208863] [ddrfreq] dram_tpr3 value is 0x0
[ 1.208872] [ddrfreq] dram_tpr4 value is 0x0
[ 1.208882] [ddrfreq] dram_tpr5 value is 0x0
[ 1.208892] [ddrfreq] dram_tpr6 value is 0x0
[ 1.208901] [ddrfreq] dram_tpr7 value is 0x0
[ 1.208912] [ddrfreq] dram_tpr8 value is 0x0
[ 1.208921] [ddrfreq] dram_tpr9 value is 0x0
[ 1.208931] [ddrfreq] dram_tpr10 value is 0x0
[ 1.208941] [ddrfreq] dram_tpr11 value is 0x0
[ 1.208951] [ddrfreq] dram_tpr12 value is 168
[ 1.208960] [ddrfreq] sunxi_dramfreq_min=168000
[ 1.208970] [ddrfreq] dram_tpr13 value is 0x23
[ 1.208978] [ddrfreq] warning: disabled!
[ 1.209311] [dsm] use sysconfig
[ 1.209320] [dsm] ———–Dram scene-freq Table————
[ 1.209331] [dsm] scene = 0 frequency = 672000KHz
[ 1.209341] [dsm] scene = 1 frequency = 480000KHz
[ 1.209351] [dsm] scene = 2 frequency = 240000KHz
[ 1.209360] [dsm] scene = 3 frequency = 168000KHz
[ 1.209370] [dsm] scene = 4 frequency = 480000KHz
[ 1.209378] [dsm] ——————————————–
[ 1.219594] [ddrfreq] LV_count value is 3
[ 1.219618] [ddrfreq] —————Dram V-F Table—————
[ 1.219629] [ddrfreq] voltage = 900mv frequency = 672000KHz
[ 1.219640] [ddrfreq] voltage = 840mv frequency = 168000KHz
[ 1.219650] [ddrfreq] voltage = 840mv frequency = 0KHz
[ 1.219660] [ddrfreq] ——————————————–
[ 1.219793] [ddrfreq] last_vdd=900
[ 1.219872] [ddrfreq] __sram_start: 0xc09c5000, __sram_end: 0xc09c7078, __sr8
[ 1.219886] [ddrfreq] sunxi dramfreq probe ok!
[ 1.220374] NET: Registered protocol family 2
[ 1.220683] IP route cache hash table entries: 32768 (order: 5, 131072 bytes)
[ 1.221613] TCP established hash table entries: 131072 (order: 8, 1048576 by)
[ 1.224455] TCP bind hash table entries: 65536 (order: 7, 786432 bytes)
[ 1.226324] TCP: Hash tables configured (established 131072 bind 65536)
[ 1.226337] TCP: reno registered
[ 1.226350] UDP hash table entries: 512 (order: 2, 16384 bytes)
[ 1.226405] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[ 1.226836] NET: Registered protocol family 1
[ 1.227274] RPC: Registered named UNIX socket transport module.
[ 1.227287] RPC: Registered udp transport module.
[ 1.227296] RPC: Registered tcp transport module.
[ 1.227306] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 1.227567] Unpacking initramfs…
[ 1.704637] Freeing initrd memory: 2524K
[ 1.705401] [powernow inf] module init
[ 1.705658] [powernow inf] create class sw_powernow done
[ 1.705671] [pm]aw_pm_init!
[ 1.705683] standby_mode = 1.
[ 1.705692] wakeup src cnt is : 3.
[ 1.705704] [exstandby]leave extended_standby_enable_wakeup_src : event 0x200
[ 1.705716] [exstandby]leave extended_standby_enable_wakeup_src : wakeup_gpi8
[ 1.705728] [exstandby]leave extended_standby_enable_wakeup_src : wakeup_gpi0
[ 1.705740] [exstandby]leave extended_standby_enable_wakeup_src : event 0x200
[ 1.705752] [exstandby]leave extended_standby_enable_wakeup_src : wakeup_gpi8
[ 1.705764] [exstandby]leave extended_standby_enable_wakeup_src : wakeup_gpi0
[ 1.705776] [exstandby]leave extended_standby_enable_wakeup_src : event 0x200
[ 1.705787] [exstandby]leave extended_standby_enable_wakeup_src : wakeup_gpi8
[ 1.705799] [exstandby]leave extended_standby_enable_wakeup_src : wakeup_gpi0
[ 1.705824] [wifi]: select wifi: ap6330 !!
[ 1.706195] [ap6xxx]: module power name axp22_dldo1
[ 1.706208] [ap6xxx]: module power ext1 name axp15_cldo3
[ 1.706219] [ap6xxx]: module power ext2 name axp22_ldoio0
[ 1.706230] [ap6xxx]: sdio_power name
[ 1.706372] [ap6xxx]: ap6xxx module power set by axp.
[ 1.707217] [ap6xxx]: regulator axp22_dldo1 on.
[ 1.707813] [ap6xxx]: regulator axp15_cldo3 on.
[ 1.707898] [ap6xxx]: regulator axp22_ldoio0 on.
[ 1.708062] [ap6xxx]: set cko2 32k clk out
[ 1.708153] [wifi_pm]: wifi gpio init is OK !!
[ 1.708352] sunxi_reg_init enter
[ 1.710077] audit: initializing netlink socket (disabled)
[ 1.710133] type=2000 audit(1.680:1): initialized
[ 1.711746] highmem bounce pool size: 64 pages
[ 1.713799] NTFS driver 2.1.30 [Flags: R/W].
[ 1.713989] fuse init (API version 7.18)
[ 1.715062] msgmni has been set to 1186
[ 1.715109] SELinux: Registering netfilter hooks
[ 1.717522] io scheduler noop registered
[ 1.717535] io scheduler deadline registered
[ 1.717636] io scheduler cfq registered (default)
[ 1.718457] GTBUS_PMU GTBUS_PMU: probed
[ 1.718925] pwm module init!
[ 1.720298] sunxi_uart_init()1446 – Sunxi Uart driver init …
[ 1.720328] sw_uart_get_devinfo()1430 – uart0 fetch uart_regulator from syscd
[ 1.720349] sw_uart_get_devinfo()1430 – uart2 fetch uart_regulator from syscd
[ 1.721163] uart0: ttyS0 at MMIO 0x7000000 (irq = 32) is a SUNXI
[ 1.721187] sw_console_setup()1190 – console setup baud 115200 parity n bitsn
[ 1.914628] console [ttyS0] enabled
[ 4.181803] uart2: ttyS2 at MMIO 0x7000800 (irq = 34) is a SUNXI
[ 4.190427] G2D: drv_g2d_init
[ 4.193909] G2D: Module initialized.major:250
[ 4.206431] loop: module loaded
[ 4.209990] sunxi_hw_init: sunxi debug register driver init
[ 4.216987] sunxi_spi_init()2048 – [Nov 20 2014 14:34:22]Sunxi SPI init …
[ 4.224916] sunxi_spi_chan_cfg()1368 – [spi-0] fetch spi_regulator from syscd
[ 4.233990] sunxi_spi_chan_cfg()1368 – [spi-1] fetch spi_regulator from syscd
[ 4.242999] sunxi_spi_chan_cfg()1368 – [spi-2] fetch spi_regulator from syscd
[ 4.252010] sunxi_spi_chan_cfg()1368 – [spi-3] fetch spi_regulator from syscd
[ 4.261290] tun: Universal TUN/TAP device driver, 1.6
[ 4.266897] tun: (C) 1999-2004 Max Krasnyansky <[email protected]>
[ 4.274114] PPP generic driver version 2.4.2
[ 4.279360] PPP BSD Compression module registered
[ 4.284585] PPP Deflate Compression module registered
[ 4.290931] PPP MPPE Compression module registered
[ 4.296253] NET: Registered protocol family 24
[ 4.301258] PPTP driver version 0.8.5
[ 4.306131] start: sunxi_open_usb_clock
[ 4.310518] end: sunxi_open_usb_clock
[ 4.314816] get usbc0_regulator is failed
[ 4.369327] sunxi_controller_mode:device!
[ 4.373776] sunxi_gadget_init,v1.1
[ 4.378577] sunxi_controller_mode:NULL!
[ 4.382881] start: sunxi_close_usb_clock
[ 4.387241] end: sunxi_close_usb_clock
[ 4.391460] otgc_work_mode:0
[ 4.394828] ehci_hcd: USB 2.0 ‘Enhanced’ Host Controller (EHCI) Driver
[ 4.402177] [sunxi_hci_sunxi]: [sunxi-ehci1]: probe, pdev->name: sunxi-ehci,c
[ 4.413538] [sunxi_hci_sunxi]: [sunxi-ehci1]: open clock, is_open: 0
[ 4.420679] [sunxi_hci_sunxi]: clk_prepare_enable: hci_ahb_gate
[ 4.427256] [sunxi_hci_sunxi]: [sunxi-ehci1]: open hci clock,usbc_no:1, is_o0
[ 4.435586] [sunxi_hci_sunxi]: [sunxi-ehci1]: Set USB Power ON
[ 4.442105] sunxi-ehci sunxi-ehci.1: SW USB2.0 ‘Enhanced’ Host Controller (Er
[ 4.451030] sunxi-ehci sunxi-ehci.1: new USB bus registered, assigned bus nu1
[ 4.459589] sunxi-ehci sunxi-ehci.1: irq 104, io mem 0xf0a00000
[ 4.478689] sunxi-ehci sunxi-ehci.1: USB 0.0 started, EHCI 1.00
[ 4.485266] ehci_irq: highspeed device connect
[ 4.491220] hub 1-0:1.0: USB hub found
[ 4.495397] hub 1-0:1.0: 1 port detected
[ 4.500383] [sunxi_hci_sunxi]: [sunxi-ehci2]: probe, pdev->name: sunxi-ehci,4
[ 4.511714] [sunxi_hci_sunxi]: [sunxi-ehci2]: open clock, is_open: 0
[ 4.518818] [sunxi_hci_sunxi]: [sunxi-ehci2]: open hci clock,usbc_no:2, is_o0
[ 4.527128] [sunxi_hci_sunxi]: [sunxi-ehci2]: Set USB Power ON
[ 4.533623] sunxi-ehci sunxi-ehci.2: SW USB2.0 ‘Enhanced’ Host Controller (Er
[ 4.542568] sunxi-ehci sunxi-ehci.2: new USB bus registered, assigned bus nu2
[ 4.551092] sunxi-ehci sunxi-ehci.2: irq 106, io mem 0xf0a01000
[ 4.568689] sunxi-ehci sunxi-ehci.2: USB 0.0 started, EHCI 1.00
[ 4.576137] hub 2-0:1.0: USB hub found
[ 4.580354] hub 2-0:1.0: 1 port detected
[ 4.585253] [sunxi_hci_sunxi]: [sunxi-ehci3]: probe, pdev->name: sunxi-ehci,c
[ 4.596587] [sunxi_hci_sunxi]: [sunxi-ehci3]: open clock, is_open: 0
[ 4.603740] [sunxi_hci_sunxi]: [sunxi-ehci3]: open hci clock,usbc_no:3, is_o0
[ 4.612069] [sunxi_hci_sunxi]: [sunxi-ehci3]: Set USB Power ON
[ 4.618547] sunxi-ehci sunxi-ehci.3: SW USB2.0 ‘Enhanced’ Host Controller (Er
[ 4.627486] sunxi-ehci sunxi-ehci.3: new USB bus registered, assigned bus nu3
[ 4.636018] sunxi-ehci sunxi-ehci.3: irq 108, io mem 0xf0a02000
[ 4.658710] sunxi-ehci sunxi-ehci.3: USB 0.0 started, EHCI 1.00
[ 4.666156] hub 3-0:1.0: USB hub found
[ 4.670355] hub 3-0:1.0: 1 port detected
[ 4.675430] ohci_hcd: USB 1.1 ‘Open’ Host Controller (OHCI) Driver
[ 4.682454] [sunxi_hci_sunxi]: [sunxi-ohci1]: probe, pdev->name: sunxi-ohci,0
[ 4.693776] [sunxi_hci_sunxi]: [sunxi-ohci1]: open clock, is_open: 0
[ 4.700977] [sunxi_hci_sunxi]: [sunxi-ohci1]: open hci clock,usbc_no:1, is_o1
[ 4.709312] sunxi-ohci sunxi-ohci.1: SW USB2.0 ‘Open’ Host Controller (OHCI)r
[ 4.717830] sunxi-ohci sunxi-ohci.1: new USB bus registered, assigned bus nu4
[ 4.726283] sunxi-ohci sunxi-ohci.1: irq 105, io mem 0xf0a00400
[ 4.793569] hub 4-0:1.0: USB hub found
[ 4.797744] hub 4-0:1.0: 1 port detected
[ 4.802691] [sunxi_hci_sunxi]: [sunxi-ohci3]: probe, pdev->name: sunxi-ohci,0
[ 4.814019] [sunxi_hci_sunxi]: [sunxi-ohci3]: open clock, is_open: 0
[ 4.821134] usb 1-1: new high-speed USB device number 2 using sunxi-ehci
[ 4.828642] [sunxi_hci_sunxi]: [sunxi-ohci3]: open hci clock,usbc_no:3, is_o1
[ 4.837027] sunxi-ohci sunxi-ohci.3: SW USB2.0 ‘Open’ Host Controller (OHCI)r
[ 4.845567] sunxi-ohci sunxi-ohci.3: new USB bus registered, assigned bus nu5
[ 4.854023] sunxi-ohci sunxi-ohci.3: irq 109, io mem 0xf0a02400
[ 4.923578] hub 5-0:1.0: USB hub found
[ 4.927755] hub 5-0:1.0: 1 port detected
[ 4.933073] Initializing USB Mass Storage driver…
[ 4.938877] usbcore: registered new interface driver usb-storage
[ 4.945549] USB Mass Storage support registered.
[ 4.950963] usbcore: registered new interface driver ums-alauda
[ 4.957791] usbcore: registered new interface driver ums-cypress
[ 4.964721] usbcore: registered new interface driver ums-datafab
[ 4.971610] usbcore: registered new interface driver ums_eneub6250
[ 4.978770] usbcore: registered new interface driver ums-freecom
[ 4.985704] usbcore: registered new interface driver ums-isd200
[ 4.992542] usbcore: registered new interface driver ums-jumpshot
[ 4.999585] usbcore: registered new interface driver ums-karma
[ 5.006303] usbcore: registered new interface driver ums-onetouch
[ 5.013805] usbcore: registered new interface driver ums-realtek
[ 5.021011] hub 1-1:1.0: USB hub found
[ 5.025284] usbcore: registered new interface driver ums-sddr09
[ 5.031924] hub 1-1:1.0: 4 ports detected
[ 5.036668] usbcore: registered new interface driver ums-sddr55
[ 5.043502] usbcore: registered new interface driver ums-usbat
[ 5.050505] usbcore: registered new interface driver usbserial
[ 5.057023] usbserial: USB Serial Driver core
[ 5.062697] usbcore: registered new interface driver option
[ 5.069125] USB Serial support registered for GSM modem (1-port)
[ 5.077388] file system registered
[ 5.084868] gadget: Mass Storage Function, version: 2009/09/11
[ 5.091476] gadget: Number of LUNs=3
[ 5.095541] lun0: LUN: removable file: (no medium)
[ 5.101051] lun1: LUN: removable file: (no medium)
[ 5.106466] lun2: LUN: removable file: (no medium)
[ 5.112714] android_bind, serial_unique = 0
[ 5.117372] gadget: android_usb ready
[ 5.122356] mousedev: PS/2 mouse device common for all mice
[ 5.129367] usbcore: registered new interface driver xpad
[ 5.135943] sunxi_rtc_init(736): sunxi rtc device register!
[ 5.142936] rtc_gettime(323): read time 2015-3-19 14:9:29
[ 5.149234] alarm_gettime(460): get alarm time 1970-1-1 1:0:0 success!
[ 5.156754] rtc_gettime(323): read time 2015-3-19 14:9:29
[ 5.163268] rtc0 rtc0: rtc core: registered rtc0 as rtc0
[ 5.169297] sunxi_rtc_probe(690)!
[ 5.173483] sunxi cedar version 0.1
[ 5.177574] [cedar]: install start!!!
[ 5.182498] [cedar]: install end!!!
[ 5.190659] axp22_aldo1: Failed to create debugfs directory
[ 5.210094] axp15_dcdc4: Failed to create debugfs directory
[ 5.217370] device-mapper: ioctl: 4.22.0-ioctl (2011-10-19) initialised: dm-m
[ 5.227004] Bluetooth: HCI UART driver ver 2.2
[ 5.231967] Bluetooth: HCI H4 protocol initialized
[ 5.237285] Bluetooth: HCI Realtek H5 protocol initialized
[ 5.243790] autohotplug_init init ok
[ 5.247790] [cpu_freq] INF: merge_cluster_tables: index: 0, freq: 1800000
[ 5.255359] [cpu_freq] INF: merge_cluster_tables: index: 1, freq: 1704000
[ 5.263485] [cpu_freq] INF: merge_cluster_tables: index: 2, freq: 1608000
[ 5.271047] [cpu_freq] INF: merge_cluster_tables: index: 3, freq: 1512000
[ 5.278583] [cpu_freq] INF: merge_cluster_tables: index: 4, freq: 1416000
[ 5.286251] [cpu_freq] INF: merge_cluster_tables: index: 5, freq: 1320000
[ 5.293886] [cpu_freq] INF: merge_cluster_tables: index: 6, freq: 1200000
[ 5.301538] [cpu_freq] INF: merge_cluster_tables: index: 7, freq: 1104000
[ 5.309139] [cpu_freq] INF: merge_cluster_tables: index: 8, freq: 1008000
[ 5.316677] [cpu_freq] INF: merge_cluster_tables: index: 9, freq: 600000
[ 5.324131] [cpu_freq] INF: merge_cluster_tables: index: 10, freq: 552000
[ 5.331749] [cpu_freq] INF: merge_cluster_tables: index: 11, freq: 504000
[ 5.339374] [cpu_freq] INF: merge_cluster_tables: End, table: e61ef3c0, coun2
[ 5.347783] axp22_dcdc3: Failed to create debugfs directory
[ 5.354004] axp15_dcdc1: Failed to create debugfs directory
[ 5.360263] [cpu_freq] INF: sunxi_cpufreq_init, get cpu frequency from syscoz
[ 5.377569] [cpu_freq] INF: sunxi register cpufreq driver succeed
[ 5.384360] [cpu_freq] INF: sunxi register bL notifier succeed
[ 5.390848] [cpu_freq] INF: sunxi_cpufreq_init: done!
[ 5.396659] [mmc]: SD/MMC/SDIO Host Controller Driver(v1.76 2014-06-17 14:412
[ 5.408138] [mmc]: sunxi_mci_init
[ 5.411947] usb 1-1.2: new full-speed USB device number 3 using sunxi-ehci
[ 5.419638] [mmc]: get mmc0’s sdc_ex_dly_used failed,use default dly
[ 5.426766] [mmc]: get mmc1’s sdc_ex_dly_used failed,use default dly
[ 5.433889] [mmc]: get mmc2’s sdc_ex_dly_used failed,use default dly
[ 5.440970] [mmc]: MMC host used card: 0x7, boot card: 0x4, io_card 2
[ 5.449407] [mmc]: –B-sdc 2 – 48000000
[ 5.454056] [mmc]: sdc2 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timinB
[ 5.464941] [mmc]: sdc2 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timingB
[ 5.474690] [mmc]: sdc2 Probe: base:0xf1c11000 irq:94 sg_cpu:ffdd2000(45c090.
[ 5.485158] [mmc]: –B-sdc 0 – 48000000
[ 5.490029] [mmc]: sdc0 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timinB
[ 5.499902] [mmc]: sdc2 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 tB
[ 5.510654] [mmc]: mclk 0xf6000418 0x8002000f
[ 5.515502] [mmc]: mclk 0xf6000418 0x8002000e
[ 5.520438] [mmc]: sdc0 Probe: base:0xf1c0f000 irq:92 sg_cpu:ffdd1000(463d60.
[ 5.529322] [mmc]: sdc0: no card detected, try to shutdown io voltage.
[ 5.538394] [mmc]: –B-sdc 1 – 48000000
[ 5.543103] [mmc]: sdc1 set ios: clk 0Hz bm OD pm OFF vdd 3.3V width 1 timinB
[ 5.554114] [mmc]: sdc1 Probe: base:0xf1c10000 irq:93 sg_cpu:ffdd0000(463d70.
[ 5.563009] [mmc]: sdc1: no card detected, try to shutdown io voltage.
[ 5.572258] sunxi_leds driver init
[ 5.576119] request gpio230, ret=0
[ 5.579924] trigger_name:heartbeat
[ 5.583716] request gpio241, ret=0
[ 5.587491] trigger_name:cpu0
[ 5.591661] Registered led device: blue:ph21:led1
[ 5.597128] Registered led device: orange:ph20:led2
[ 5.602910] ledtrig-cpu: registered to indicate activity on CPUs
[ 5.610465] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 52, RTO!
[ 5.619417] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 52, RTO!
[ 5.627563] [mmc]: sdc2 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 tB
[ 5.640348] [mmc]: sdc2 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 tB
[ 5.652392] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 8, RTO !
[ 5.660507] *******************Try sdio*******************
[ 5.667404] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 5, RTO !
[ 5.675955] usb 1-1.3: new full-speed USB device number 4 using sunxi-ehci
[ 5.683638] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 5, RTO !
[ 5.692587] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 5, RTO !
[ 5.701487] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 5, RTO !
[ 5.709568] *******************Try sd *******************
[ 5.716380] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 55, RTO!
[ 5.725454] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 55, RTO!
[ 5.734427] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 55, RTO!
[ 5.743444] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 2 err, cmd 55, RTO!
[ 5.751638] *******************Try mmc*******************
[ 5.757636] [mmc]: sdc2 set ios: clk 400000Hz bm OD pm ON vdd 3.3V width 1 tB
[ 5.768357] [mmc]: sdc2 set ios: clk 400000Hz bm OD pm ON vdd 3.3V width 1 tB
[ 5.778593] [mmc]: sdc2 set ios: clk 400000Hz bm OD pm ON vdd 3.3V width 1 tB
[ 5.789098] [mmc]: sdc2 set ios: clk 400000Hz bm OD pm ON vdd 3.3V width 1 tB
[ 5.802295] [mmc]: sdc2 set ios: clk 400000Hz bm OD pm ON vdd 3.3V width 1 tB
[ 5.817127] input: Tronsmart as /devices/platform/sunxi-ehci.1/usb1/1-1/1-1.1
[ 5.827967] generic-usb 0003:11C0:5500.0001: input: USB HID v1.11 Gamepad [T0
[ 5.839888] usbcore: registered new interface driver usbhid
[ 5.846165] usbhid: USB HID core driver
[ 5.851626] ashmem: initialized
[ 5.855463] logger: created 256K log ‘log_main’
[ 5.860927] logger: created 256K log ‘log_events’
[ 5.866627] [mmc]: sdc2 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 tB
[ 5.877236] logger: created 256K log ‘log_radio’
[ 5.883529] logger: created 256K log ‘log_system’
[ 5.891625] input: MELE RI as /devices/platform/sunxi-ehci.1/usb1/1-1/1-1.3/2
[ 5.902339] [mmc]: sdc2 set ios: clk 25000000Hz bm PP pm ON vdd 3.3V width 1B
[ 5.912867] [mmc]: mclk 0xf6000418 0x8102000e
[ 5.917710] [mmc]: mclk 0xf6000418 0x81020008
[ 5.922807] generic-usb 0003:1915:0196.0002: input: USB HID v1.10 Keyboard [0
[ 5.935316] axp device register ok and device_create_file ok
[ 5.944755] input: MELE RI as /devices/platform/sunxi-ehci.1/usb1/1-1/1-1.3/3
[ 5.955939] generic-usb 0003:1915:0196.0003: input: USB HID v1.10 Mouse [MEL1
[ 5.968364] sunxi_snddaudio_init, line:222
[ 5.972945] sunxi_snddaudio_init, line:228, daudio_used:1
[ 5.979457] soc-audio soc-audio.4: ASoC machine snddaudio should use snd_soc)
[ 5.989008] [mmc]: sdc2 set ios: clk 25000000Hz bm PP pm ON vdd 3.3V width 1B
[ 6.000584] [mmc]: sdc2 set ios: clk 48000000Hz bm PP pm ON vdd 3.3V width 1B
[ 6.011416] [mmc]: mclk 0xf6000418 0x81420508
[ 6.016264] [mmc]: mclk 0xf6000418 0x81410509
[ 6.021257] input: headset as /devices/virtual/input/input4
[ 6.029044] [CODEC] speaker_val type err!
[ 6.037672] asoc: sndvir_audio s_i2s1 mapping ok
[ 6.046539] soc-audio soc-audio.0: ASoC machine sndhdmi should use snd_soc_r)
[ 6.057841] asoc: sndhdmi sunxi-hdmiaudio.0 mapping ok
[ 6.065235] u32 classifier
[ 6.068237] Actions configured
[ 6.072350] [mmc]: sdc2 set ios: clk 48000000Hz bm PP pm ON vdd 3.3V width 8B
[ 6.083264] Netfilter messages via NETLINK v0.30.
[ 6.088563] nf_conntrack version 0.5.0 (16384 buckets, 65536 max)
[ 6.095608] input: MELE RI as /devices/platform/sunxi-ehci.1/usb1/1-1/1-1.3/5
[ 6.105653] mmc0: new high speed MMC card at address 0001
[ 6.112773] ctnetlink v0.93: registering with nfnetlink.
[ 6.118859] NF_TPROXY: Transparent proxy support initialized, version 4.1.0
[ 6.126586] NF_TPROXY: Copyright (c) 2006-2007 BalaBit IT Ltd.
[ 6.133236] generic-usb 0003:1915:0196.0004: input: USB HID v1.10 Device [ME2
[ 6.145101] mmcblk0: mmc0:0001 NCard 7.29 GiB
[ 6.150830] mmcblk0boot0: mmc0:0001 NCard partition 1 4.00 MiB
[ 6.157868] mmcblk0boot1: mmc0:0001 NCard partition 2 4.00 MiB
[ 6.166468] generic-usb 0003:1915:0196.0005: claimed by neither input, hiddew
[ 6.176333] mmcblk0: p1 p2 p3 < p5 p6 p7 p8 p9 p10 p11 p12 >
[ 6.182846] xt_time: kernel timezone is -0000
[ 6.187850] IPv4 over IPv4 tunneling driver
[ 6.192551] mmcblk0: p1 size 12154880 extends beyond EOD, truncated
[ 6.203365] gre: GRE over IPv4 demultiplexor driver
[ 6.208818] ip_gre: GRE over IPv4 tunneling driver
[ 6.215725] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 6.221951] arp_tables: (C) 2002 David S. Miller
[ 6.227150] TCP: cubic registered
[ 6.230956] Initializing XFRM netlink socket
[ 6.235992] NET: Registered protocol family 10
[ 6.242164] Mobile IPv6
[ 6.244909] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 6.251698] IPv6 over IPv4 tunneling driver
[ 6.260129] NET: Registered protocol family 17
[ 6.265205] mmcblk0boot1: unknown partition table
[ 6.270881] NET: Registered protocol family 15
[ 6.276330] Bluetooth: RFCOMM TTY layer initialized
[ 6.281903] Bluetooth: RFCOMM socket layer initialized
[ 6.287610] Bluetooth: RFCOMM ver 1.11
[ 6.292644] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 6.298648] mmcblk0boot0: unknown partition table
[ 6.304143] Bluetooth: BNEP filters: protocol multicast
[ 6.309965] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[ 6.316932] *******************mmc init ok *******************
[ 6.323716] L2TP core driver, V2.0
[ 6.327513] PPPoL2TP kernel driver, V2.0
[ 6.332165] VFP support v0.3: implementor 41 architecture 2 part 30 variant 5
[ 6.340699] ThumbEE CPU extension supported.
[ 6.345455] Registering SWP/SWPB emulation handler
[ 6.352945] axp15_bldo2: incomplete constraints, leaving on
[ 6.359277] axp15_bldo1: incomplete constraints, leaving on
[ 6.365712] axp15_aldo1: incomplete constraints, leaving on
[ 6.372004] axp15_dcdc4: incomplete constraints, leaving on
[ 6.378353] axp15_dcdc1: incomplete constraints, leaving on
[ 6.384718] axp22_ldoio1: incomplete constraints, leaving on
[ 6.391106] axp22_dc5ldo: incomplete constraints, leaving on
[ 6.397477] axp22_eldo3: incomplete constraints, leaving on
[ 6.403763] axp22_eldo2: incomplete constraints, leaving on
[ 6.410088] axp22_dldo2: incomplete constraints, leaving on
[ 6.416363] axp22_aldo3: incomplete constraints, leaving on
[ 6.422653] axp22_aldo2: incomplete constraints, leaving on
[ 6.428978] axp22_dcdc5: incomplete constraints, leaving on
[ 6.435252] axp22_dcdc4: incomplete constraints, leaving on
[ 6.441540] axp22_dcdc3: incomplete constraints, leaving on
[ 6.447851] axp22_dcdc1: incomplete constraints, leaving on
[ 6.454240] otg_wakelock_init: No USB transceiver found
[ 6.460385] rtc_gettime(323): read time 2015-3-19 14:9:30
[ 6.466449] rtc0 rtc0: setting system clock to 2015-03-19 14:09:30 UTC (1426)
[ 6.475524] input: sunxi-ths as /devices/virtual/input/input6
[ 6.482577] suxi_ths: Kernel Thermal management registered
[ 6.489251] suxi_ths: Kernel Thermal management registered
[ 6.496143] sunxi_ths_bind : thermal-budget-0
[ 6.500839] ths_zone trip = 60, adjust lower = 0, upper = 1
[ 6.507292] ths_zone trip = 75, adjust lower = 1, upper = 2
[ 6.513548] ths_zone trip = 85, adjust lower = 2, upper = 5
[ 6.519803] ths_zone trip = 95, adjust lower = 5, upper = 9
[ 6.526046] ths_zone trip = 105, adjust lower = 0, upper = 0
[ 6.532398] sunxi_ths_bind : thermal-budget-0
[ 6.537077] ths_zone trip = 105, adjust lower = 0, upper = 9
[ 6.543636] CPU Budget:Register notifier
[ 6.548026] CPU Budget:register Success
[ 6.552328] sunxi-budget-cooling sunxi-budget-cooling: Cooling device regist0
[ 6.567410] ALSA device list:
[ 6.570740] #0: snddaudio
[ 6.573862] #1: sndhdmi
[ 6.577062] Freeing init memory: 320K
[ 6.586000] SELinux: 512 avtab hash slots, 1364 rules.
[ 6.592252] SELinux: 512 avtab hash slots, 1364 rules.
[ 6.598012] SELinux: 1 users, 2 roles, 291 types, 1 bools, 1 sens, 1024 cats
[ 6.606028] SELinux: 84 classes, 1364 rules
[ 6.611474] SELinux: Completing initialization.
[ 6.616640] SELinux: Setting up existing superblocks.
[ 6.622416] SELinux: initialized (dev sysfs, type sysfs), uses genfs_contexts
[ 6.630426] SELinux: initialized (dev rootfs, type rootfs), uses genfs_contes
[ 6.638715] SELinux: initialized (dev bdev, type bdev), not configured for lg
[ 6.647296] SELinux: initialized (dev proc, type proc), uses genfs_contexts
[ 6.655115] SELinux: initialized (dev tmpfs, type tmpfs), uses transition SIs
[ 6.663225] SELinux: initialized (dev devtmpfs, type devtmpfs), uses transits
[ 6.672386] SELinux: initialized (dev debugfs, type debugfs), uses genfs_cons
[ 6.685386] SELinux: initialized (dev sockfs, type sockfs), uses task SIDs
[ 6.693117] SELinux: initialized (dev pipefs, type pipefs), uses task SIDs
[ 6.700829] SELinux: initialized (dev anon_inodefs, type anon_inodefs), not g
[ 6.710979] SELinux: initialized (dev devpts, type devpts), uses transition s
[ 6.719291] SELinux: initialized (dev selinuxfs, type selinuxfs), uses genfss
[ 6.728152] SELinux: initialized (dev tmpfs, type tmpfs), uses transition SIs
[ 6.736279] SELinux: initialized (dev sysfs, type sysfs), uses genfs_contexts
[ 6.896982] type=1403 audit(1426774170.920:2): policy loaded auid=42949672955
[ 6.906479] SELinux: Loaded policy from /sepolicy
[ 6.914726] type=1404 audit(1426774170.940:3): enforcing=1 old_enforcing=0 a5
[ 8.477760] init: could not import file ‘init.sun9i.3gdongle.rc’ from ‘/init’
[ 8.486828] init (1): /proc/1/oom_adj is deprecated, please use /proc/1/oom_.
[ 8.649232] init: /dev/hw_random not found
[ 8.669473] [NAND][NAND]nand init start, nand0_used_flag is 0
[ 8.675863] [NAND]nand_cache_level err! 0[NAND]nand_capacity_level err! 0
[ 8.683430] [NAND]run on A80
[ 8.686651] nand interrupte ch0 irqno: 102 register ok
[ 8.694581] nand interrupte ch1, irqno: 101 register ok
[ 8.700410] [NAND]nand driver is disabled
[ 8.778988] SELinux: initialized (dev cgroup, type cgroup), uses genfs_contes
[ 8.787468] SELinux: initialized (dev tmpfs, type tmpfs), uses transition SIs
[ 8.797030] SELinux: initialized (dev tmpfs, type tmpfs), uses transition SIs
[ 8.805509] SELinux: initialized (dev tmpfs, type tmpfs), uses transition SIs
[ 8.813770] SELinux: initialized (dev tmpfs, type tmpfs), uses transition SIs
[ 8.938770] SELinux: initialized (dev cgroup, type cgroup), uses genfs_contes
[ 8.958788] EXT4-fs (mmcblk0p7): mounted filesystem with ordered data mode. )
[ 8.967860] SELinux: initialized (dev mmcblk0p7, type ext4), uses xattr
[ 8.983573] EXT4-fs (mmcblk0p10): mounted filesystem with ordered data mode.o
[ 8.995499] SELinux: initialized (dev mmcblk0p10, type ext4), uses xattr
[ 9.138715] fs_mgr: Running /system/bin/e2fsck on /dev/block/by-name/cache
[ 9.204200] e2fsck: e2fsck 1.41.14 (22-Dec-2010)
[ 9.209416] e2fsck: /dev/block/by-name/cache: clean, 12/40960 files, 5257/16s
[ 9.227482] EXT4-fs (mmcblk0p10): mounted filesystem with ordered data mode.1
[ 9.238540] SELinux: initialized (dev mmcblk0p10, type ext4), uses xattr
[ 9.260689] EXT4-fs (mmcblk0p1): ext4_orphan_cleanup: deleting unreferenced 9
[ 9.270693] EXT4-fs (mmcblk0p1): ext4_orphan_cleanup: deleting unreferenced 7
[ 9.280417] EXT4-fs (mmcblk0p1): ext4_orphan_cleanup: deleting unreferenced 4
[ 9.290038] EXT4-fs (mmcblk0p1): 3 orphan inodes deleted
[ 9.295936] EXT4-fs (mmcblk0p1): recovery complete
[ 9.317902] EXT4-fs (mmcblk0p1): mounted filesystem with ordered data mode. o
[ 9.329727] SELinux: initialized (dev mmcblk0p1, type ext4), uses xattr
[ 9.458705] fs_mgr: Running /system/bin/e2fsck on /dev/block/by-name/UDISK
[ 9.477312] e2fsck: e2fsck 1.41.14 (22-Dec-2010)
[ 9.482498] e2fsck: /dev/block/by-name/UDISK: clean, 851/378256 files, 83181s
[ 9.501309] EXT4-fs (mmcblk0p1): mounted filesystem with ordered data mode. c
[ 9.513823] SELinux: initialized (dev mmcblk0p1, type ext4), uses xattr
[ 9.719649] [DISP]disp_module_init
[ 9.725111] [DISP]disp_probe
[ 9.728469] [DISP] IEP_Deu_Init,line:216: deu_mode1 not exist.
[ 9.748739] [DISP] lcd_panel_parameter_check,line:379: get lcd1para lcd_ul
[ 9.757366] [DISP] disp_lcd_gpio_init,line:2071: lcd 2 is not register
[ 9.768723] [DISP] disp_init_hdmi,line:492: screen 0 do not support HDMI !
[ 9.777046] [DISP] disp_init_hdmi,line:492: screen 2 do not support HDMI !
[ 9.786245] [DISP] disp_init_connections,line:133: smbl’s set manager is L
[ 9.794539] [DISP] disp_init_connections,line:139: capture’s set manager L
[ 9.803063] [DISP] disp_init_connections,line:145: smcl’s set manager is L
[ 9.811346] [DISP]Fb_Init
[ 9.814390] disp_init.disp_composer_mode = 1
[ 9.819224] [DISP] parser_disp_init_para,line:130: fetch script data displ
[ 9.830053] [DISP] parser_disp_init_para,line:143: invalid screen0_output0
[ 9.838631] [DISP] parser_disp_init_para,line:147: fetch script data displ
[ 9.849469] [DISP] parser_disp_init_para,line:208: fetch script data displ
[ 9.859419] [DISP] parser_disp_init_para,line:213: fetch script data displ
[ 9.870538] [DISP] parser_disp_init_para,line:218: fetch script data displ
[ 9.880393] [DISP] parser_disp_init_para,line:223: fetch script data displ
[ 9.890506] sunxi_map_kernel ok, phys_addr=0x88000000, size=0xfd2000, virt_a0
[ 9.918151] [DISP]disp_probe finish
[ 9.922283] [DISP]capture_module_init
[ 9.927423] [DISP]capture_probe
[ 9.931124] [DISP]capture finish
[ 9.934733] [DISP]disp_module_init finish
[ 9.965793] [LCD]lcd_module_init
[ 9.970461] [LCD]lcd_module_init finish
[ 9.997550] [HDMI] debug to check 111 !!
[ 10.002469] [DISP] disp_get_hdmi,line:41: screen_id 0 do not support HDMI!
[ 10.010908] [DISP] bsp_disp_set_hdmi_func,line:1316: get hdmi0 failed!
[ 10.202788] axp22_dcdc2: Failed to create debugfs directory
[ 10.209257] Set gpu pll clock successfully
[ 10.213902] Set gpu core clock successfully
[ 10.218643] Set gpu mem clock successfully
[ 10.223353] Set gpu axi clock successfully
[ 10.231542] Sunxi init successfully
[ 10.287729] usbcore: registered new interface driver uvcvideo
[ 10.294162] USB Video Class driver (v1.1.1)
[ 10.316458] sun fd version 0.5
[ 10.320197] [fd]: install start!!!
[ 10.338753] open_clk:fd_clk_rate = 320000000
[ 10.345330] register fd_early_suspend @ probe handle!
[ 10.350973] [fd]: install end!!!
[ 10.408295] init: /dev/hw_random not found
[ 10.436732] binder: 1550:1550 transaction failed 29189, size 0-0
[ 10.445161] init: cannot find ‘/system/etc/install-recovery.sh’, disabling ”
[ 10.514887] keyname:ctp_para subname:ctp_power_ldo ,get error!
[ 10.522520] keyname:ctp_para subname:ctp_power_ldo_vol ,get error!
[ 10.529688] keyname:ctp_para subname:ctp_power_io ,get error!
[ 10.536368] keyname:ctp_para subname:ctp_wakeup ,get error!
[ 10.544786] get sysconfig para erro!
[ 10.549398] get sysconfig para erro!
[ 10.554023] get_device_para_value:get subname:bmg160_gyr error! val.val:0
[ 10.554106] ir_fetch_sysconfig_para: IR power key type err!
[ 10.568183] get_detect_list: script_get_item err.support_number = 1.
[ 10.568192] input: sunxi-ir as /devices/virtual/input/s_cir0
[ 10.581737] get sysconfig para erro!
[ 10.585745] ctp_wakeup: !!!!gpio data 0
[ 10.679209] [ap6xxx]: get power regulator failed.
[ 10.684577] gpio ap6xxx_wl_regon set val 1, act val 1
[ 10.703075] get sysconfig para erro!
[ 10.712580] SELinux: initialized (dev mmcblk0p2, type vfat), uses genfs_conts
[ 10.790280] [ap6xxx]: sdio wifi power state: on
[ 10.795411] [mmc]: sdc1 set ios: clk 0Hz bm PP pm UP vdd 3.3V width 1 timingB
[ 10.795564] =========== WLAN placed in POWER ON ========
[ 10.839793] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 tB
[ 10.850165] [mmc]: mclk 0xf6000414 0x80000000
[ 10.855045] [mmc]: mclk 0xf6000414 0x8002000e
[ 10.932906] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 1 err, cmd 52, RTO!
[ 10.942191] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 1 err, cmd 52, RTO!
[ 10.950456] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 tB
[ 10.963477] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 tB
[ 10.975679] [mmc]: *** sunxi_mci_dump_errinfo(L794): smc 1 err, cmd 8, RTO !
[ 10.983798] *******************Try sdio*******************
[ 10.990478] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 tB
[ 11.016658] mmc2: queuing unknown CIS tuple 0x80 (2 bytes)
[ 11.024411] mmc2: queuing unknown CIS tuple 0x80 (3 bytes)
[ 11.032205] mmc2: queuing unknown CIS tuple 0x80 (3 bytes)
[ 11.041594] mmc2: queuing unknown CIS tuple 0x80 (7 bytes)
[ 11.131482] [mmc]: sdc1 set ios: clk 400000Hz bm PP pm ON vdd 3.3V width 1 tB
[ 11.141871] [mmc]: sdc1 set ios: clk 48000000Hz bm PP pm ON vdd 3.3V width 1B
[ 11.152865] [mmc]: mclk 0xf6000414 0x8102000e
[ 11.157822] [mmc]: mclk 0xf6000414 0x81010009
[ 11.218360] [mmc]: sdc1 set ios: clk 48000000Hz bm PP pm ON vdd 3.3V width 4B
[ 11.232241] mmc2: new high speed SDIO card at address 0001
[ 11.241487] bcmsdh_register: Linux Kernel SDIO/MMC Driver
[ 11.247770] bcm_wlan_get_oob_irq enter.
[ 11.252505] gpio [355] map to virq [3] ok
[ 11.264008] F1 signature OK, socitype:0x1 chip:0x4330 rev:0x4 pkg:0x0
[ 11.273213] DHD: dongle ram size is set to 294912(orig 294912) at 0x0
[ 11.281960] dhdsdio_probe: Disable prop_txstatus
[ 11.292325] wl_create_event_handler(): thread:wl_event_handler:6e9 started
[ 11.293075] tsk Enter, tsk = 0xe4b213d8
[ 11.308639] p2p0: P2P Interface Registered
[ 11.313409] dhd_attach(): thread:dhd_watchdog_thread:6f3 started
[ 11.320694] dhd_attach(): thread:dhd_dpc:6f6 started
[ 11.326332] dhd_attach(): thread:dhd_sysioc:6f8 started
[ 11.335580] Broadcom Dongle Host Driver: register interface [wlan0] MAC: 00:3
[ 11.344904] *******************sdio init ok*******************
[ 11.353413]
[ 11.353415] Dongle Host Driver, version 1.88.45.3 (r420671)
[ 11.353418] Compiled in drivers/net/wireless/bcmdhd on Nov 20 2014 at 14:34:0
[ 11.369425] [ap6xxx]: get power regulator failed.
[ 11.374780] gpio ap6xxx_wl_regon set val 0, act val 0
[ 11.480430] [ap6xxx]: sdio wifi power state: off
[ 11.485589] =========== WLAN placed in RESET ========
[ 11.513690] Bluetooth: MSM Sleep Mode Driver Ver 1.2
[ 11.628863] usbcore: registered new interface driver asix
[ 11.760527] usbcore: registered new interface driver qf9700
[ 11.811282] usbcore: registered new interface driver MOSCHIP usb-ethernet drr
[ 11.836297] usbcore: registered new interface driver rtl8150
[ 11.858831] usbcore: registered new interface driver cdc_ether
[ 11.894074] eth0: Use random mac address
[ 12.029990] init: property ‘sys.powerctl’ doesn’t exist while expanding ‘${s’
[ 12.039192] init: powerctl: cannot expand ‘${sys.powerctl}’
[ 12.045390] init: property ‘sys.sysctl.extra_free_kbytes’ doesn’t exist whil’
[ 12.058375] init: cannot expand ‘${sys.sysctl.extra_free_kbytes}’ while writ’
[ 12.073160] android_usb: already disabled
[ 12.077941] init: using deprecated syntax for specifying property ‘sys.usb.cd
[ 12.089841] init: using deprecated syntax for specifying property ‘sys.usb.cd
[ 12.092187] adb_open
[ 12.092792] mtp_bind_config
[ 12.092803] ep_matches, wrn: endpoint already claimed, ep(0xe6104e40, 0xe619)
[ 12.092809] ep_matches, wrn: endpoint already claimed, ep(0xe6104d80, 0xe619)
[ 12.092848] adb_bind_config
[ 12.092854] ep_matches, wrn: endpoint already claimed, ep(0xe6104e40, 0xe619)
[ 12.092860] ep_matches, wrn: endpoint already claimed, ep(0xe6104d80, 0xe619)
[ 12.092866] ep_matches, wrn: endpoint already claimed, ep(0xe6104c00, 0xe619)
[ 12.092873] ep_matches, wrn: endpoint already claimed, ep(0xe6104e40, 0xe619)
[ 12.092879] ep_matches, wrn: endpoint already claimed, ep(0xe6104d80, 0xe619)
[ 12.129230] SELinux: initialized (dev fuse, type fuse), uses genfs_contexts
[email protected]:/ $ [ 13.010043] SELinux: initialized (dev tmpfs, type tms
[ 13.283012] 0xf6000008 = 0x8104361c, line:322, freq:22579200
[ 20.964560] healthd: battery l=100 v=0 t=30.0 h=2 st=5 c=0 chg=a
[ 20.976156] request_suspend_state: wakeup (3->0) at 20947478678 (2015-03-19 )
[ 21.052168] [DISP] disp_get_hdmi,line:41: screen_id 0 do not support HDMI!
[ 21.061336] [DISP] bsp_disp_hdmi_check_support_mode,line:1286: get hdmi0 !
[ 21.144959] lowmemorykiller: lowmem_shrink: convert oom_adj to oom_score_adj:
[ 21.152974] lowmemorykiller: oom_adj 0 => oom_score_adj 0
[ 21.159030] lowmemorykiller: oom_adj 1 => oom_score_adj 58
[ 21.165169] lowmemorykiller: oom_adj 2 => oom_score_adj 117
[ 21.171412] lowmemorykiller: oom_adj 3 => oom_score_adj 176
[ 21.177648] lowmemorykiller: oom_adj 9 => oom_score_adj 529
[ 21.183892] lowmemorykiller: oom_adj 15 => oom_score_adj 1000
[ 21.481535] gmac0: probed
[ 21.484552] gmac0 gmac0: eth0: eth0: PHY ID 001cc915 at 0 IRQ poll (gmac0-0:)
[ 21.667414] acc_open
[ 21.669901] acc_release
[ 21.824964] warning: `dhcpcd’ uses 32-bit capabilities (legacy support in us)
[ 24.791259] init: sys_prop: permission denied uid:1003 name:service.bootanit
[ 25.984490] [rfkill]: rfkill set power 1
[ 25.989153] gpio ap6xxx_bt_regon set val 0, act val 0
[ 26.215339] [rfkill]: rfkill set power 0
[ 26.223544] gpio ap6xxx_bt_regon set val 1, act val 1
[ 27.488929] PHY: gmac0-0:00 – Link is Up – 1000/Full
[ 27.545207] [BT_LPM] bluesleep_get_uart_port: bluesleep_get_uart_port get ua4
[ 28.601716] CPU7: shutdown
[ 29.600726] CPU6: shutdown
[ 30.091375] CPU5: shutdown
[ 30.592182] CPU3: shutdown
[ 31.100346] CPU2: shutdown
[ 31.852206] [BT_LPM] bluesleep_hostwake_task: hostwake line change
[ 31.888716] eth0: no IPv6 routers present
[ 33.468549] rtc_settime(239): time to set 2015-3-19 14:9:57
[ 33.534309] rtc_settime(283): set time 2015-3-19 14:9:57 success!
[ 33.541562] rtc_gettime(323): read time 2015-3-19 14:9:57
[ 34.100198] CPU1: shutdown
[ 34.699673] CPU4: shutdown

You can find more documentation in English and Chinese on Cubieboard4 documentation page, which includes videos, images, Android and Linux source code, tools, and more.

The next step for me will probably be to do some performance testing in Android, especially with regards to Ethernet and USB 3.0 storage performance, and see if any progress has been made compared to the disappointing results I got with A80 OptimusBoard last year. I’ll also evaluate Linux performance on the board, and possibly tried out the SDK.

  1. Ian Tester
    March 20th, 2015 at 14:19 | #1

    Linux kernel 3.4, compiled with gcc 4.6?!?
    What is Allwinner’s excuse for using such old software?
    Get up to date, Allwinner. My Cubietruck (CB3) is currently running a 4.0 rc kernel thanks to the linux-sunxi developers. A lot has been achieved over the last year, but imagine what could be done if Allwinner worked with the community developers.

  2. March 20th, 2015 at 22:35 | #2

    @Ian Tester

    Maybe they spent time on shipping the hardware asap because getting newer kernels isn’t of hard marketing value.

  3. JotaMG
    March 22nd, 2015 at 05:21 | #3

    Hope that now Cubietech will have time to bring up new version of Android for the Cubietruck, because all the official images have lots of (idiotic) bugs.

    This is just another case where the hardware is very good, but the software sucks.

    Overall, I will not trust Cubietech any more, nor buy anything from them.

  4. JIV
    March 22nd, 2015 at 05:35 | #4

    @Ian Tester

    Mainline kernel is afaik good only for headless system.

  5. apuokas
    March 28th, 2015 at 03:52 | #5

    after i made that all, i tried to install linaro image to emmc. but on startup starts android and linux is not installed. on official site i coud not found properly guide how “to brush” emmc card. can you help me, please.
    regards

  6. March 28th, 2015 at 10:42 | #6

    @apuokas
    I have not tried the eMMC image, but the “card” image is booting fine from a micro SD card.

    I understood the emmc image was to be flash to a micro SD card with dd or Win32DiskImager, and automatically install Lubuntu to the eMMC at boot time.

  7. MisterC
    April 18th, 2015 at 04:36 | #7

    My CB4 did not come with a power supply. Can you provide details on the one you received with your demo unit? I’m assuming 5V 4A, but if there’s a model # or something that would be awesome.

    Thanks!

  8. April 18th, 2015 at 09:50 | #8

    @MisterC
    Yes, it’s a 5V/4A power supply. Model: CTACDC5V4A.1 – You can zoom on the picture @ http://www.cnx-software.com/wp-content/uploads/2015/03/Cubieboard_4_Accessories_Case_Large.jpg to check the details.

  9. Dirk Broer
    January 29th, 2017 at 08:30 | #9

    My Cubieboard 4 will not boot from either eMMC or SD-card. All I get from the monitor is ‘no signal’. Lights on the board are flashing.

  10. Dirk Broer
    August 13th, 2017 at 20:06 | #10

    Dirk Broer :
    My Cubieboard 4 will not boot from either eMMC or SD-card. All I get from the monitor is ‘no signal’. Lights on the board are flashing.

    Appeared that you need a HDMI monitor to get video signal, hdmi-to-DVI adapters won’t work.

  1. April 1st, 2015 at 16:20 | #1
