PCOMnetA5 is a Small Dual Ethernet Board Powered by Freescale Vybrid Processor

F&S Elektronik Systeme has introduced a credit card sized industrial board powered by Freescale Vybrid single core Cortex A5 SoC featuring two Ethernet ports, support for RGB panels with resistive touch, and various I/Os headers for USB, UART, CAN and so on.

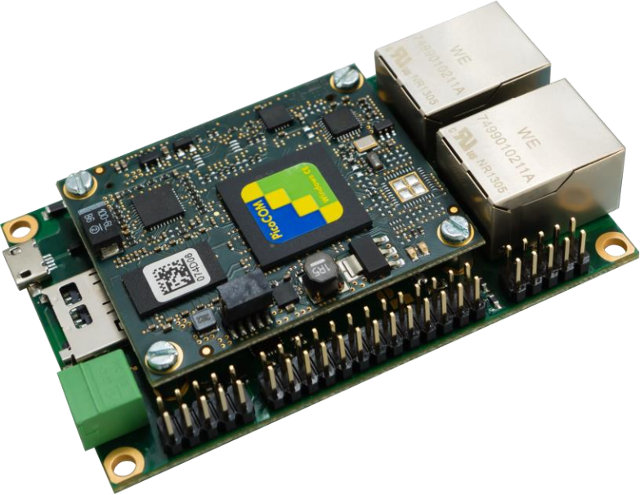

PiconetA5The board is comprised of a baseboard and the company’s PicoMODA5 module with the following combined specifications:

  • SoC – Freescale Vybrid Cortex-A5 processor @ 500 MHz with 512KB cache, NEON instructions and GPU
  • System Memory – 256 MB RAM
  • Storage – 128 MB Flash + µSD slot
  • Display – 18-bit RGB LCD with 4-wire analog resistive PCAP-Touch via I2C
  • Connectivity –  2x 10/100M Ethernet with IEEE1588, optional WiFi
  • USB – 2x USB 2.0 host ports via header, 1x micro USB 2.0 device port
  • Other I/Os
    • 2x CAN
    • RS232/RS485
    • 1x I2C, 1x SPI
    • 7x Digital I/O
  • Supply Voltage –  +5V DC/ ±5%
  • Dimensions – 80x50mm
  • Operating Temperature Range – 0°C – +70°C; (opt. -20°C – +85°C)

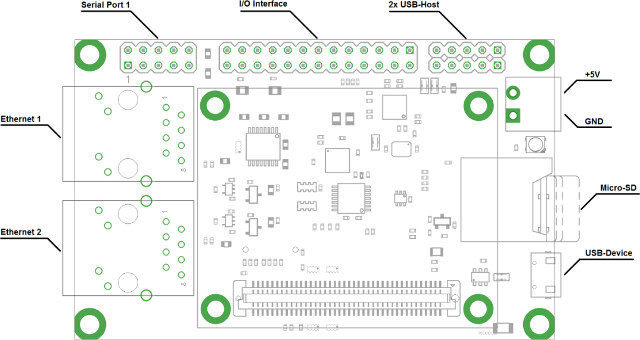

PiconetA5_Connectors

There are two variants of the board: PCOMnetA5-W13 and PCOMnetA5-LIN respectively pre-loaded with Windows Embedded Compact 2013 and Linux 3.0.15 (Buildroot). Publicly available documentation for PCOMnetA5 is limited to the hardware manual, but you’ll find a bit more hardware and software documents on PicoMODA5 module page.

PCOMnetA5 single board computers are available now at an undisclosed price, but they are part of 199 Euros Starterkits including the board, a 7″ TFT-LCD, relevant cables, and access data to BSP and documentation. For reference, the LCD is also sold separately for 120 Euros. F&S Electronik Systeme products are mostly used in medical and industrial applications, which are sectors often requiring long term availability, and their customers will be able to purchase PCOMnetA5 boards until 2028. More details and purchase links for the starter kits can be found on F&S PCOMnetA5 product page.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

2 Replies to “PCOMnetA5 is a Small Dual Ethernet Board Powered by Freescale Vybrid Processor”

  1. i do wish one of these ARM OEM’s took a generic ARM 10Gigabit Soc IP and produced a low power 4 port (bonding capable) SBC and drivers as the mainstream Ethernet Vendors don’t seem interested in the end consumer in fact refuse tp provide mass market home/SOHO consumer 10Gb/s kit for a reasonable mass consumer price…

    how about it F&S Elektronik Systeme ? at least cost up a basic BOM and ask here for consumers that want to drop the antiquated 1Gigabit/s per post speeds , to get ready for the 2Gb/s ports that the google and related ISP’s the world over. got o be worth a punt

  2. @xcore
    That’s a nice idea, but it won’t be done by F&S since they only work with companies.
    10Gb/s is an home environment would probably only be useful for families where 3 or more watch high bitrate 4K videos at the same time. I guess people who get 1Gbit/s, let alone 2Gbit/s Internet access are only a tiny fraction of the market…
