As Raspberry Pi Model B+ price got reduced to $25, some competitors also decided to bring their price down. Shenzhen Xunlong Software, the maker of Orange Pi board, decided to decrease their Orange Pi 2 and Orange Pi 2 Mini boards by $5 to respectively $30 and $25 plus around $2 shipping.

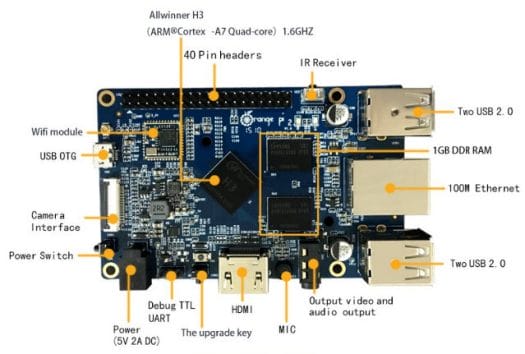

Both boards are based on the same PCB, but the mini version lacks WiFi. Let’s refresh our memory with the specs:
- SoC – Allwinner H3 quad core Cortex A7 @ 1.6 GHz with 256KB L1 cache, 1MB L2 cache, and an ARM Mali-400MP2 GPU up to 600 MHz
- System Memory – 1GB DDR3
- Storage – micro SD card slot (up to 64GB)
- Video Output – HDMI (CEC and HDCP support), AV port
- Audio I/O – HDMI, AV port, on-board microphone
- Connectivity – 10/100M Ethernet, 802.11 b/g/n Wi-Fi (Realtek module, not found on mini version)
- USB – 4x USB 2.0 host ports, 1x micro USB OTG port
- Camera – CSI Interface
- Expansions – 40-pin Raspberry Pi Model A+/B+ (mostly) compatible header with 28 GPIOs, UART, I2C, SPI, PWM, CAN, I2S, SPDIF, LRADC, ADC, LINE-IN, FM-IN, and HP-IN
- Debugging – 3-pin UART header for serial console
- Misc – IR receiver; Power, reset, and u-boot buttons; Power and Ethernet LEDs
- Power Supply – 5V/2A via barrel jack (micro USB OTG cannot be used to power the board).
- Dimensions – 93 x 60 mm
- Weight – 46 grams
