HummingBoard Edge SBC Gets an mSATA/M.2 Connector, an eMMC Flash, and More I/Os

SolidRun launched its HummingBoard family last year with a board with a form factor similar to the Raspberry Pi, but instead of using a Broadcom processor, the boards were based on Freescale i.MX6 single, dual or quad core processors. The company has recently introduce a higher end board with Hummingboard Edge that adds an M.2 connector, eMMC flash, 7 to 36V DC power input, more camera interfaces, a DSI interface, and more GPIOs.

HummingBoard_EdgeThe following comparison table shows the differences between the new Hummingboard Edge, and the older HummingBoard Pro and Base boards.

HummingBoard-Edge HummingBoard-Pro HummingBoard-Base
uSOM model i.MX6 based Solo to Quad Core uSOM
Memory Up to 4GB DDR3
Storage uSD, eMMC, M.2/mSATA uSD, mSATA uSD
Connectivity 1x RJ45*, 4x USB 2.0, mPCIE with SIM card holder 1x RJ-45*, 2x USB 2.0 Hosts, 2x USB 2.0 header, mPCIE half-size 1x RJ-45*, 2x USB 2.0 Hosts
Media HDMI-out, LVDS, analog audio, MIPI-CSI-4 and MIPI-DSI, parallel camera (on GPIO header) HDMI-out, LVDS, S/PDIF, analog audio, MIPI-CSI-2 camera HDMI- Out, S/PDIF, MIPI-CSI-2 Camera
Other I/O Reset button, 36 pins GPIO header, RTC with battery, IR Reset Button, 26 pins GPIO Header, RTC, IR Reset Button, 26 pins GPIO Header
Power 7V-36V, 5.5mm in
5V, uUSB
Dimensions 102 x 69mm 85 x 56mm
OS Linux Android, Linux
Environment Metal Enclosure No Enclosure

* Gigabit Ethernet port, but limited to 470 Mbps (i.MX6 design limitation).

Block Diagram (Click to Enlarge)
Block Diagram (Click to Enlarge)

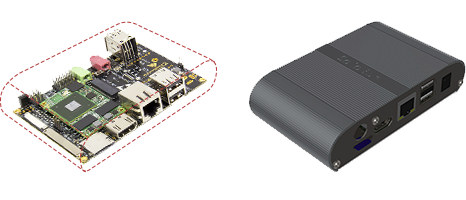

The Edge board however loses the optical S/PDIF port found in the older models, is bigger, and supports Linux, but for some reasons not Android. The full list of supported OS can be found on the download page, although it’s not clearly at this stage which ones will run on HummingBoard Edge. A metal enclosure has also been designed for the board.

HummingBoard_Edge_Metal_EnclosureHummingBoard Edge can be pre-ordered now for $102 to $252 depending on options, with shipping scheduled for the end of August.  $102 will get you the baseboard with MicroSOM i1 module with i.MX6 Solo and 512MB RAM, but no power supply, no enclosure, and no wireless connectivity. The most expensive model will come with MicroSoM i4x4 with i.MX6 Quad, 4GB RAM, a Wi-Fi & Bluetooth Module, a power adapter, an 8GB micro SD card, and the metal enclosure.

Visit HummingBoard product page for more details, and access to full documentation.

Via LinuxGizmos
