Windows 10 on MeLE PCG03, PCG01 and Other Intel Atom Z3735F Devices

For some reasons, after installing Ubuntu 15.04 on MeLE PCG03 a while ago, I had to re-install Windows 8.1 on the device. The backup I used with dd did not work, so I had to download the firmware from MeLE forums, and it worked OK. Right after the re-installation was complete, it asked me if I wanted to upgrade to Windows 10 for free, and I have given it a try, especially a few days ago somebody asked about Windows 10 on MeLE PCG01. So I’ll describe the update process on PCG03, show benchmarks results, and write about my experience with Kodi 15.0 in Windows 10.

Upgrading to Windows 10

Once you are ready to update to Windows 10, the system will check for updates, and ask whether you want to download and install Windows 10.

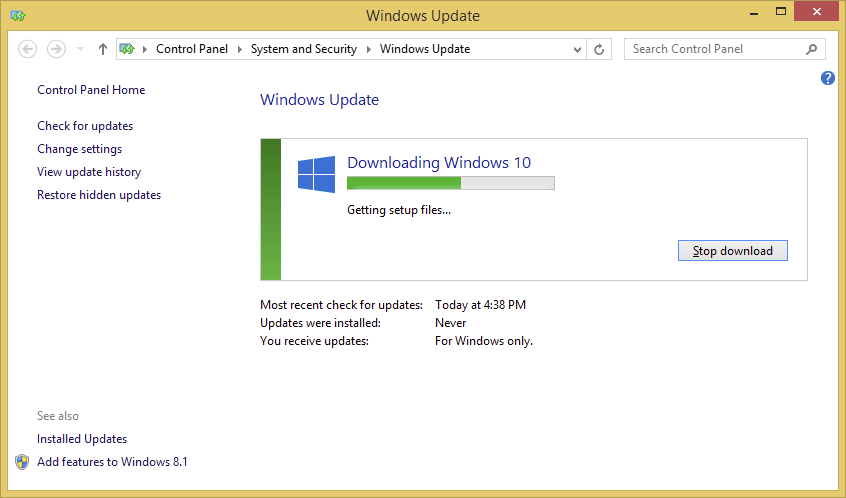

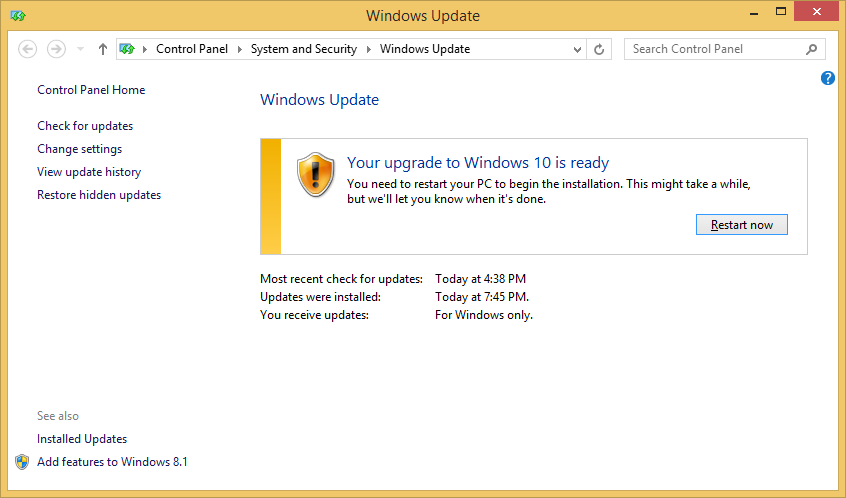

Windows_10_UpdateThe download is over 2GB large, so it may take a while. It took PCG03 around 2 to 3 hours to complete the download. Windows_10_ReadyOnce it’s done, Windows will let you know that “Your upgrade to Windows 10 is ready”, and ask you to reboot. I was expecting the installation to take one hour, but after 2 hours and thirty minutes, about 25% was completed, so I went to bed, and left it run overnight… In the morning, I just had to click a few more times, and Windows 10 was installed successfully.

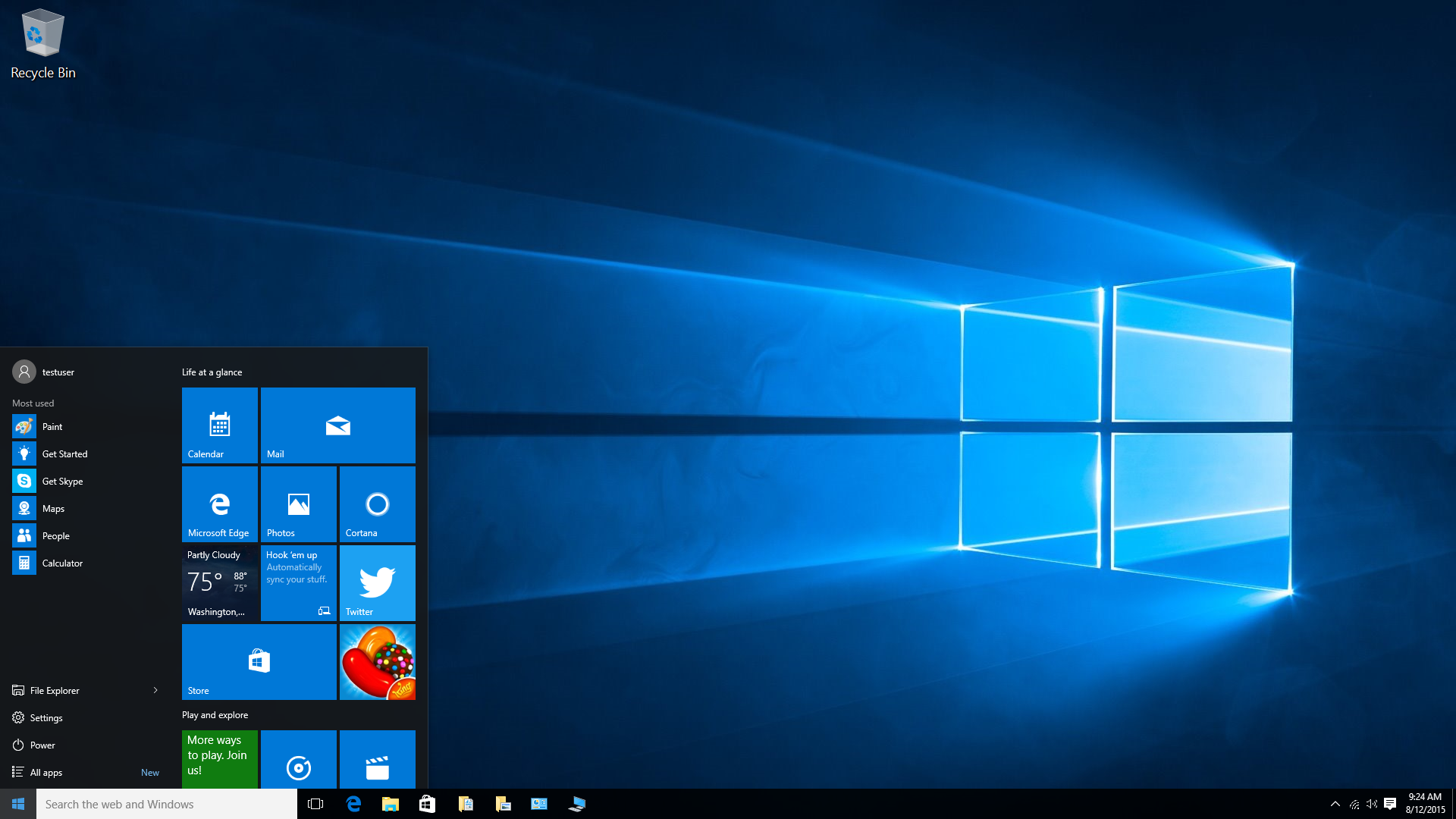

Windows 10 Desktop (Click for Original Size)

Windows 10 Desktop (Click for Original Size)

Setup is mostly finished, but I soon got notified that after Windows 10 installation, as well as PCMark8 and Kodi, the eMMC flash was nearly full… and directed to Settings->Storage.

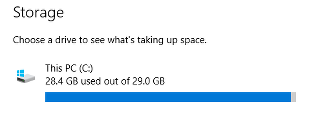

Windows_10_StorageThe reason being that Windows 10 keeps a copy of Windows 8.1 for a month just in case you decided to revert. This is all good on a PC with a large hard drive or SSD, but on a 32GB system, this becomes problematic. It’s easy to remove Windows 8.1.

  1. Click on This PC (C:)
  2. Wait until usage is shown, and scroll down to Temporary Files (in my case 10.5 GB)
  3. Click on Temporary Files to see more details.

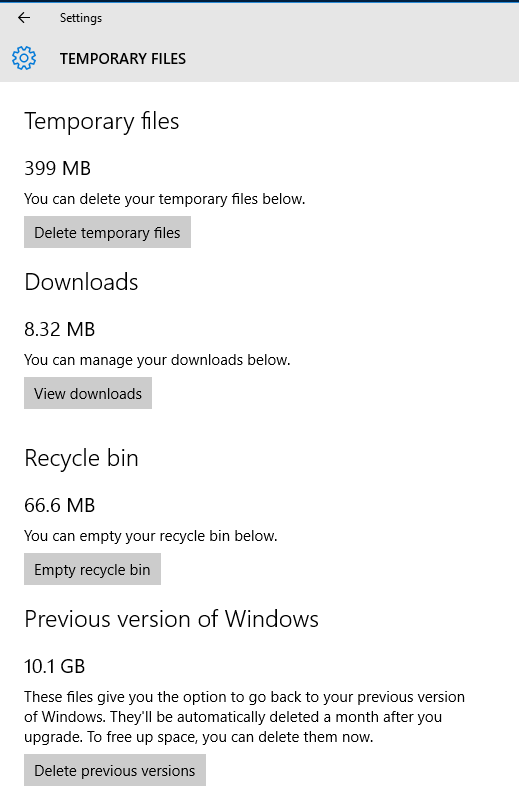

    Windows_10_Delete_Previous_Version_of_Windows
  4. Finally click on “Delete previous versions” to recover over 10GB of storage. For some reasons I had to click there twice, as after the first click, and a few minutes processing the 10.1GB still showed. But finally, all worked, and I got 18.4GB free space.

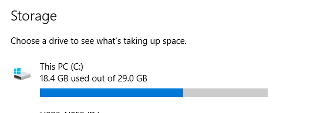

Free_Space_Windows_10

Finally, I wanted to check whether the License status changed after installation, and the mini PC is still said to run an activated version of Windows. All Good!

Windows 10 Activated on MeLE PCG03 (Click to Enlarge)

Windows 10 Activated on MeLE PCG03 (Click to Enlarge)

Testing Windows 10

Everything appears to work as it should on Windows 10 including Ethernet, WiFi and Bluetooth, although after pairing with my Mediatek phone successfully, I failed to send a file over Bluetooth.

I’ve also run PCMark 8 and DiskCrytalMark to compare the results to the ones I got with Windows 8.1.

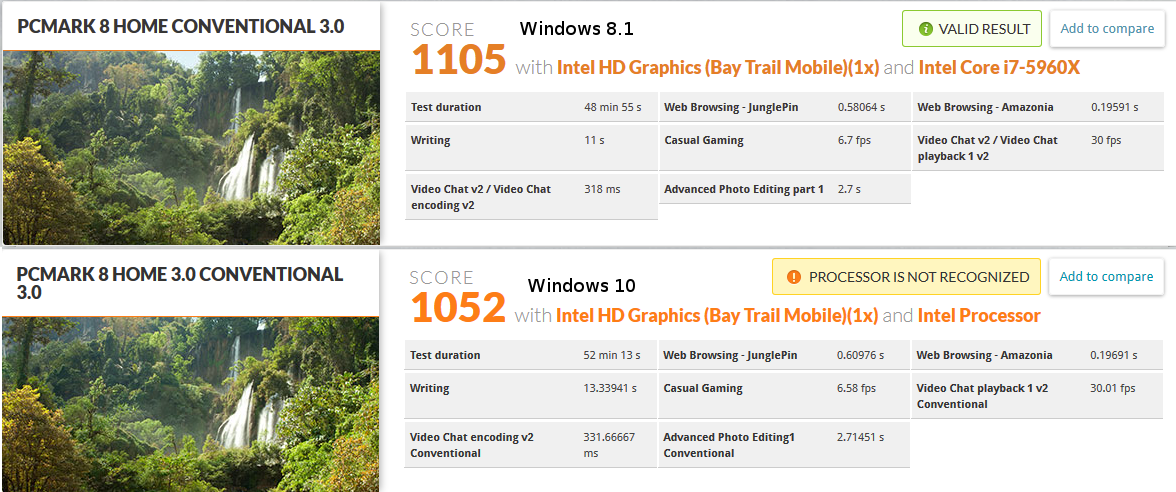

MeLE_PCG03_PCMark8_Win10_vs_Win8

PCMark 8 – Windows 8.1 vs Windows 10 (Click to Enlarge)

1105 points in Windows 8.1 against 1052 points in Windows 10 with Futuremark PCMark 8, so both results are quite similar as they should be.

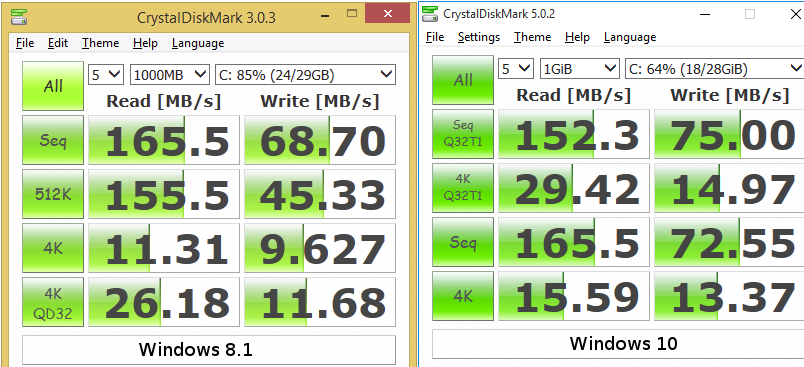

CrystalDiskMark_Windows_8.1_vs_Windows_10

CrystalDiskMark results may not be directly comparable as Windows 8.1 was tested with version 3.0.3, and Windows 10 with the latest version 5.0.2. Only two tests share the same name between versions: “4K” and “Seq”, and results are indeed similar, with a non-negligible advantage in Windows 10 for the “4K” test, but it’s difficult to know if it’s because of improvement to the operating systems or the benchmark app itself, without re-installing Windows 8.1 and testing with CrystalDiskMark 5.0.2 again, which I won’t do…

But overall, Windows 10 upgrade from Windows 8.1 and such device is pretty straightforward, albeit it may take many hours, and performance should be expected to be similar.

Finally, I installed Kodi 15.0 from an earlier download, and a first I got the message “XBMC can’t load sqlite3.dll” when starting Kodi. But I re-downloaded Kodi 15 for Windows again, and the error message disappeared. I could play files from a USB hard drive, and an “open” SAMBA share, but I could not connect to a password-protected SAMBA share located on an Ubuntu 14.04 computer. I pllayed various 1080p and 4K videos, and as with Kodi 14 on Windows 8.1 results were very good, except for H.265 videos with are not supported by the platform.

What about MeLE PCG01? I tried to do the update too, but all I could do is reserve an update slot, and I have to be patient until Microsoft schedules the update for the TV stick. But MeLE told me Windows 10 is running OK on the stick:

We have upgrade PCG01 to Windows 10 Home Edition successfully. Note that we have also installed all the patches available for Windows 8.1 with Bing before we upgrade it to Windows 10 Home Edition.

As for drivers, you do not need to install extra drivers after you upgraded it to Window 10 Home Edition. Everything works fine until now in our office. For example we can intall 3DMark on PCG01 to test on Windows 10

The update should also work with most other Intel Atom Z3735F devices, although some dual boot devices may brick if you attempt the update, so be careful if you have such device. I’m also not sure what happens if you have a non-activated version of Windows 8.1 installed.

  1. ZikZak
    August 12th, 2015 at 20:16 | #1

    I did the update yesterday. I still have to check tonight if the battery drained during teh sleep mode or if the Z3735 in my tablet simply doesn’t wake up from sleep mode with Win10.
    Or even worse if the tablet never switch on ever.

    If the sleep mode doesn’t work anymore then I’ll rollback, if the tablet doesn’t switch on then it will go to aftersale services.

  2. NIPSZX
    August 13th, 2015 at 05:34 | #2

    Does anybody know how to keep the “Just Scan” feature locked in on Samsung TVs while connected via HDMI to Windows? The Intel Graphics Card settings only allow 1920 or 1080 settings so I cannot get the resolution correct while in 16:9 mode on the Samsung TV. When I switch the TV to “Just Scan” the picture fits perfectly, BUT whenever I open Kodi or certain other apps the Samsung TV reverts back to 16:9 upon the splash screen. Is there any special Intel Graphics Card download that allows (key-in) precise resolution settings?

  3. August 13th, 2015 at 09:17 | #3

    @NIPSZX
    The “Just Scan” should be remembered by your TV.
    The “Dot by Dot” option in my Sharp TV is remembered per input.

    It’s odd Kodi changes that… Maybe ask on Kodi forums.

  4. August 21st, 2015 at 17:24 | #4

    I’ve done the Windows 10 upgrade with MeLE PCG01 finally. The Windows partition is a bit smaller (23GB), so Windows would not upgrade until I inset external storage, so I inserted a 16GB micro SD card so that the installer can move Windows 8.1 back to the SD card.

    After download, the installation took about 5 to 6 hours, and the system switched back to Chinese language, so I had to install English language again by following the instructions @ http://www.cnet.com/how-to/windows-10-settings-menu-the-time-language-tab/

  5. eugene28
    December 6th, 2015 at 19:25 | #5

    Has it got 64bit bios unlike wintel?

  6. December 6th, 2015 at 19:33 | #6

    @eugene28
    I think all the Z3735F sticks have a 32-bit UEFI binary, except maybe Intel Compute Stick (TBC).
