iWave Systems iW-RainboW-G20M-Q7 SoM Features Renesas RZ/G1M Cortex A15 SoC

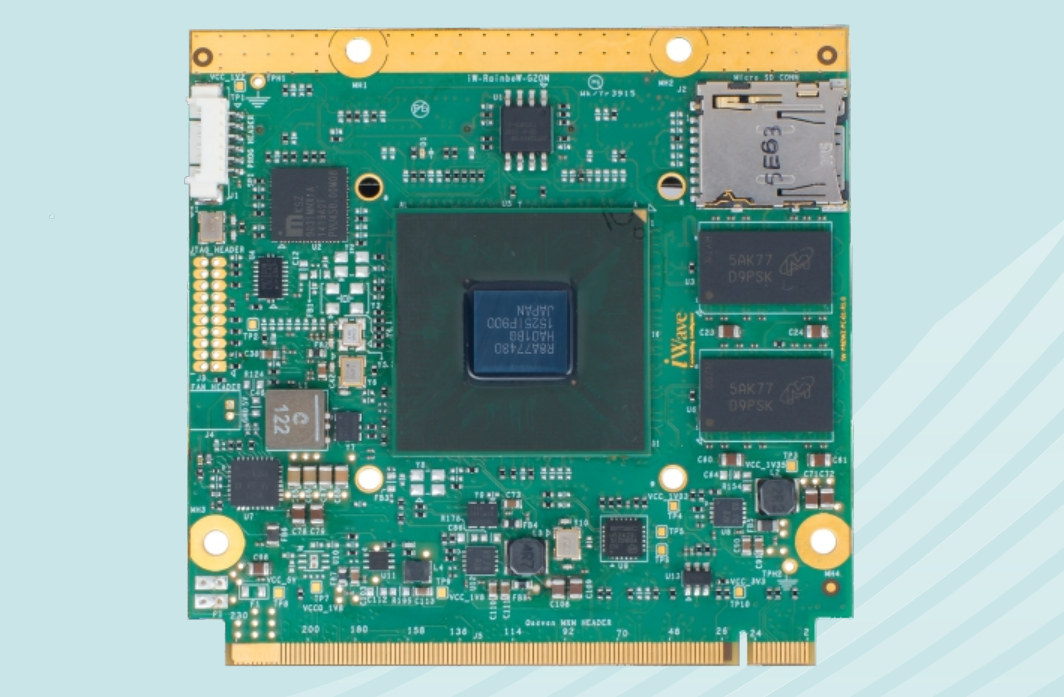

iWave Systems has unveiled a new Qseven 2.0 compliant system-on-module part of their RainboW family with iW-RainboW-G20M-Q7 module powered by Renesas RZ/G1M dual core ARM Cortex A15 SoC, and targeting industrial and automotive applications with over 10 years of support.

Click to Enlarge
Click to Enlarge

iW-RainboW-G20M-Q7 module specifications:

  • SoC – Renesas RZ/G1M dual core ARM Cortex A15 @ 1.5GHz with PowerVR SGX544MP2 GPU @ 520MHz
  • System Memory – 1GB DDR3(expandable)
  • Storage – 4GB eMMC Flash (expandable) + 2MB SPI NOR Flash for boot code, and optional Micro SD Slot
  • Connectivity – 1x Gigabit Ethernet  PHY
  • USB – 2 Port USB HUB

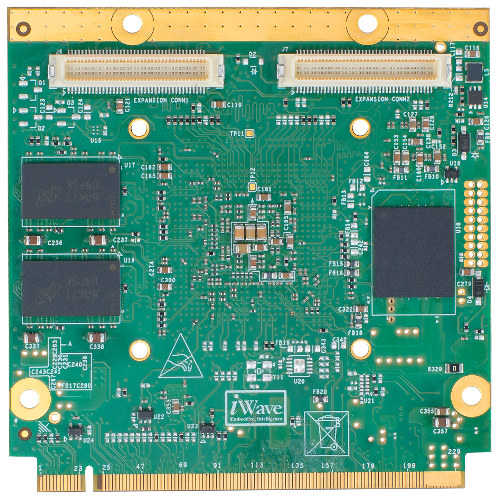

  • Renesas_som_back
    Click to Enlarge

    I/Os via 230-pin Qseven edge connector:

    • Storage – 1x SATA , 1x SDHC
    • USB – 1x USB3.0 host, 2x USB 2.0 hosts, or 1x USB 2.0 device
    • Display – 1x LVDS
    • Connectivity – 1x Gigabit Ethernet
    • Audio – 1x I2S Audio
    • 2x PWM, 2x I2C, SPI, CAN, UART, GPIOs
    • 1x PCIe (multiplexed with SATA)
    • JTAG or UART Console
  • Other expansion connectors:
    • 80-pin header 1 with
      • 24bpp RGB LCD or 16Bit Camera interface
      • 24Bit Camera or dual 8Bit Camera interface
      • 1x UART
    • 80-pin header 2 with
      • Memory bus interface (16-bit sync/async)
      • 1x CAN
      • 1x SSI/I2S for audio
      • 2x UART Port or 1x UART + 1x SPI
      • 2x PWM + GPIOs
  • Power Supply – 5V @  2A input through Qseven edge connector
  • Dimensions – 70mm x 70mm (Qseven 2.0 form factor)
  • Temperature Range – -40°C to +85°C Industrial

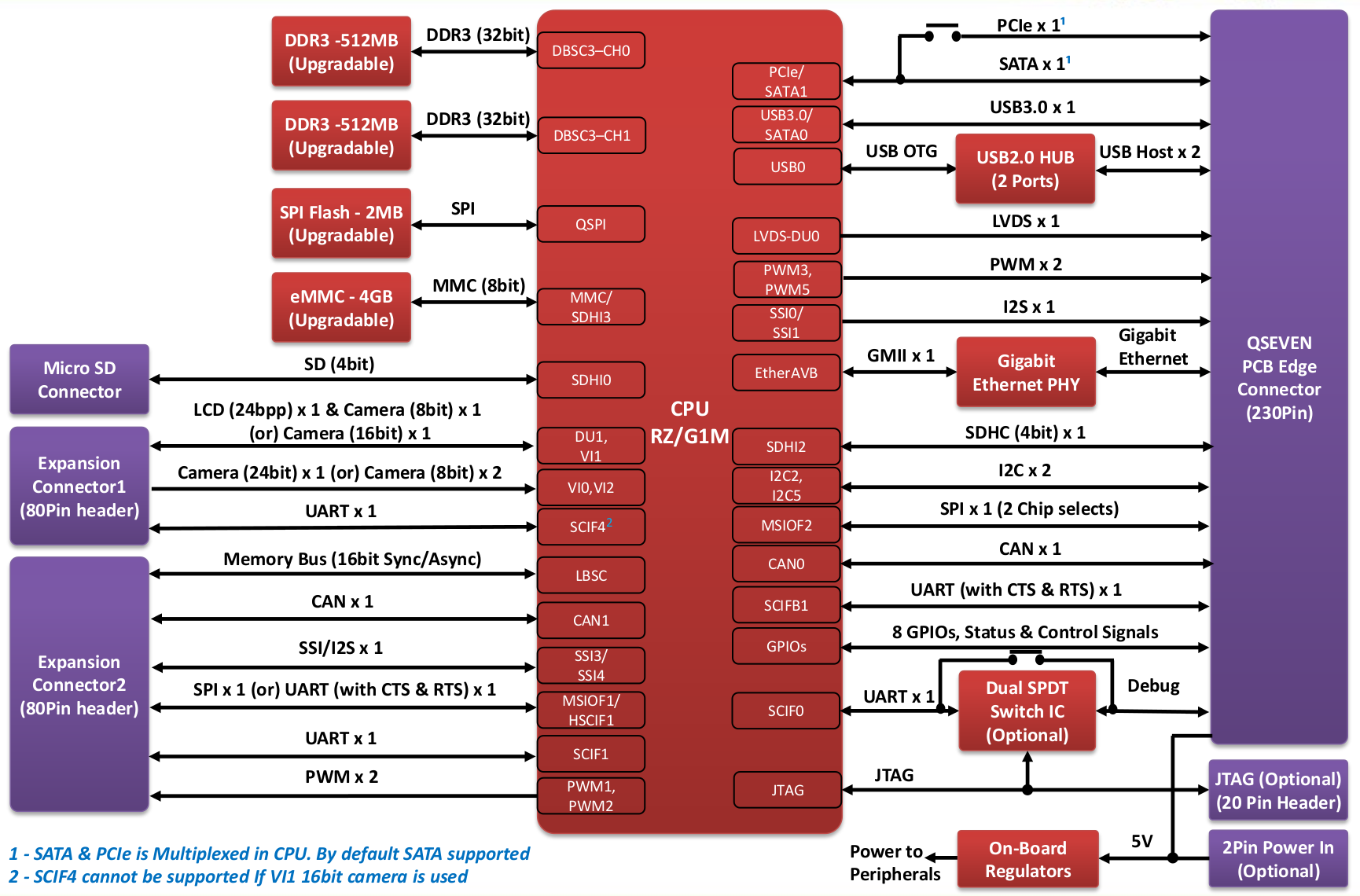

Block Diagram (Click to Enlarge)
Block Diagram (Click to Enlarge)

The module supports Linux 3.10.31, the company will provide BSPs and user’s manual for the Renesas module, and an optional RZ/G1M Qseven development kit is also available, and based on the company’s generic Qseven carrier board that supports both Qseven edge connector and the two non-standard 80-pin expansion connectors.

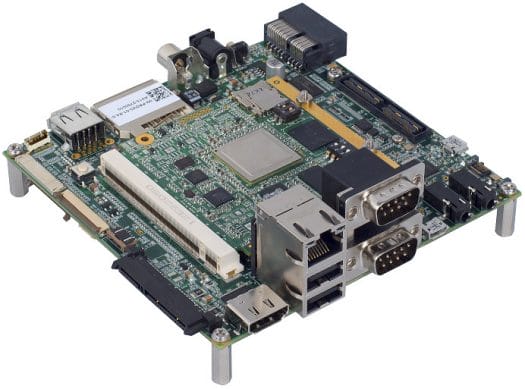

iWave Systems' generic Qseven Carrier Board with RainboW Q7 SoM
iWave Systems’ generic Qseven Carrier Board with RainboW Q7 SoM

Pricing and availability information is not publicly available, but you can request a quote for your project on RZ/G1M Qseven Module product page.
