802.11ax WiFi Aims to Deliver Higher Throughput (Up to 10 Gbps), Better Handle High Density Scenarios

802.11ax WiFi, also known as High-Efficiency Wireless (HEW), aims to improve the average throughput per user by a factor of at least 4 times in dense user environments, with a total bandwidth of 10 Gbps over 2.4 and 5.0 GHz . The new standard is still work in progress and is expected to be published in 2019.

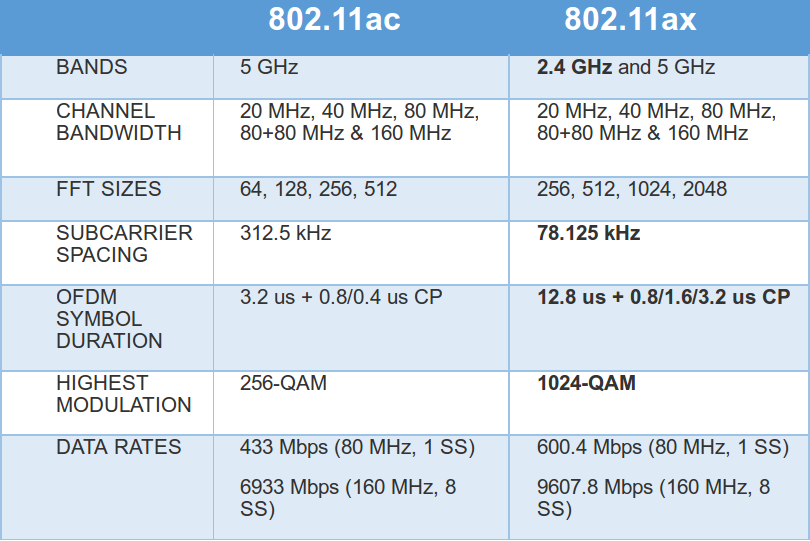

802.11ac_vs_802.11ax

802.11ax WiFi key features include:

  • Backwards compatible with 802.11a/b/g/n/ac
  • Increase 4x the average throughput per user in high-density scenarios, such as train stations, airports and stadiums.
  • Data rates and channel widths similar to 802.11ac, with the exception of new Modulation and Coding Sets (MCS 10 and 11) with 1024-QAM.
  • Specified for downlink and uplink multi-user operation by means of MU-MIMO and Orthogonal Frequency Division Multiple Access (OFDMA) technology.
  • Larger OFDM FFT sizes (4x larger), narrower subcarrier spacing (4x closer), and longer symbol time (4x) for improved robustness and performance in multipath fading environments and outdoors.
  • Improved traffic flow and channel access
  • Better power management for longer battery life

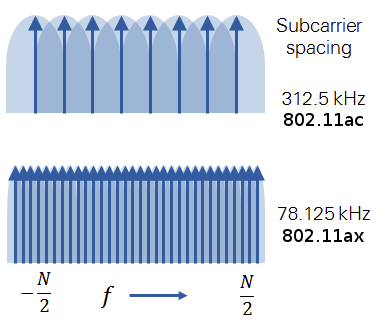

802.11ax_vs_802.11ac_subcarrier_spacing

So 802.11ax looks particularly suited to public space and WiFi in buildings, but if you live in the countryside or other low population density areas, it may not bring that much benefit over 802.11ac. You can read more about 802.11ax in National Instruments’ white paper, where they also mention software and equipment that can be used to work with the upcoming 802.11ax such as WLAN Measurement Suite and PXI RF Vector Signal Transmitter (VST). You can also visit IEEE 802.11ax page.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

2 Replies to “802.11ax WiFi Aims to Deliver Higher Throughput (Up to 10 Gbps), Better Handle High Density Scenarios”

  1. “Higher Throughput (Up to 10 GBps)…”
    i think you mean Gigabits as per lower down…

    that being said, what interface will these products actually use to sustain that kind of throughput ? USB3.1 perhaps… its all in the details OC

    1. PCI Express. For a laptop, a mini-, and desktop a regular-, PCIe x1 card is capable of 7,880mbps at current v3 revision. v4 will double that and v5 redouble it. If you use a x4 card you get 31,520mbps at v3. The bandwidth is there!
