Broadlink RM Mini 3 is a $10 WiFi IR Blaster for Home Automation

Orange Pi Development Boards

Many electrical appliances such as TVs, air conditioners, heaters, and so on are still controlled using an infrared remote control, but as more and more people are getting used to their smartphone to control pretty much everything, devices such as Xiaomi Mi Smart Remote Center that allows to control IR appliances with ANdroid or iOS mobile are starting to come to market. However during my Smart Remote Center review, I noticed that the app was only available in Chinese, and that it was not quite able to perform all the tasks I wanted (e.g. multiple IR codes programming). There’s now a cheaper and small device available in the form of Broadlink RM Mini 3 “Black Bean” that sells for just $9.88 including shipping, and whose app supports not only Chinese, but also English, Russian, Japanese, and other languages.

Broadlink_RM_Mini_3Broadlink RM mini 3 specifications:

  • WiFi – 802.11 b/g/n @ 2.4 GHz
  • IR – 38 KHz frequency; omni directional (6 transmitters); 12 meters range; 1x IR receiver for learning function
  • Misc – Reset button, power LED
  • Power – 5V/500 mA via micro USB port
  • Power Consumption – Less than 0.85W in standby mode
  • Dimensions – 55 x 55 x 64.5 mm
  • Weight – 75 grams
  • Temperature Range – 0~50 degrees Celsius

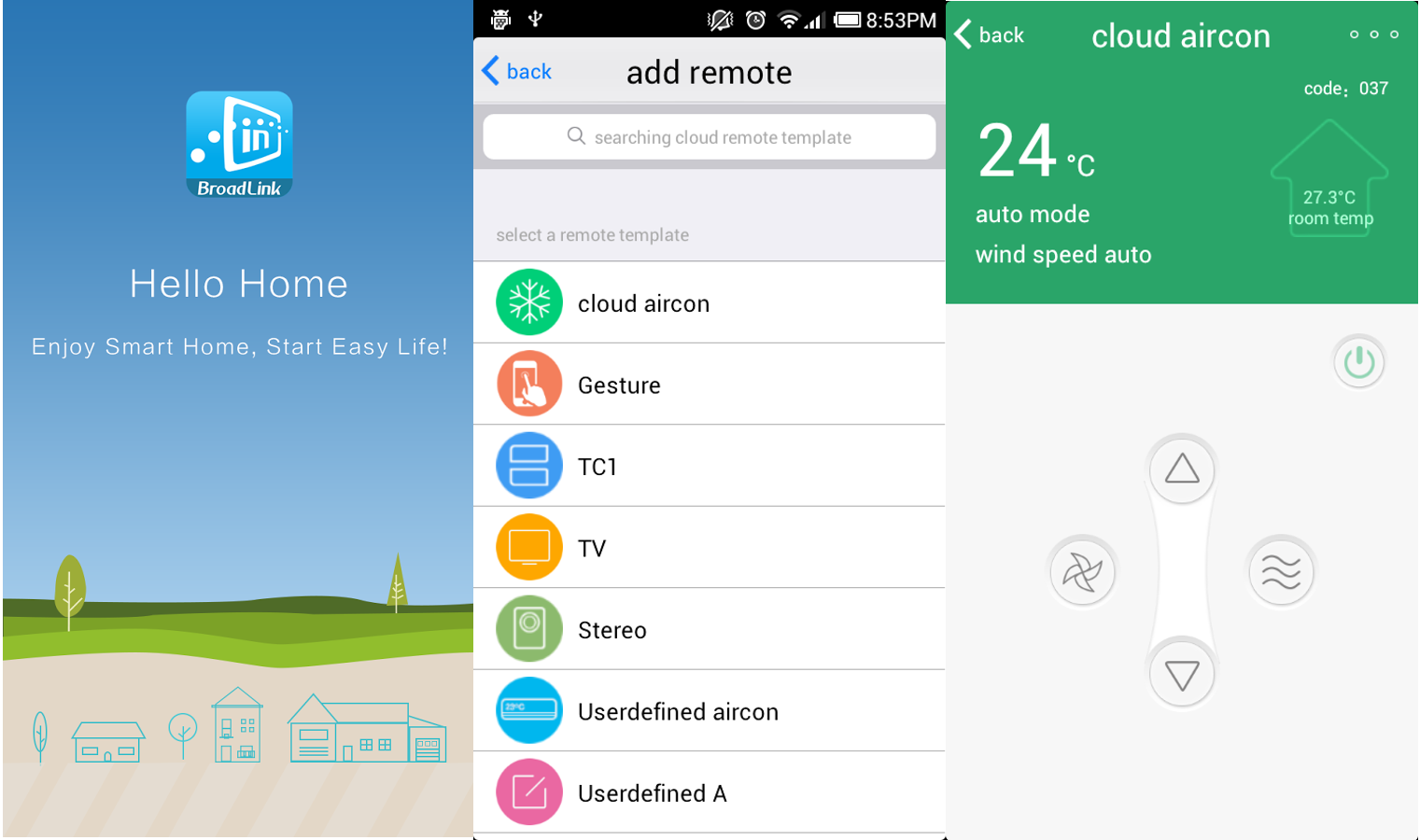

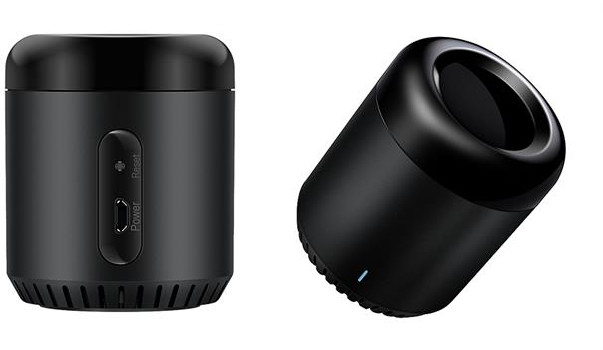

Broadlink_IR_BlasterThe device can be controlled and configured using Broadlink e-Control app for iOS 7.0 or greater, or Android 4.0 or above. You’ll be able to select a remote from a list of device or make the device learn your appliances’ remote control, and then control the said appliances via your smartphone manually or through timers. There’s also a function for “healthy sleeping” that automatically adjust your aircon temperature at night, and devices can be controlled from anywhere as long as you have an Internet connection.

Click to Enlarge
Click to Enlarge

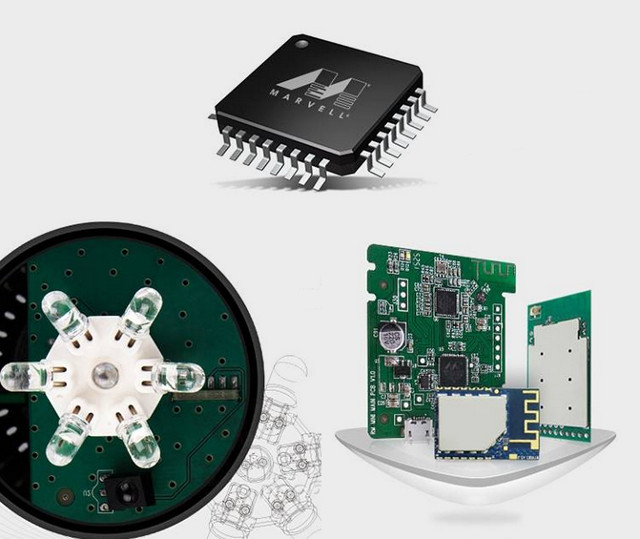

Considering the low price, I was expecting the solution to be based on ESP8266 processor, but instead Broadlink has gone with Marvell just like in Xiaomi Smart Remote Center.

Broadlink_Marvell_WiFi_IR_Blaster
Beside Banggood, Broadlink RM mini 3 also be purchased on GeekBuying, GearBest, Aliexpress, eBay, and other for $12 to $24.

Thanks to Nanik for the tip.

24
Leave a Reply

avatar
21 Comment threads
3 Thread replies
2 Followers

Most reacted comment
Hottest comment thread
16 Comment authors
MichaelMyeahmanSaartaeaJasoneas Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Someone from the other side
Guest
Someone from the other side

I wish someone would build one or these with an open api / sdk

Piotr
Guest
Piotr
mo123
Guest
mo123

It says it has a range of 12m.
Does it require line of site for 1 device or can you use multiple devices in the same room at different angles because I see 6 transmitters?

zoobab
Guest

I thought to do the same with an ESP.

Problem is to find a good database of remotes, with their associated keys.

I have lost some remote controls, or got some second hand hardware because the remote was lost.

But those devices are unusable without the remote.

Iridiumsat
Guest
Iridiumsat

If appliances does not support discrete infrared codes, it will get into a trouble when appliance power state is unknown.

This is an infrared control issue that have to concern from the beginning.

Drone
Guest
Drone

Can anyone explain why any of the below Android permissions are needed for a device like this? If it claims to allow you to control devices: “from anywhere as long as you have an Internet connection”, then it must rely on a server somewhere in the “Cloud”, right?. What’s to prevent someone else from controlling your devices from anywhere?

Permissions:

Device & app history

* retrieve running apps
* read sensitive log data

Location

* precise location (GPS and network-based)
* approximate location (network-based)
* access extra location provider commands

foday b
Guest

Yes u can control it from any where.
Through the cloud. Because it has wifi built in. So when u control it from the cloud it send the signal through the infrared to the tv go example.

hogar315
Guest
hogar315

Do you think that is better That RM Mini 3 or RM 2 Pro?
Do you know some other brands that got something like that under $50?
Thanks!

Harley
Guest
Harley

Would be cool if this worled out-of-the-box with Domoticz & OpenHAB (free and open source home automation software)

rasz_pl
Guest
rasz_pl

>I think many Chinese app developers don’t really care that much about permissions

oh they do care very much, part of the business model is trading data exfiltrated from userbase

eas
Guest

rasz_pl :
>I think many Chinese app developers don’t really care that much about permissions
oh they do care very much, part of the business model is trading data exfiltrated from userbase

Same as a lot of “western” app developers then?

eas
Guest

Drone :
[…]
Location
* precise location (GPS and network-based)
* approximate location (network-based)
* access extra location provider commands

Well, in the abstract, location information could be very useful for displaying controls for the right devices, depending on which room/location you are in. Of course, it seems unlikely that you’d get much precision indoors, unless these permissions cover checking on a low-power bluetooth or WiFi beacon. Without that, I’d think location would only be useful if you had one of these at home, and another at an office, etc.

Jason
Guest
Jason

“you can control it from anywhere..” I installed it and am only able to control it if connected to the same network. Kind of defeats the purpose…

Saartaea
Guest
Saartaea

did you try to link and connect through google home, alexa or another home control service app?

yeahman
Guest
yeahman

beware: the broadlink rm3 (and I think other RM versions too) used IR frequency 38Khz .. so some devices might not work with it…. ex. my satellite stb which uses 56Khz and I bought the broadlink rm3 to remotely control my STB… FML

MichaelM
Guest
MichaelM

You know any that is based off ESP devices? I’d rather hack one of those than have another dev environment setup.
