PSF-A85 is a $2 ESP8285 WiFi Board for IoT and Wearables

Last month, we found out that Espressif has made a smaller version of ESP8266 targeting wearables called ESP8285, but the only development board available at the time was quite more expensive than usual at about $25. ITEAD has now released an ESP8285 module with some I/Os and an IPEX connector which they sell for just $1.99 + shipping.

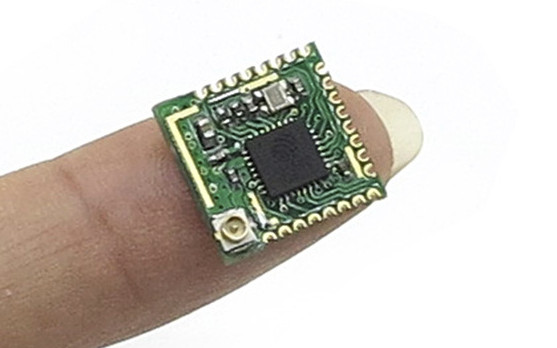

ESP8285_WiFI_Module

PSF-A85 specifications:

  • SoC – Espressif ESP8285 Tensila WiFi SoC @ 80/160 MHz with 1MB flash
  • Connectivity
    • WiFi 802.11 b/g/n/d/e/i/k/r with support for STA/AP/STA+AP modes, WPA/WPA2 PSK and WEP security
    • Antenna – IPEX connector (antenna not included) or “stamp hole interface”
  • Expansion – 24-pin with GPIO, PWM, UART up to 460800 bps, SPI, ADC,
  • Power Supply – 3.3 V
  • Dimensions – 13.7 x 13.4 mm
Click to Enlarge
PSF-A85 Schematics – Click to Enlarge

More technical information include the schematics (PDF only) and ESP8285 datasheet can be found in the Wiki, which sadly does not contain any software / getting started information, but those should be the exactly same as for ESP8266.

Thanks to Nanik for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
5 Comments
oldest
newest
Mario
Mario
8 years ago

Onboard power supply or you.need.to use your own one?

Mario
Mario
8 years ago

I wished they were already on the board :c

A man can dream, though

paul
paul
8 years ago

If its for Wearables, then one might assume it can run off a tiny battery, and thus take little current – both peak, and average. The Datasheet gives Typical current only. Does anyone know the max peak current ?

paul
paul
8 years ago

@paul
Just seen in the Wiki, enough consumption data given.
