How to Set an Android TV Box Video Output to Portrait Mode

Most buyers who buy an Android TV box just want to use it to watch videos, browse the web, play games, and so on, so landscape mode seems to be the best choice, and orientation option in the firmware is often disabled. However, TV boxes can also potentially be used as digital signage players, which may require landscape or portrait modes if the screen is positioned vertically. Since I’ve just been asked that question, I’ve checked for a solution, and luckily there’s an app called Set Orientation that does the job.

Click for Original Size
Click for Original Size

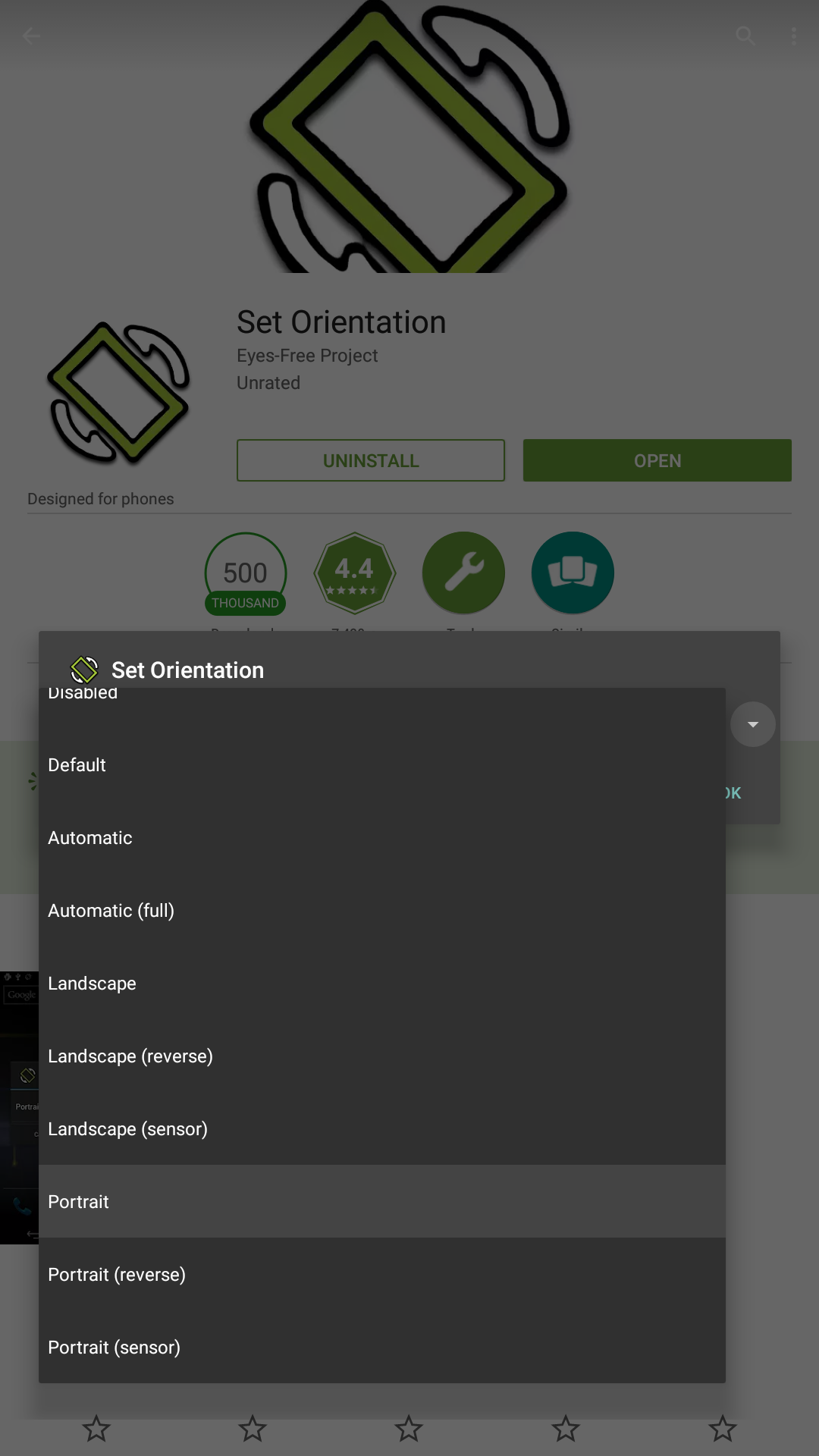

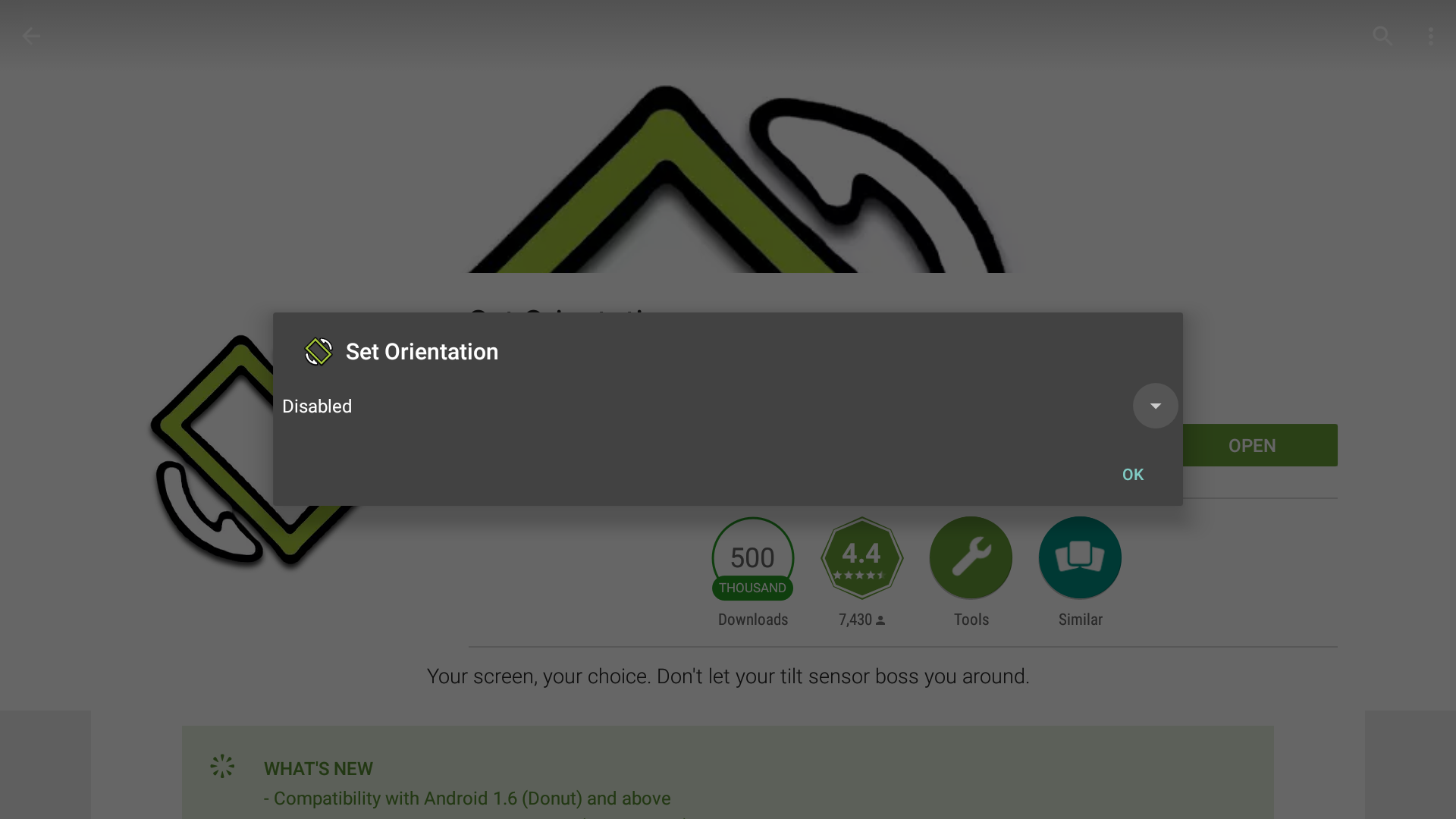

When you first start the app, it will show the option “Disabled”, but you can click on the arrow to reveal more options, and select Portrait to rotate the screen.

Click for Original Size
Click for Original Size

In case the screen is upside down, simply select Portrait (reverse) option, click OK, and you’re done! Easy.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

18
Leave a Reply

avatar
16 Comment threads
2 Thread replies
5 Followers

Most reacted comment
Hottest comment thread
17 Comment authors
AndroidTVBoondoggleAnujdebasishtessHarshad Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Teiko
Guest
Teiko

Original Android is made for phone and tablet and always support portrait. But many firmware for TV box has patch to force landscape. Some have settings to disable force.

But .. big problem: for portrait video play, 1. VPU must support hardware decode of reverse width*height in 2K or 4K and 2. VPU postprocessor must bufffer and rotate VPU output.

Chips with no PP cannot play natural oriented portrait video. Many manufacturers going away from tablet market and drop postprocessor. Check before buy!

debasish
Guest
debasish

How can we do any suggestion

Victor
Guest
Victor

On my Ugoos UT3s this function implemented in firmware in video settings. And it works just fine

Jibril
Guest
Jibril

I use Adaptive Rotation Lock on Android x86 to force or avoid screen’s rotation.

gencap
Guest
gencap

I’ve used that app to fix broken sensors orientation in Android x86 on my Acer Switch 10 (90 degrees mis-rotated) before I recompiled the source with some patched lines.
Anyway, nice and simple app with no frills.

Jack
Guest
Jack

I have a MiniM8S and can’t change the screen orientation using the app described above… Is Tieko right, do only some Android boxes now support portrait mode? I used to use Minix Mini Neo X5 and had to flash a different ROM to enable this feature. Is this possible with the MiniM8S?

Robert
Guest

The i68 does not work. The V88 has a System Settings > Display > Rotate the contents of the screen that gives the options of 0, 90, 180 and 270 degrees and works fine.

ZahJani
Guest

Thank you for the great information. I was looking for it.

Hartley
Guest

Hi have purchased several HiMedia H8 media players at Samsung Canada’s Suggestion. I need them to run in portrait mode for digital signage. I have downloaded this Set Orientation app and set it to portrait and it is not working. Any idea why? Is there something more I need to do? There is an additional situation the screens I am using do not even have a Portrait Mode so I am stuck.

Thank for any help\

MAx
Guest
MAx

@Teiko
Do you know a set top box that support portrait mode.

Bob Snelgrove
Guest
Bob Snelgrove

My new beelink GT-1 with android 7.1 has all play stor installed apps sideways (landscape) My GT-1 with android 6 was fine.

Side loaded apks are fine. I’ve tried auto rotate in accessability but it doesn’t work.

Any ideas?

bob

Krishan kumar arora
Guest
Krishan kumar arora

I recently purcased online s912 octva andriod tv box please intimate me how to set vedio in portrait mode

to set

Harshad
Guest
Harshad

By using the above mentioned application when i rotate my screen to portrait mode in my MXQ pro 6.0.1 i am getting a error that, “Unfortunately, system UI has stopped”

Any suggestion?

tess
Guest
tess

that stupid app is not even showing install option while trying to install it.

Anuj
Guest
Anuj

Hi, this can done, rotation is just a property that is disabled in TV Boxes, so no need to worry, just check if your Device is Rooted,

1) install the RootBrowser App
2) Go to the Systems Folder, in there you will
3) find a file named build.prop,
4) Open the file in any editor and edit the line with the property (any of these three properties will be there depending on the firmware)
– ro.sf.disabledrotation=1 (change the value to zero to enable rotation) ,
– ro.sf.disablerotation=false(change value to true),
– ro.sf.hwrotation=0 to (any of the values 0,90,180,270,360) ,

5) After making the edit go back it will prompt to save the file, once saved you are done.
6) Now just restart the machine once
7) install a Rotation App you are done , now your android TV box can rotate however you want.

I have used and tried it in an Rockchip,Allwinner and Amlogic based boxes here and all of them have a mix of these properties or any one of these properties in the system/build.prop file.

So yes rotation in any TV Box is easily possible.

AndroidTVBoondoggle
Guest
AndroidTVBoondoggle

This is not true. Android v7+ has removed the ability for Android TVs to be set in portrait mode. Boxes must first stay below Android 7 and then have firmware that allows portrait / can be rooted and changed accordingly. This was bad advice that lead me down the wrong path.
