Renesas SK-RZG1M Board Powered by R8A7743 Processor Gets Mainline Linux Support

Another board has gotten initial mainline Linux support recently, with Renesas SK-RZG1M starter kit board based on Renesas RZ/G1M dual core ARM Cortex A15 SoC with 2GB RAM, a SATA interface, HDMI, LVDS, AV Ethernet bridge, and more.

Click to Enlarge
Click to Enlarge

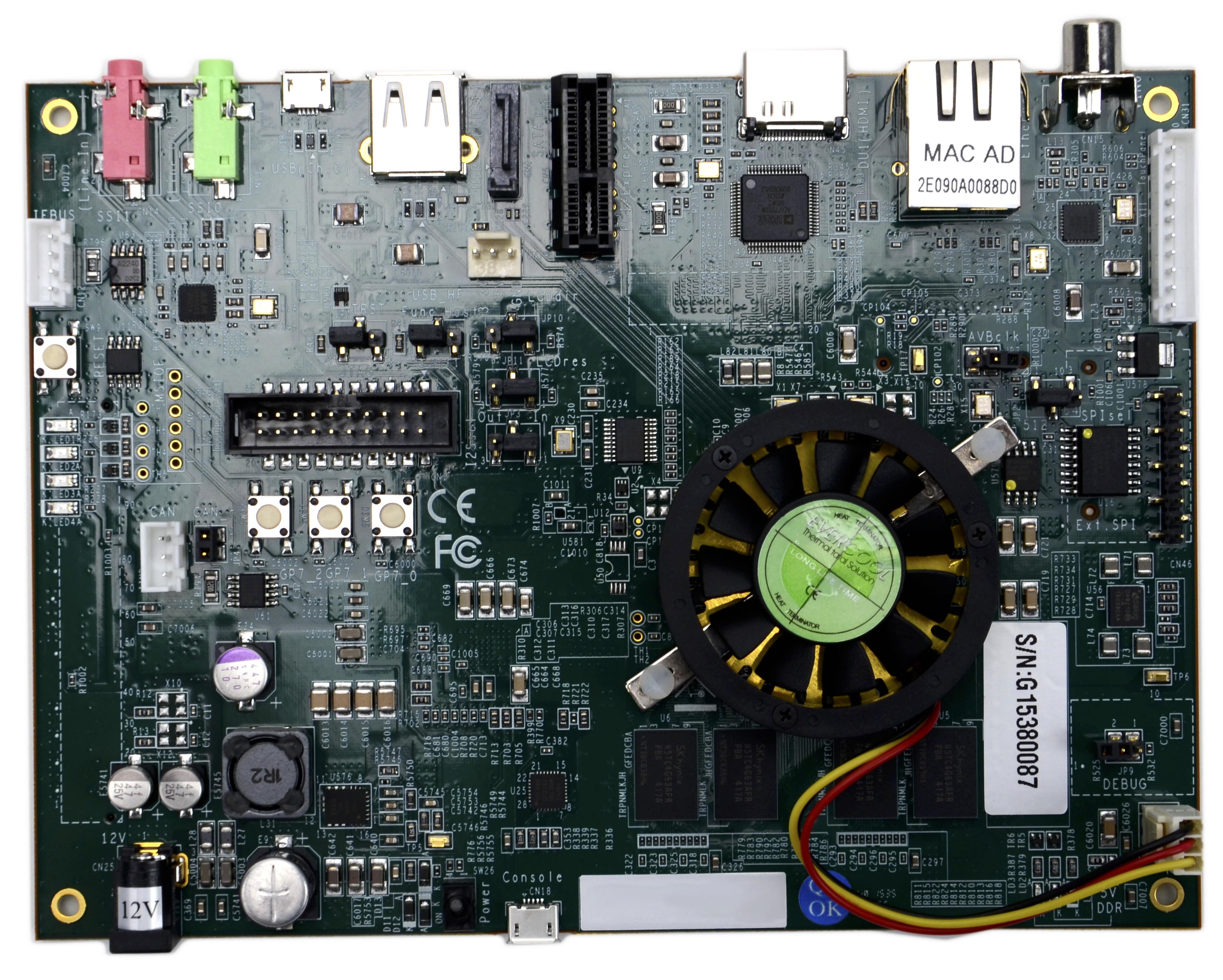

Renesas SK-RZG1M starter kit board actually has the exact same features as Renesas R-Car M2 Porter board except for the processor:

  • SoC – Renesas RZ/G1M (R8A7743) dual core ARM Cortex-A15 processor @ 1.5­GHz with PowerVR SGX544MP2 3D GPU, Renesas 2D graphics processor
  • System Memory – Dual channel 2GB DDR3
  • Storage – On-board 4 MB SPI, and 64 MB SPI, 1x SATA rev 3.1 connector, 1x SD card slot, and 1x micro SD card slot
  • Video Output / Display I/F – HDMI (via ADV7511), and LVDS + touchscreen
  • Analog Video In – ADV7180 video decoder with RCA jack, NTSC/PAL/SECAM autodetection
  • Audio codec – AK4643EN with 3.5mm jacks for Line In and Line Out
  • Connectivity – 100 Mbps (debug) Ethernet and Ethernet AVB (Auio Video Bridge) connector
  • USB – 1x USB 2.0 port, 1x micro USB port that supports host, device and OTG modes
  • Serial – CAN transceiver
  • Expansion
    • 1x PCI Express x1 slot
    • EXIO connector
  • Debugging – 20-pin JTAG connector, micro USB port for debugging
  • Misc – Power LEDs for 12, 5 and 1.35V, power switch, 3 user buttons, reset button, heatsink and fan
  • Power supply – 12V/5A
  • Dimensions – 170×125 mm

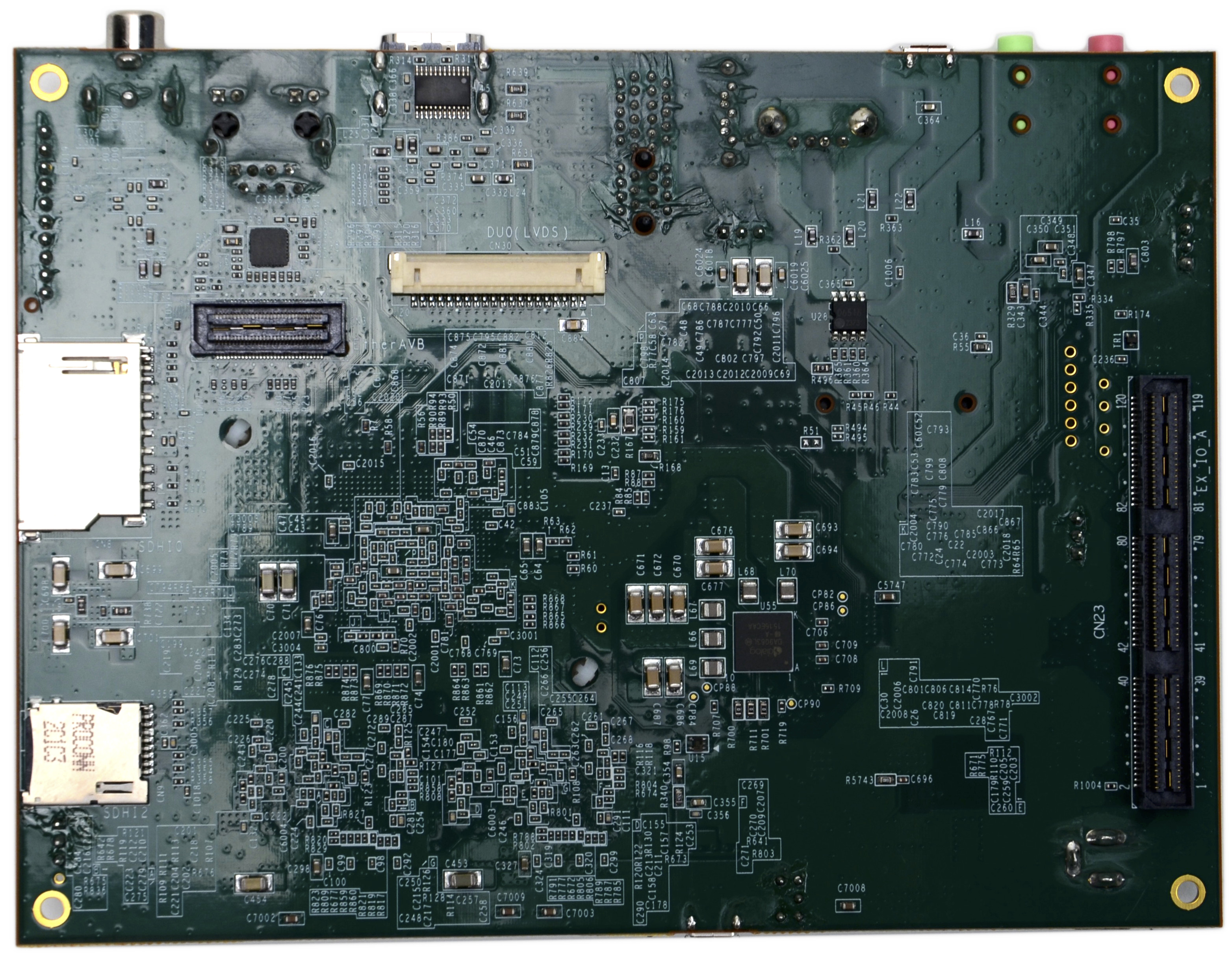

Click to Enlarge
Click to Enlarge

While R-Car M2 porter board and processor are targeting automotive applications, RZ/G1M processors are designed for industrial, home appliance, office and medical equipment, especially for connectivity and human interface applications. So for example, the IEBUS connector is still there, but it’s not documented in the hardware manual, and likely not available. You’ll more more software and hardware technical details about the board in the board’s eLinux wiki.

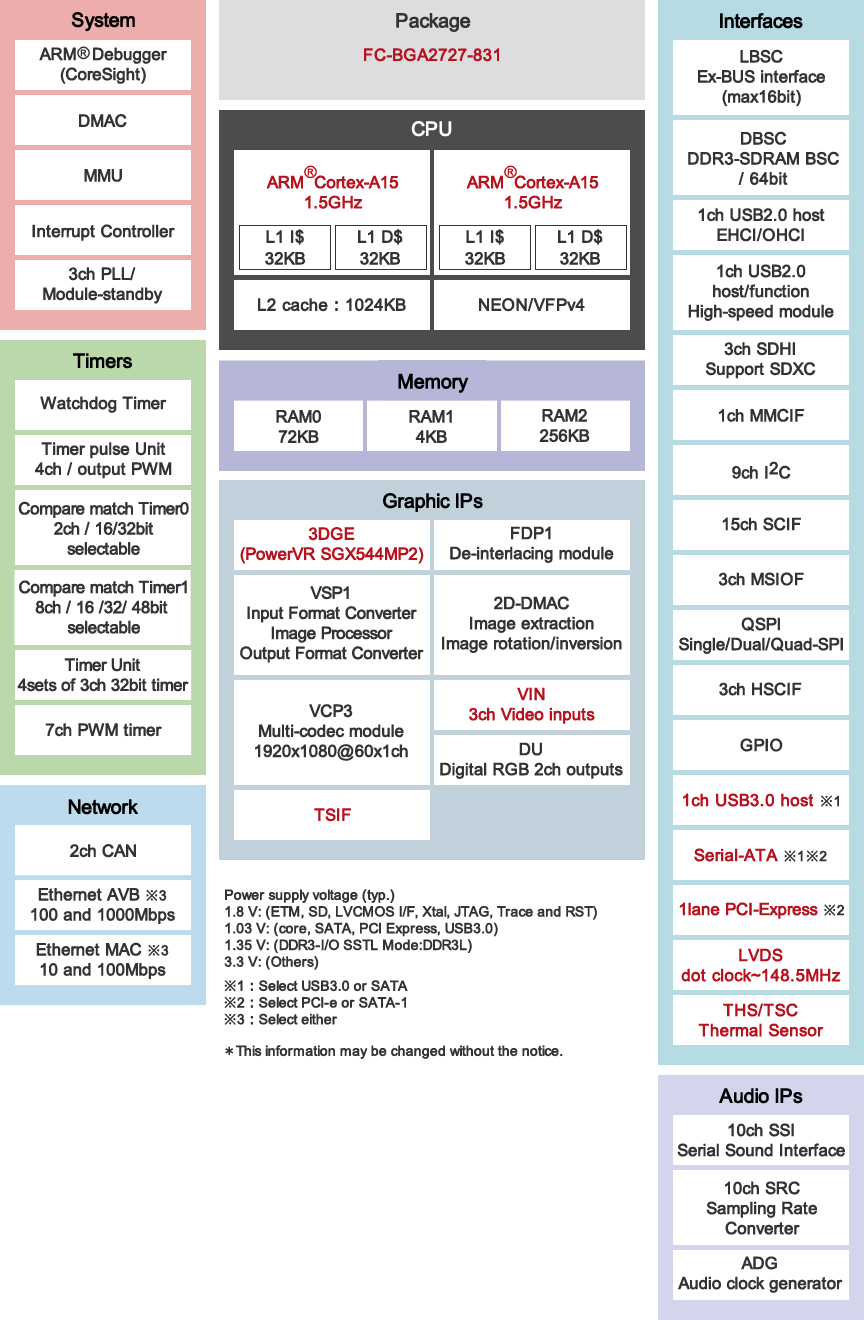

Reneasa RZ-G1M SoC Block Diagram - Click to Enlarge
Reneas RZ-G1M SoC Block Diagram – Click to Enlarge

You’ll also be able to get more details about the processor itself on Renesas RZ/G1M product page.

Renesas SK-RZG1M starter kit board can be purchased for about $400 on Digikey.

Thanks to Nobe for the tip.
