Oh Look… Espressif ESP32 Die-shot! That’s Pretty!

Espressif ESP32 was launched last year as a faster and upgraded version of ESP8266, with a dual core processor, 802.11 b/g/n WiFi and Bluetooth 4.0 LE. Boards based on the processor are still priced much higher than the ones based on ESP8266 ( although we’re only talking about $20 here), and shops have trouble keeping stocks, so either there’s a huge demand, there’s some manufacturing bottleneck, or maybe Espressif wants to take it slow at the beginning in case some hard to find bugs are found in the Silicon. Nevertheless, the guys at Zeptobar got hold of some ESP32 modules, and took some pretty die-shots.

Click to Enlarge

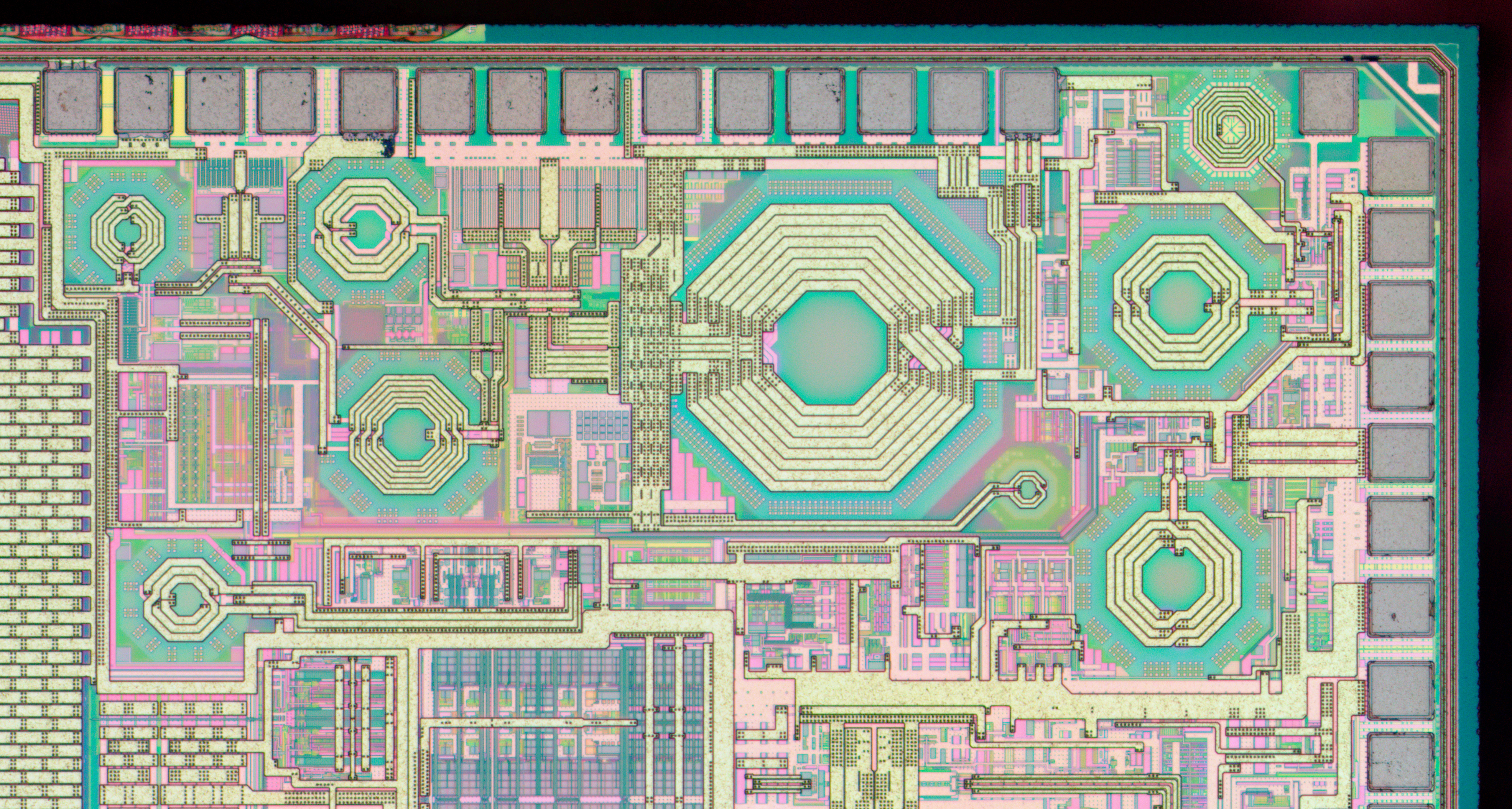

The die size is 2960×2850 µm. The prettiest part is clearly the RF section zoomed in below.

Click to Enlarge

If you wonder how it compares to ESP8266 die-shot, Zeptobar has you covered.

Share this:

Support CNX Software! Donate via cryptocurrencies or become a Patron on Patreon

13 Replies to “Oh Look… Espressif ESP32 Die-shot! That’s Pretty!”

  1. I emailed espressif about why they are short supply, make what you want of the reply . Note high DHL post rate means, really suited to bulk buying.

    Hi Theguyuk,

    Thank you for writing to us.
    ESP32 is a new product and many customers are waiting for it.
    But ESP32, ESP-WROOM-32 module and dev kit(ESP32-DevKitC) for it are available now.And the ESP-WROOM-32 has passed FCC.CE.NCC,IC KCC test already.
    For sampels, ESP32 is 2.2$/set, ESP-WROOM-32 is 3.4$/set, ESP32-DevKitC is 8$/set.
    Shipping cost is covered by your side and the shipping cost is 43$ by DHL to UK.
    If you want to order, please let me know the quantity and PN.Also,your shipping address, zip code, consignee, and phone number.

    BTW, are you individual developer or work for company project? What do you want to design in our product?
    Best regards,
    Notice: We will take Chinese New Year holiday from 27th, Jan. to 2nd Feb. and carriers will not deliver from 25th, Jan.to 2nd Feb. Sorry for the inconvenience, your understanding is appreciated.
    Wish you a Happy New Year.
    杨惜Yang Xi
